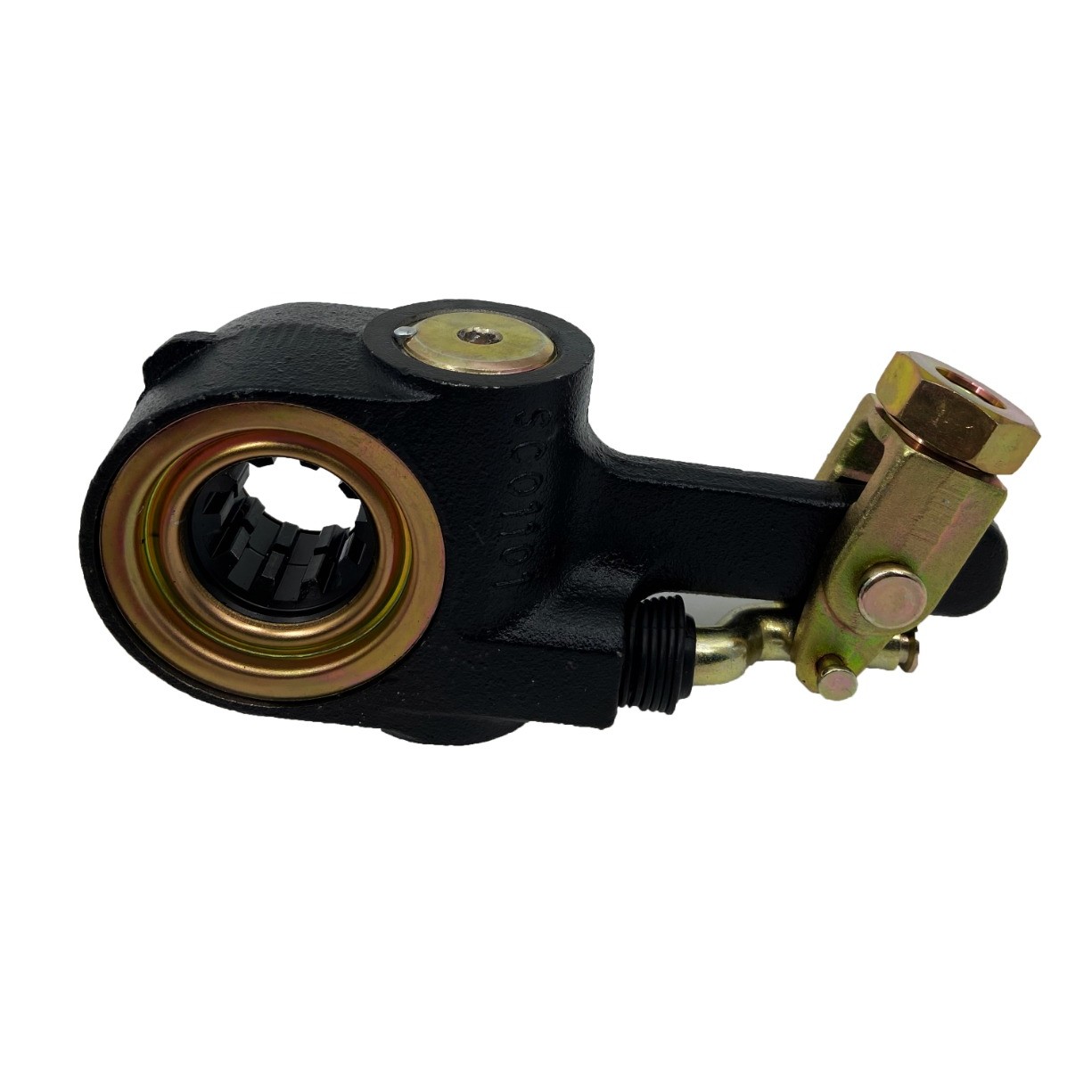

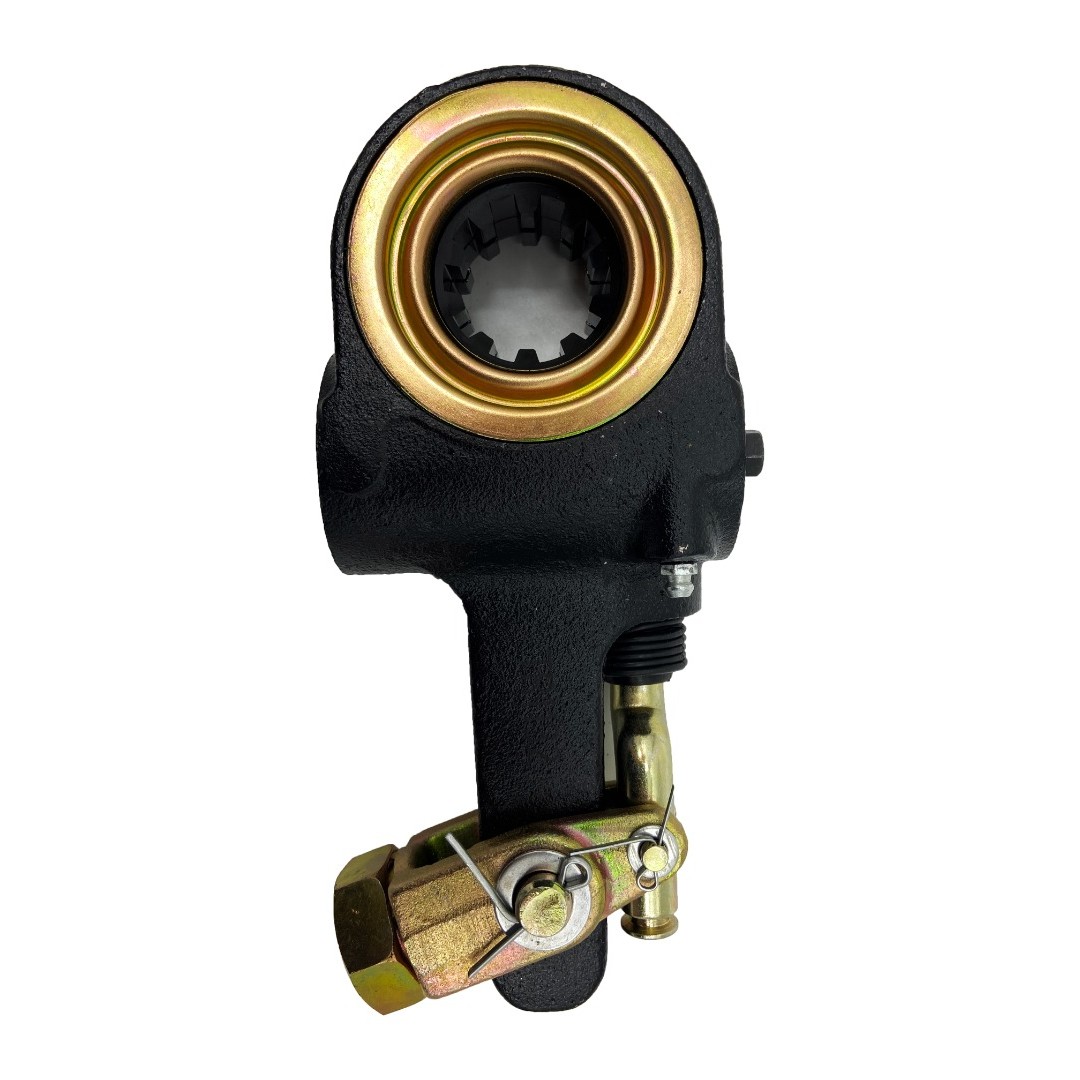

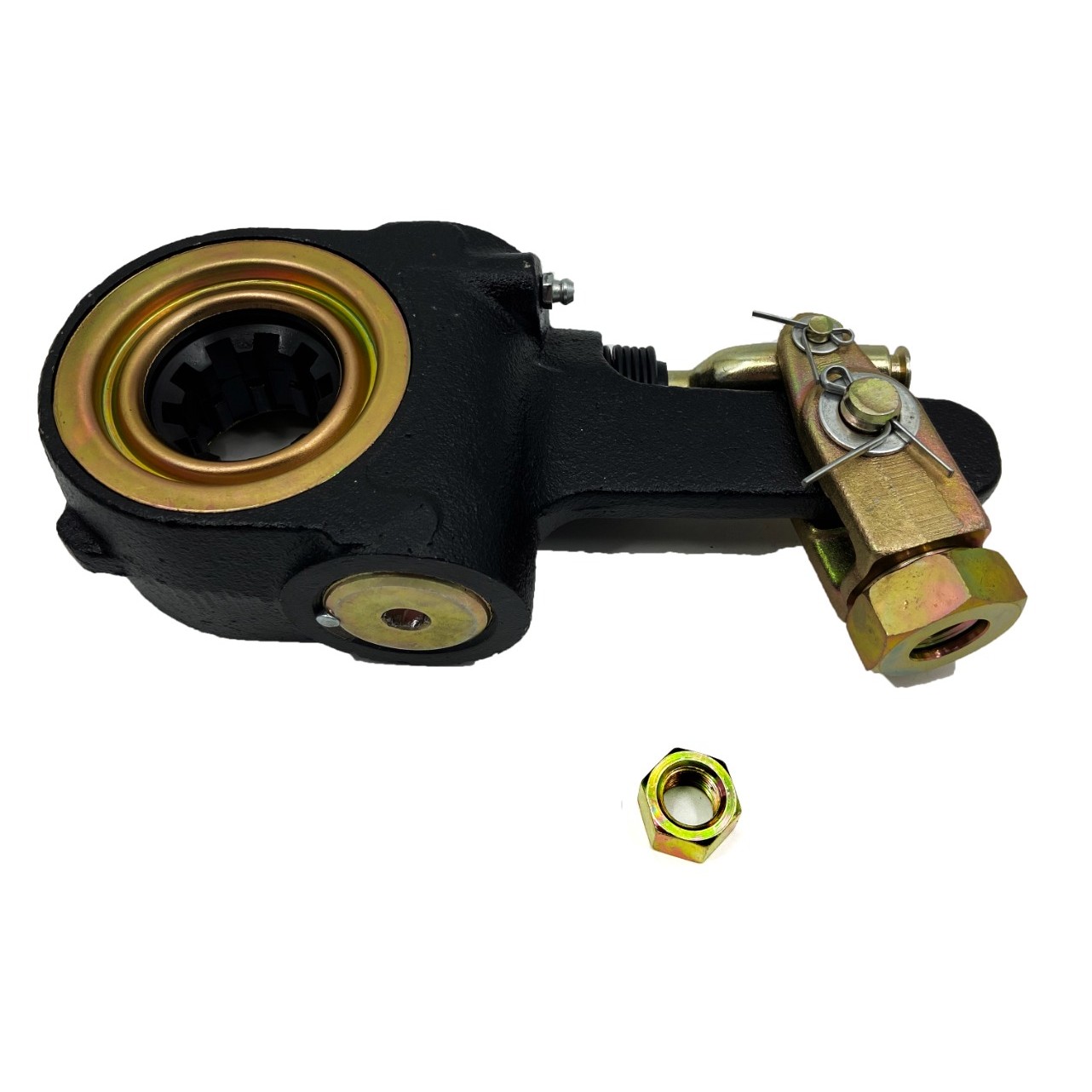

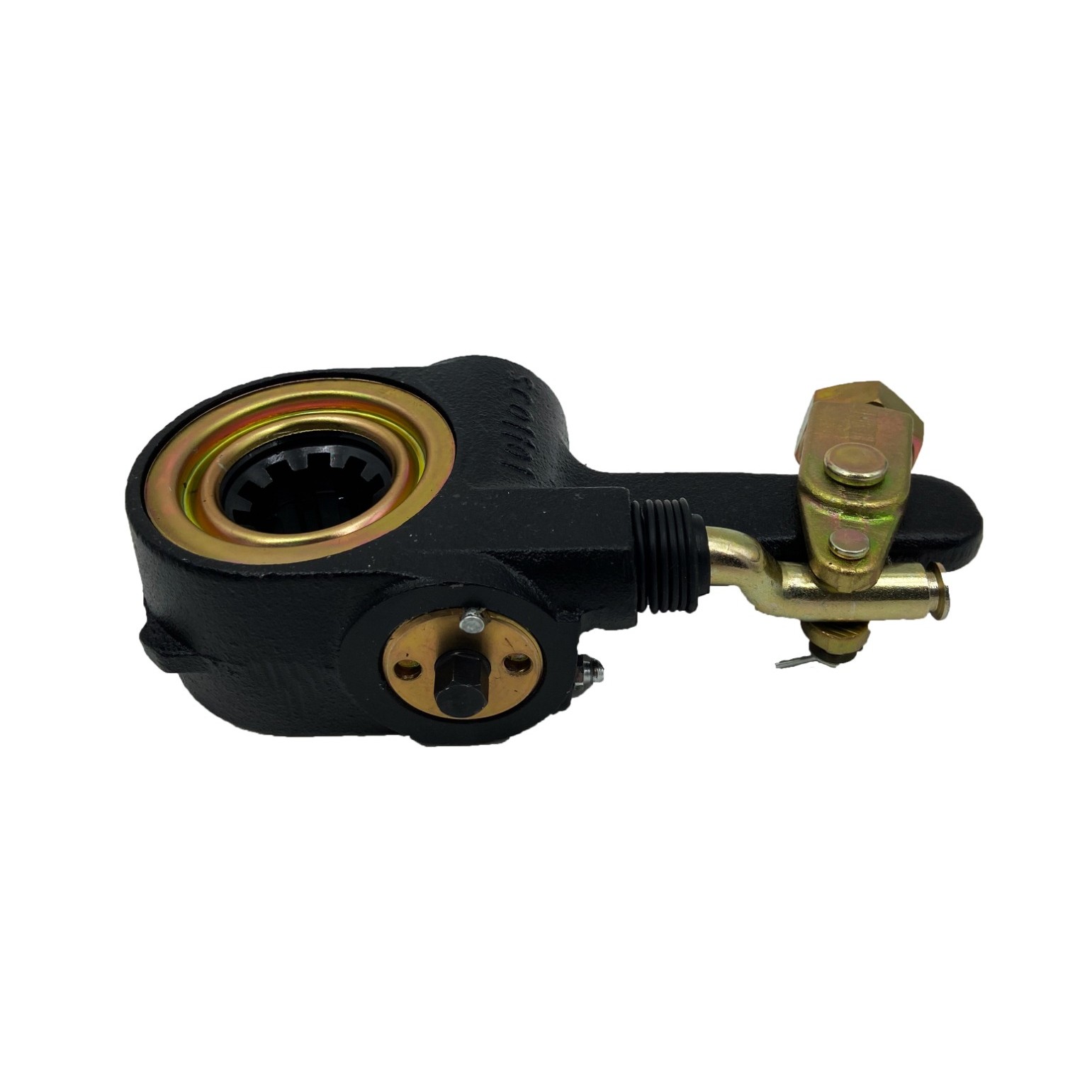

TR1132 | Automatic Slack Adjuster 5.5" Lever 10 Splines 1.5" Diameter
Description : Slack Adjuster Replaces R803195
Part Number : TR1132
5.5" Lever 10 Splines 1.5" Diameter Automatic Slack Adjuster
| Brand | Reference Numbers |
|---|---|
| A. Meritor | R803195, R801041, R801043, R801050, R802290, R802291, R802292, R802293, 802300, R802301, R802302, R802303, R802310, R802311, R802312, R802313, R802314, R802315, R802316, R802317, R802318, R802319, R802320, R802321, R802330, R802331, R802332, R802333, R802667 |
| ACCURIDE Gunite | SA02401, SA06402, SA09902, SA11202, SAS1160, SAS1161, 8060851, AS1132 |
| Arvin M. | A1‑63275H1152S, A1‑3275A599S, A1‑3275N768S, A1‑3275U593S, A1‑3275V1139S, A10‑3275A599S, A10‑3275U593S, A11‑3275U593S, A15‑3275A599S, A16‑3275U593S, A2‑3275Q1083, A2‑3275R1084, A22‑3275N768S, A26‑3275N768S, A3‑3275W1089S, A3‑3275X1090S, A4‑3275W1089S, A4‑3275X1090S, A4‑3780B28, A4‑3780C29, A4‑3780K11, A4‑3780M13, A42‑3275A599S, A42‑3275U593S, A43‑3275A599S, A43‑3275U593S, A49‑3275‑A‑599S, A49‑3275‑U‑593S, A6‑3275‑A‑599S, A60‑3275‑A‑599S, A60‑3275‑U‑593S, A7‑3275‑N‑768S, A7‑3275‑U‑593S |
| Automann | 138.1011, 139.1031 |
| Bendix Corporation | 65170, 65700, 106195, 106205, 107103, 107106, 107176, 107262, 107273, 107297, 107995, 107999, 108647, 131026, 289654, 289655, 289746, 289747, 289748, 289749 |
| Crewson Industries | CB21102, CB21182, CB21952, CB41100, CB41180, CB71100, CI21102, CI211A2, CI41100, CI411A0, CI71100, MK21102S, MK41100S |
| Dana Corporation | 801353, 813246, 813247, 815790, 815801, 974294, M16WR1333 |
| Eagle | 52510, 52512 |
| Euclid | E11398, E11398A, E15051, E‑10780A, E‑10786A, E‑10892, E‑11398, E‑11409, E‑11410, E‑11411, E‑11412, E‑11426, E‑294K, E‑6903, E‑6903A, E‑6908, E‑6909, E‑6915, E‑6940, E‑6941, E‑6992, E‑6992A |
| Freightliner LLC | GUN AS1132, GUNSA099 02 |
| Gunite | AS1168 |
| H.B.S ‑ Midland | CS52316, CS52346, CS52354, CS52362, CS56006, CS56032 |
| Haldex Brake Systems ‑ M. | 400‑10630, 400‑20228, 400‑20236, 400‑20238, 400‑20239 |
| Haldex Brake Systems ‑ Midland | KN47011, KN52230, KN52231, KN52232, KN52233, KN52234 |
| IHC | ZBRAS1132 |
| Mack | 25QD419 |
| Mack & Volvo | 25QD51P2, 3398‑AS1132, 10480701, 8084129 |
| Mack Trucks Incorporated | 03‑06008 |
| Meritor | A163275H1152S, R801041, R803195 |
| North America | 76401‑0134, 76401‑3455, 76401‑3498, 76401‑3505, 76401‑3805, 6814205738 |
| Sloan | 2020 |
| Property | Value |
|---|---|
| Weight | 7.5lbs |
| Slack Type | Automatic |
| Spline Count | 10 |
| Spline Diameter | 1.5 Inches |
| Arm Length | 5.5 Inches |
