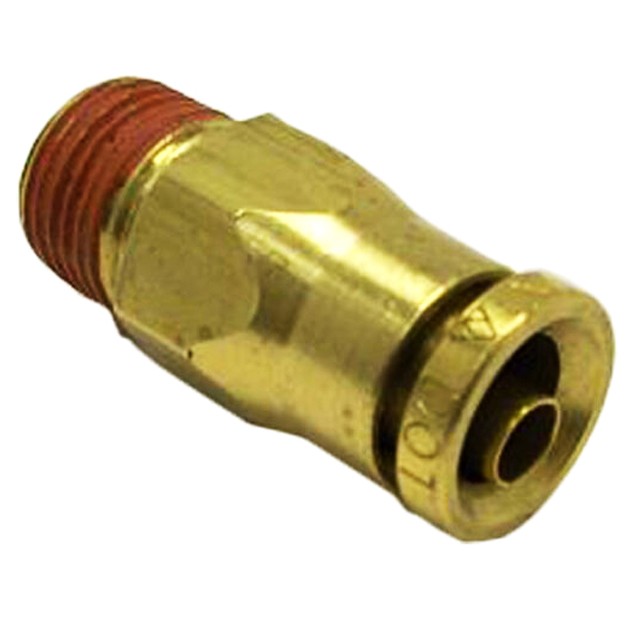

TR14SF18 | Push in Brass Air Male Fitting Straight 1/4" O.D. 1/8" I.D.
Description : Push in Brass Air Male Fitting Straight 1/4" O.D. 1/8" I.D.
Part Number : TR14SF18
Push in Brass Air Male Fitting Straight Connector
| Property | Value |
|---|---|
| Type | Male Connector |
| Tube O.D. | 1/4 in. |
| Pipe | 1/8 in. |
| Temperature Range | ‑40 to 225 ∫F |
| Threads | NPTF Standard |
| Recommended Tubing | J844 Air Brake Tubing |
| Working Pressure | The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing. |
| Note | Meets D.O.T FMVSS 571.106 and SAE J1131,<wbr> SAE J2494‑1 and SAE J2494‑3. |
| Note | Pre‑applied thread sealant (Loctite 516) on male pipe threads. |
| Note | DOT approved so air tubing won't loosen. |
