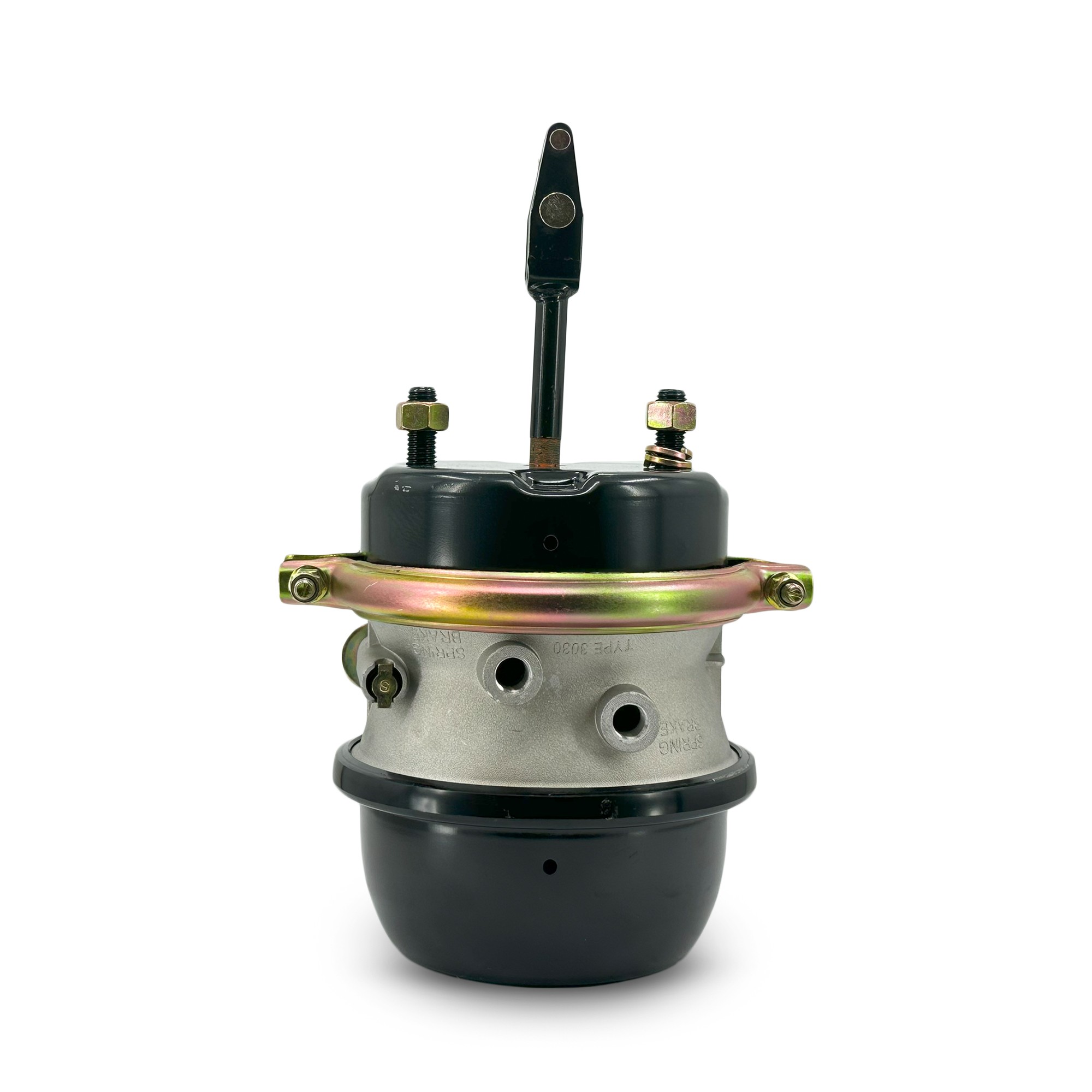

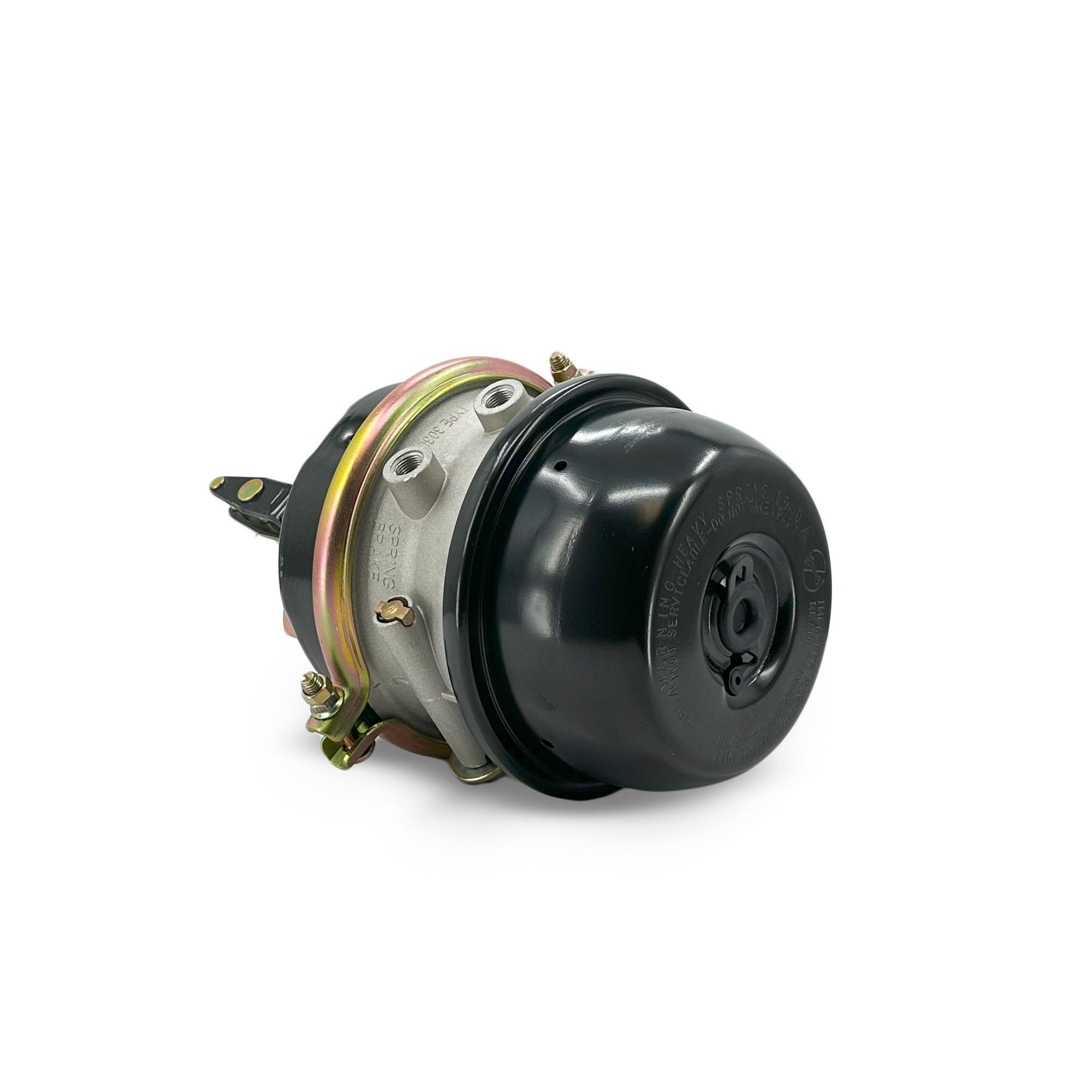

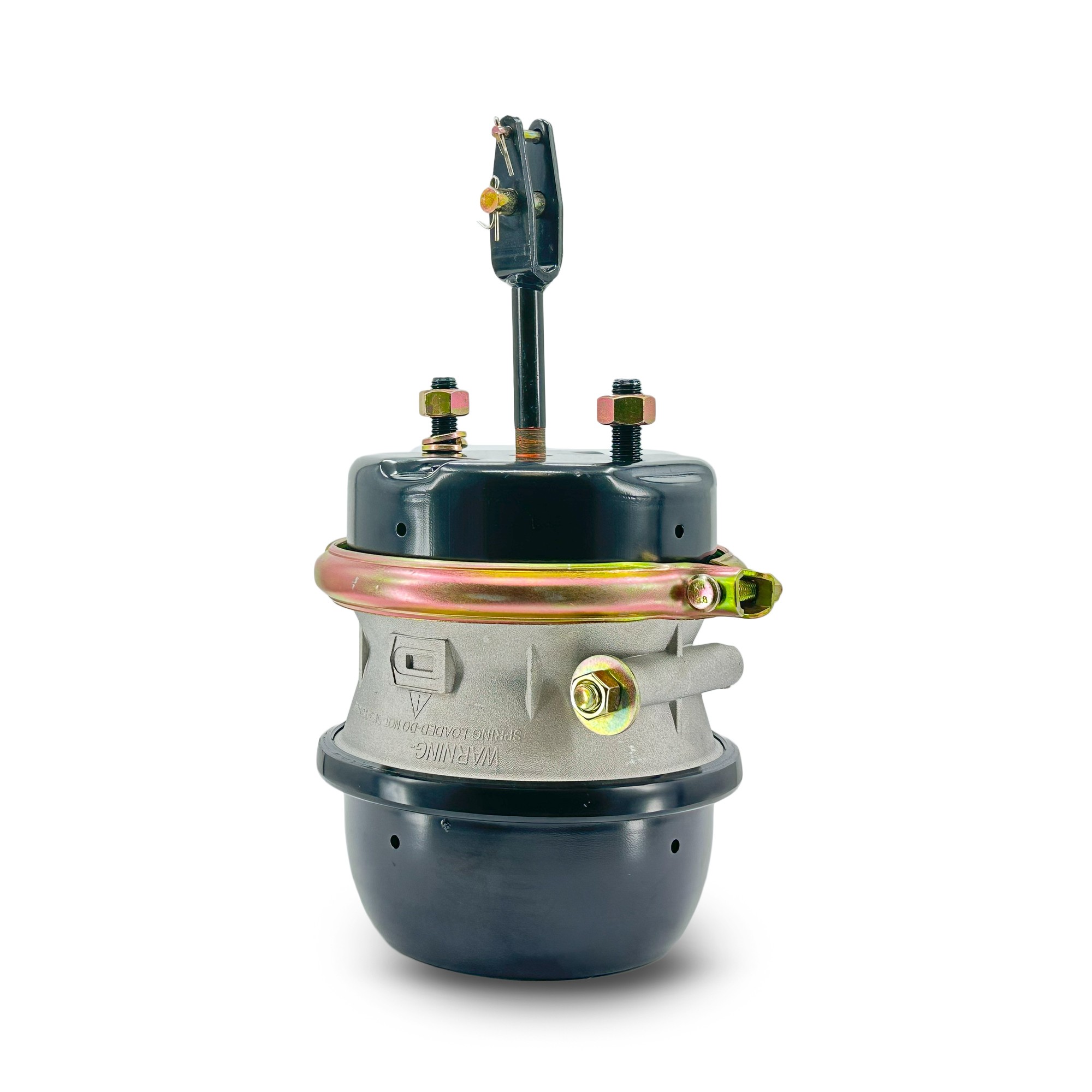

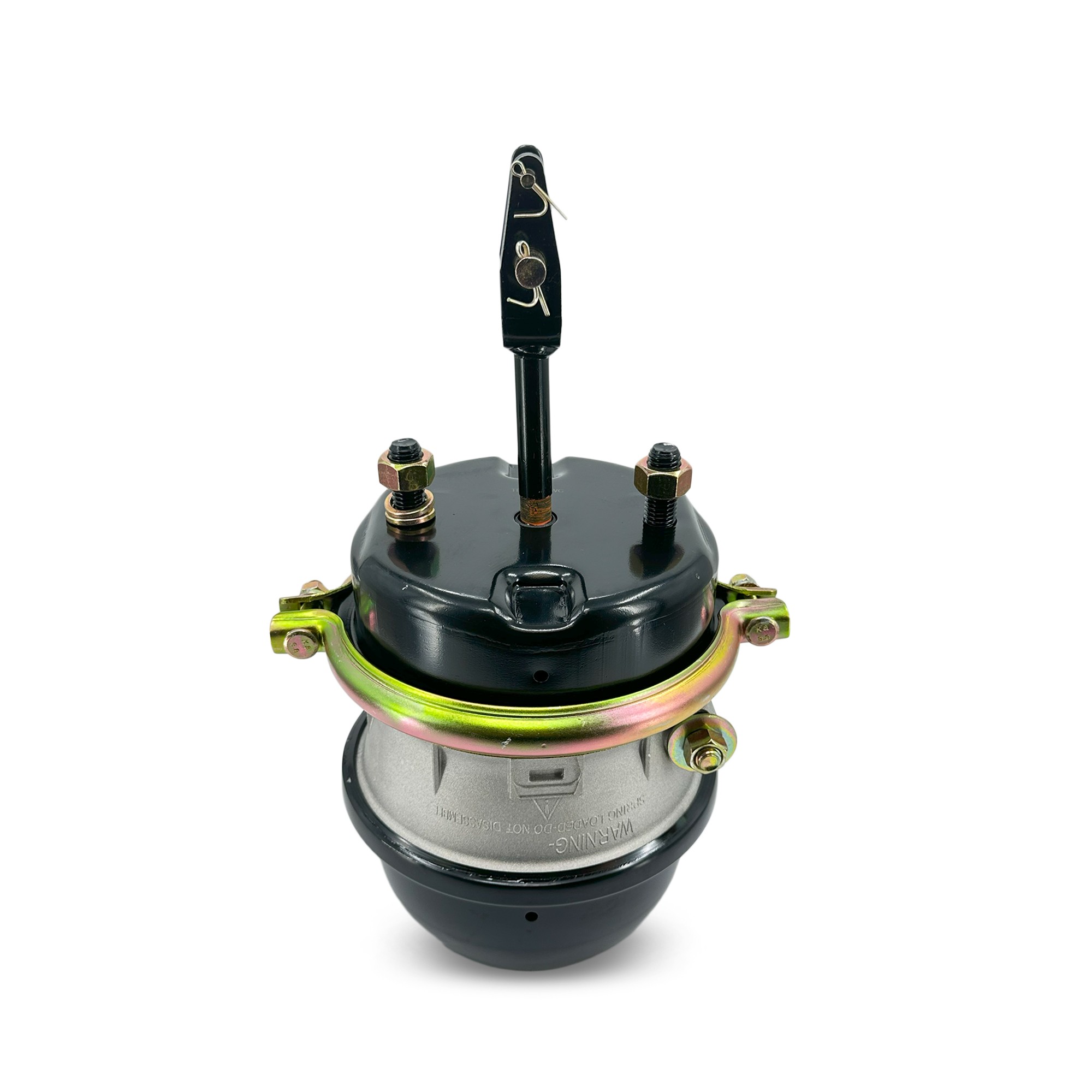

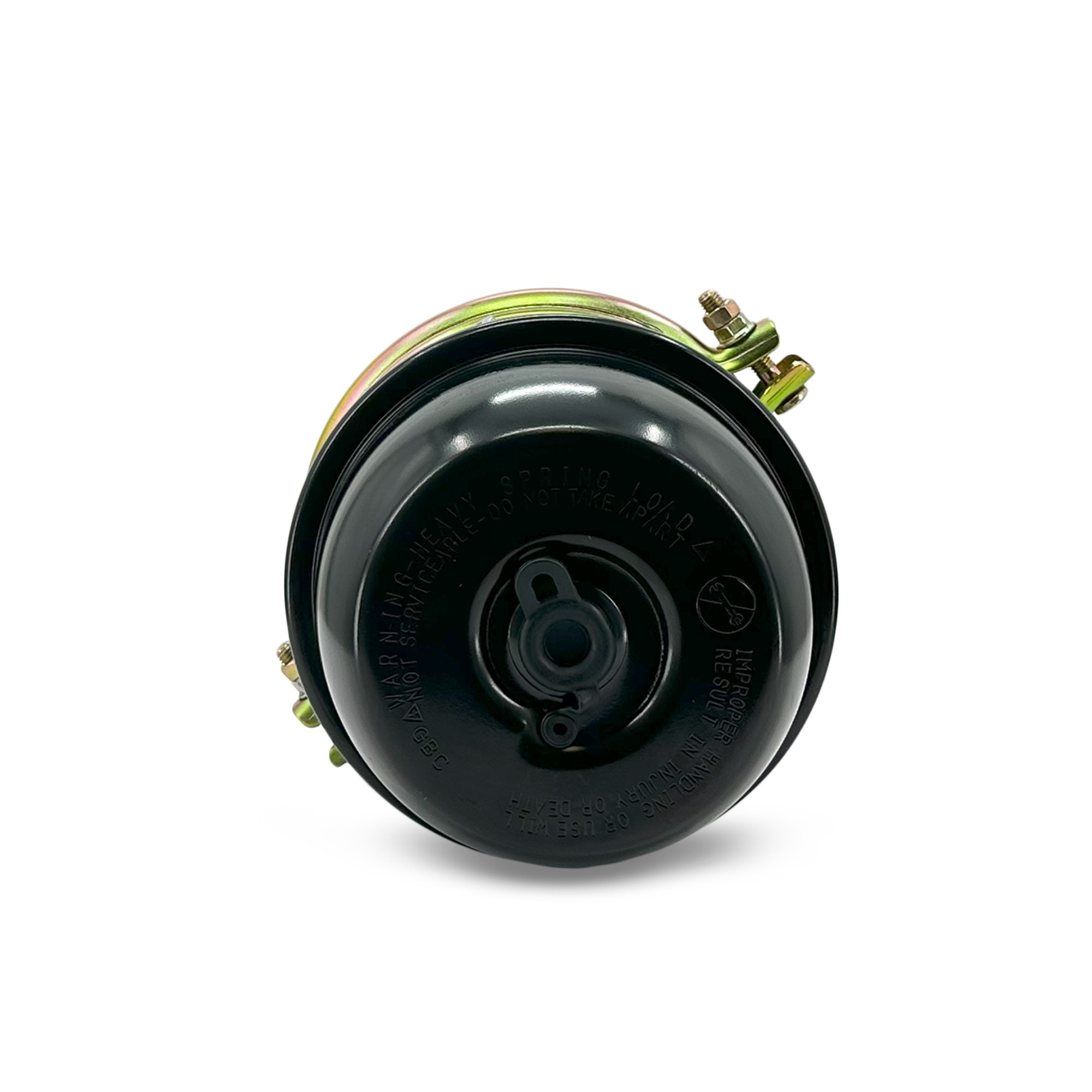

TR3030C-WC | Air Brake Chamber Type 3030 Welded Clevis
Description : Air Brake Chamber Replaces K067114
Part Number : TR3030C-WC
Air Brake Chamber Type 3030 Welded Clevis
| Brand | Reference Numbers |
|---|---|
| Automann | 179.SB3030SW1100 |
| Bendix | K067114, K129605 |
| Haldex | GC3030S4CW, GC3030CW |
| Other | BTS‑3030‑WCR, GTA‑3030‑WCR |
| Property | Value |
|---|---|
| Actuator Type Size | 3030 |
| Stroke Type | Standard |
| Available Stroke | 2‑1/2",<wbr> 64mm |
| Length from mounting bracket to end of Spring Housing | 9",<wbr> 229mm |
| Length of Piggyback | 6‑13/16",<wbr> 173mm |
| Dimension at rolled Spring Housing flange | 8‑5/16",<wbr> 211mm |
| Dimension at Service Clampband | 10‑3/16",<wbr> 259mm |
| Pushrod Length from face of Service Housing | 1" |
| Distance to Clevis Pin centerline from face of Service Housing | 2‑1/4" |
| Weight | 21.3 lbs. ,<wbr> 9.7 kg. |
