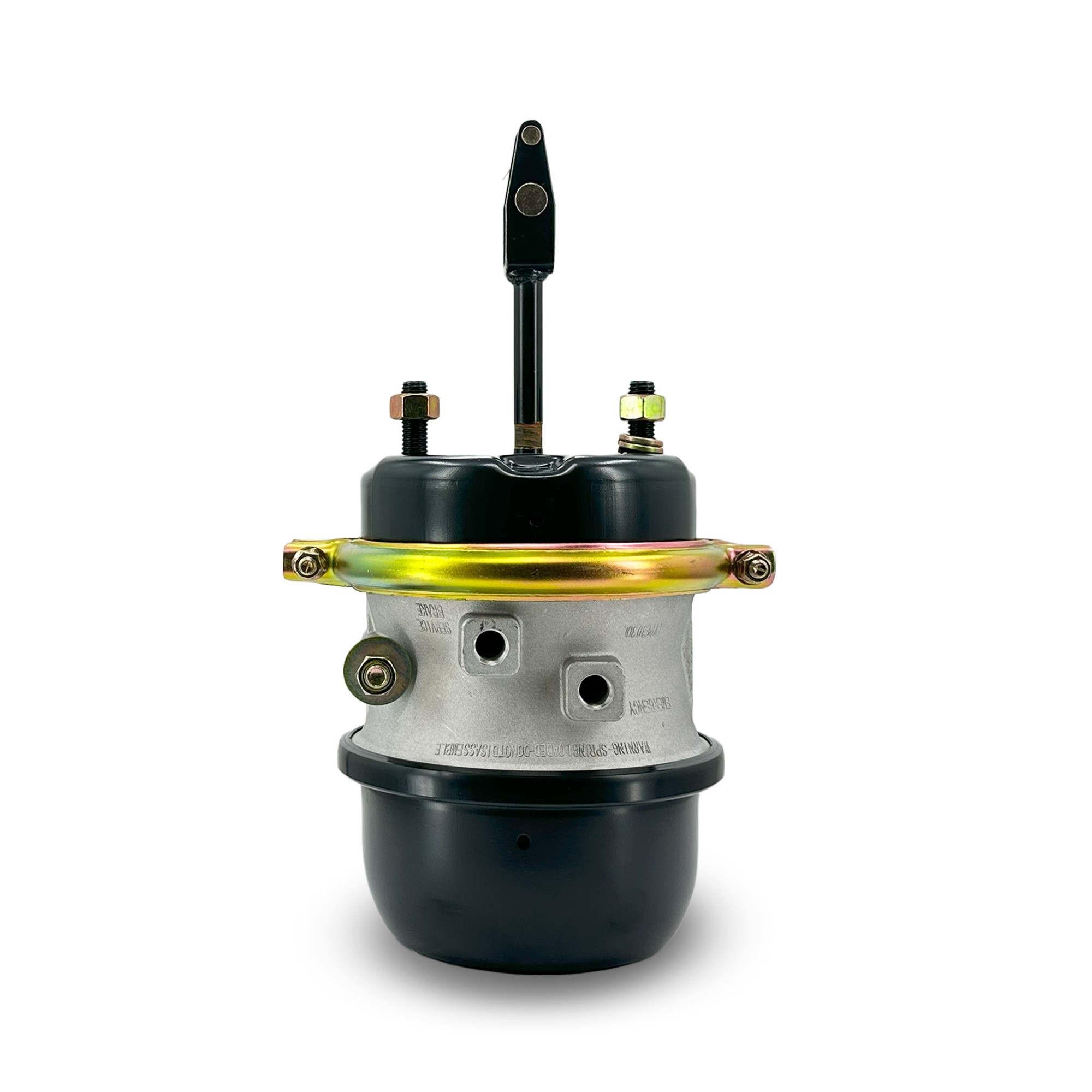

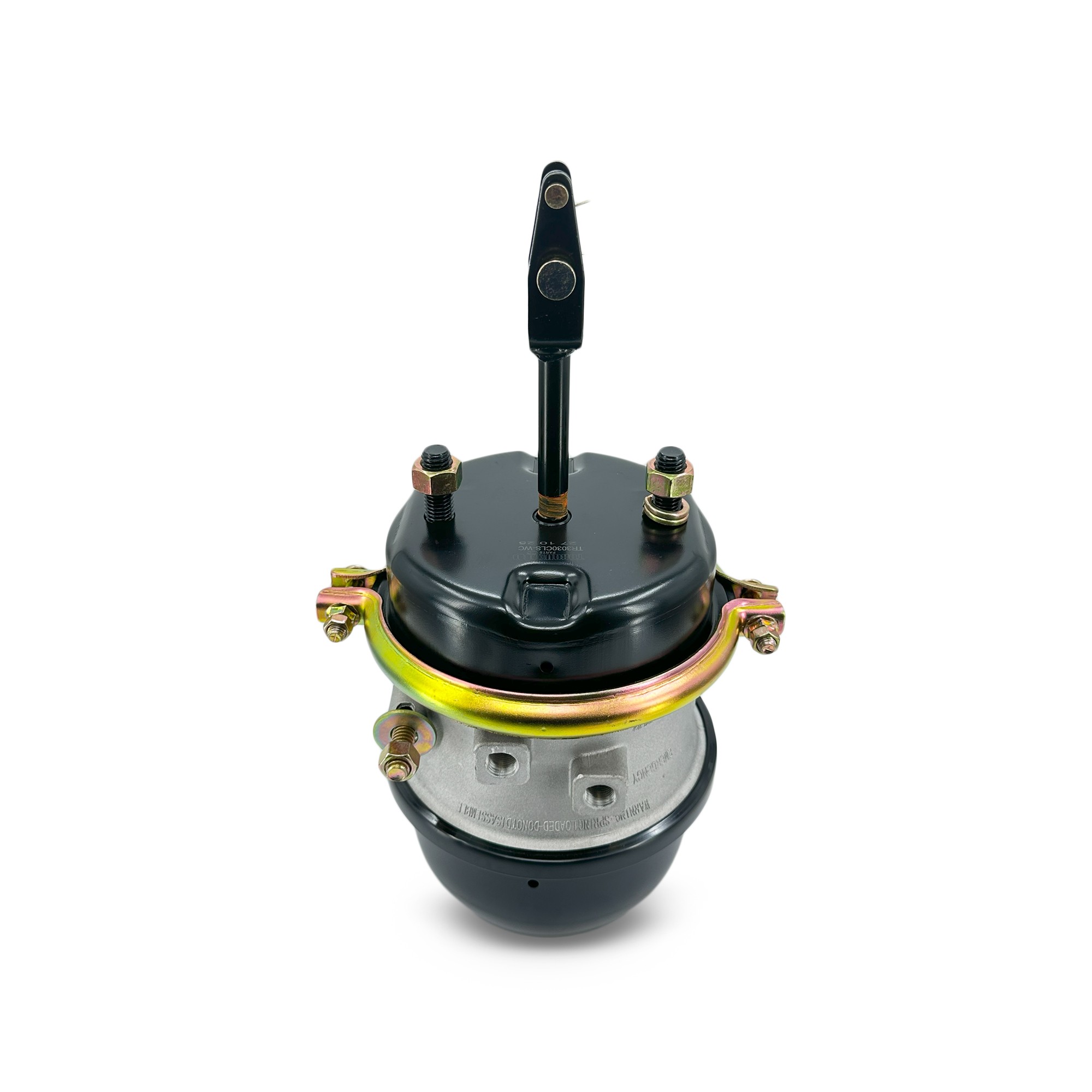

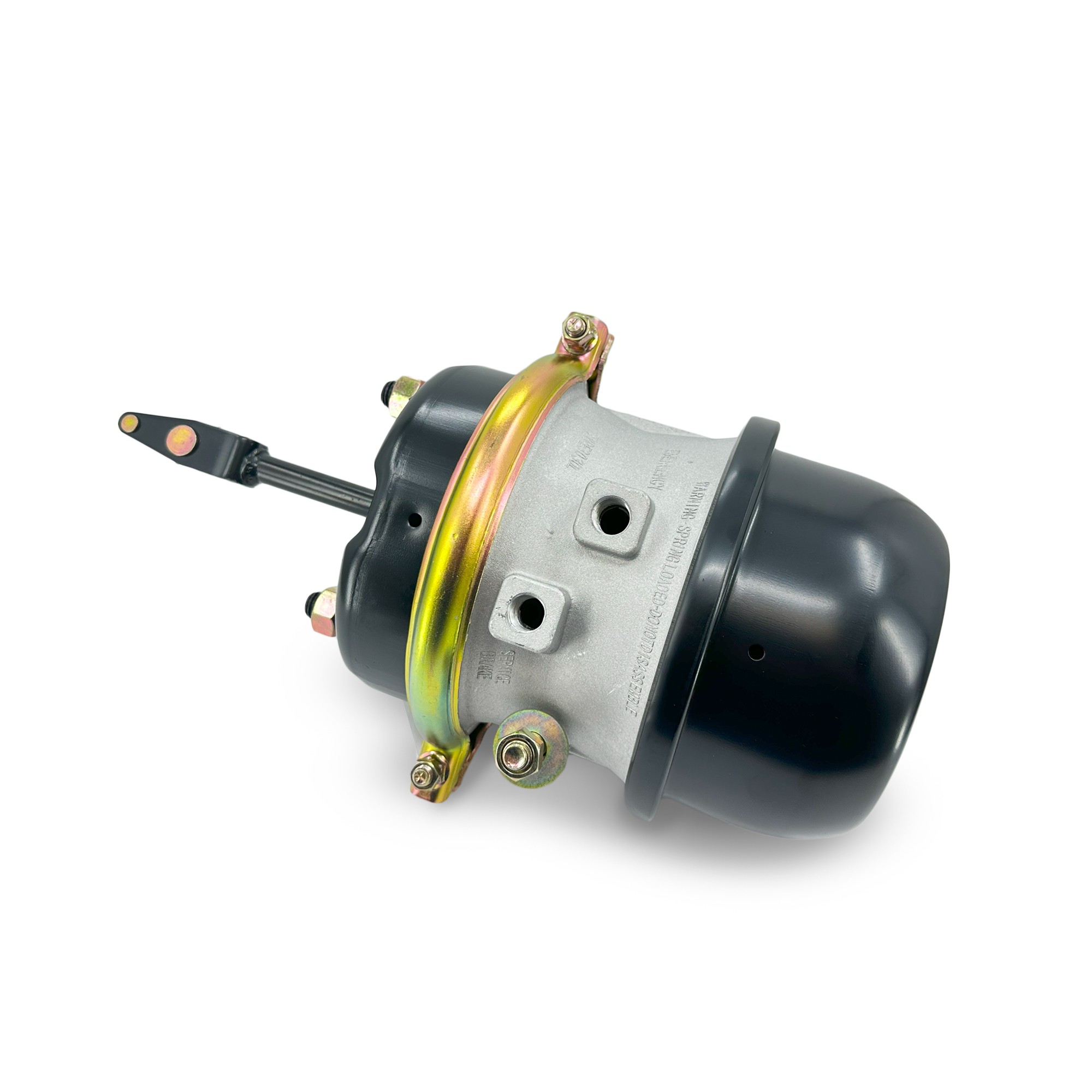

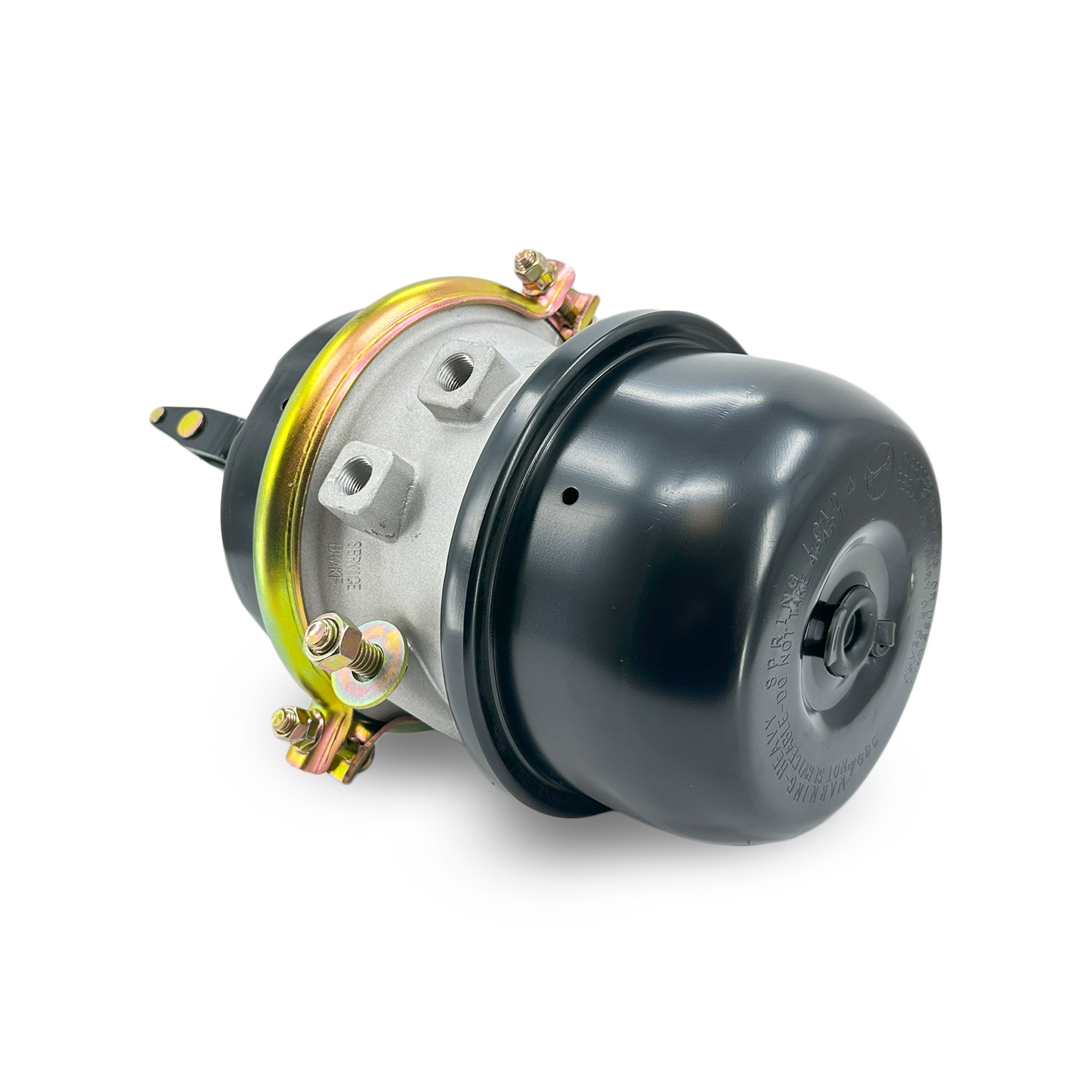

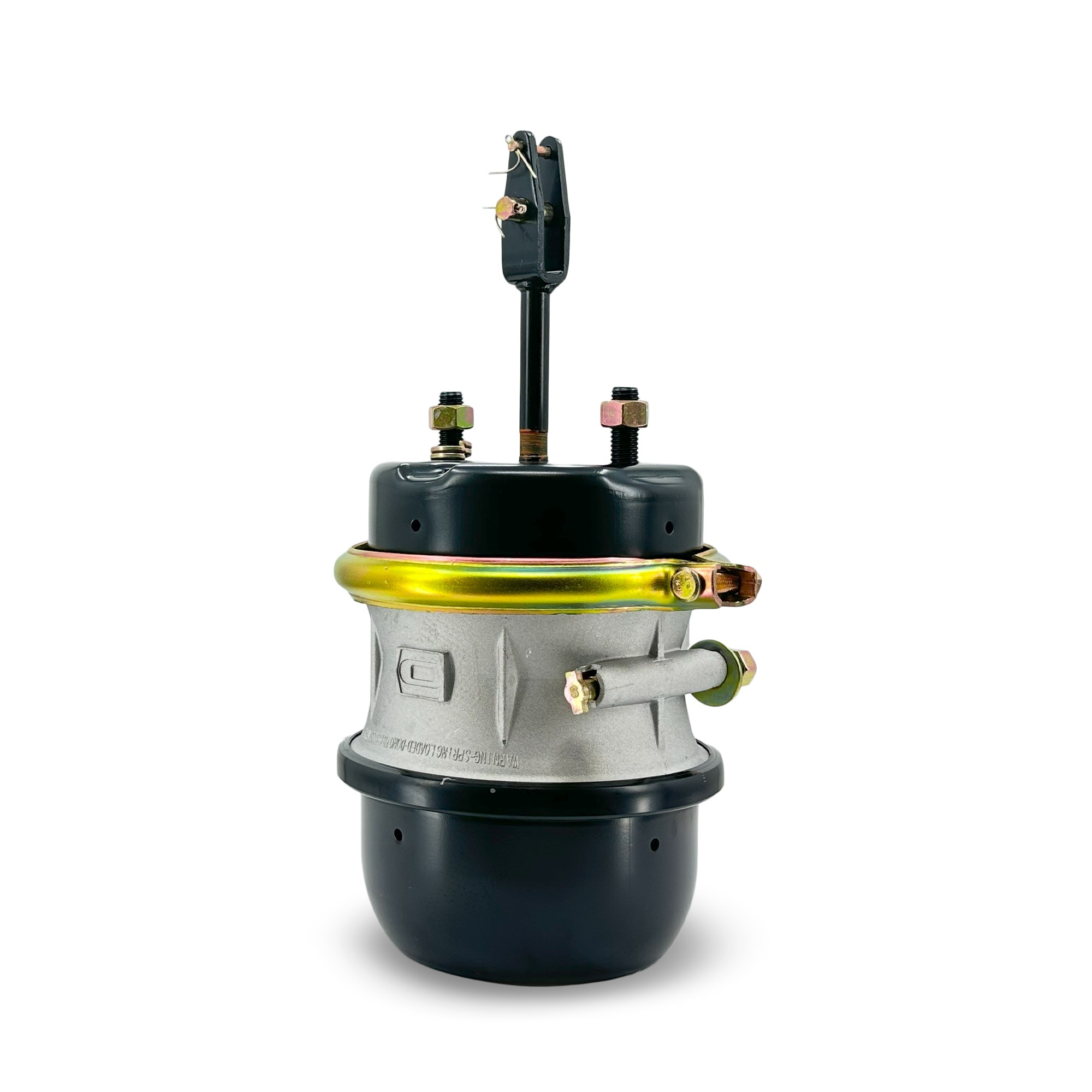

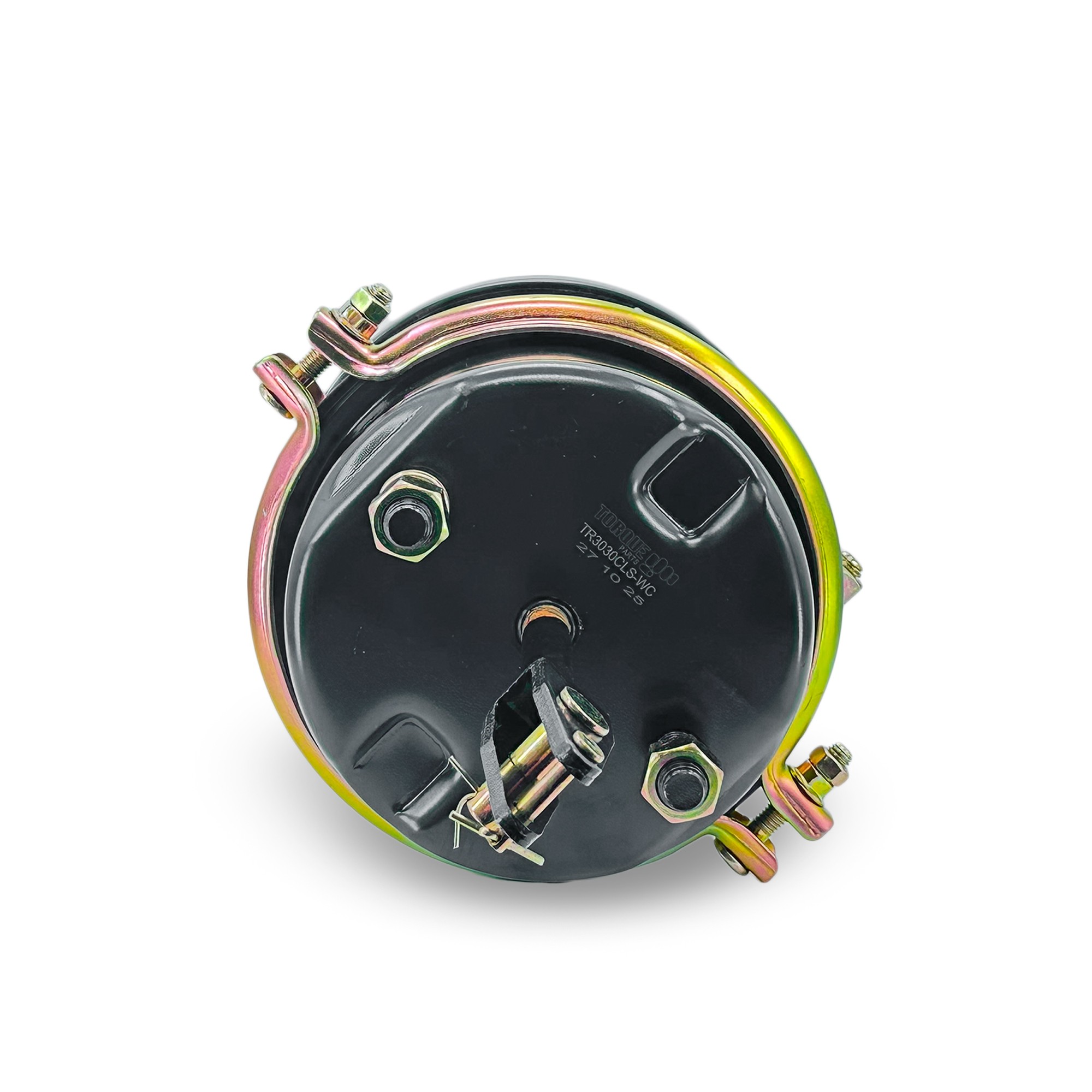

TR3030CLS-WC | Long Stroke Air Brake Chamber Type 3030 Welded Clevis
Description : Long Stroke Air Brake Chamber Type 3030 Replaces NT3030ELSWC
Part Number : TR3030CLS-WC
Long Stroke Air Brake Chamber Type 3030
Welded Clevis
| Brand | Reference Numbers |
|---|---|
| Automann | 179.SB3030SLW225 |
| Bendix | NT3030ELSWC, NT3030ELS‑WC |
| Freightliner | HDX1373030215 |
| Haldex | GC3030LCW, LC3030LCW |
| IHC | 3541891C91 |
| Others | BTS‑3030LS‑WCR, GTA‑3030LS‑WCR |
| Property | Value |
|---|---|
| Actuator Type Size | 3030 |
| Stroke Type | Long |
| Available Stroke | 3",<wbr> 76mm |
| Length from mounting bracket to end of Spring Housing | 9‑7/8",<wbr> 251mm |
| Length of Piggyback | 7‑3/8",<wbr> 187mm |
| Dimension at rolled Spring Housing flange | 8‑5/16",<wbr> 211mm |
| Dimension at Service Clampband | 10‑3/16",<wbr> 259mm |
| Pushrod Length from face of Service Housing | 1" |
| Distance to Clevis Pin centerline from face of Service Housing | 2‑1/4" |
| Weight | 21.9 lbs. ,<wbr> 9.9 kg. |
