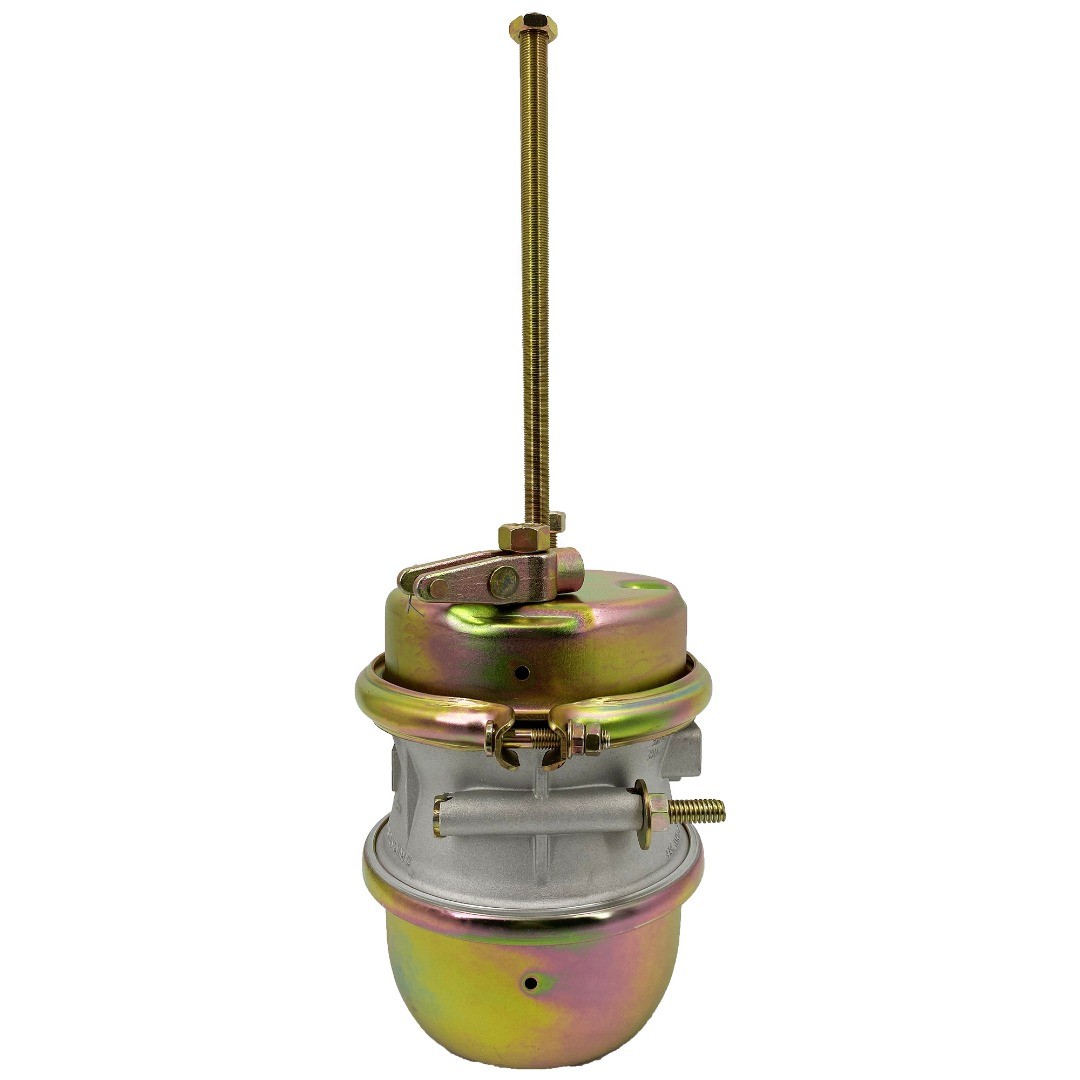

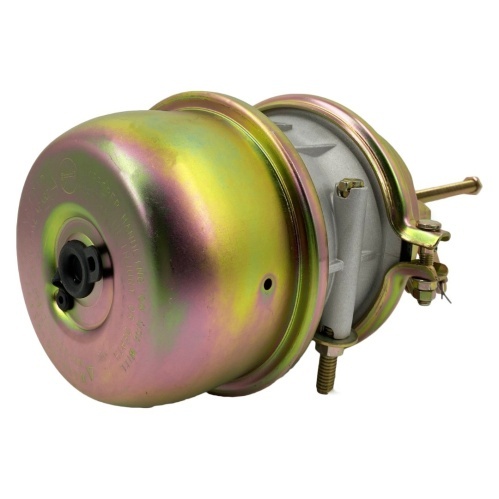

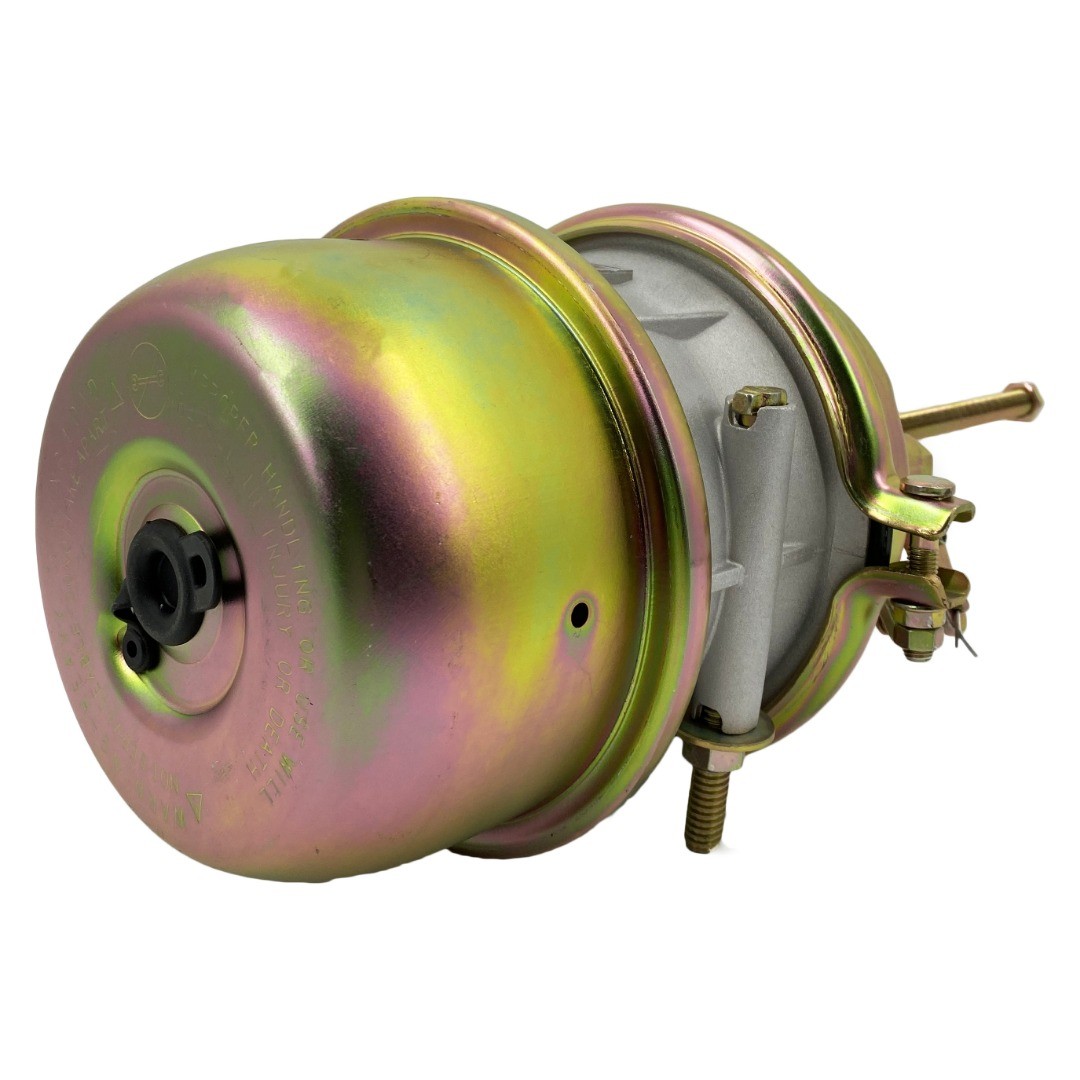

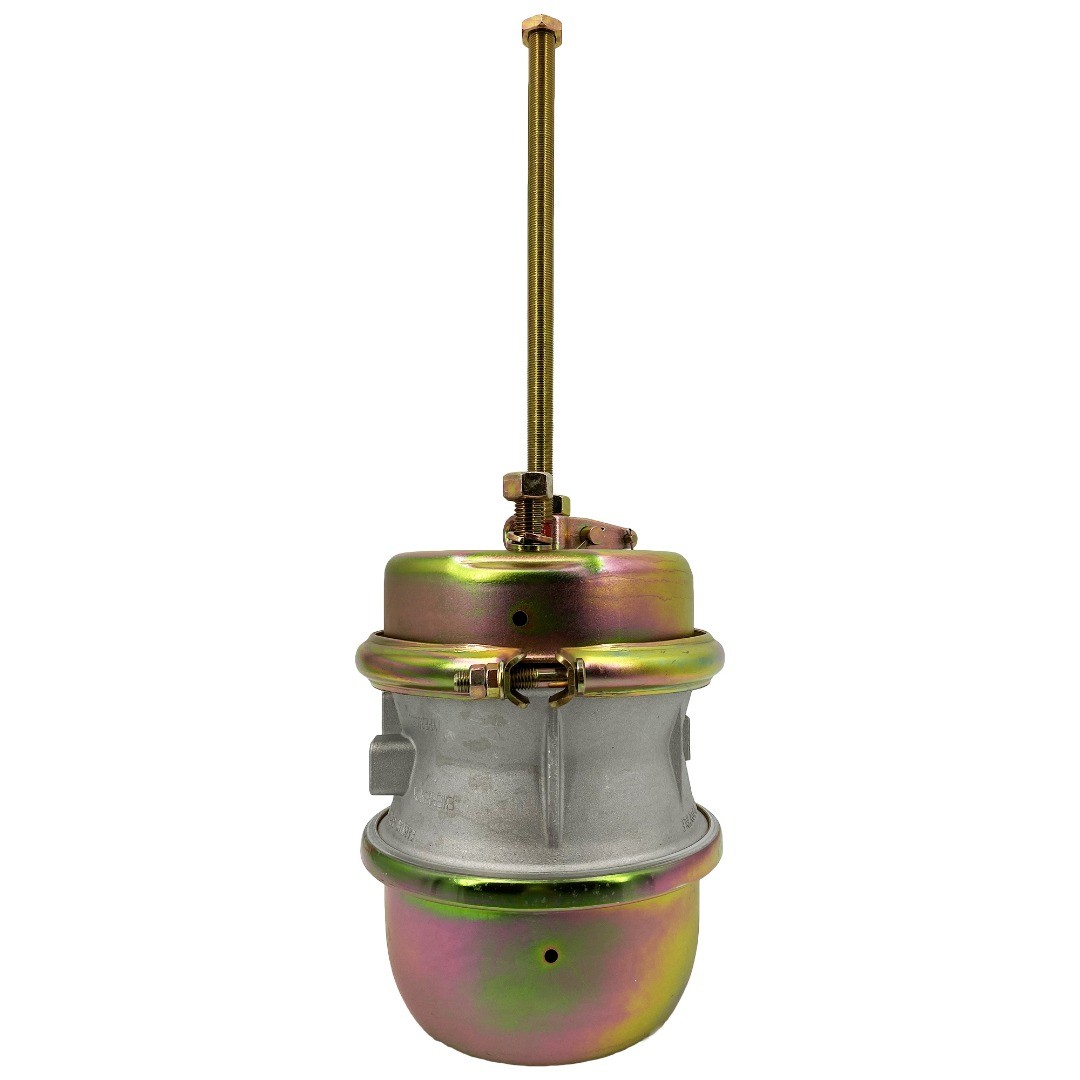

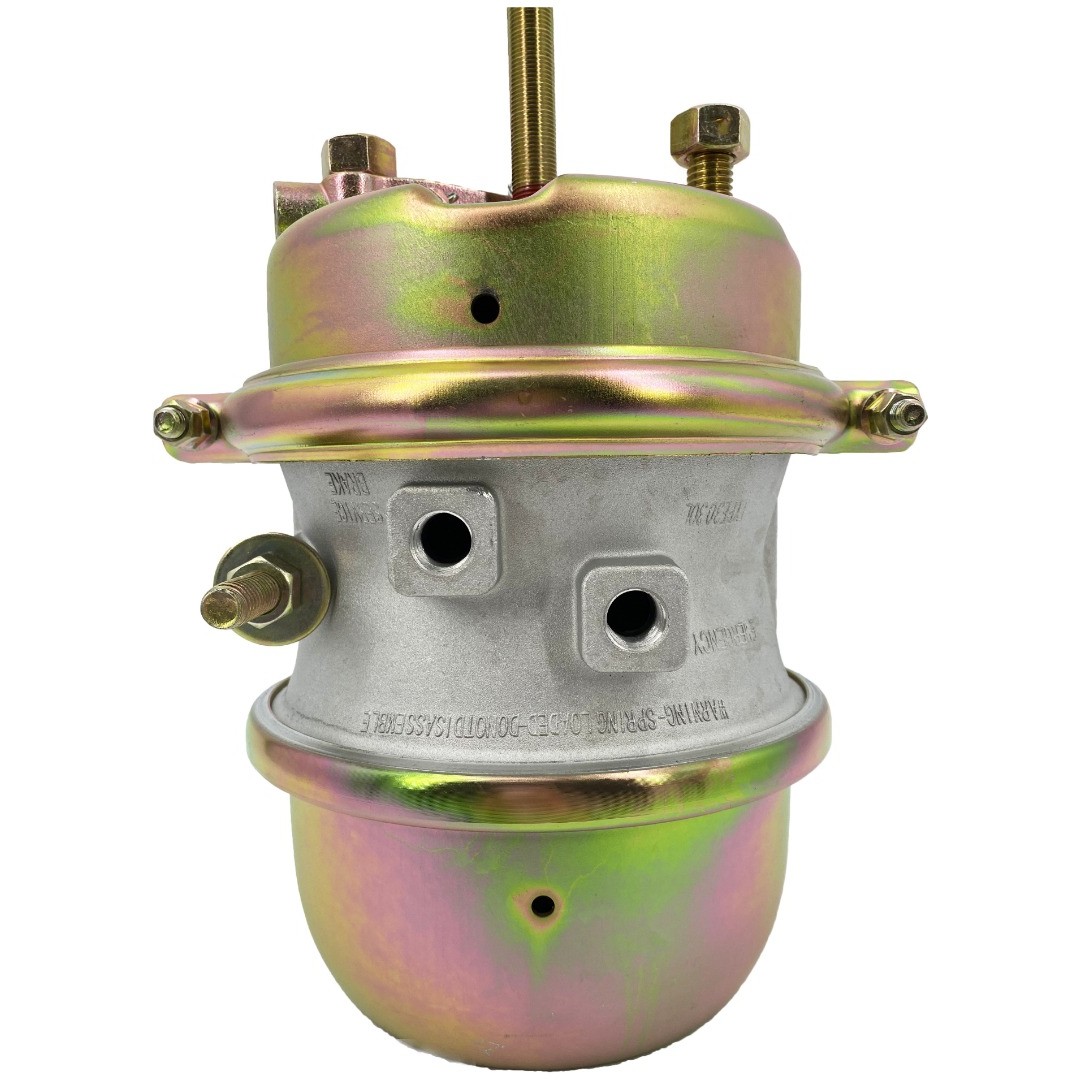

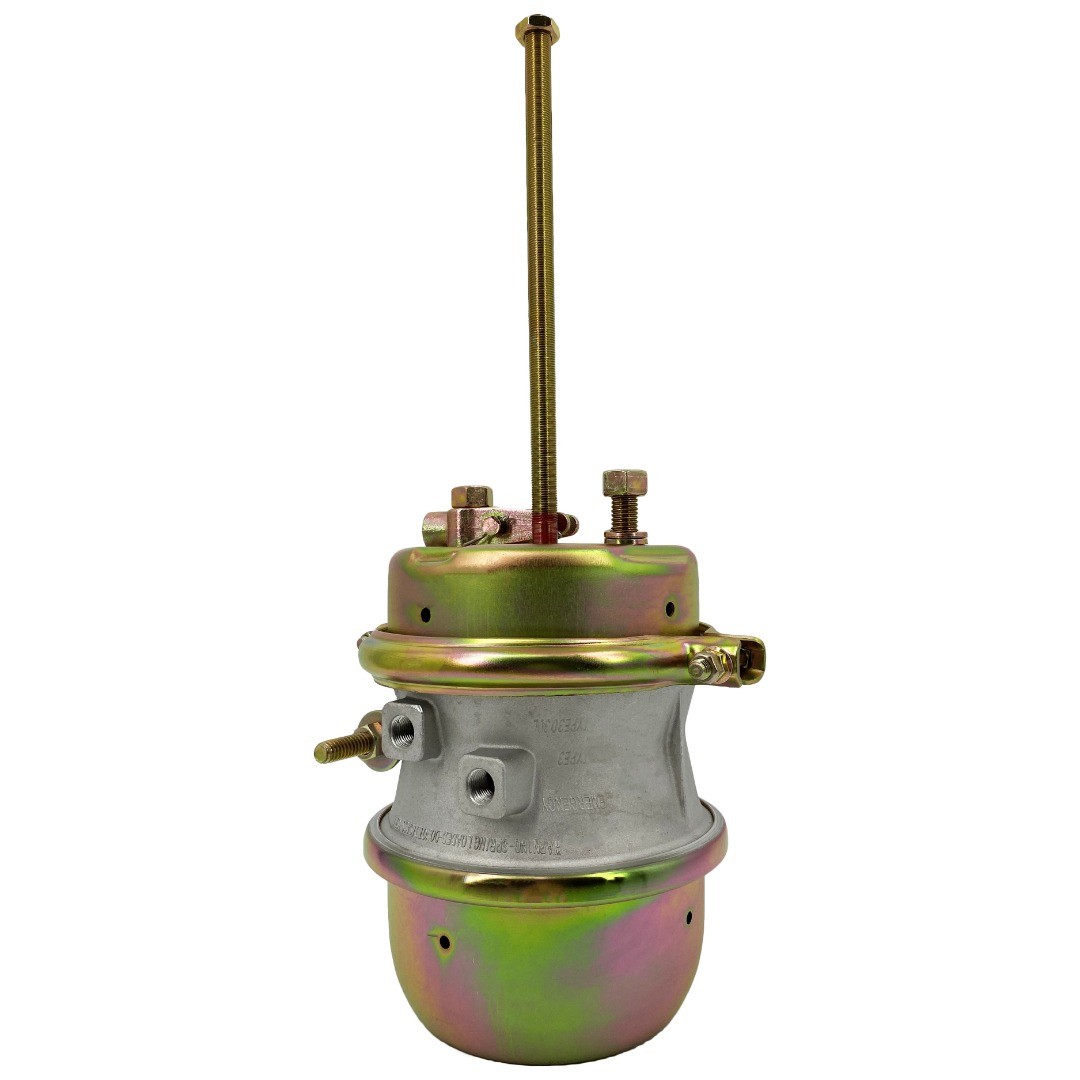

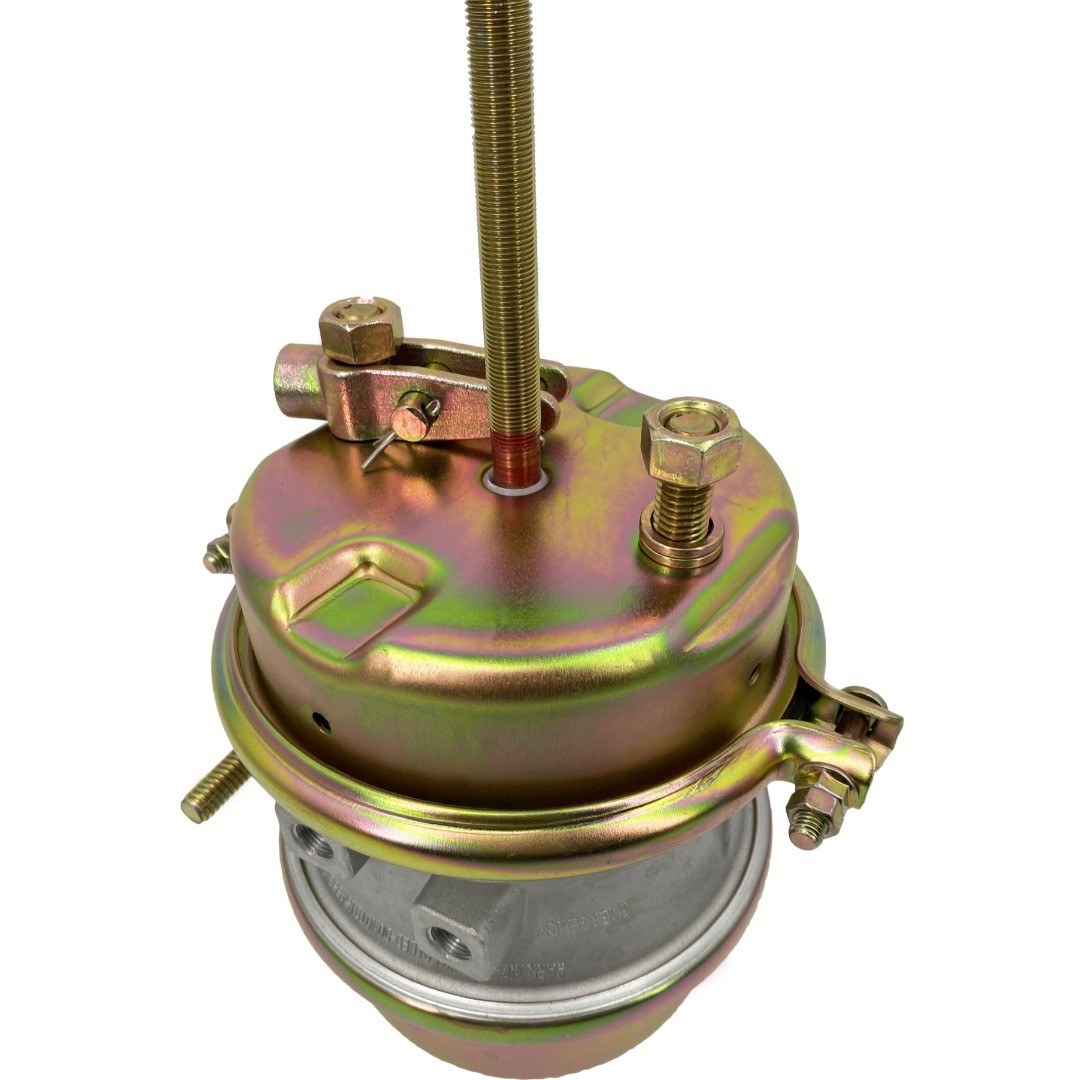

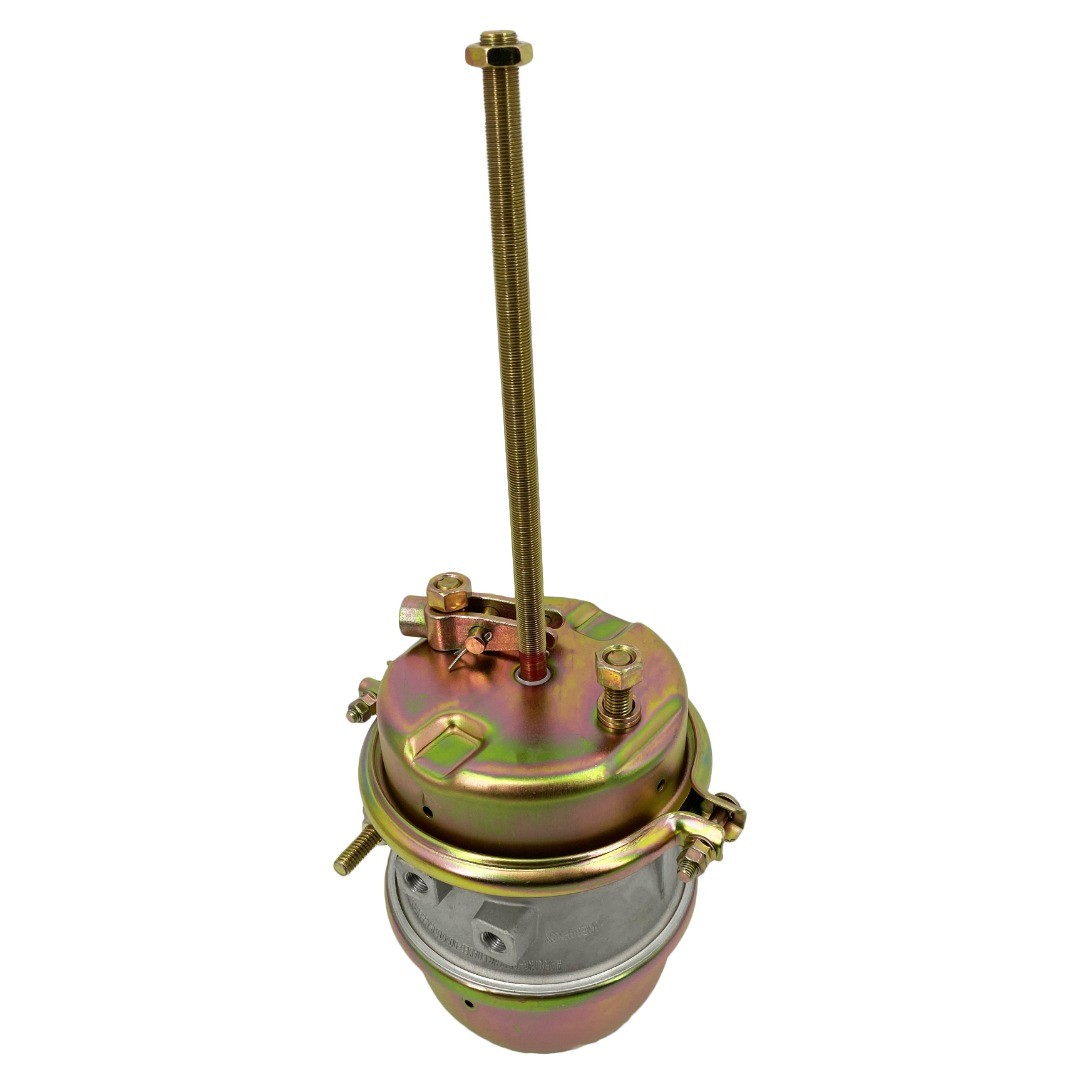

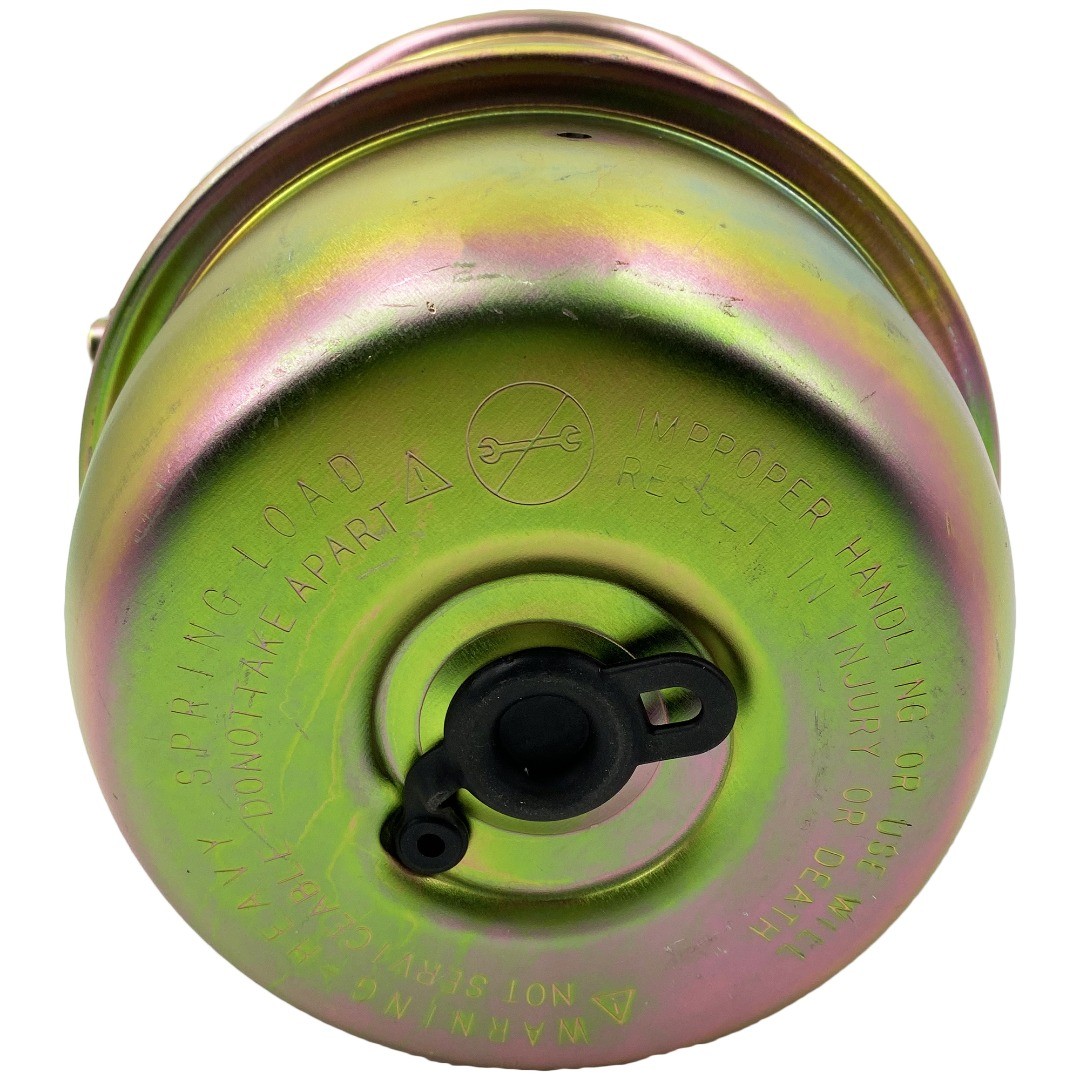

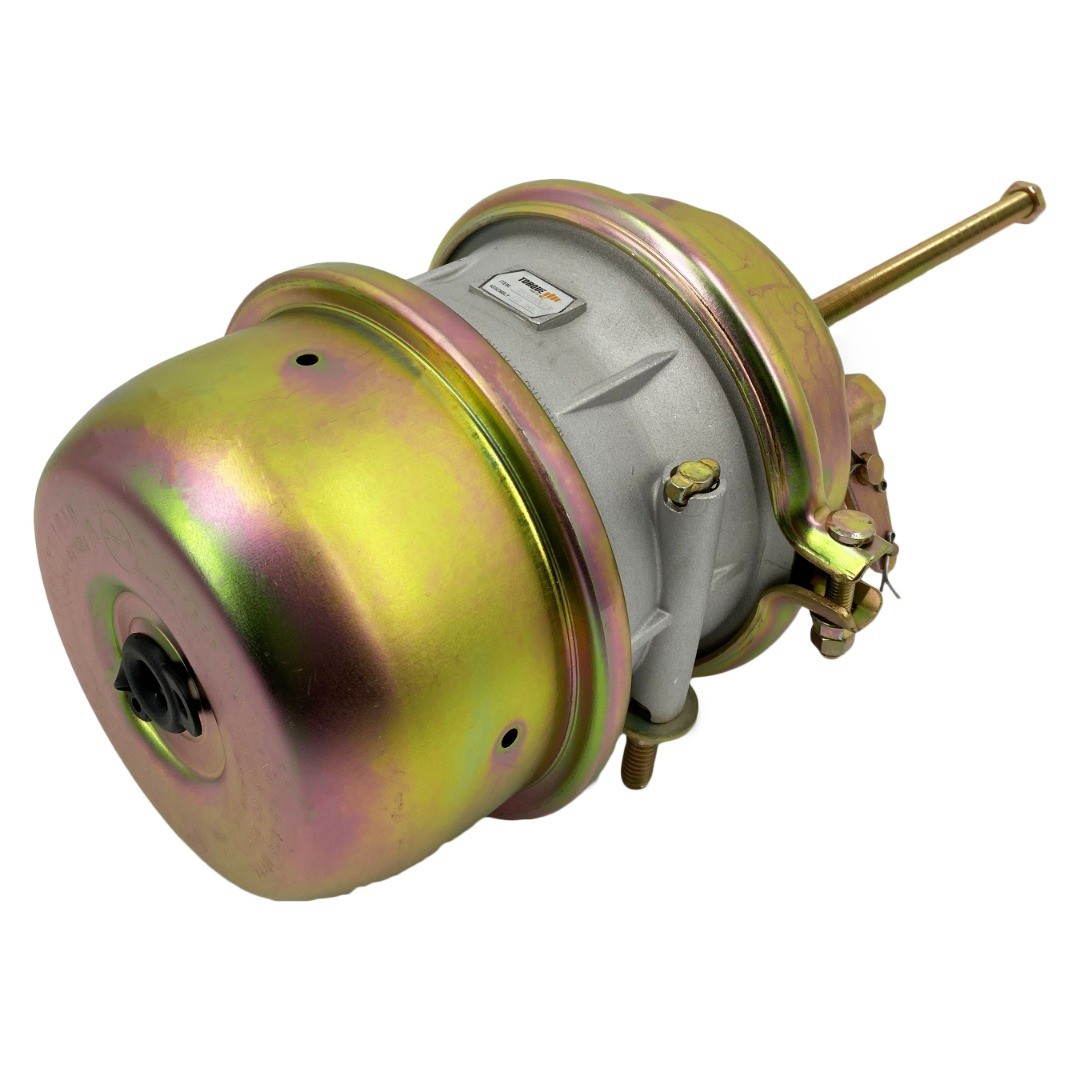

TR3030CLS | Long Stroke Air Brake Chamber Type 3030
Description : Air Brake Chamber Replaces NT3030ELS80
Part Number : TR3030CLS
Long Stroke Air Brake Chamber Type 3030
| Brand | Reference Numbers |
|---|---|
| Automann | 179.SB3030SL |
| Bendix | NT3030ELS80, NT3030ELS99 |
| Haldex | GC3030L, LC3030L, GC3030LR |
| Midland | 3030054, MBI GC3030LR |
| Watson and Chalin | 12963 |
| Property | Value |
|---|---|
| Actuator Type Size | 3030 |
| Stroke Type | Long |
| Available Stroke | 3",<wbr> 76mm |
| Length from mounting bracket to end of Spring Housing | 9‑7/8",<wbr> 251mm |
| Length of Piggyback | 7‑3/8",<wbr> 187mm |
| Dimension at rolled Spring Housing flange | 8‑5/16",<wbr> 211mm |
| Dimension at Service Clampband | 10‑3/16" |
| Pushrod Length from face of Service Housing | 13" |
| Weight | 21.8 lbs. ,<wbr> 9.9 kg. |
