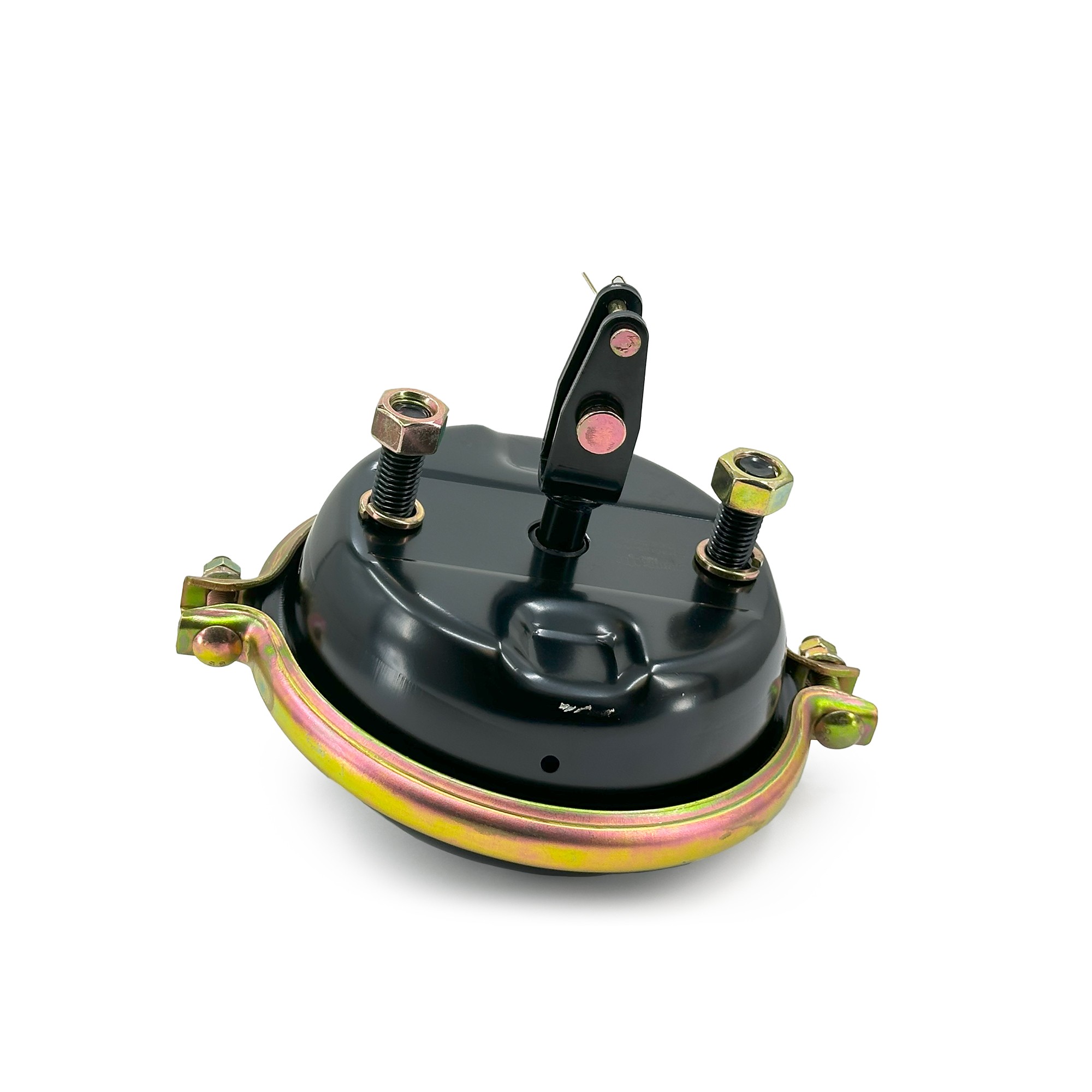

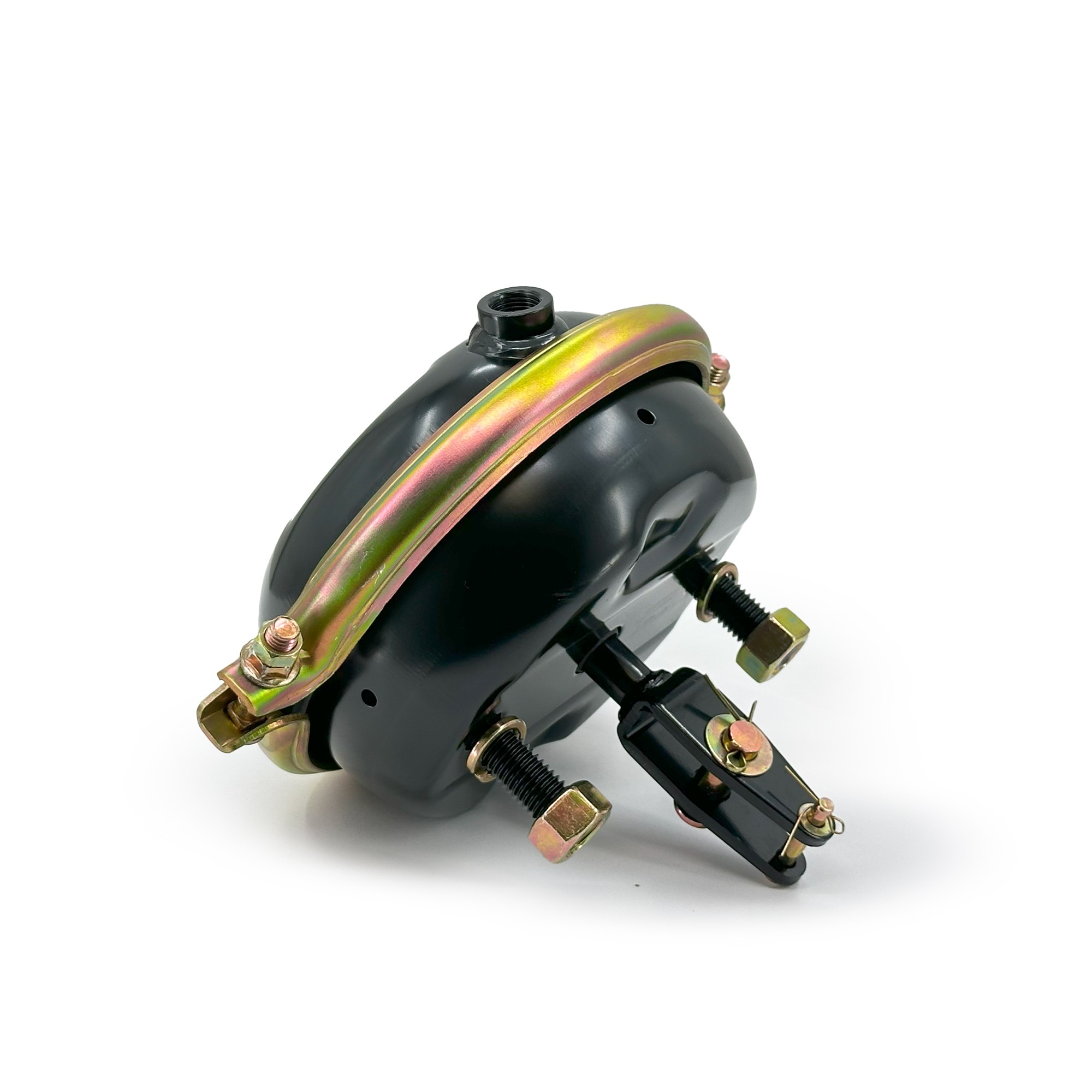

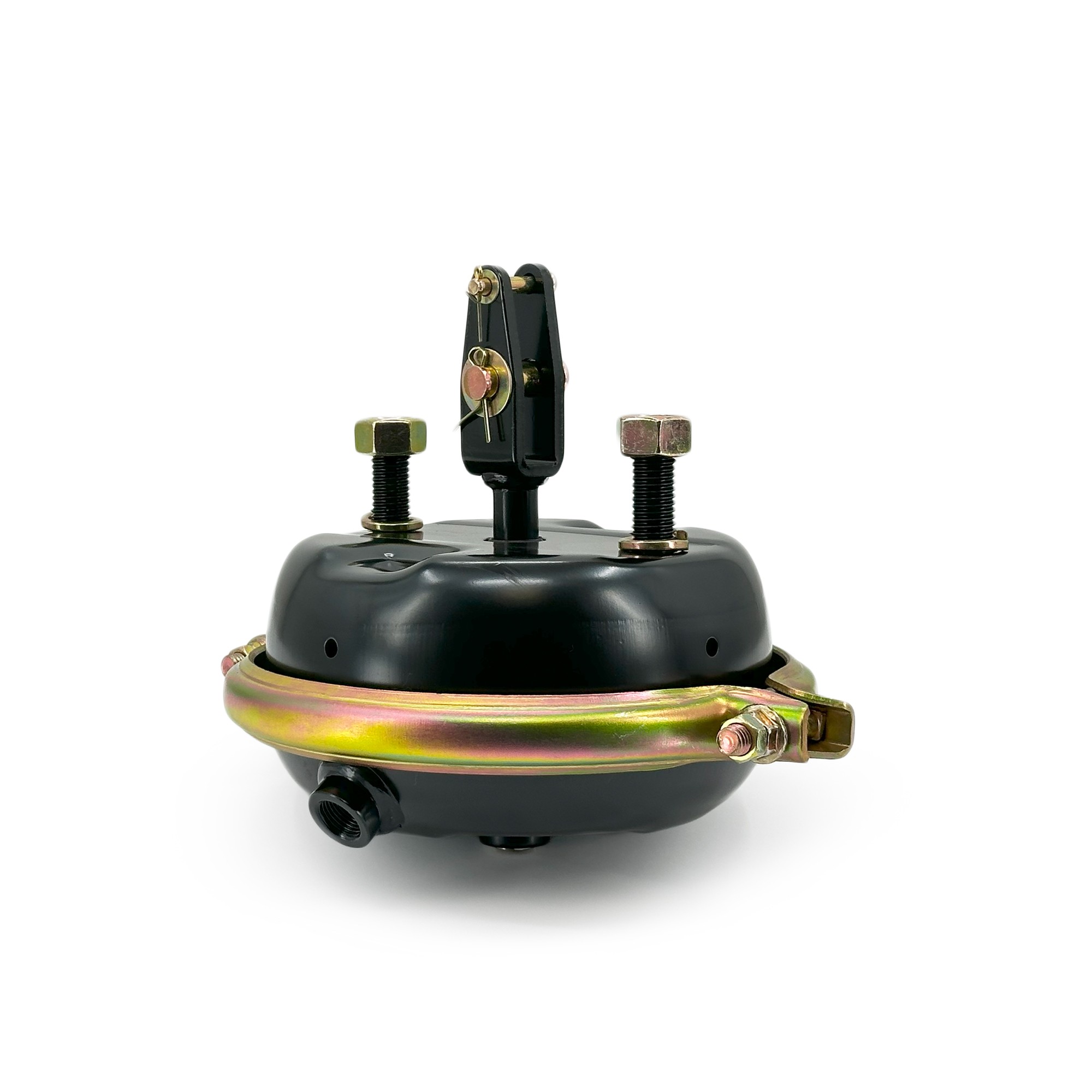

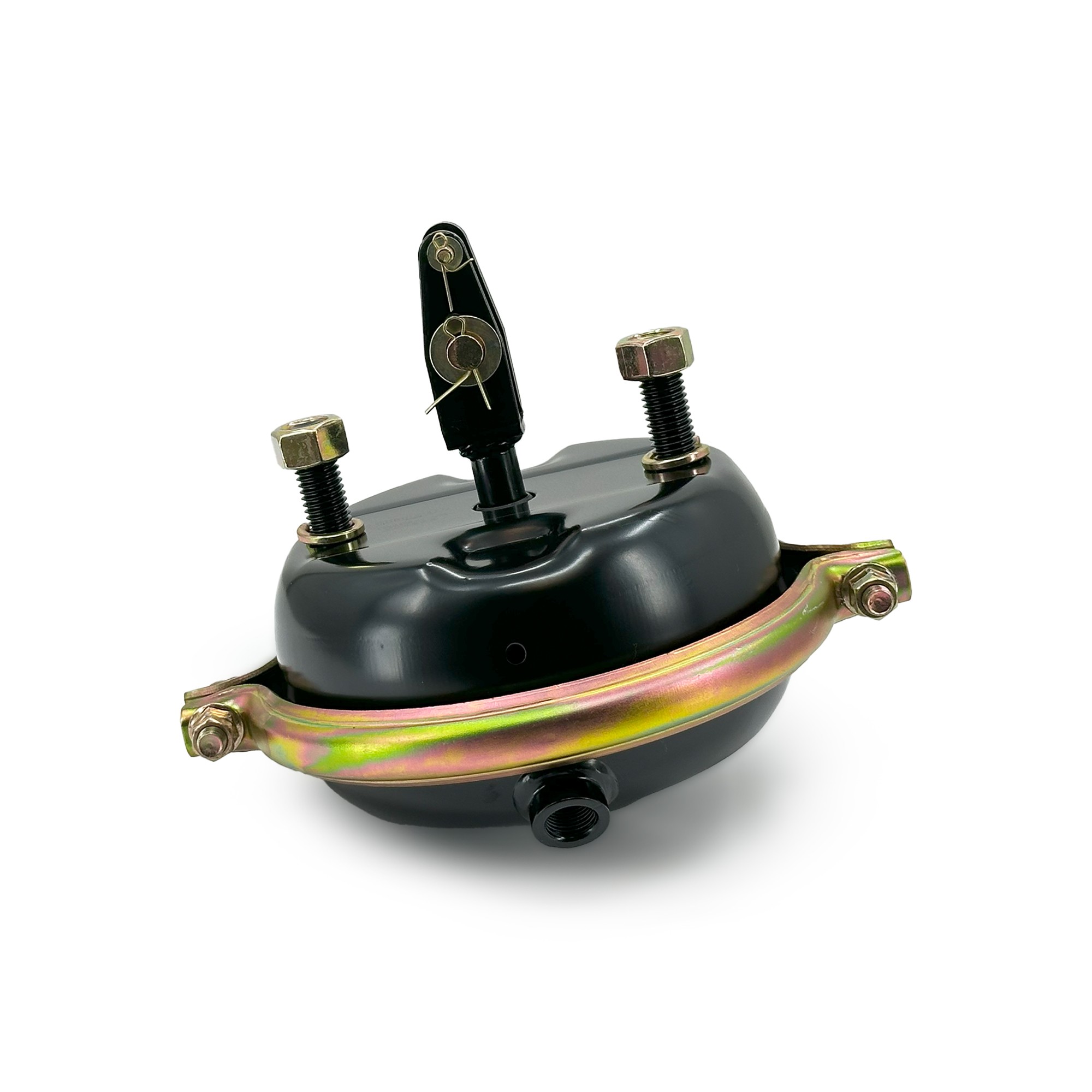

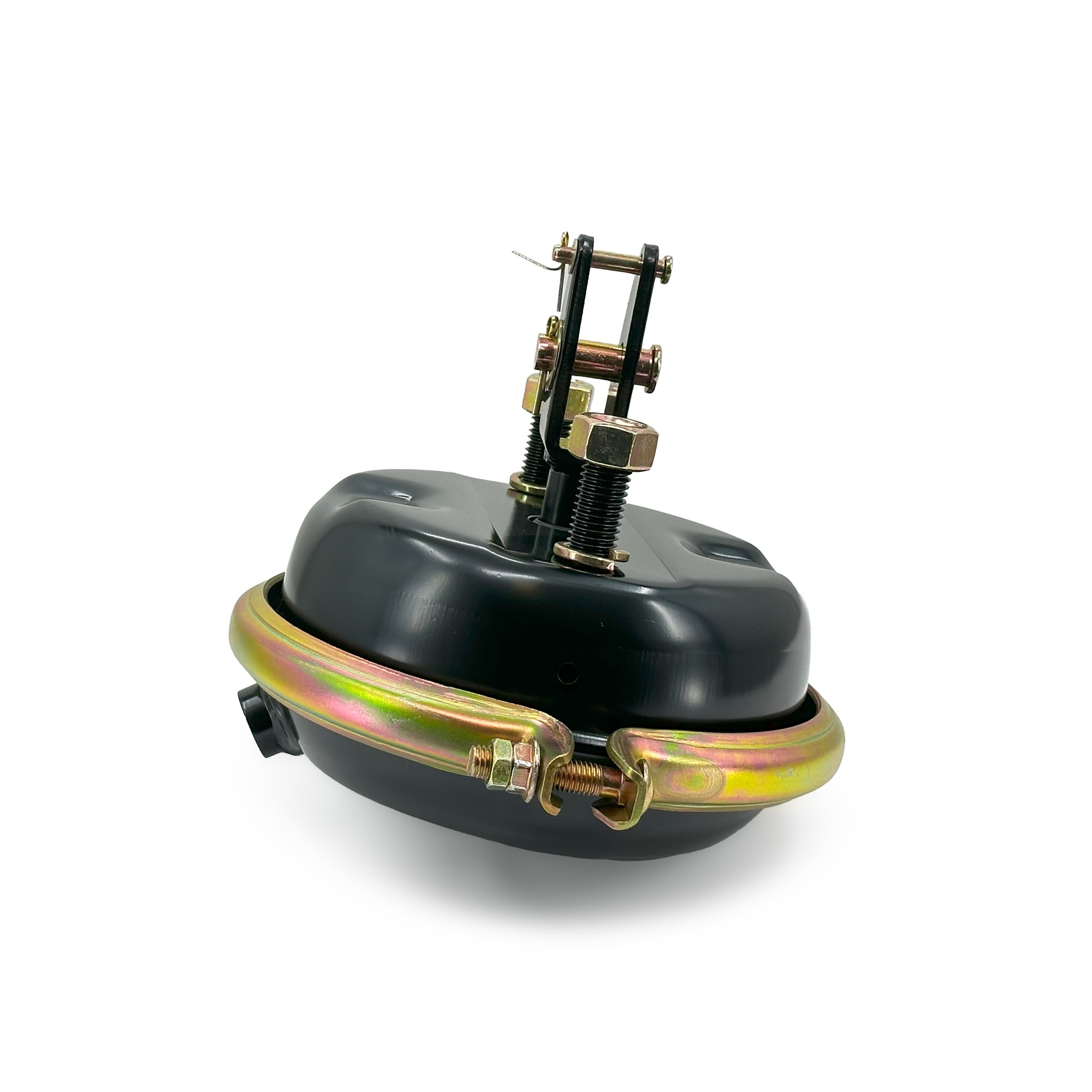

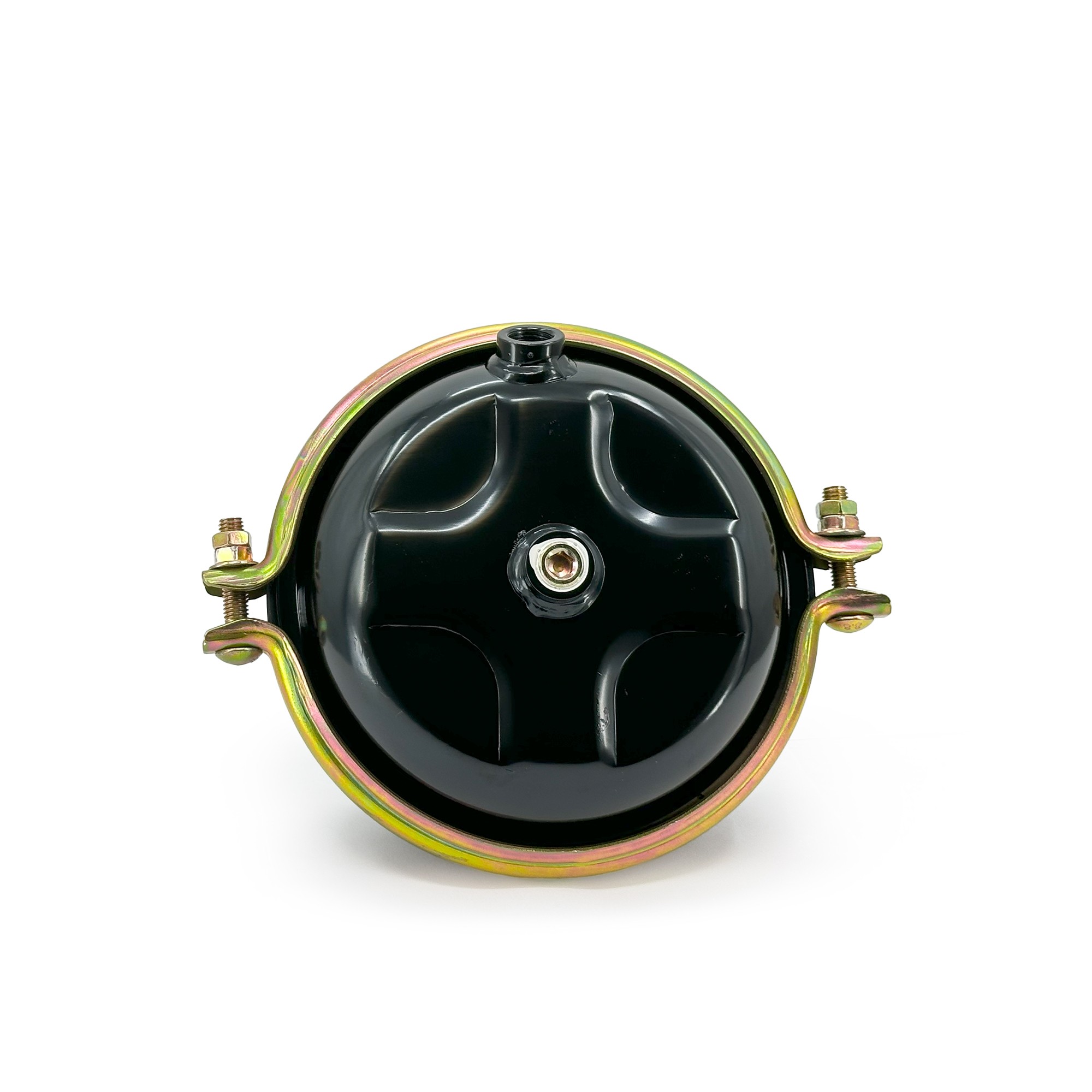

TR30SC-WC | Air Brake Chamber Service Type 30 with Welded Clevis
Description : Air Brake Chamber with Welded Clevis Replaces 5007121N
Part Number : TR30SC-WC
Air Brake Chamber Service Type 30 with Welded Clevis
| Brand | Reference Numbers |
|---|---|
| Automann | 179.SC30 |
| Bendix | 5007121N, 800826 |
| Euclid | E30S, EBC30S |
| Haldex | SC30, 3000001, 53000001, MA36300 |
| MGM | 1430001 |
| Midland | KN36300 |
| Property | Value |
|---|---|
| Actuator Type Size | 30 |
| Stroke Type | Standard |
| Available Stroke | 2‑1/2",<wbr> 64mm |
| Air Port Threads | 3/8"‑18 NPTF |
| Length from mounting bracket to end of Spring Housing | 3‑11/16",<wbr> 94mm |
| Dimension at Service Clampband | 10‑3/16",<wbr> 259mm |
| Stud Spacing with 5/8‑11 UNC studs | 4‑3/4",<wbr> 120.7mm |
| Pushrod Length from face of Service Housing: | 10" |
| Pushrod threads | 5/8"‑18 UNF |
| Air Port position | 90° |
| Service Clampband position | 0° |
| Maximum Air Pressure | 150 psi |
| Weight | 10.3 lbs. ,<wbr> 4.7 kg. |
