TR800259 | MV-3 Air Brake Manifold Control Dash Valve Threaded Holes
Description : MV-3 Air Brake Manifold Control Dash Valve Threaded Holes
Part Number : TR800259

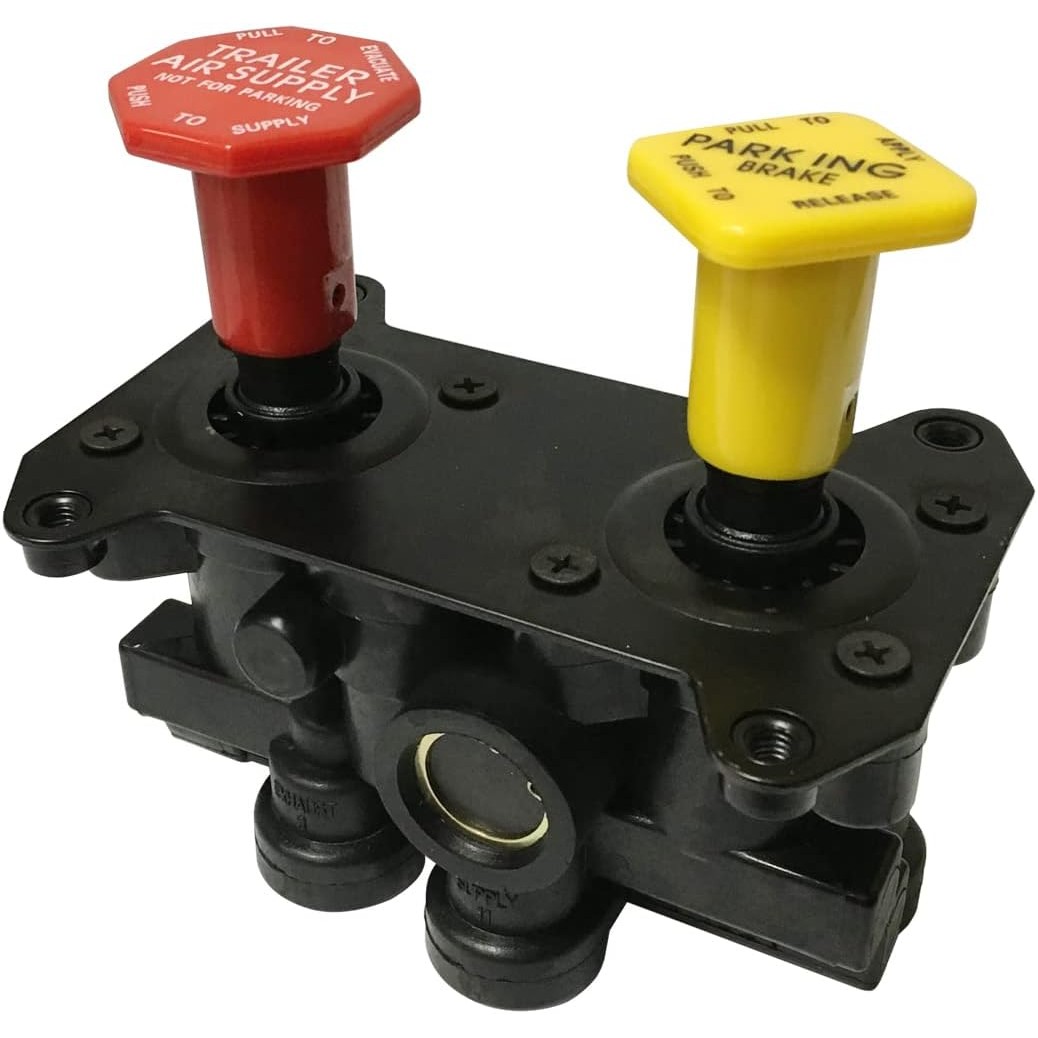

MV-3 Air Brake Manifold Control Dash Valve with 1/4"-20 Threaded Mounting Holes and 3/8" PTC Ports
| Brand | Reference Numbers |
|---|---|
| Bendix: | 800259 |
| Property | Value |
|---|---|
| Mounting | 1/4‑20 UNC‑2B (4x) |
| Supply 11 Port | 3/8 PTC |
| Supply 12 Port | 3/8 PTC |
| Delivery 21 Port | 3/8 PTC |
| Delivery 22 Port | 3/8 PTC |
| Exhaust Port | 3/8 PTC |
| Tractor Trip Pressure | 30 ± 10 PSI |
| Trailer Trip Pressure | 35 ± 10 PSI |
| Trailer Override Pressure | 25 ± 5 PSI |
| Button(s) Included | Yes |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | ‑40 °F (‑40 °C) |
