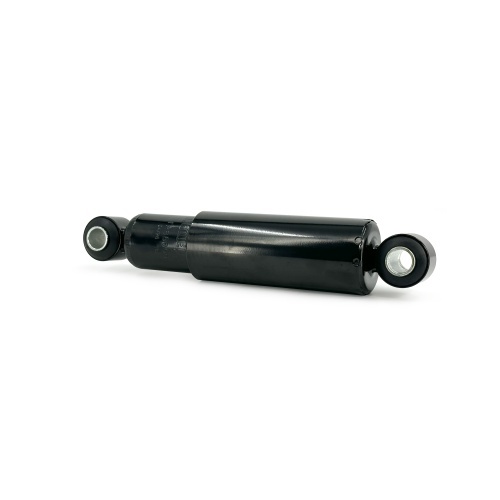

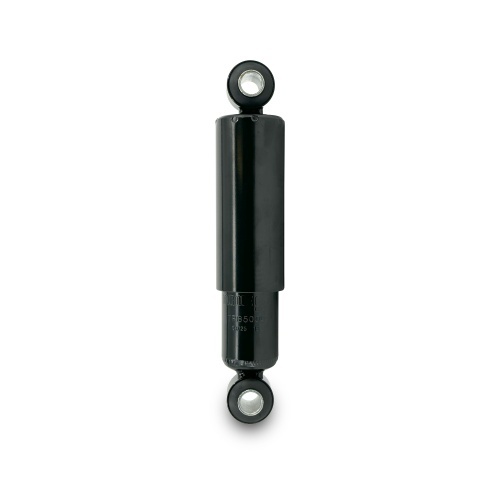

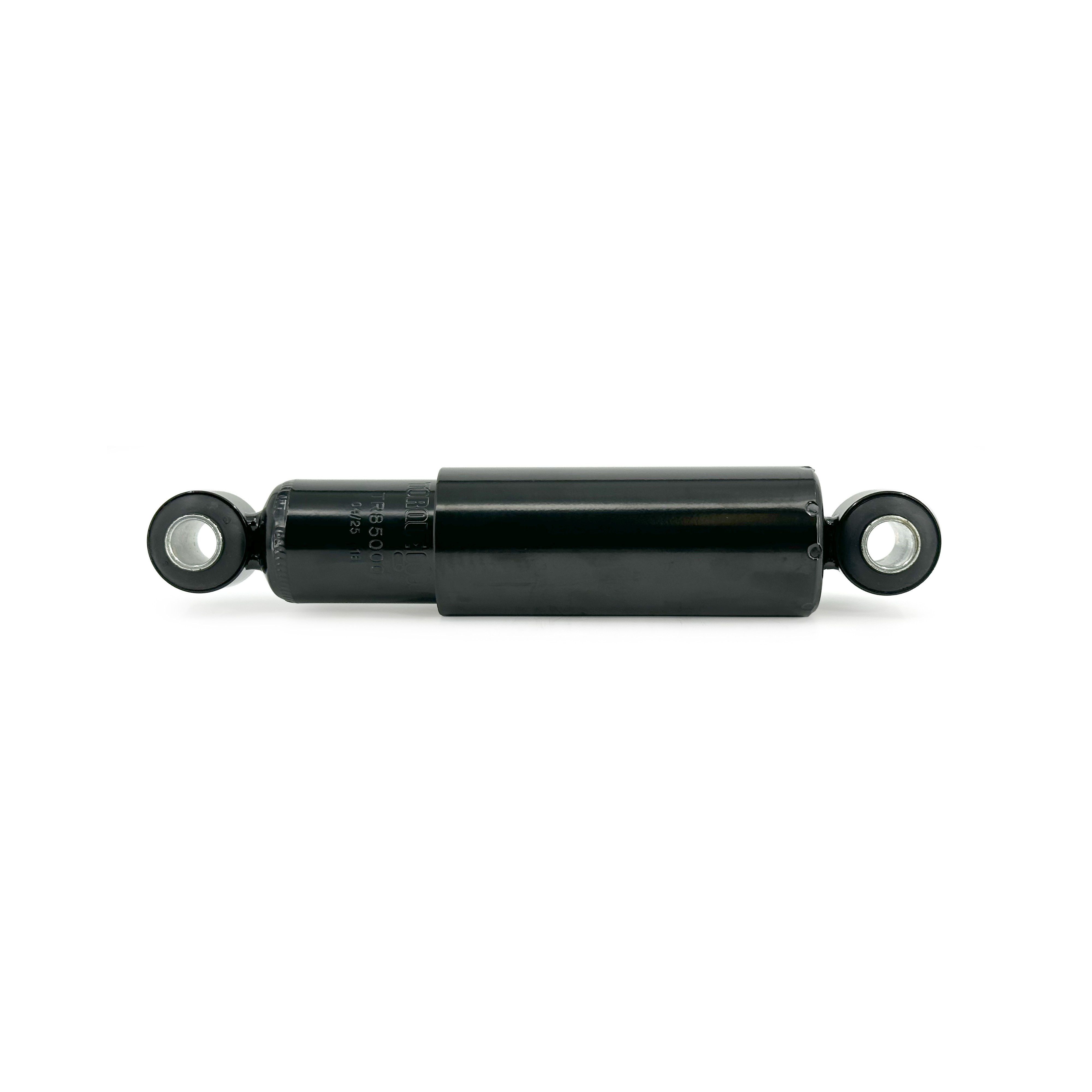

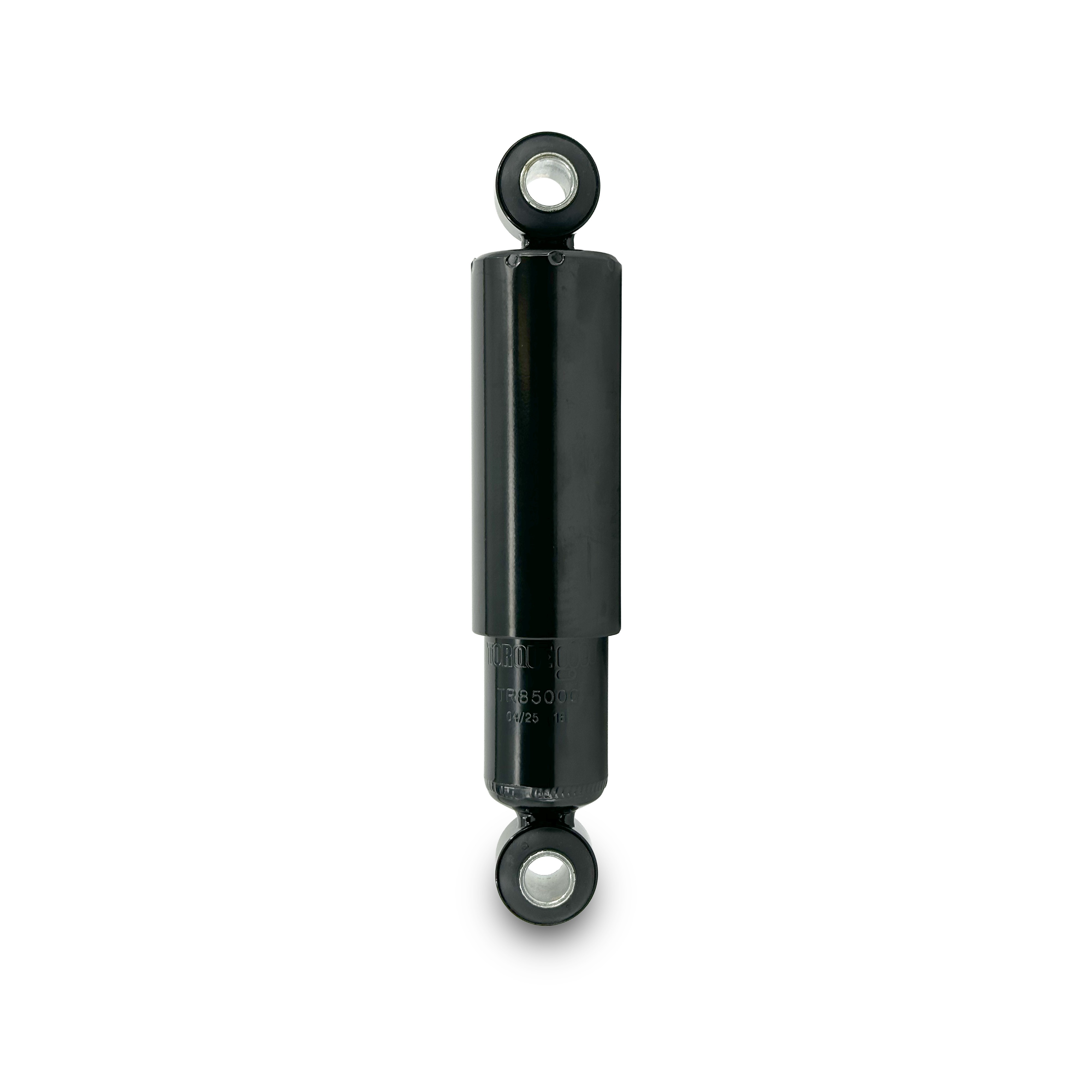

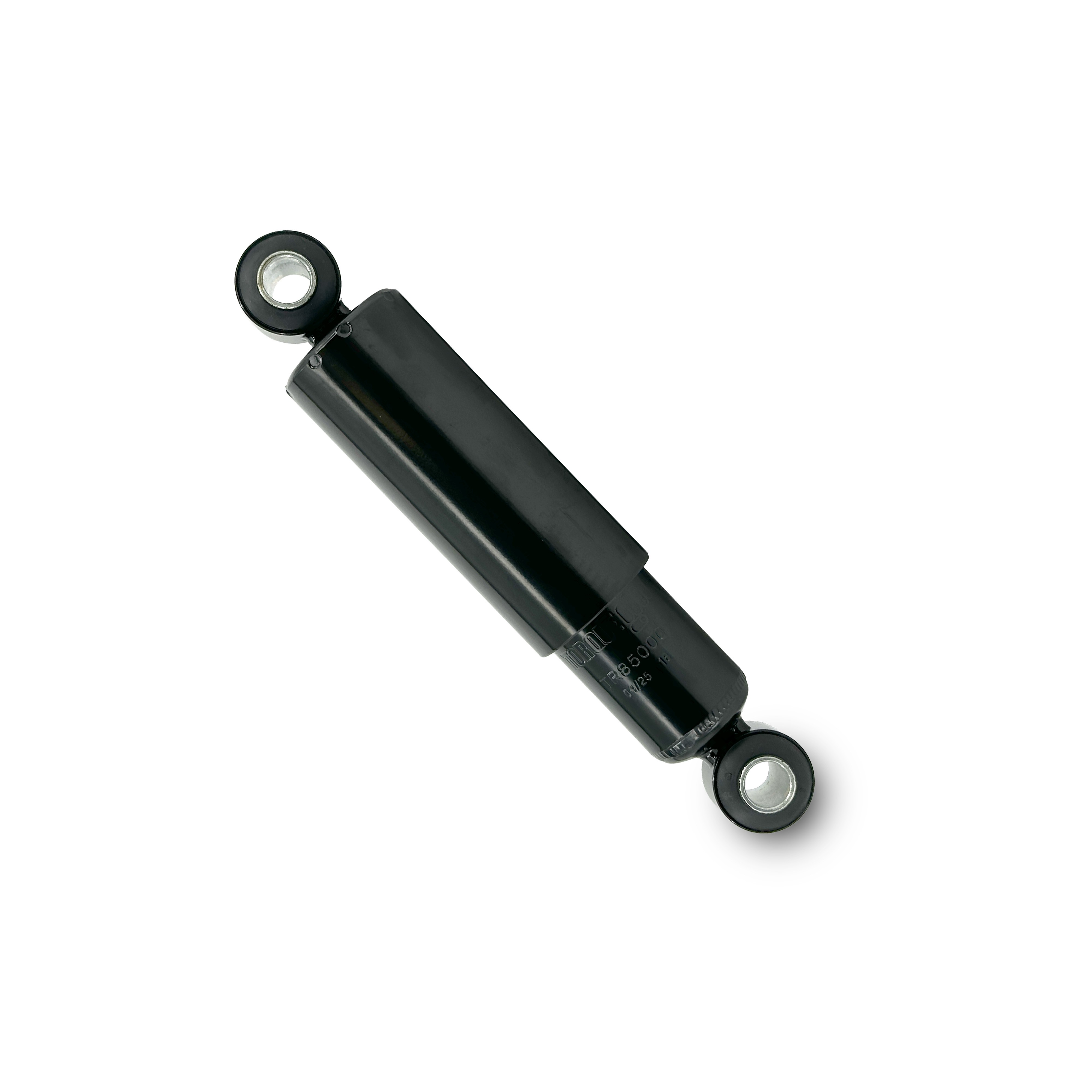

TR85000 | Heavy Duty Shock Absorber for Trailers
Description : Heavy Duty Shock Absorber for Trailers Replaces 654907
Part Number : TR85000
Heavy Duty Shock Absorber for Trailers
| Brand | Reference Numbers |
|---|---|
| Freightliner | 1614759000, 16‑14759‑00 |
| Gabriel | 85000, 665724 |
| Hendrickson | A14583, A1667, A1668, A20001, A20002, 654951, 665531, 665536, 665756, 665766, 671948, B23013, B22715, B23566, B26652, S14583, S1667, S1668, S20001, S23013, S24088, S26652, S23566, S20002, S‑20002 |
| Holland | 90044991 |
| Hutch | 942301, 942302 |
| Meritor | 654907, 85000 |
| Monroe | 65416, 65419 |
| National | 5089 |
| Neway | 57639, 90044008, 90044071, 90044081, 90044086, 90044981, 90044982, 90045299, 90044992, AR718CHD |
| Reyco | 1880001 |
| Ridewell | 1250563B000, 1270563B000 |
| Thomasbilt | 61310232 |
| Trailmobile | 434237, 434277, 436028, 436118, 438013, 90044992 |
| Volvo | 1091367 |
| Volvo/White | 1091367 |
| Watson and Chalin | 10147HD |
| Automann: | 565.ER3011 |
| Sampa: | 502.816 |

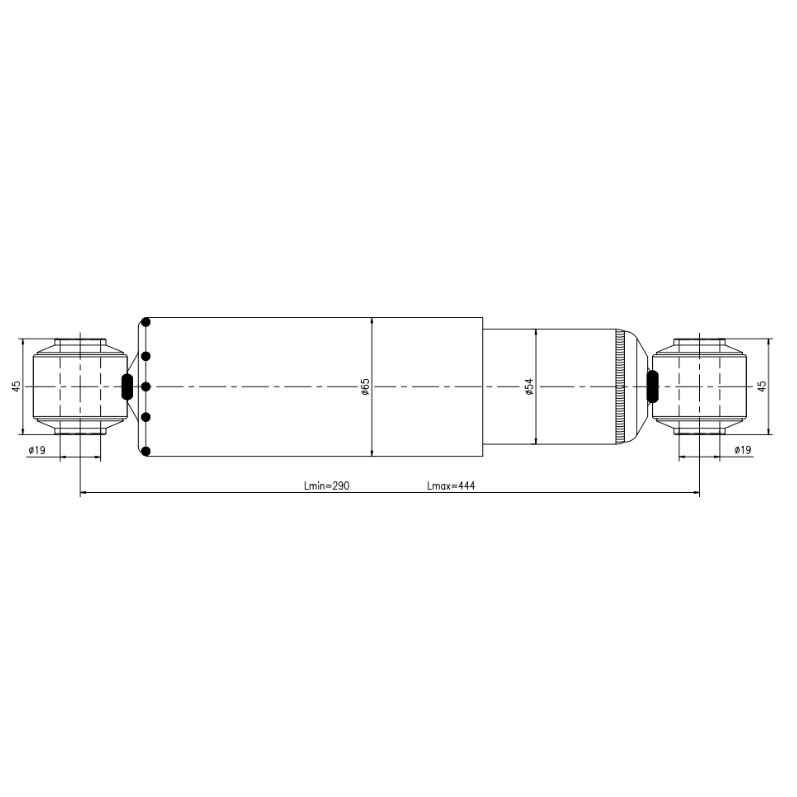

| Property | Value |
|---|---|
| Extended length | 17.28" |
| Collapsed length | 11.5" |
| Stroke | 5.78" |
| Dust tube | Yes |
| Recoil Cutoff | Yes |
| Rebound force | 1019 |
| Compression force | 219 |
| Upper Mounting | I.D. 0.75",<wbr> sleeve length 1.75" |
| Lower Mounting | I.D. 0.75",<wbr> sleeve length 1.75" |
| Bore | 1‑5/8" |
| Weight | 6lbs |
