TR5423 | Trailer Air Spring
Description : Trailer Air Spring Replaces ASCR1500, W01-358-5423, 665-13S559
Part Number : TR5423
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 665‑13S559, 68127 |
| Firestone | 5423, W013585423, W01‑358‑5423 |
| Granning | 5235, 5307, 5235 & 5307 (no stud) |
| Lift Rowe Trailer | ASCR1500, ASCST1500, ASCST2000 |
| Rowe Truck | ASC1500, ASCS1500, ASCS2000 |
| Triangle | AS‑8559 |
| Sampa | SP555423‑KA, SP 555423‑KA |

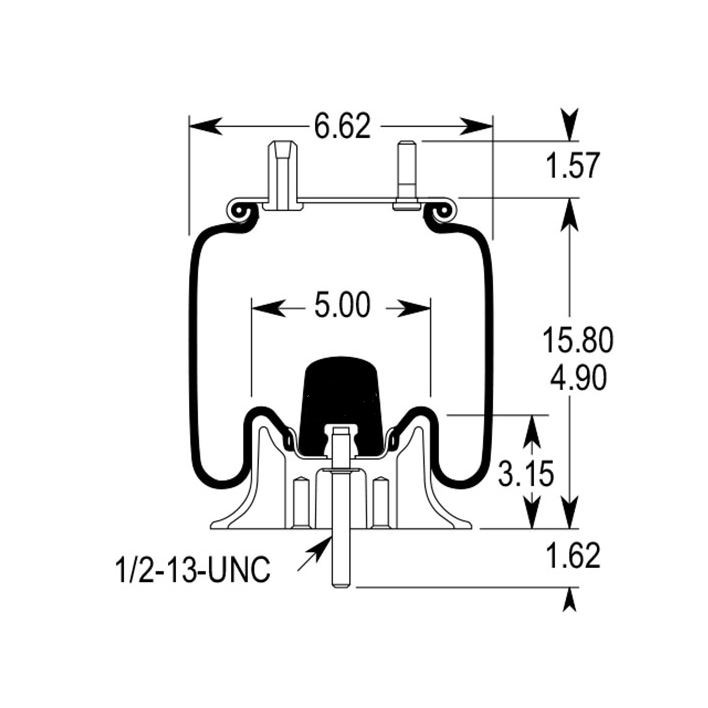

| Property | Value |
|---|---|
| Extended Height | 15.80" |
| Compressed Height | 4.90" |

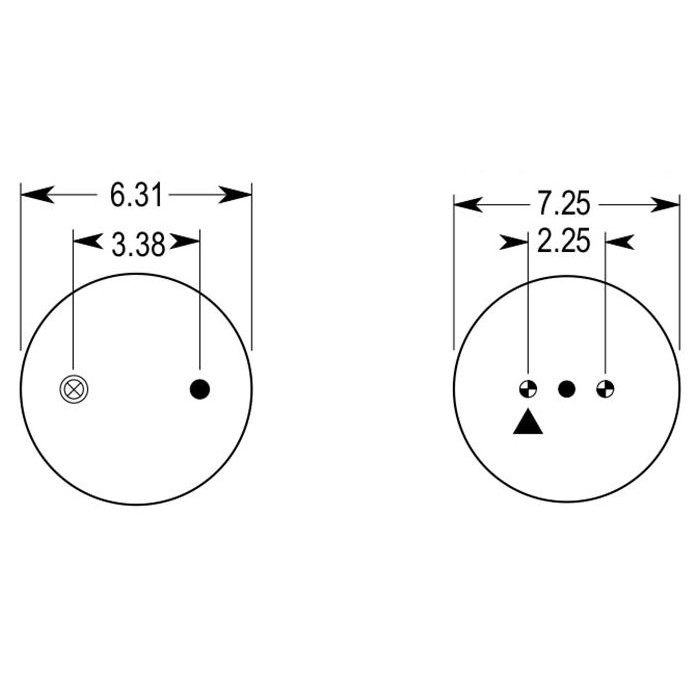

| Top Plate Width | 6.31" |
| Piston Width | 7.25" |
| Weight | 19.05 lbs |
