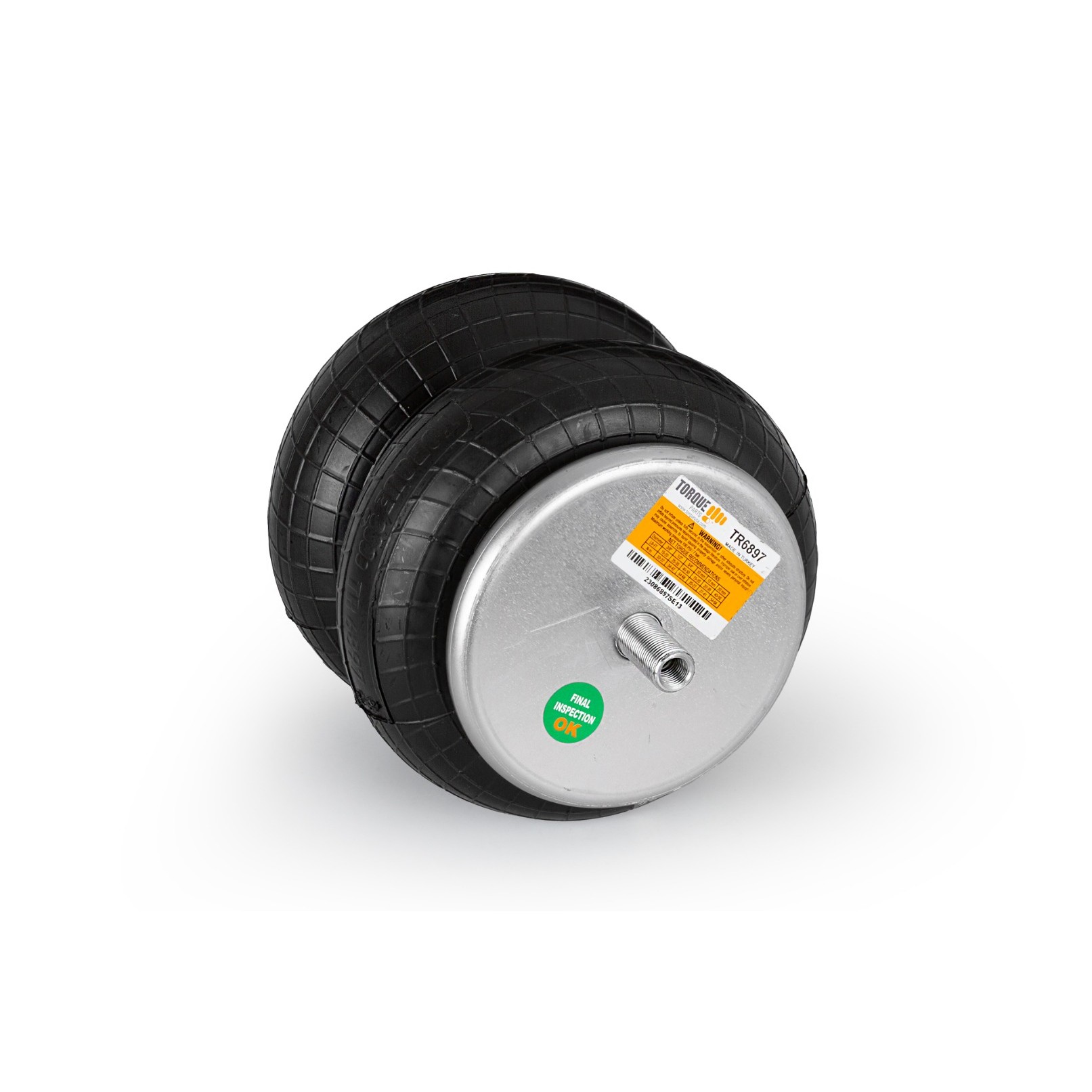

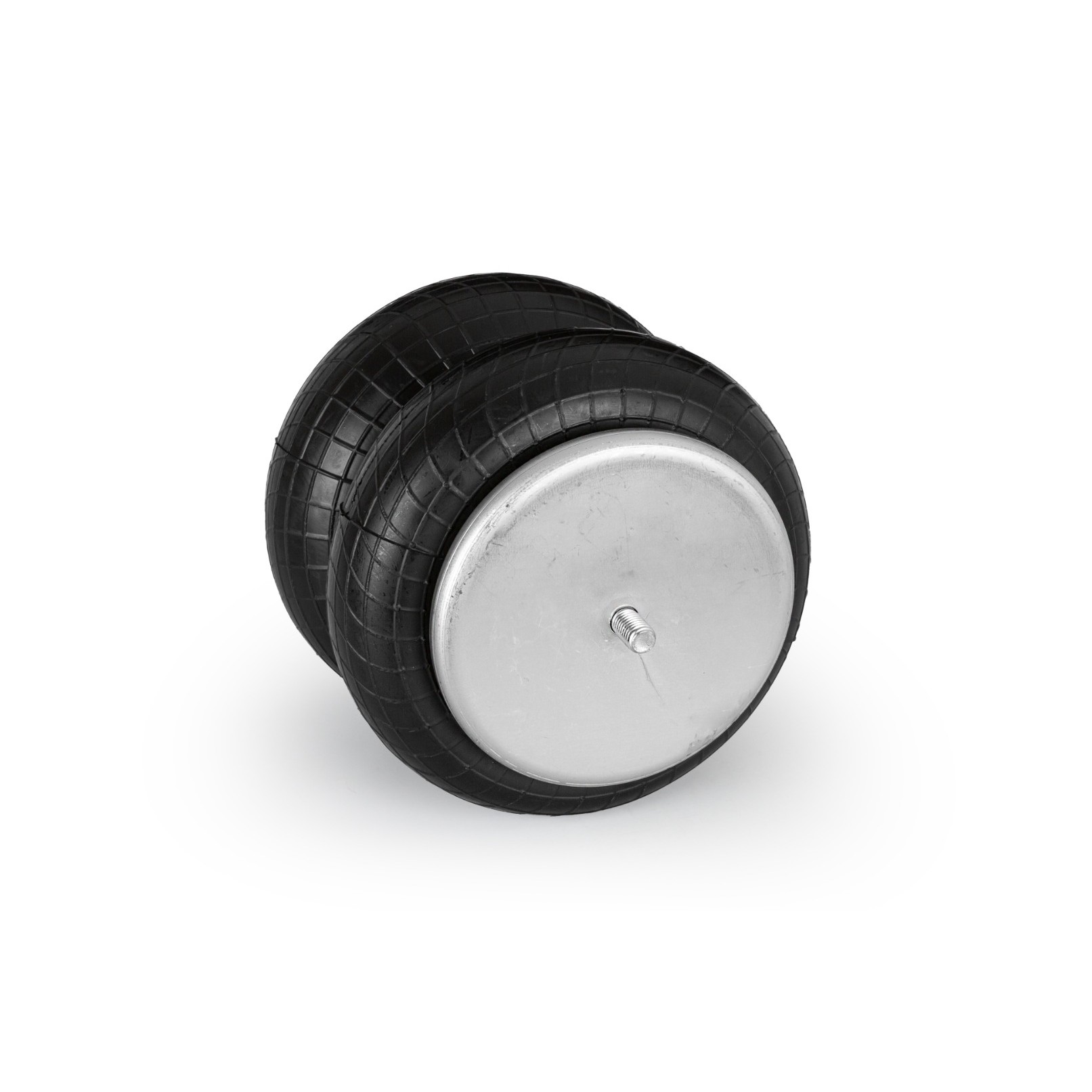

TR6897 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Part Number : TR6897
Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER6897 |
| Contitech | FD 200 19 505, 64517, FD200‑19505 |
| Firestone | W013586897, W01‑358‑6897 |
| Goodyear | 2B9229, 2B9‑229 |
| IHC | 2601750C1, 2B9‑490 |
| Neway | G2296897500 |
| Oshkosh | 6HD689 |
| Reyco | 70178401 |
| Ridewell | 1003586897C |
| Terex | 18127 |
| Triangle | 4505, AS‑4505 |
| Volvo/White | 3098608 |
| Watson & Chalin | AS‑0058 |
| Watson&Chalin | AS0058, AS0058F |
| Sampa: | SP556897, SP 556897 |
| Property | Value |
|---|---|

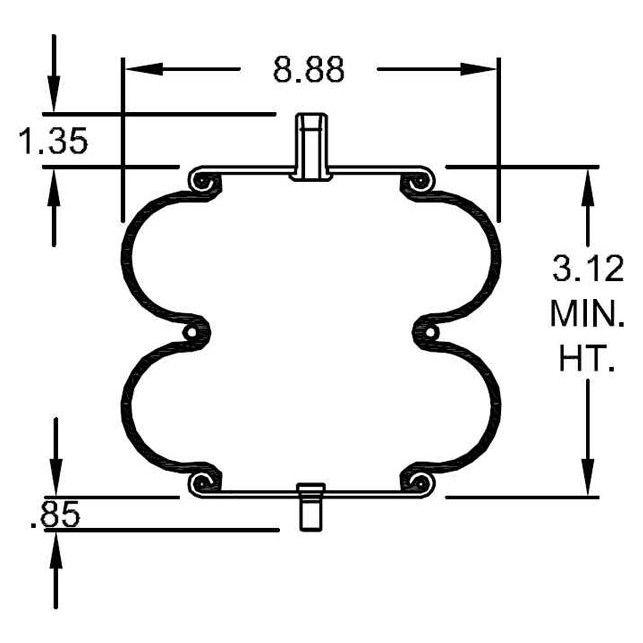

| Compressed Height | 3.12" |

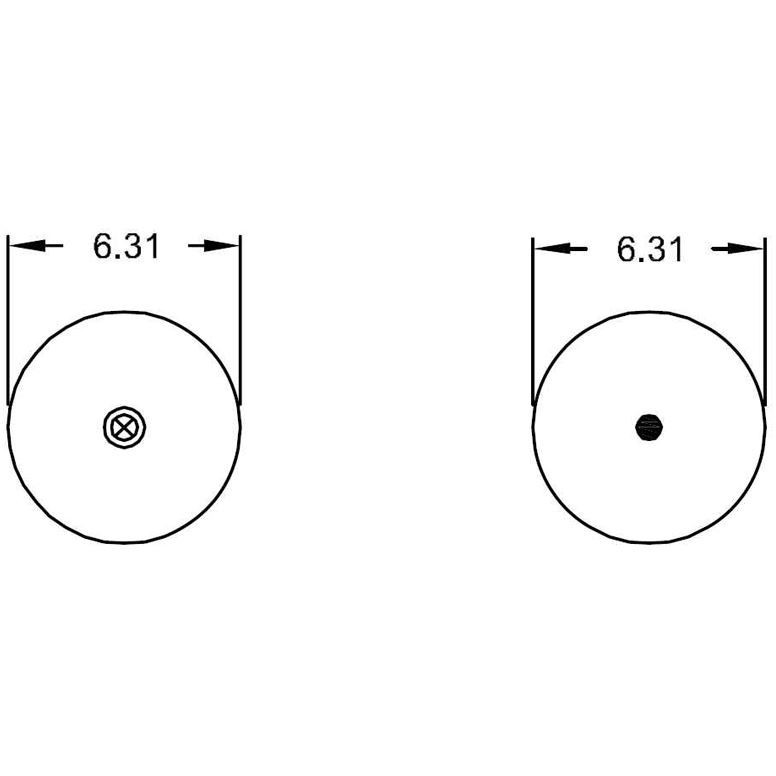

| Top Plate Width | 6.31" |
| Piston Width | 6.31" |
| Weight | 6.40 lbs |
