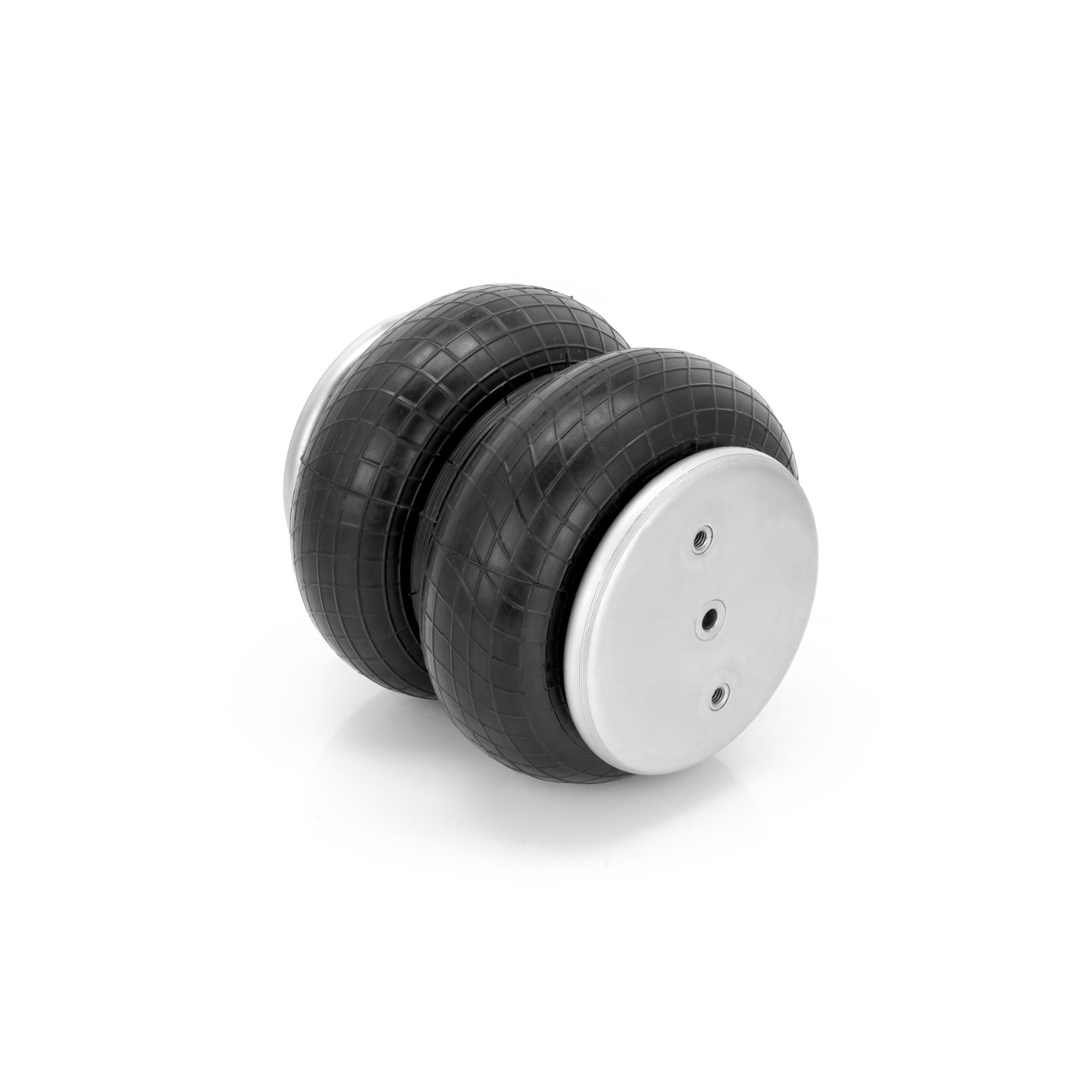

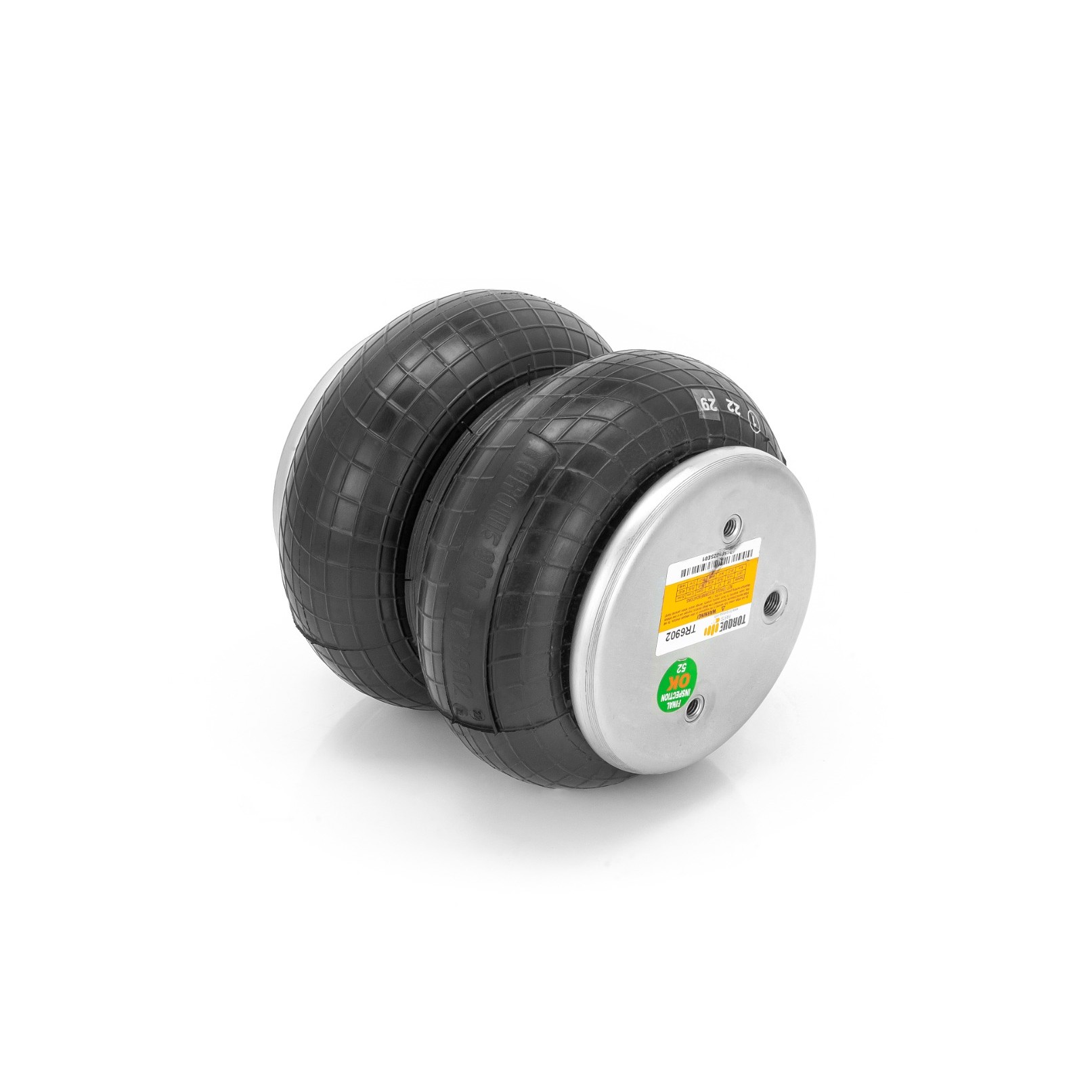

TR6902 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
Part Number : TR6902
Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER6902 |
| Contitech | FD200‑19310, FD 200‑19 310, 64509 |
| Firestone | W01‑358‑6902 , W01‑358‑6947 |
| Goodyear | 2B9201, 2B9‑201, 2B9239, 2B9‑239 |
| Hendrickson | S2630, S‑2630, B‑2630 |
| IHC | 554784C1 |
| Neway | 57006902, G2296902500 |
| Ridewell | 1003586902C |
| Triangle | 4310, AS‑4310 |
| Watson & Chalin | AS‑0002 |
| Watson&Chalin | AS0002 |
| Sampa | SP556902, SP 556902 |
| Property | Value |
|---|---|

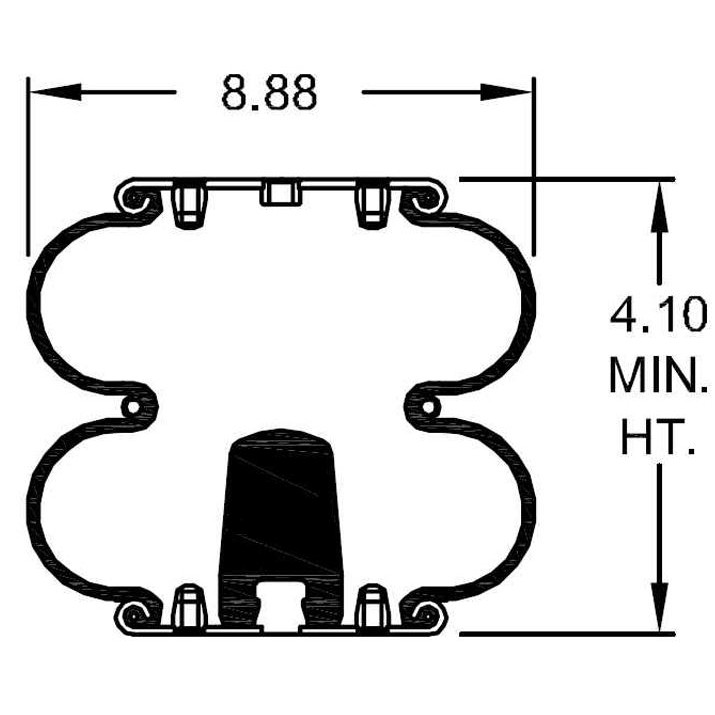

| Compressed Height | 4.10" |

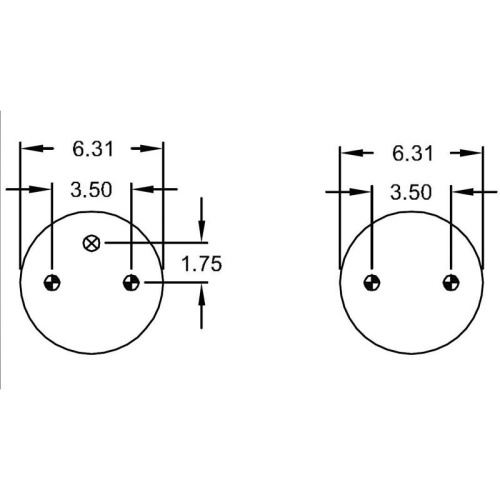

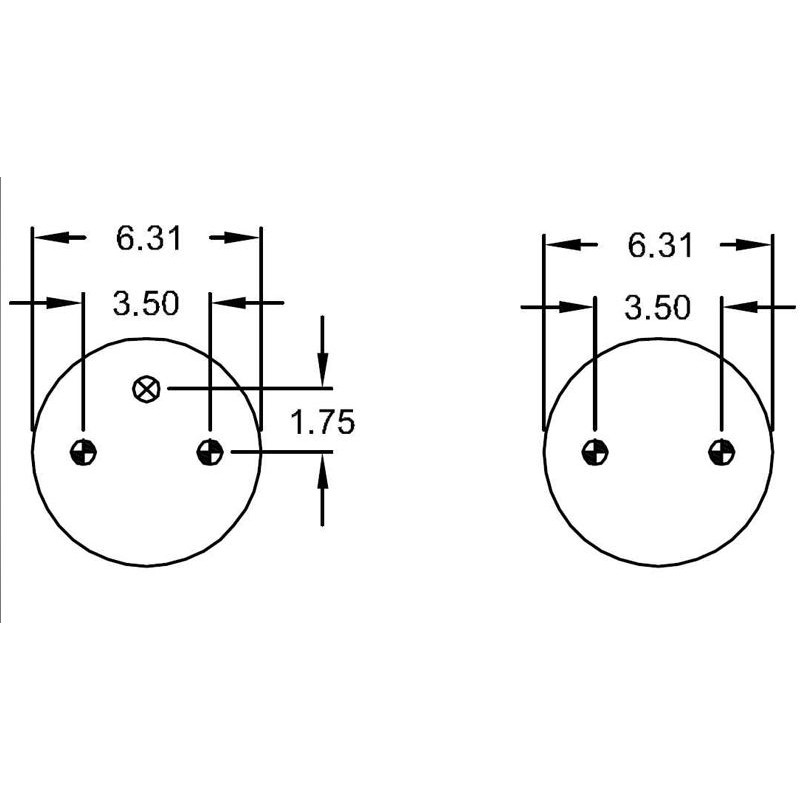

| Top Plate Width | 6.31" |
| Piston Width | 6.31" |
| Weight | 7.00 lbs |
