TR7795 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Part Number : TR7795

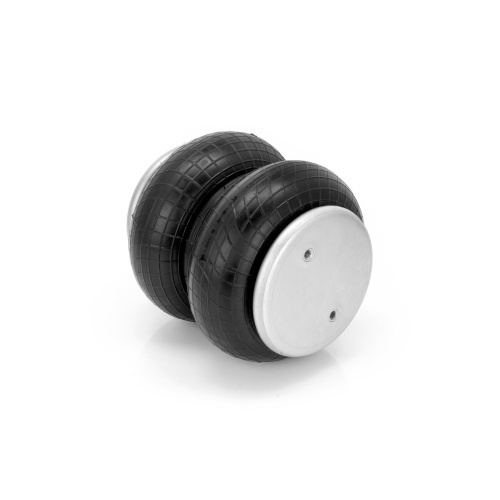

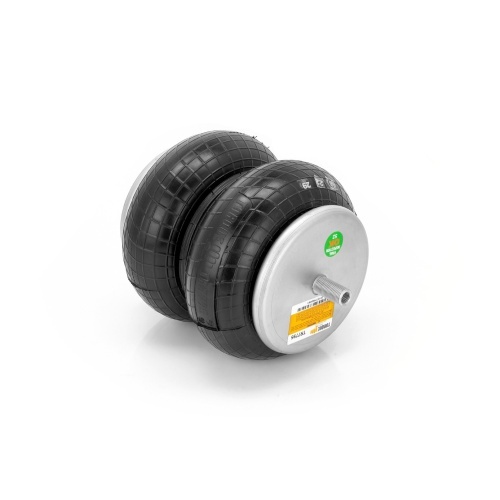

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 67705, FD 200‑19 713 |
| Firestone | 7795, W01‑358‑7795, W01‑358‑7897 |
| Goodyear | 2B10226, 2B10‑226 |
| Hendrickson | S‑14486, 3317 |
| Hendrickson/Turner | 3317, B14486, S14486 |
| Triangle | 4524, AS‑4713 |
| Sampa | SP557795, SP 557795 |
| Property | Value |
|---|---|

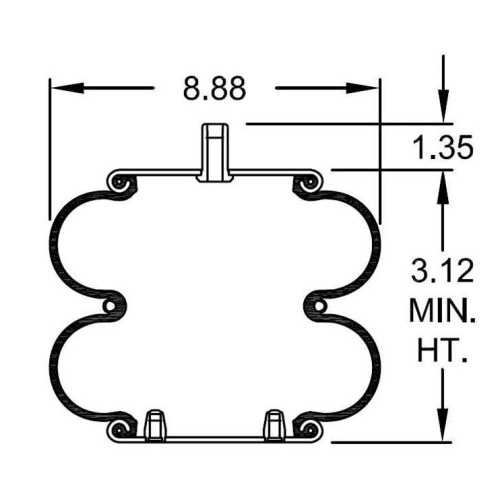

| Compressed Height | 3.12" |

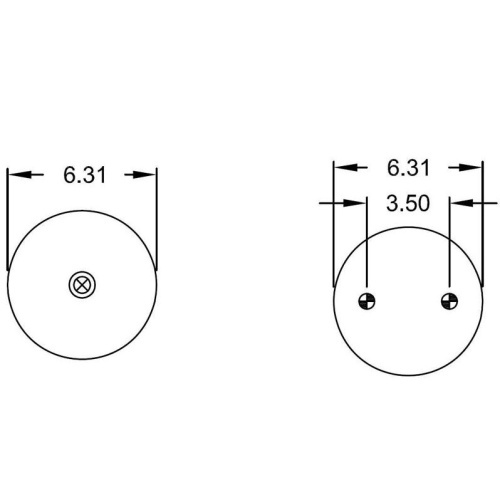

| Top Plate Width | 6.31" |
| Piston Width | 6.31" |
| Weight | 6.4 lbs |
