TR7797 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
Part Number : TR7797

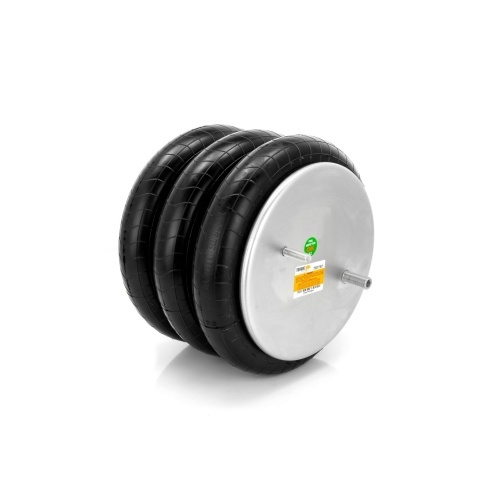

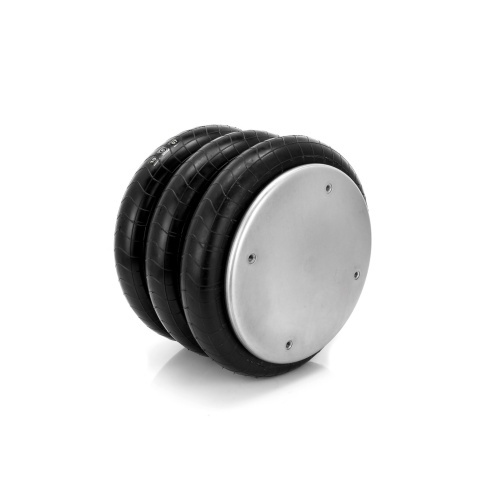

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64507, FT 530‑32 535 |
| Firestone | W01‑358‑7797 |
| Freightliner | 1617575000, 1615762001 |
| Hendrickson | 1346 |
| Link | 11030057 |
| Triangle | AS‑4535 |
| Sampa | SP557797, SP 557797 |
| Property | Value |
|---|---|
| Compressed Height | 4.60" |
| Top Plate Width | 11.31" |
| Piston Width | 11.31" |
| Weight | 21 lbs |
