TR7818 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces S-13041, 3B14-359, W01-358-7818
Part Number : TR7818

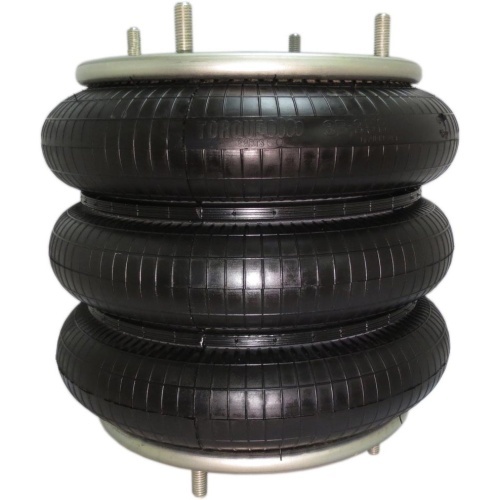

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64503, FT530‑32325, FT 530‑32 325 |
| Firestone | 7814, 7816, 7818, 7852, W013587814, W01‑358‑7814, W013587816, W01‑358‑7816, W013587818, W01‑358‑7818, W013587852, W01‑358‑7852, W01‑358‑7839 |
| Goodyear | 3B14359, 3B14‑359 |
| Goodyear Part | 3B14‑35 |
| Granning | 1014, 1476 |
| Hendrickson | S13041, 13041 |
| IHC | 554803C1 |
| Load Guard | SC2032 |
| Neway | 57007818, 57007839 |
| Ridewell | 1003587818C, 1003587839C, S2685C |
| Triangle | 4325, AS‑4325 |
| Watson & Chalin | AS‑0025 |
| Watson&Chalin | AS0025, AS0033 |
| Sampa | SP557818, SP 557818 |
| Property | Value |
|---|---|

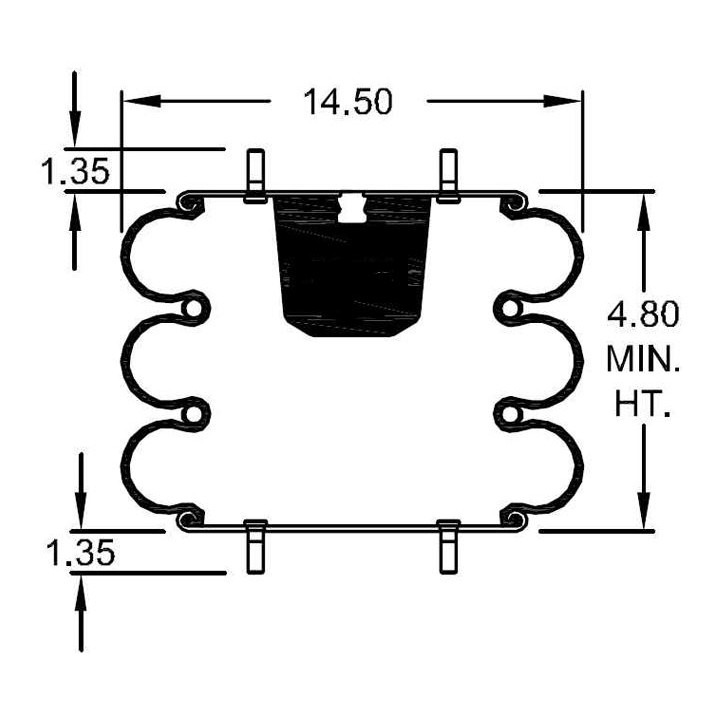

| Compressed Height | 4.80" |

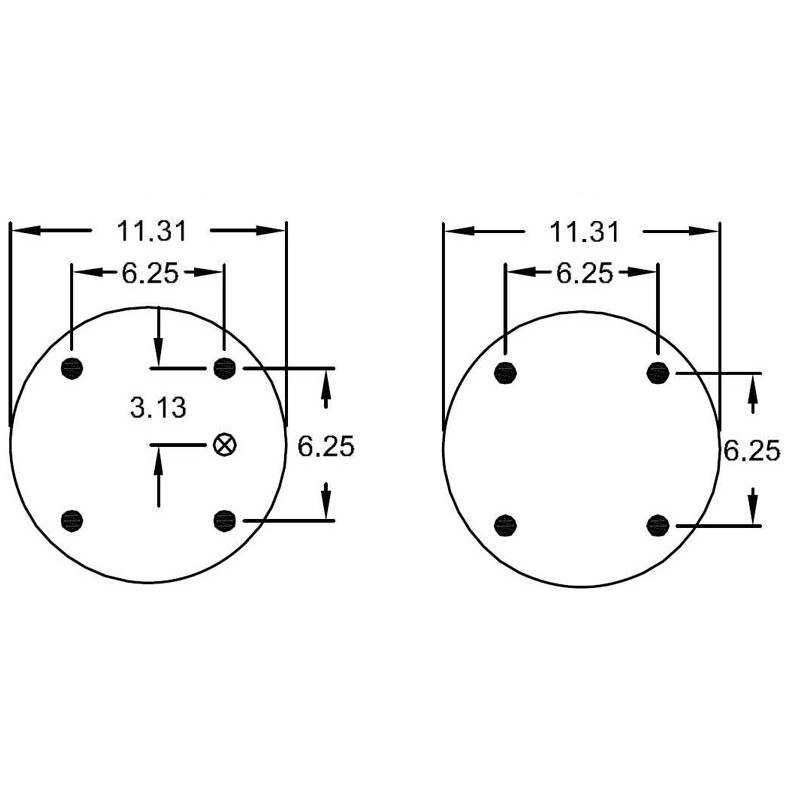

| Top Plate Width | 11.31" |
| Piston Width | 11.31" |
| Weight | 18.2 lbs |
