TR7897 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces S-23114, W01-358-7897, 2B9-495
Part Number : TR7897

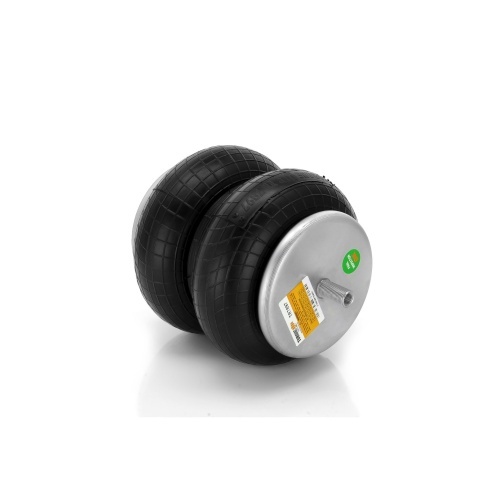

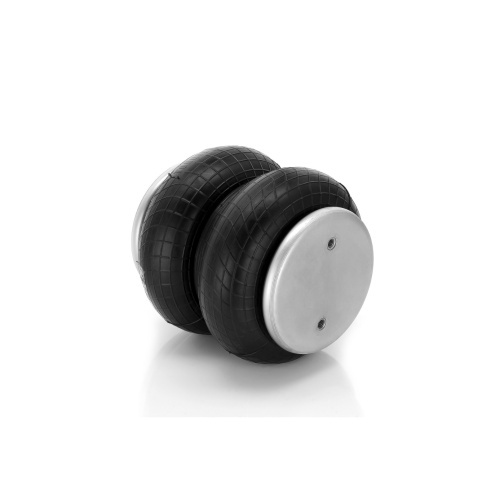

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | ABSP2B12RB‑7897 |
| Contitech | 64602, FD 200 22 524, FD 200‑23A 709 |
| Firestone | 7897, W013587897, W01‑358‑7897, W013587898, W01‑358‑7898, W014557898, W01‑455‑7898, W01‑455‑8148, 8148, W014558148 |
| Goodyear | 2B9495, 2B9‑495 |
| Hendrickson | 2878, S‑23114, S‑23114‑40 |
| Hendrickson Aux | 002878, 2878, R002878, R‑002878 |
| Reyco | 70418501, 704185‑01 |
| Triangle | AS‑4524 |
| Sampa | SP557897, SP 557897 |
| Property | Value |
|---|---|

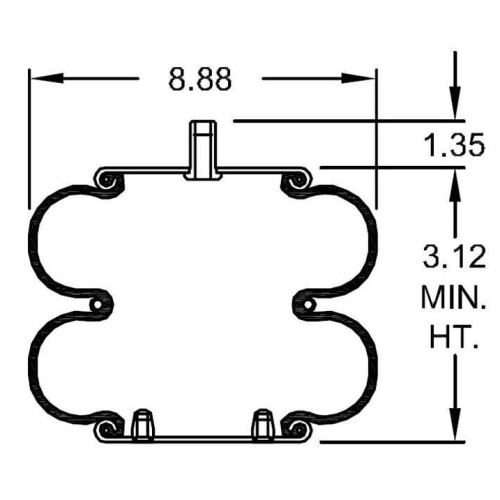

| Compressed Height | 3.12" |

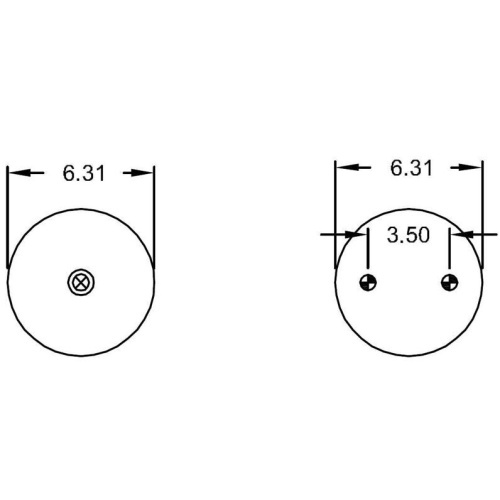

| Top Plate Width | 6.31" |
| Piston Width | 6.31" |
| Weight | 6.4 lbs |
