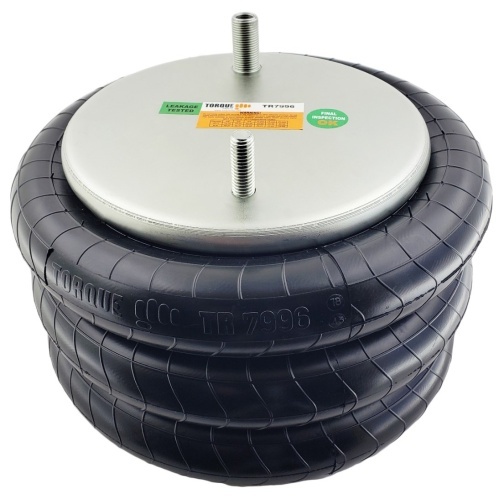

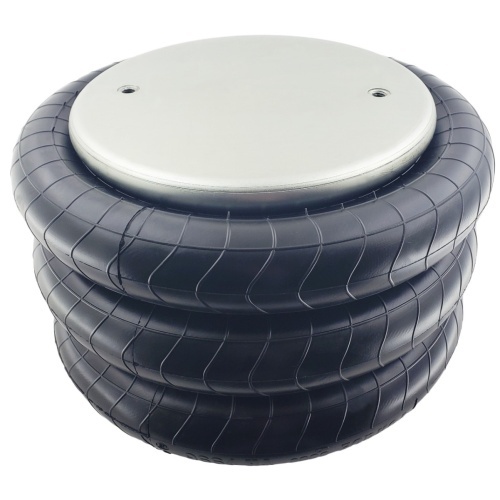

TR7996 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces 3B12-335, W01-358-7996, 64570
Part Number : TR7996
Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | ABSP3B22R‑7990, ABSP3B22R‑7996 |
| Contitech | 64570, FT 330‑29 520 |
| Firestone | 7996, W01‑358‑7996, W01‑358‑7990 |
| Goodyear | 3B12335, 3B12‑335 |
| Granning | 8221 |
| Triangle | 4520, AS‑4703, AS‑4520, AS‑4723 |
| Sampa | SP557996, SP 557996 |
| Property | Value |
|---|---|

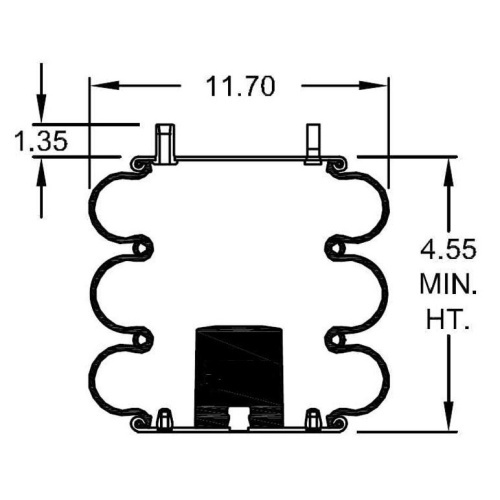

| Compressed Height | 4.55" |

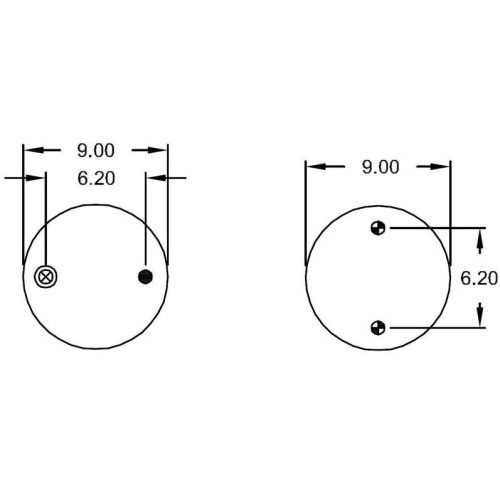

| Top Plate Width | 9.00" |
| Piston Width | 9.00" |
| Weight | 15.4 lbs |
