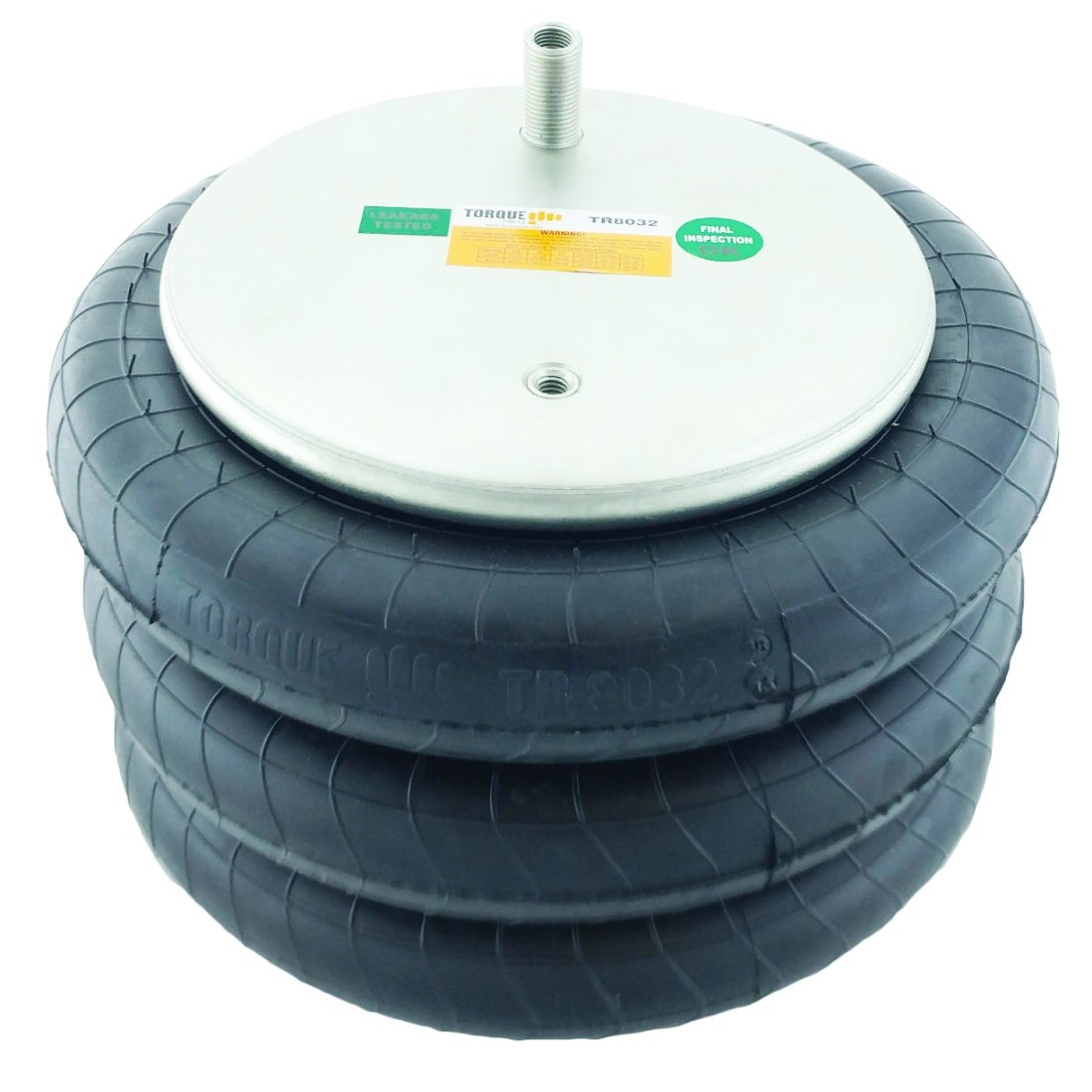

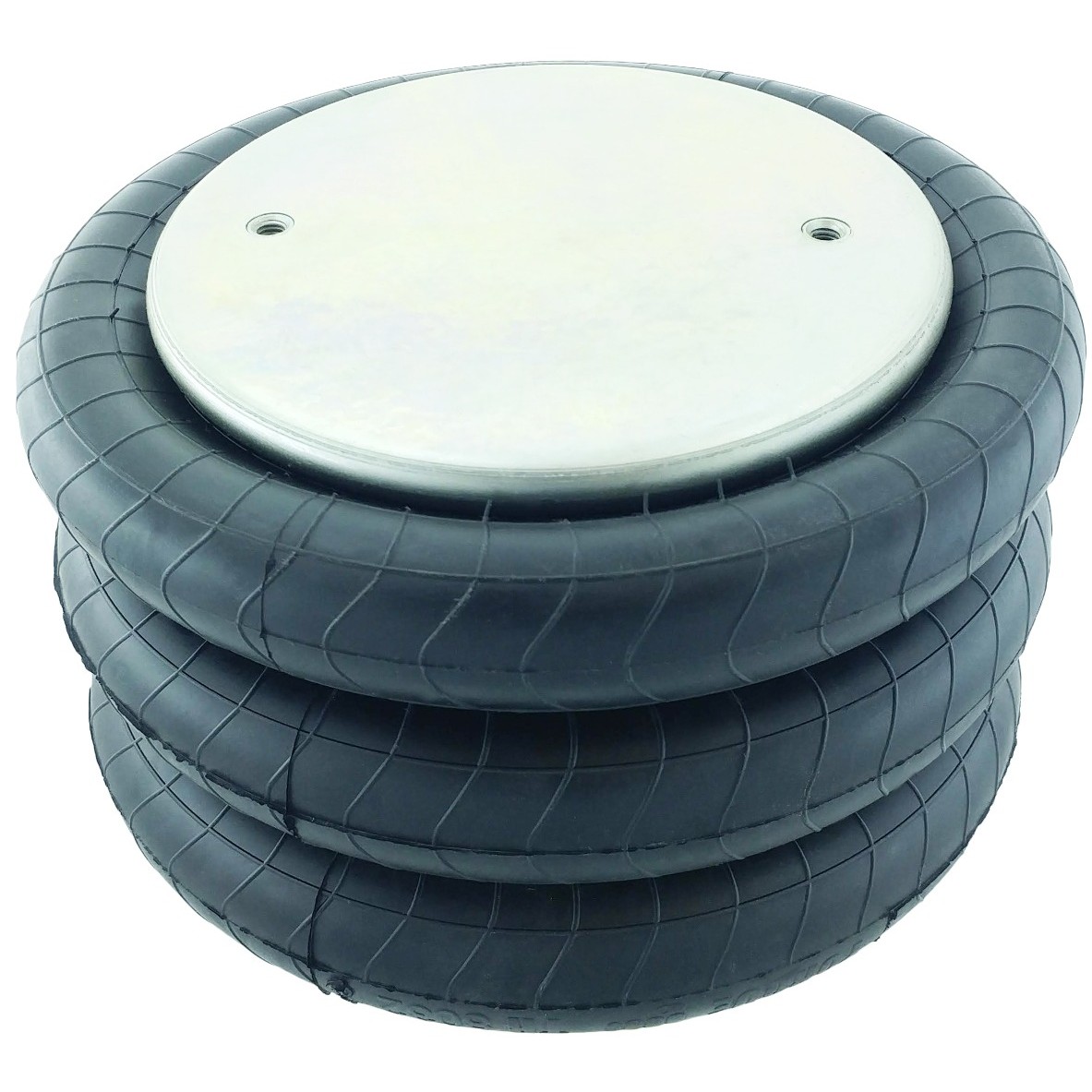

TR8032 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032
Part Number : TR8032
Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64560, FT 330‑29 413 |
| Firestone | 8032, W01‑358‑8032, W01‑358‑7995 |
| Goodyear | 3B12319, 3B12‑319, 3B12‑319 / 3B12‑329 |
| Hendrickson | S12405, S‑12405 |
| Triangle | 4413, AS‑4413 |
| Watson & Chalin | AS‑0048 |
| Sampa | SP558032, SP 558032 |
| Property | Value |
|---|---|

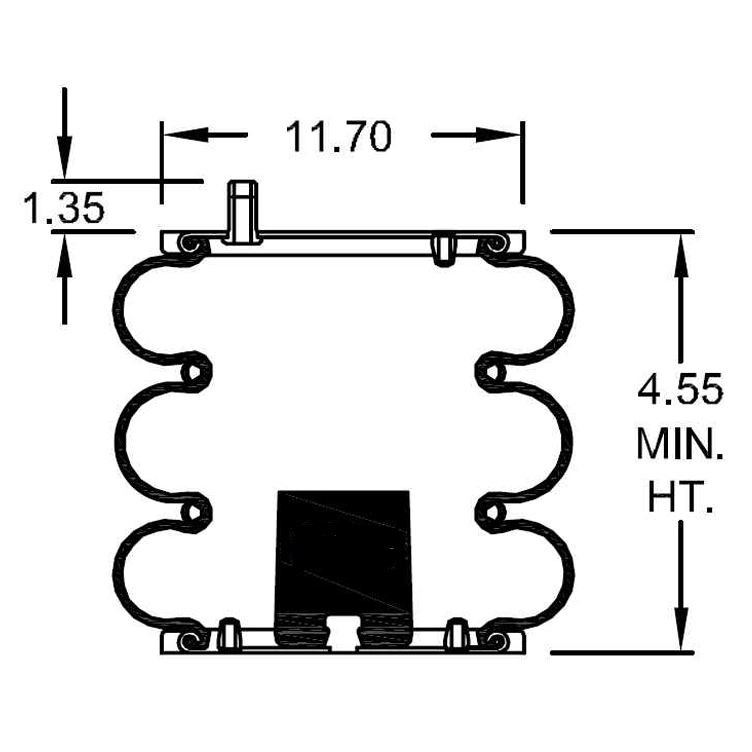

| Compressed Height | 4.55" |

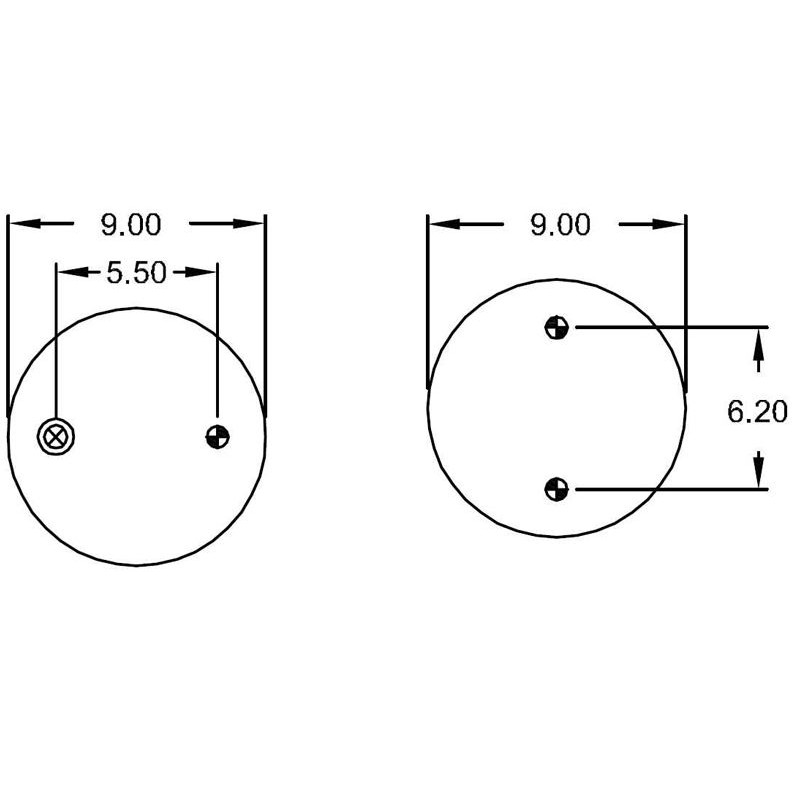

| Top Plate Width | 9.00" |
| Piston Width | 9.00" |
| Weight | 15.3 lbs |
