TR8033 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033
Part Number : TR8033

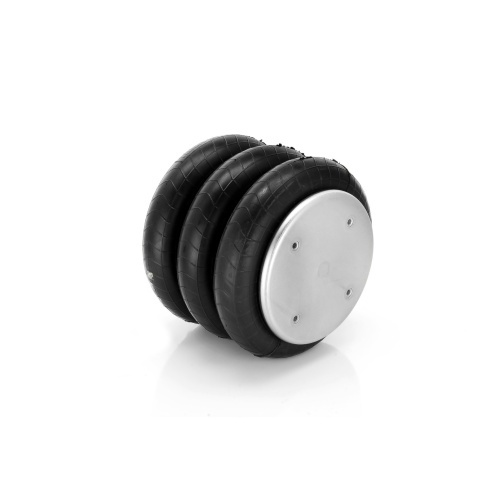

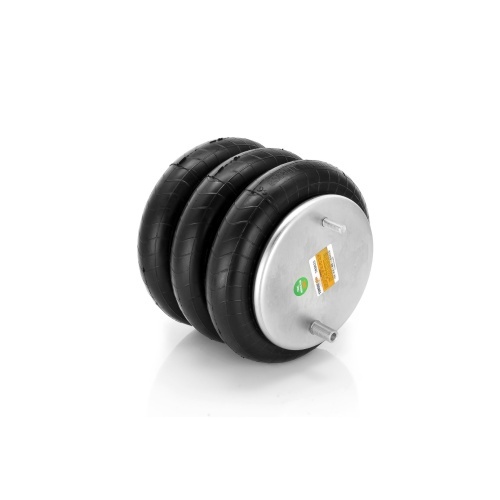

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8033 |
| Contitech | 64571, FT 330‑29 525 |
| Firestone | 8033, W01‑358‑8033 |
| Goodyear | 3B12312, 3B12‑312 |
| Hendrickson | 3316, S‑14487 |
| Hendrickson/Turner | 3316, B14487, S14487 |
| Mack | 8446B14487 |
| Triangle | 4525, AS‑4525 |
| Sampa | SP558033, SP 558033 |
| Property | Value |
|---|---|

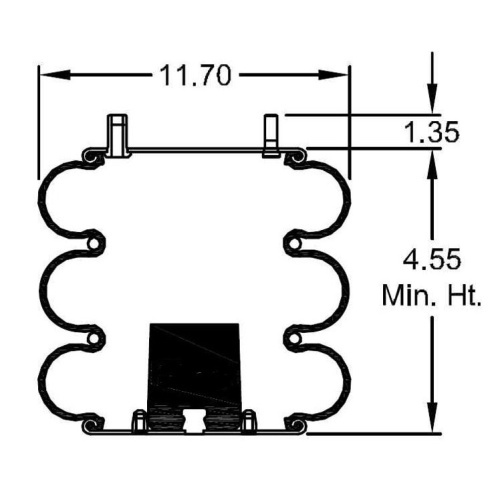

| Compressed Height | 4.55" |

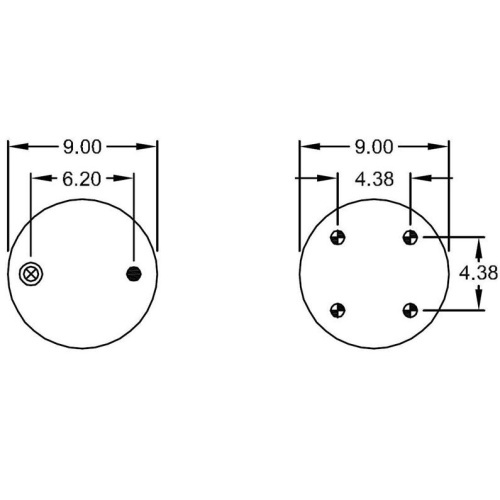

| Top Plate Width | 9.00" |
| Piston Width | 9.00" |
| Weight | 15.8 lbs |
