TR8042 | Convoluted Air Spring
Description : Convoluted Air Spring Replaces 3B12-322, W01-358-8042, 69747
Part Number : TR8042

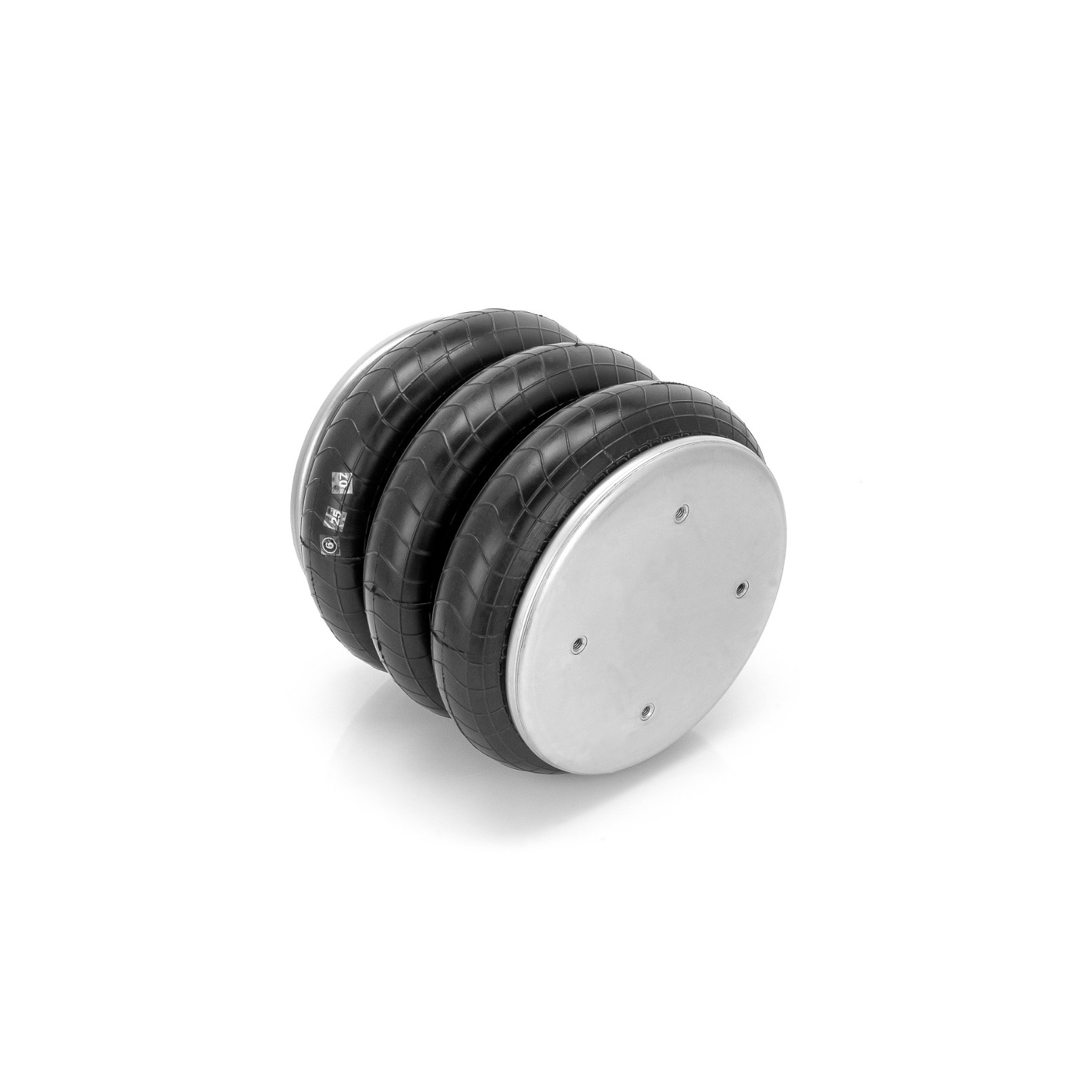

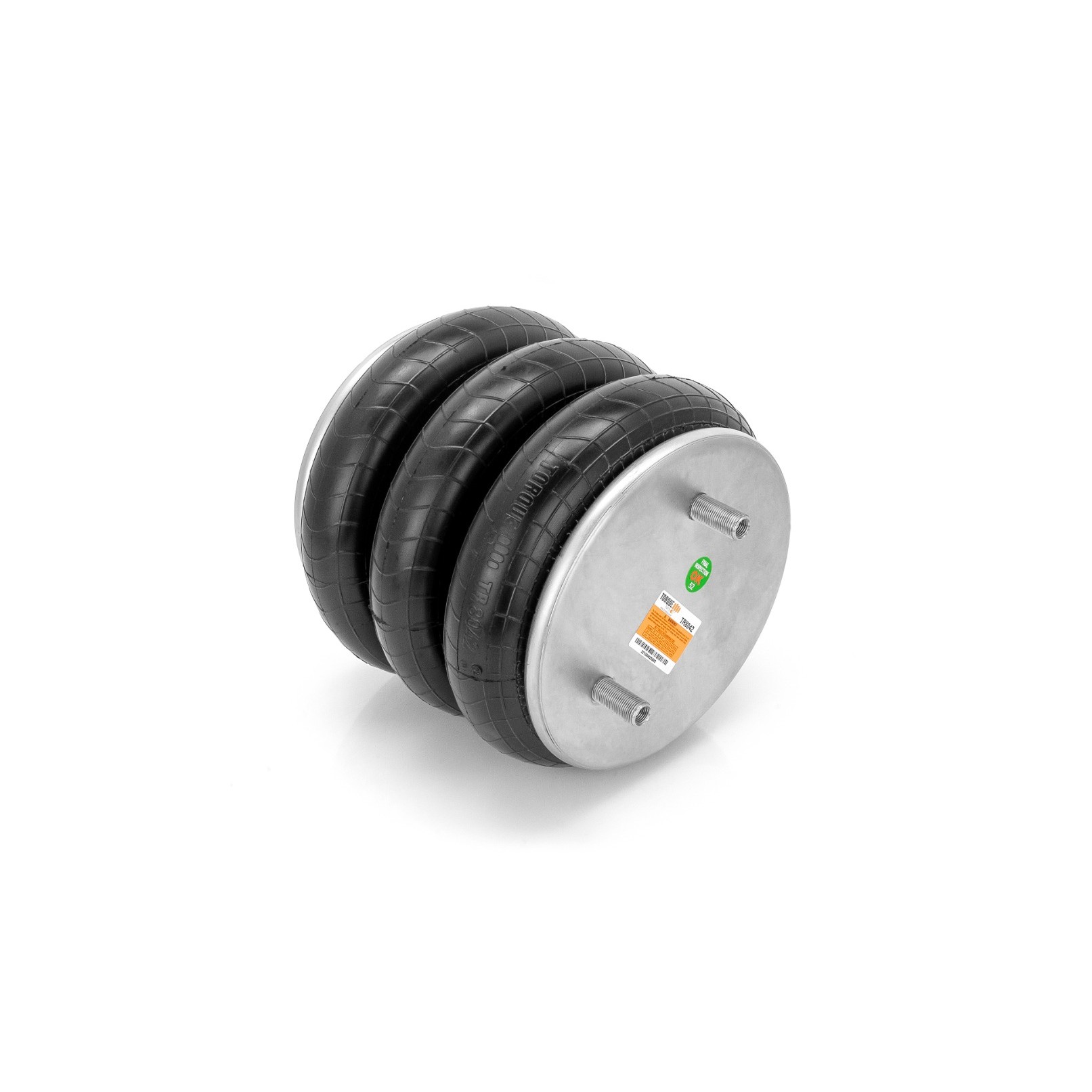

Convoluted Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 69747 |
| Firestone | 8042, W01‑358‑8042, W013588042 |
| Goodyear | 3B12‑322 |
| Hendrickson | 1015 |
| Neway | 90557236 |
| SAF Holland | 905‑57‑236, VSA144 |
| Triangle | AS‑4790 |
| Sampa | SP558042, SP 558042 |
| Property | Value |
|---|---|

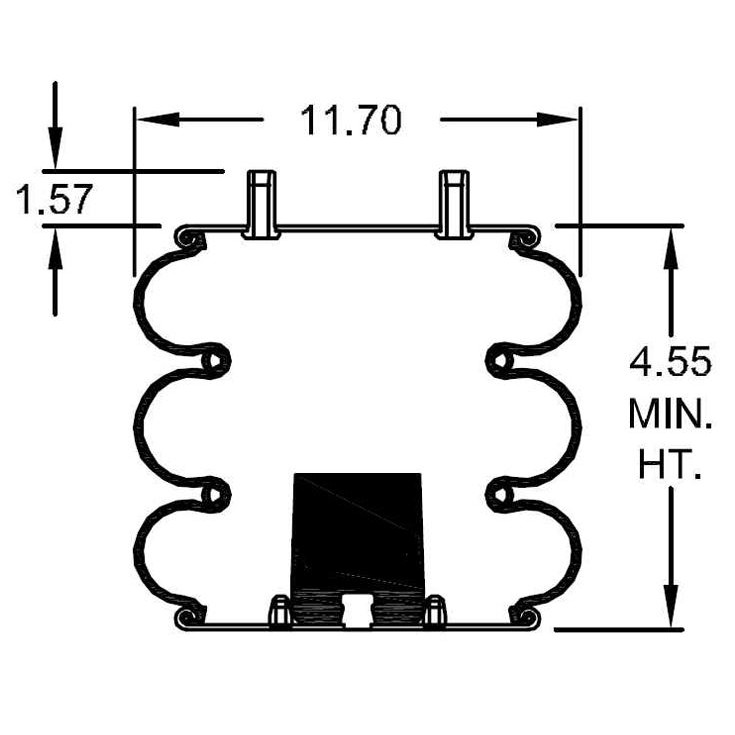

| Compressed Height | 4.55" |

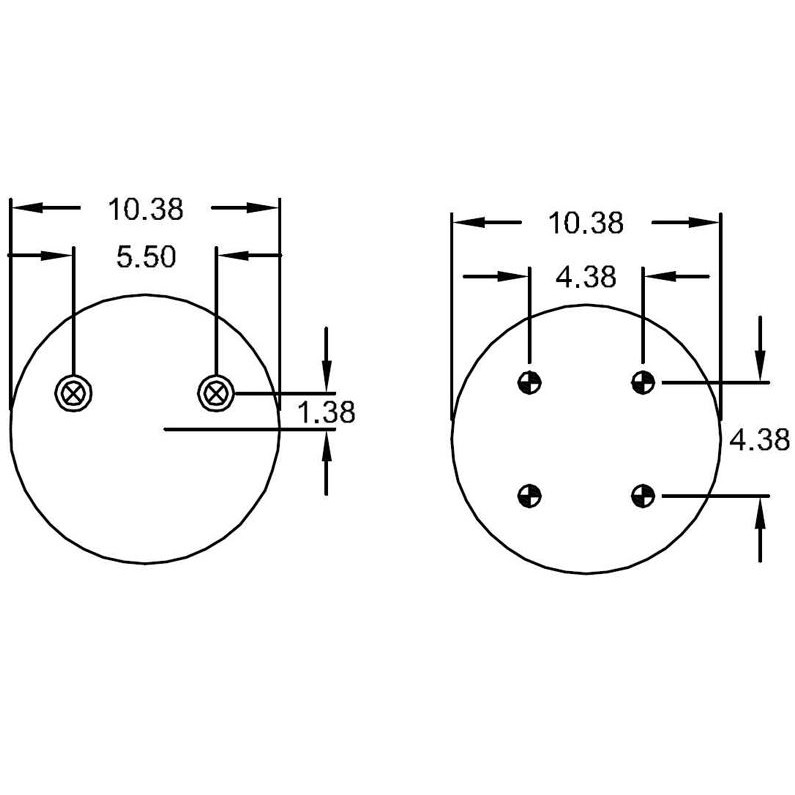

| Top Plate Width | 10.38" |
| Piston Width | 10.38" |
| Weight | 15.4 lbs |
