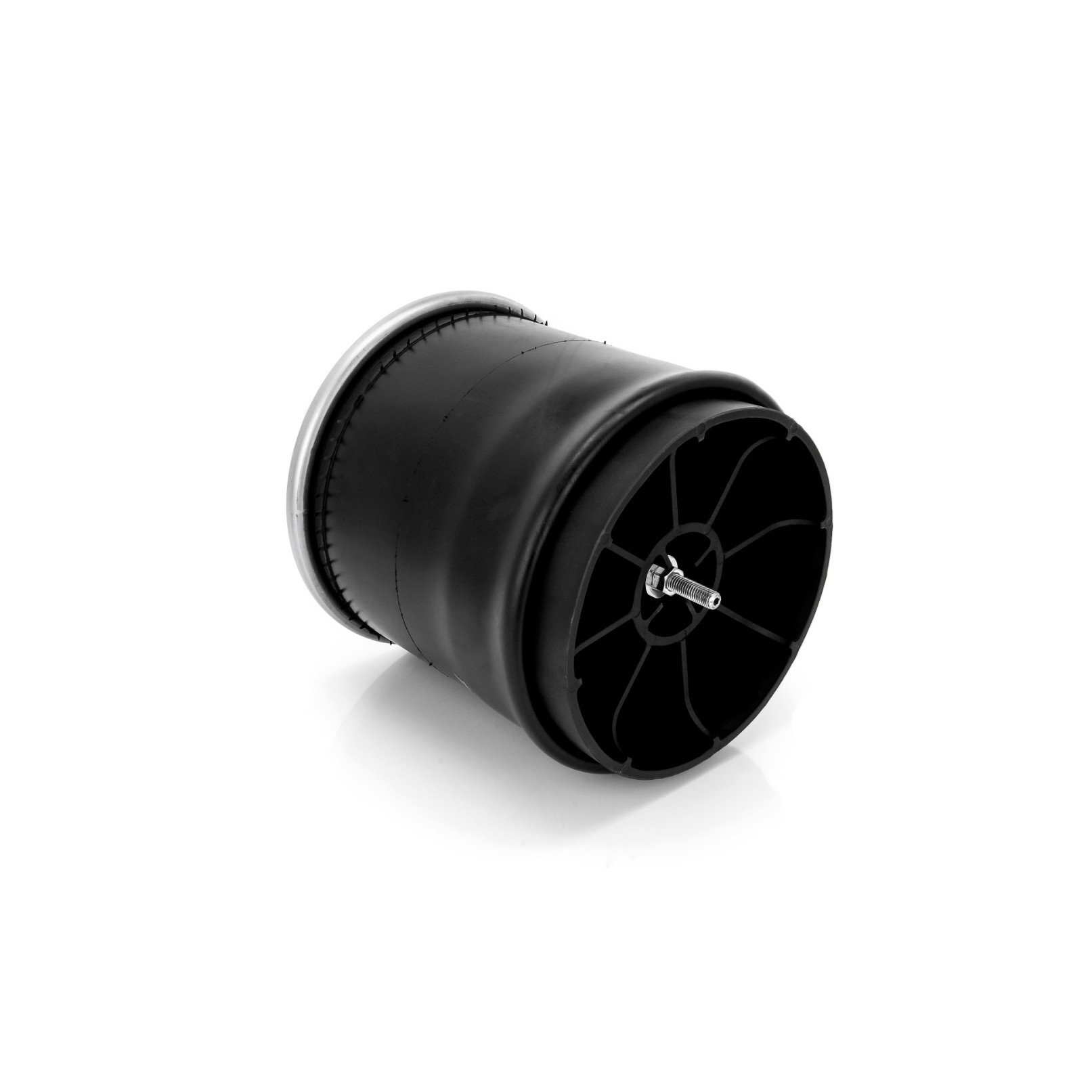

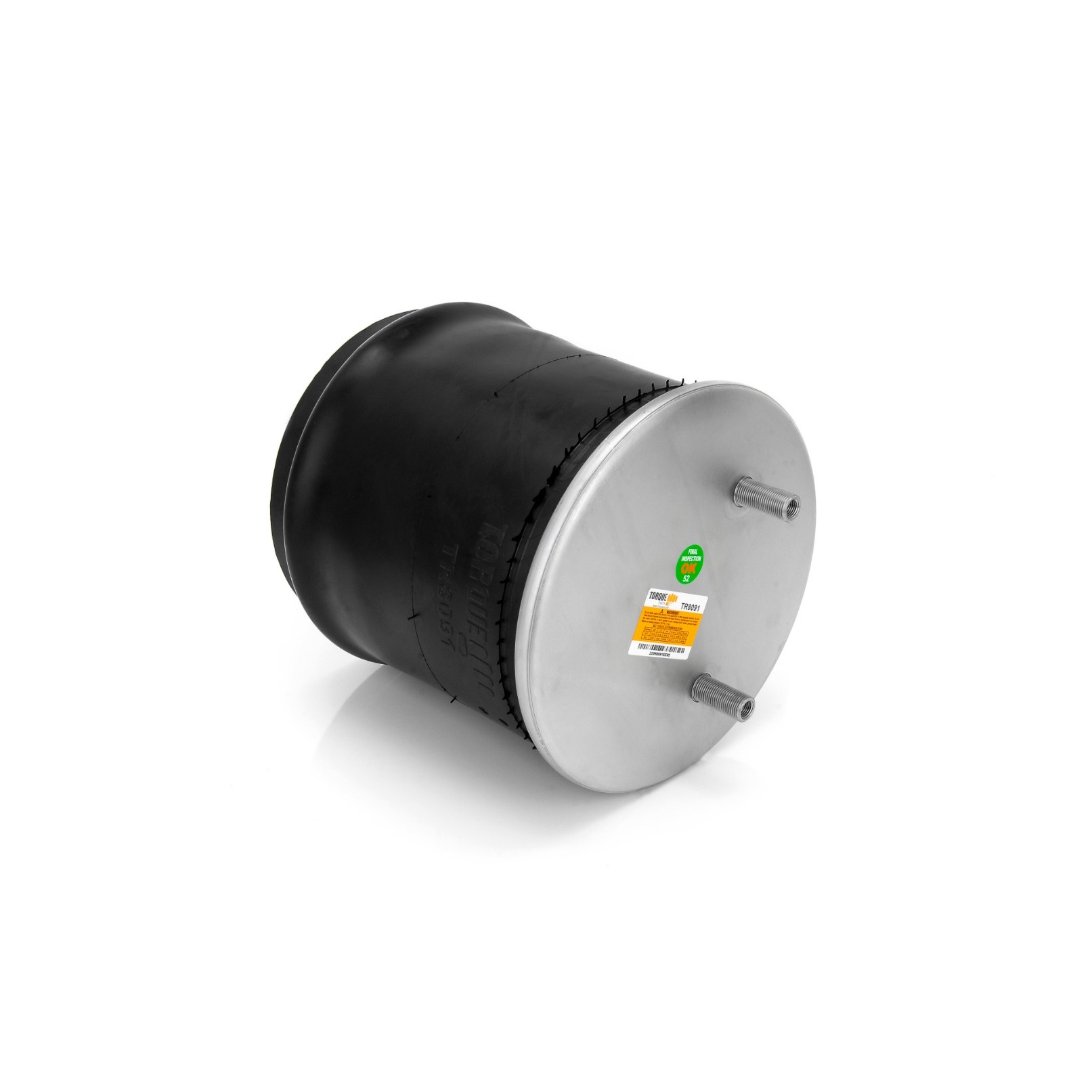

TR8091 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-20901, W01-358-8091, 1R14-093
Part Number : TR8091
Trailer Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Contitech | 1110.5A‑16P523, 64421 |
| Firestone | 8091, W013588091, W01‑358‑8091 |
| Goodyear | 1R14093, 1R14‑093, 1R14171, 1R14‑171 |
| Hendrickson | S20901, S‑20901, S21784, S‑21784 |
| Hendrickson Trailer | C20901, C‑20901, S‑20901, S‑21784 |
| IHC | 1R14242, 1R14‑242 |
| Intraax | # AA250T (reuse metal disk) / Van Traax # HKA‑250 (reuse metal disk) |
| Ridewell | 1000156 |
| Sampa | SP558091‑KP, SP 558091‑KP, SP558091KP, SP558091‑KP01, SP 558091‑KP01, SP558091KP01 |

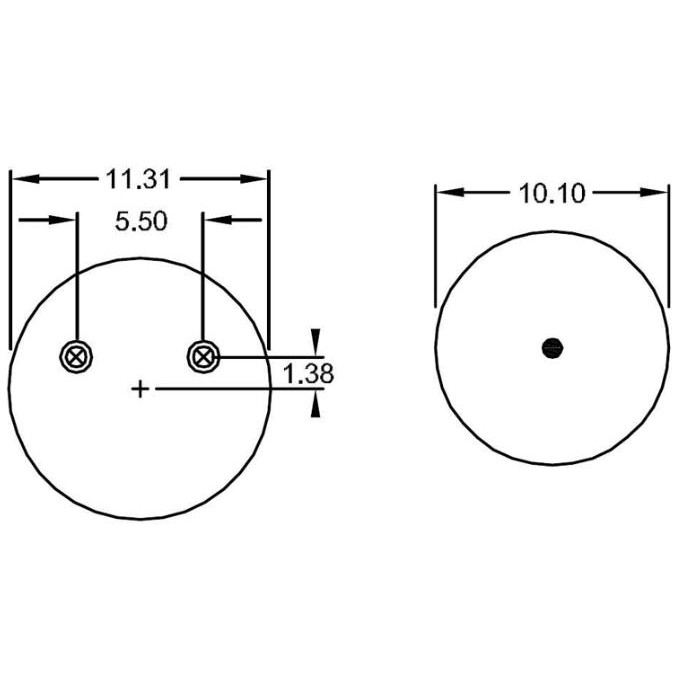

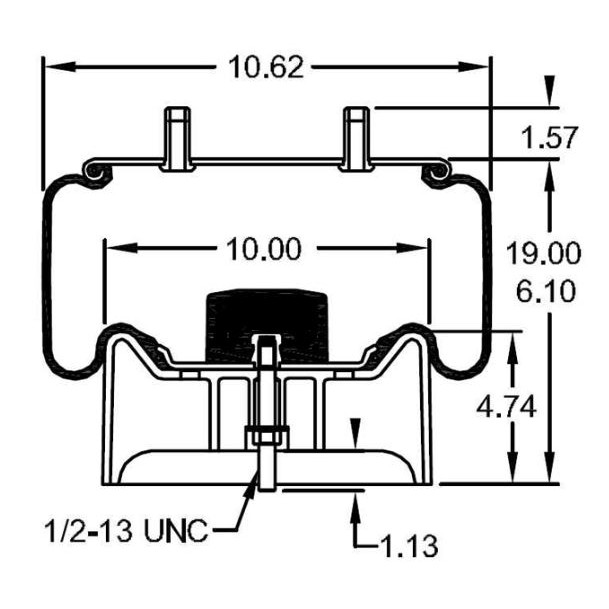

| Property | Value |
|---|---|
| Extended Height | 19.00" |
| Compressed Height | 6.10" |
| Top Plate Width | 11.31" |
| Piston Width | 10.1 |
| Weight | 17.9 |
