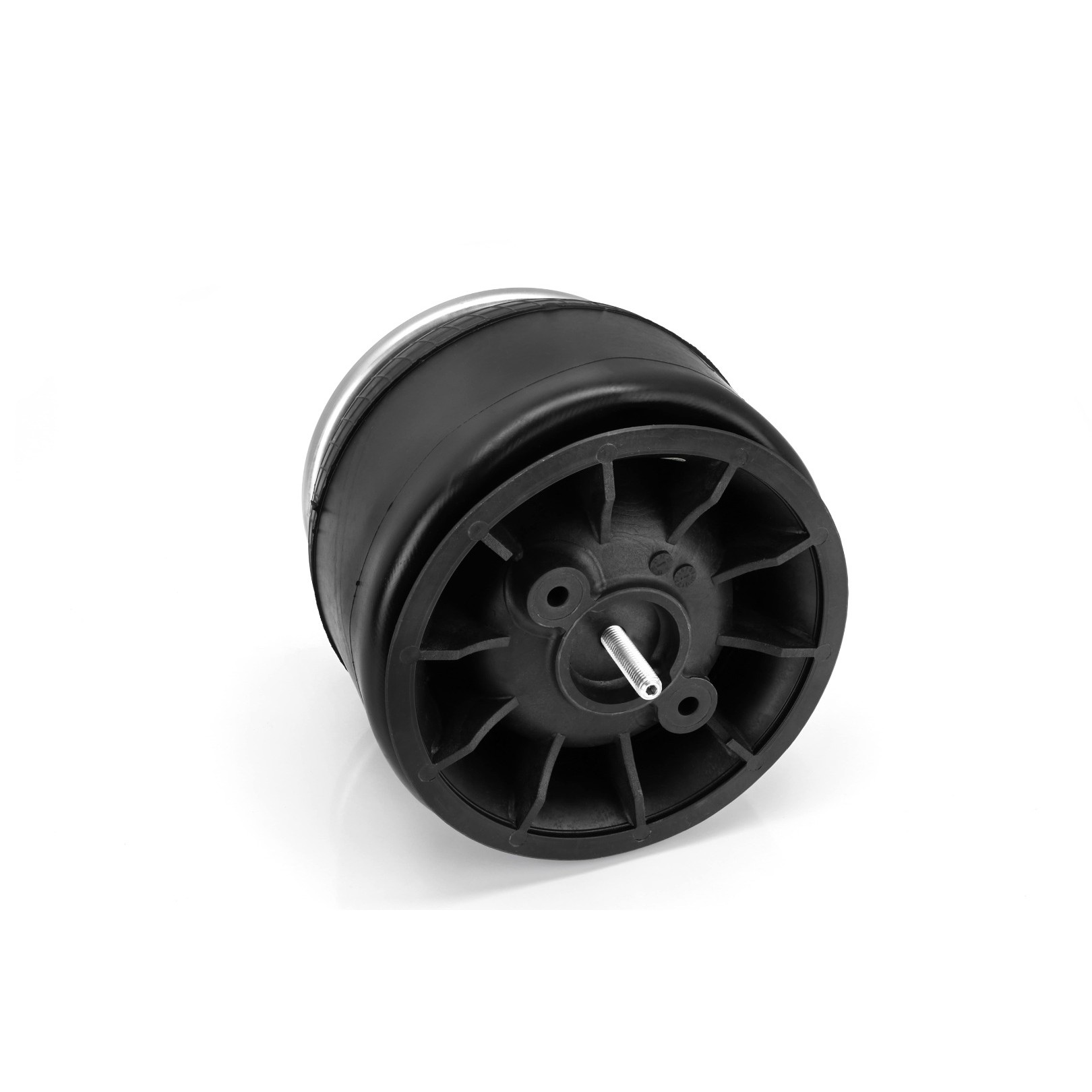

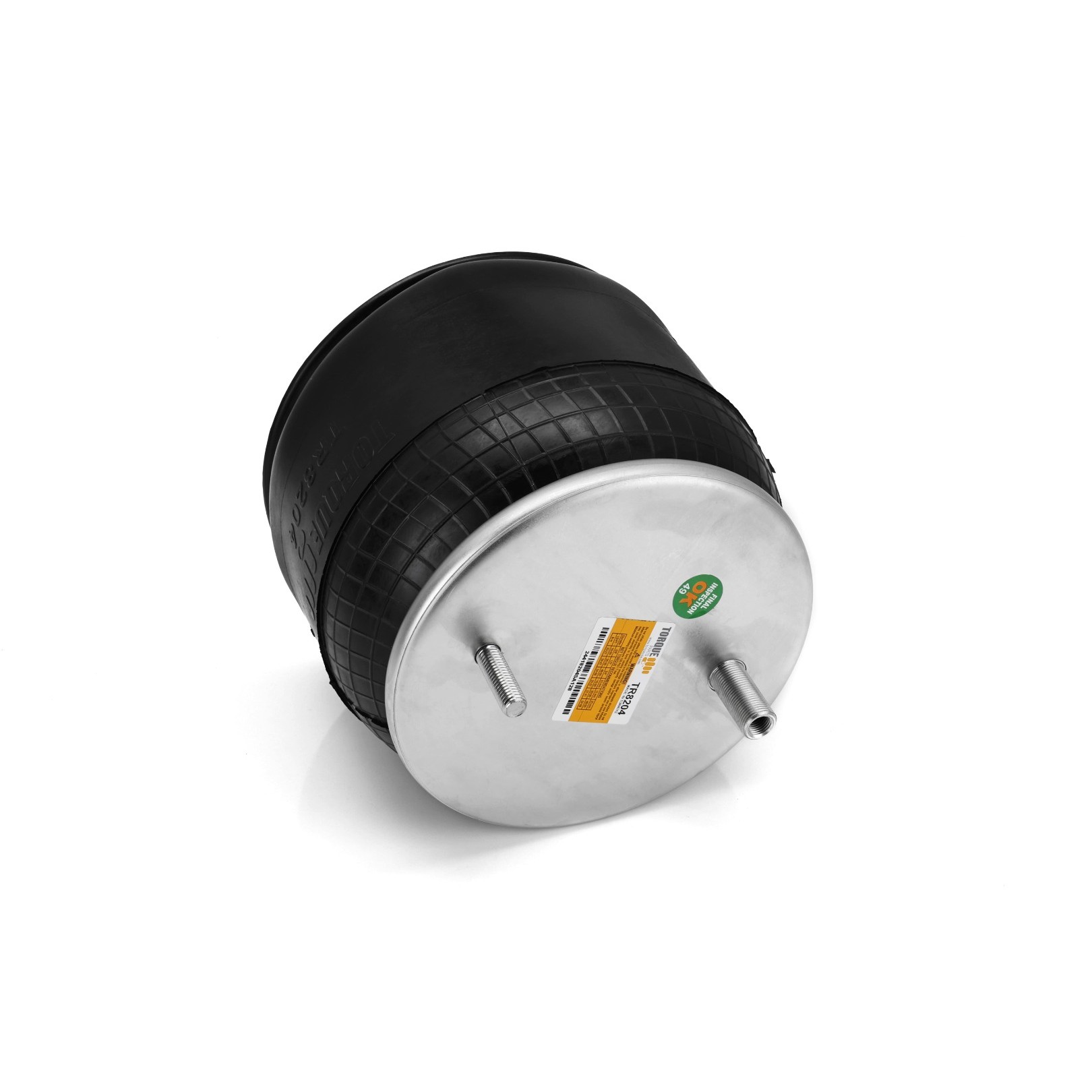

TR8204 | Trailer Air Spring
Description : Trailer Air Spring Replaces 161234, W01-358-8204, 1R12-508
Part Number : TR8204
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8204 |
| Binkley | XBSPN05337, XB‑SPN‑053‑37 |
| Binkley Newlite | NS 190‑16 |
| Contitech | 161234, 64456, 9 10‑12 P 484 |
| Firestone | 8204, W013588204, W01‑358‑8204 |
| Goodyear | 1R12508, 1R12‑508, 1R12522, 1R12‑522, 1R12608, 1R12‑608 |
| Holland (Neway) | 905‑57‑173, 905‑57‑223 |
| Neway | 90557173, 90557223, G2298204200, XDSPN05360 |
| Triangle | 8484, AS‑8484 |
| Sampa | SP558204‑KP, SP 558204‑KP, SP558204KP |

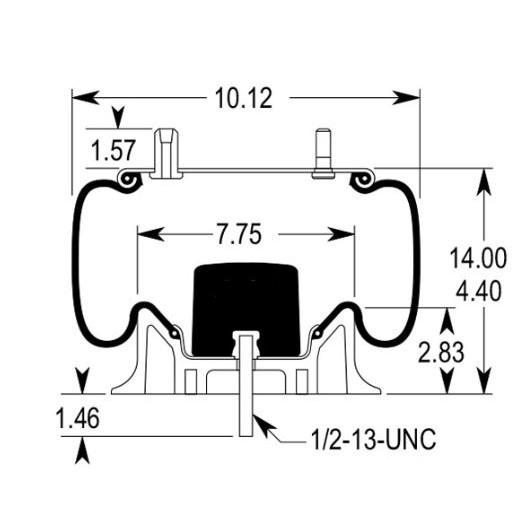

| Property | Value |
|---|---|
| Extended Height | 14.00" |
| Compressed Height | 4.40" |

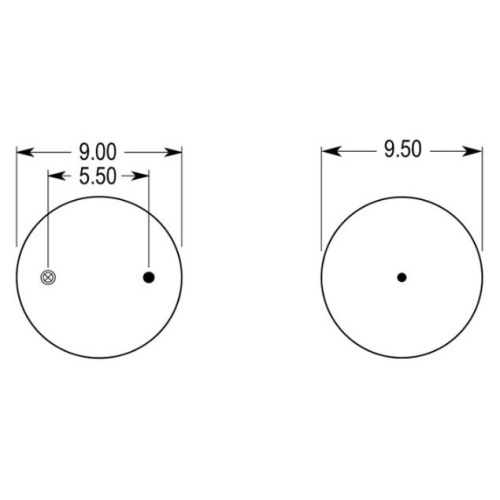

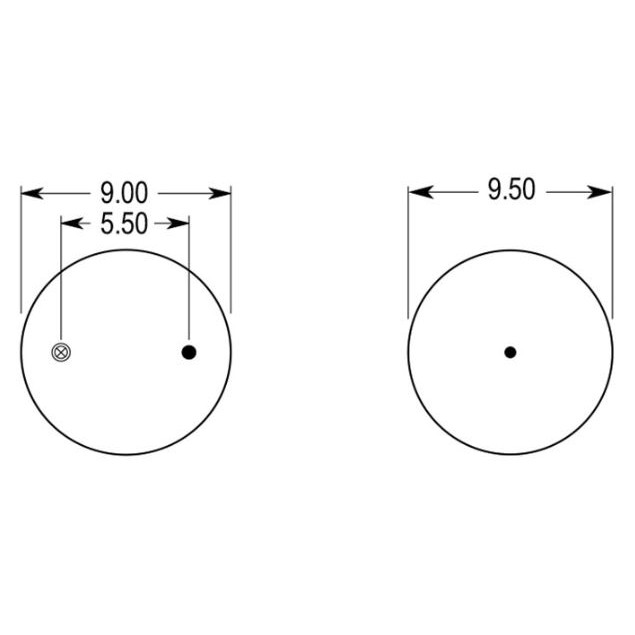

| Top Plate Width | 9.00" |
| Piston Width | 9.50" |
| Weight | 13 lbs |
