TR8449 | Plastic base - Cabin Air Spring, Mack, Replaces 21338449
Description : Cabin Air Spring for Mack Replaces 21338449
Part Number : TR8449

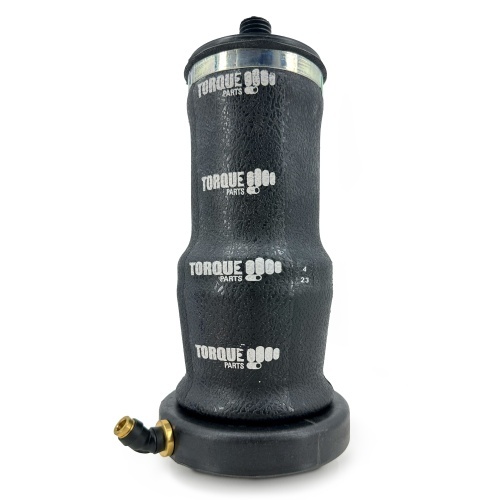

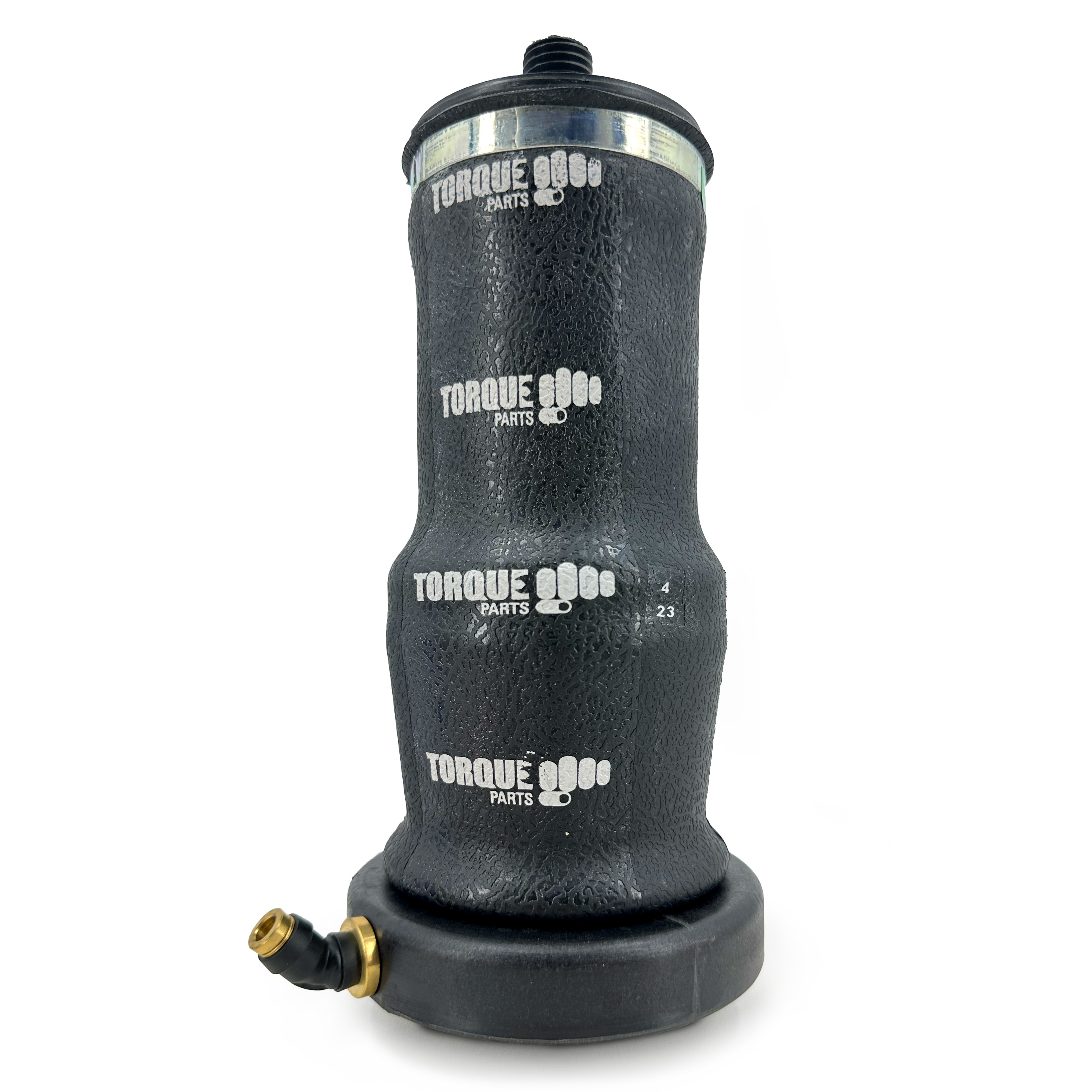

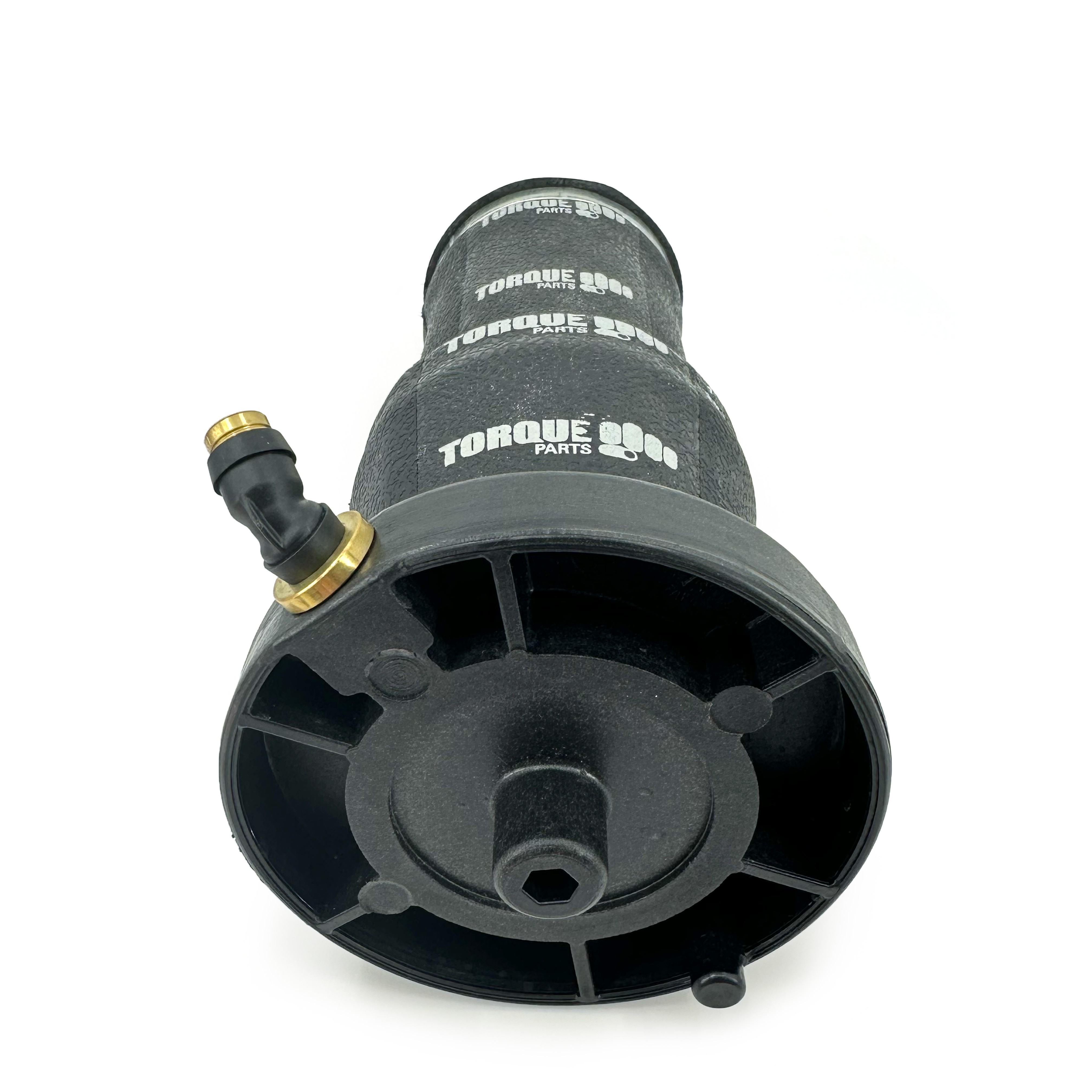

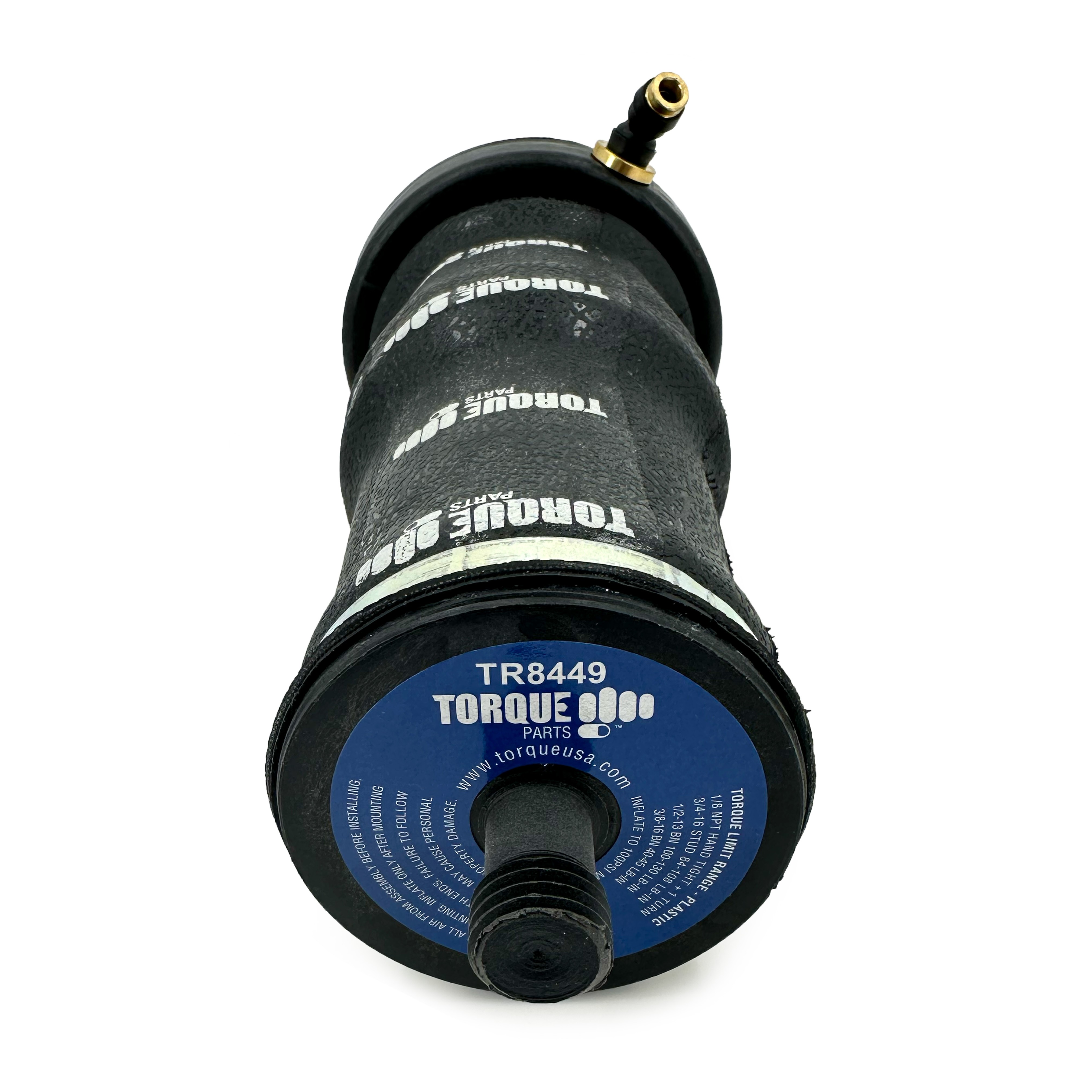

Cabin Air Spring for Mack Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑2449 |
| Sampa | 501.677‑01 |
| Mack | 21338449 |

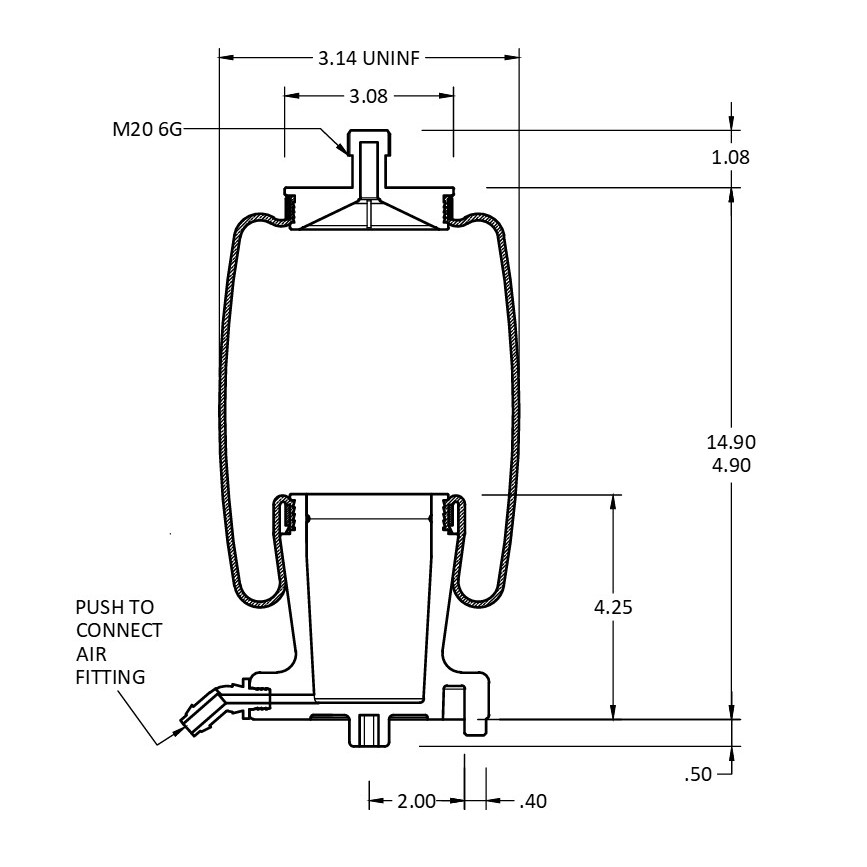

| Property | Value |
|---|---|
| Air Inlet | Push‑to‑connect air fitting |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 4.40" |
| Minimum Jounce Height | 6.05" |
| Extended Height | 14.90" |
| Compressed Height | 4.90" |
| Weight | 1.8 lbs |
