TR9296 | Air Spring for Volvo Trucks
Description : Air Spring for Volvo Replaces 1R12-400, 8061151, W01-358-9296
Part Number : TR9296
Air Spring for Volvo Trucks
| Brand | Reference Numbers |
|---|---|
| Contitech | 161059, 64310, 69643, 9 10‑16 P 416 |
| Firestone | 9296, W013589296, W01‑358‑9296 |
| Goodyear | 1R12400, 1R12‑400, 1S12022, 1S12‑022 |
| Loadguard | SC2760 |
| Triangle | 8416, AS‑8416 |
| Volvo | 8061151, 8169869 |
| Sampa | SP559296‑KP, SP 559296‑KP, SP559296KP |
| Property | Value |
|---|---|

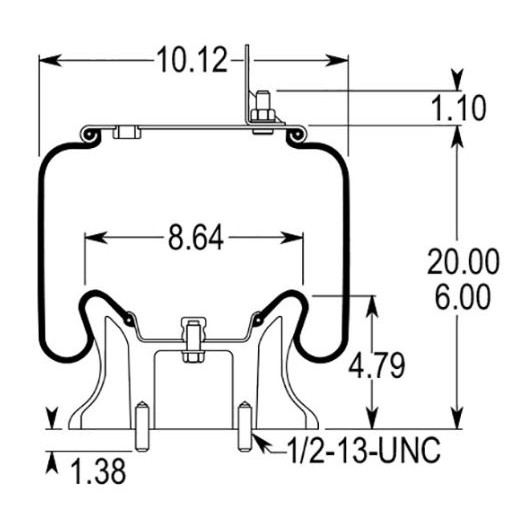

| Extended Height | 20.00" |
| Compressed Height | 6.00" |

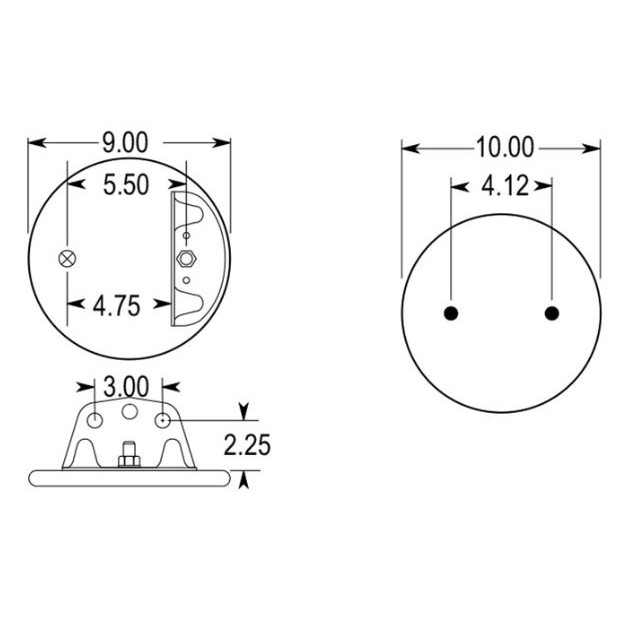

| Top Plate Width | 9.00" |
| Piston Width | 10.00" |
| Weight | 17.20 lbs |
