TR8713 | Air Spring
Description : Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Part Number : TR8713
Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8713 |
| Contitech | 10 10‑16 P 533, 64636, 10 10‑16 S 533 |
| Firestone | 8713, 8727, W013588713, W01‑358‑8713, W014558713, W01‑455‑8713, W014558727, W01‑455‑8727 |
| Goodyear | 1R13140, 1R13‑140, 1R13176, 1R13‑176, 1R13263, 1R13‑263, 1R13323, 1R13‑323 |
| Hendrickson | C22948, C‑22948, S22948, S‑22948 |
| Triangle | AS‑8533 |
| Sampa | SP558713‑KP, SP 558713‑KP, SP558713KP |

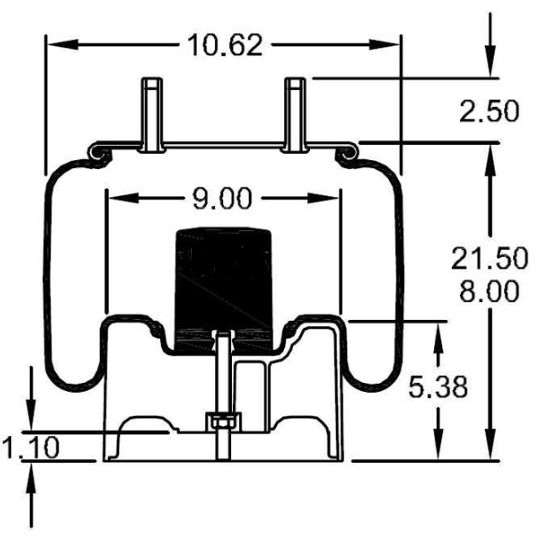

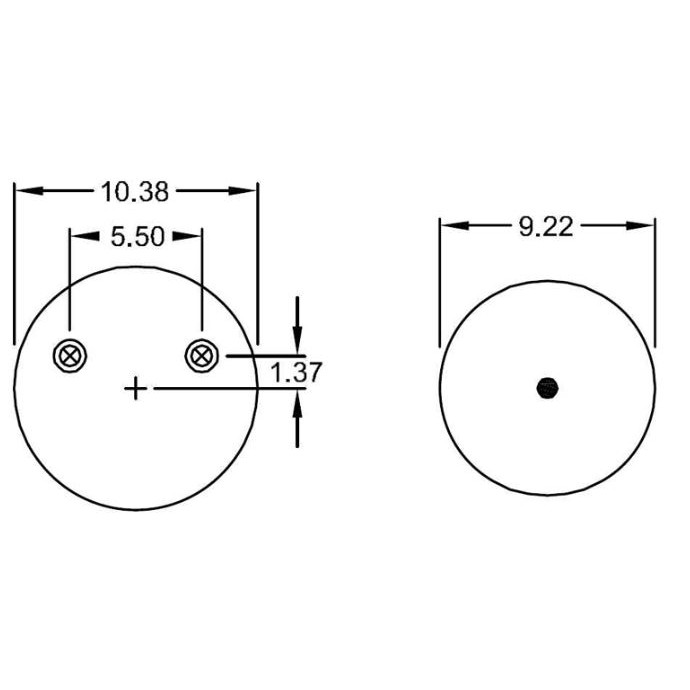

| Property | Value |
|---|---|
| Extended Height | 21.50" |
| Compressed Height | 8.00" |
| Top Plate Width | 10.38" |
| Piston Width | 9.22" |
| Weight | 15.6 lbs |
