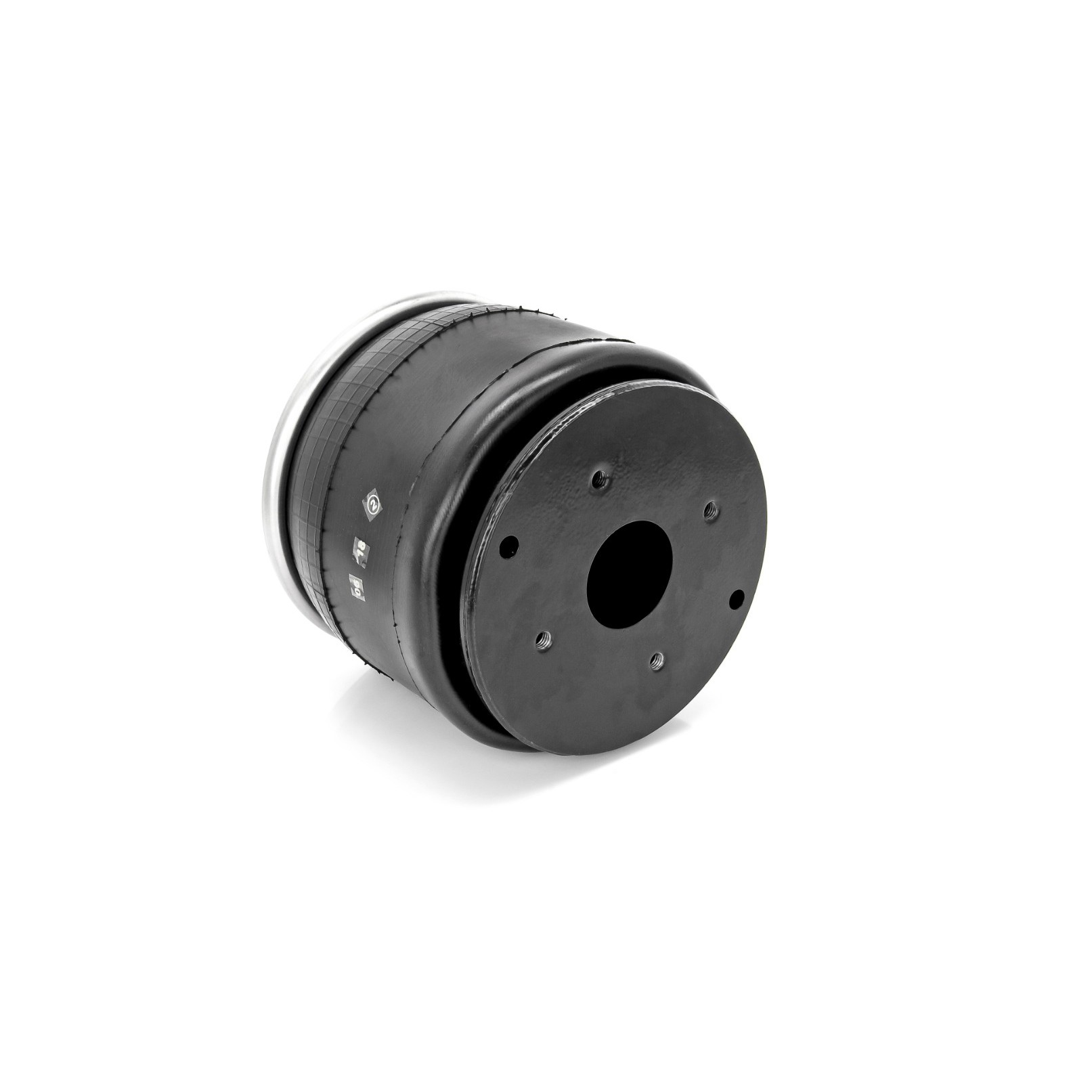

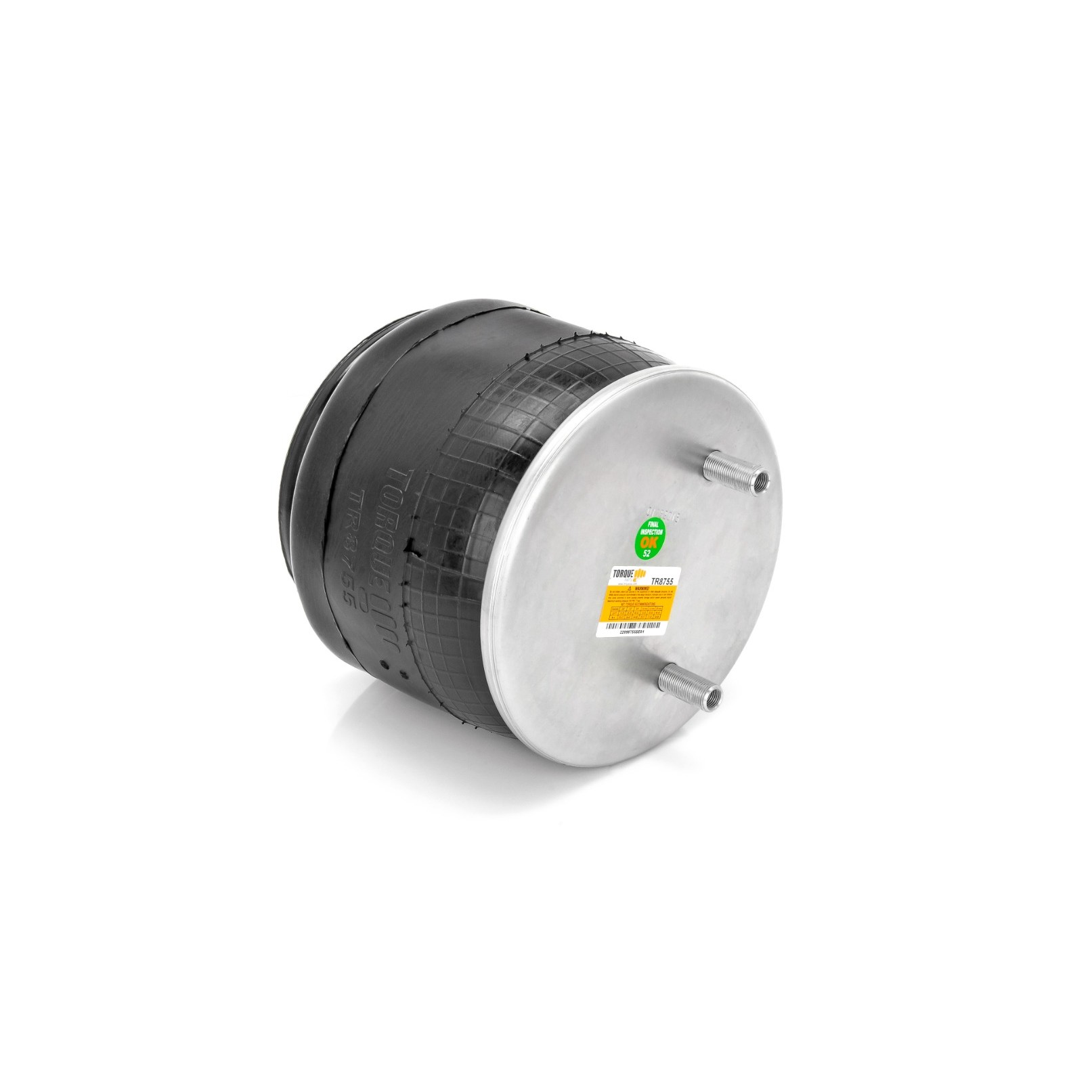

TR8755 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-21623, S-22045, W01-358-8755
Part Number : TR8755
Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8755 |
| Contitech | 10 10‑15 P 522, 1010‑15S522, 64397, 10 10‑15 S 522 |
| Firestone | 8710, 8755, 8756, W013588755, W01‑358‑8755, W013588756, W01‑358‑8756, W014558755, W01‑455‑8755, W01‑358‑8710 |
| Goodyear | 1R13124, 1R13‑124 |
| Hendrickson | C21623, C22045, C‑22045, S21623, S‑21623, S22045, S‑22045 |
| Neway | G2298755300 |
| Triangle | AS‑8522 |
| Sampa | SP558755‑K, SP 558755‑K, SP558755K, SP558755‑KA, SP 558755‑KA, SP558755KA |

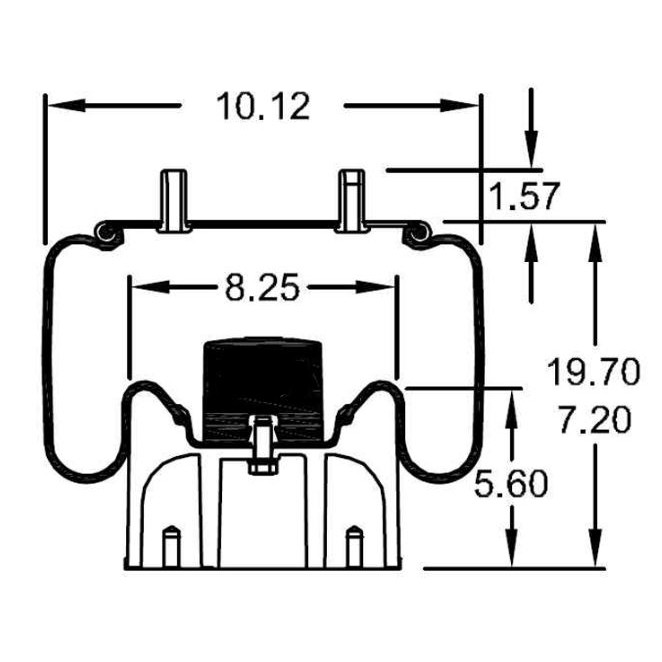

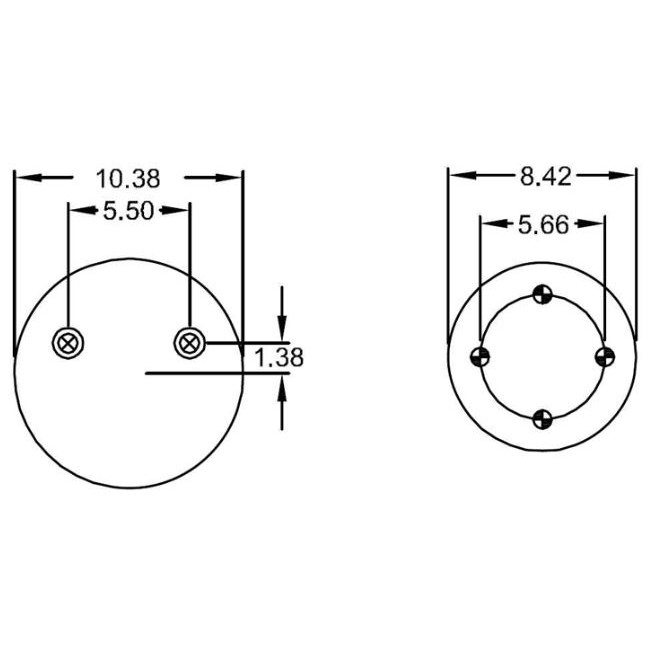

| Property | Value |
|---|---|
| Extended Height | 19.70" |
| Compressed Height | 7.20" |
| Top Plate Width | 10.38" |
| Piston Width | 8.42" |
| Weight | 24.5 lbs |
