TR8864 | Peterbilt Air Spring
Description : Air Spring for Peterbilt, Kenworth Replaces 03-08716, C81-1013
Part Number : TR8864

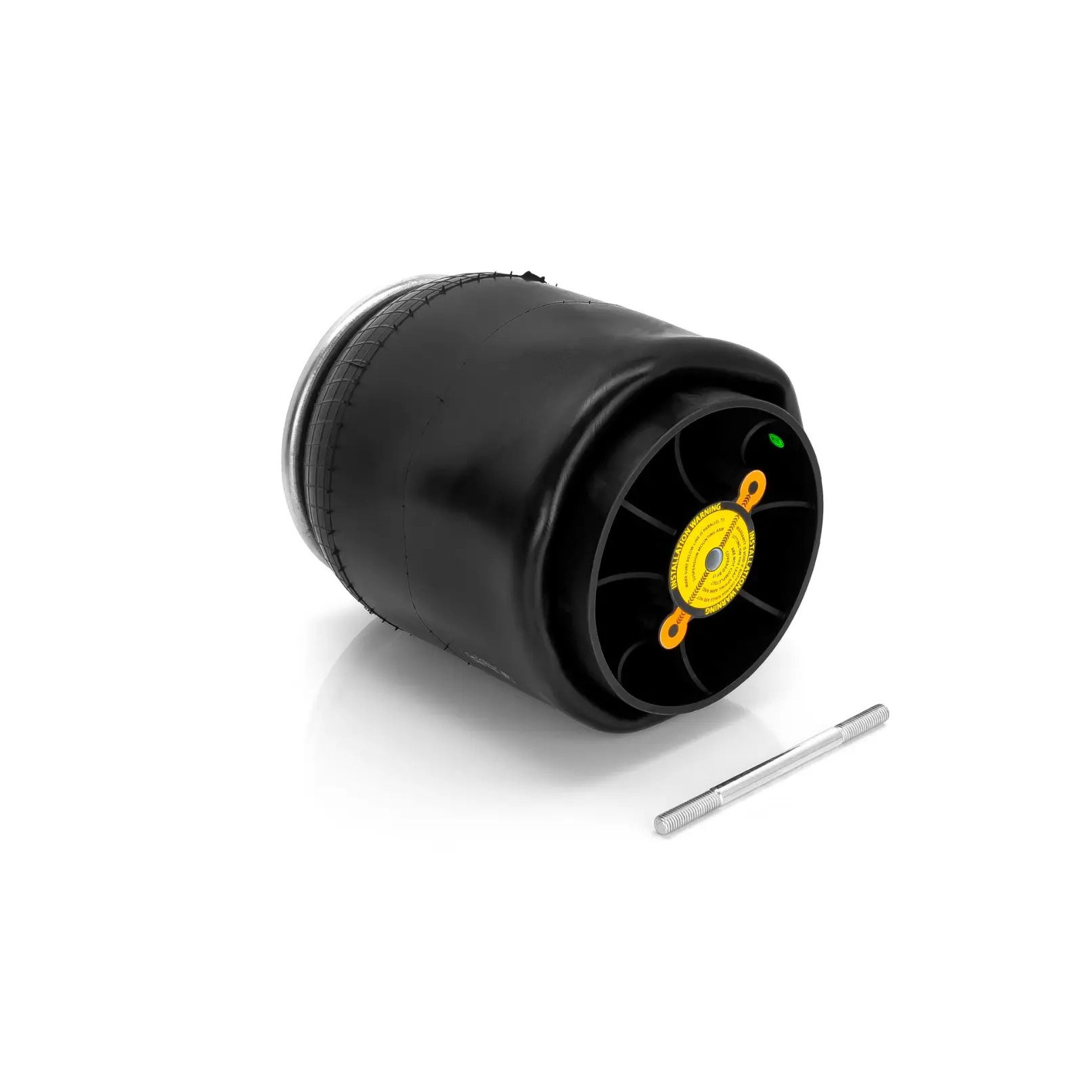

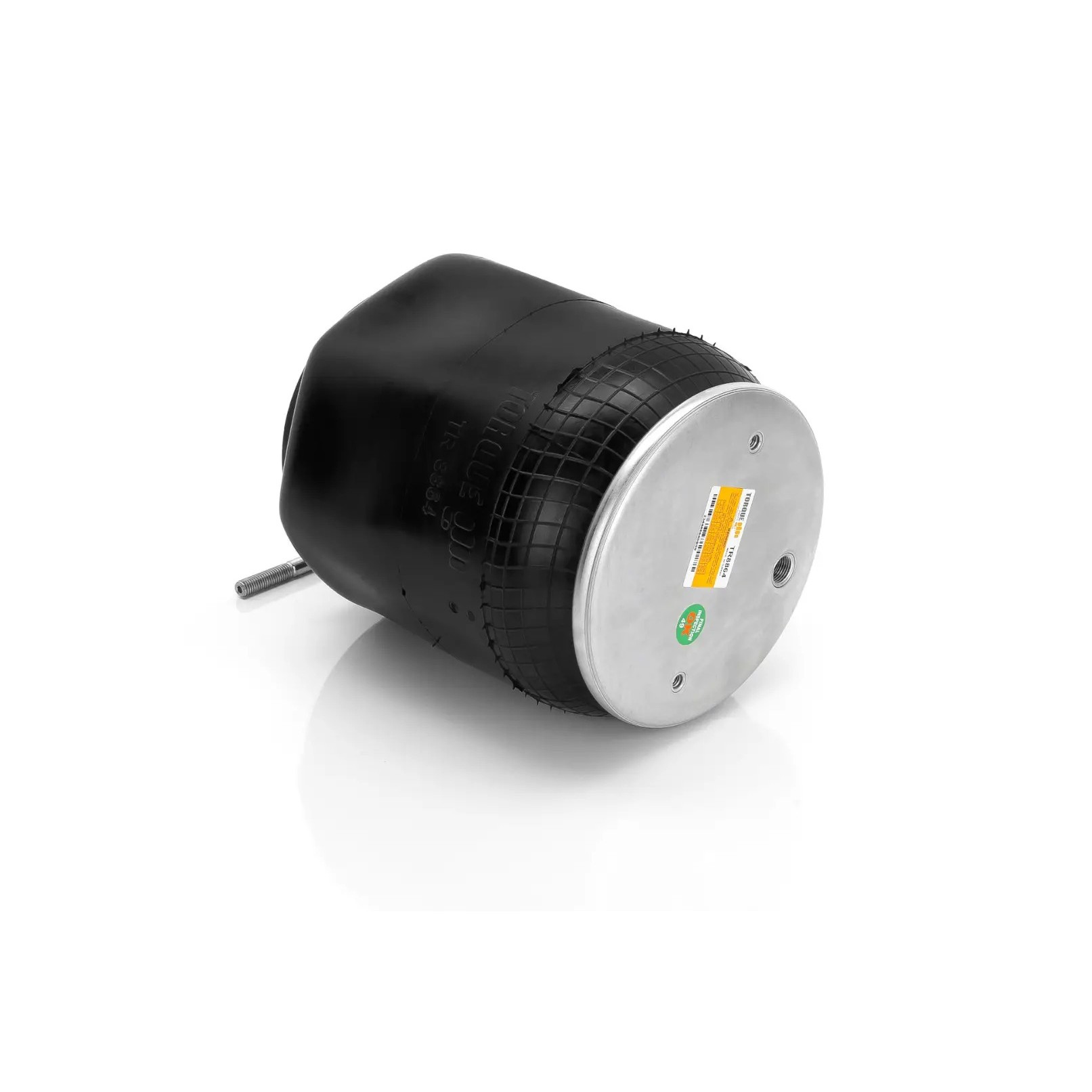

Air Spring for Peterbilt and Kenworth Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8864 |
| Alliance | ABP N32 018864 |
| Contitech | 66666, 9 10‑19 P 898 |
| Dayton | 352‑8864 |
| Firestone | 8864, 8865, W013588864, W01‑358‑8864, W016875470, W01‑687‑5470, W017038863, W01‑703‑8863, W017038864, W01‑703‑8864, W017038865, W01‑703‑8865 |
| Goodyear | 1R121097, 1R12‑1097 |
| Kenworth | C811011, C81‑1011, C811013, C81‑1013 |
| Peterbilt | 0308716, 03‑08716, 308716, 03‑08716 (New Low Leaf Supersedes 03‑07887 effective 04/04) C811011 Paccar Part |
| Triangle | 8898, AS‑8898 |
| Sampa | SP558864‑KP, SP 558864‑KP, SP558864KP |
| Property | Value |
|---|---|

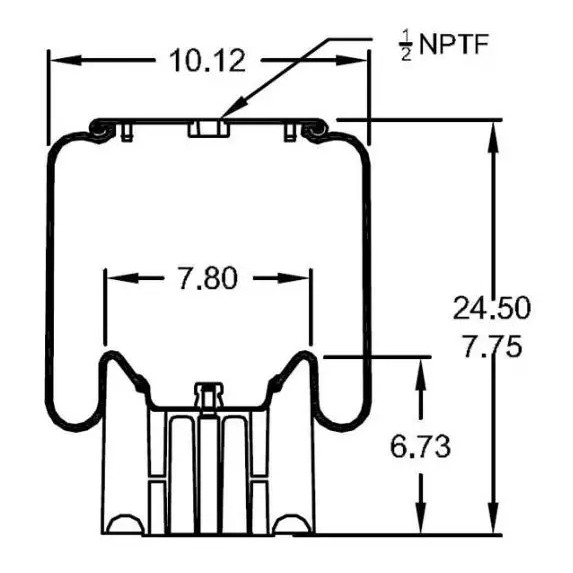

| Extended Height | 24.50" |
| Compressed Height | 7.80" |

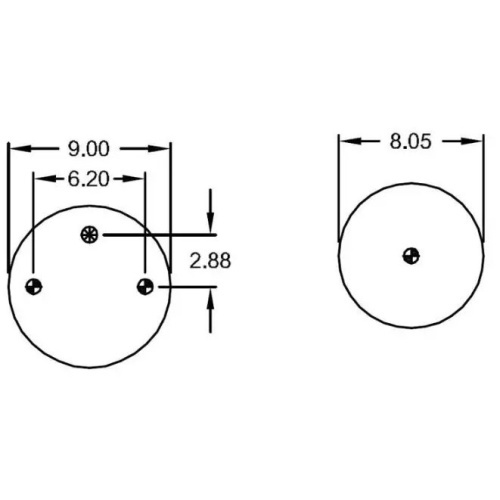

| Top Plate Width | 9.00" |
| Piston Width | 8.05" |
| Weight | 14.00 lbs |
