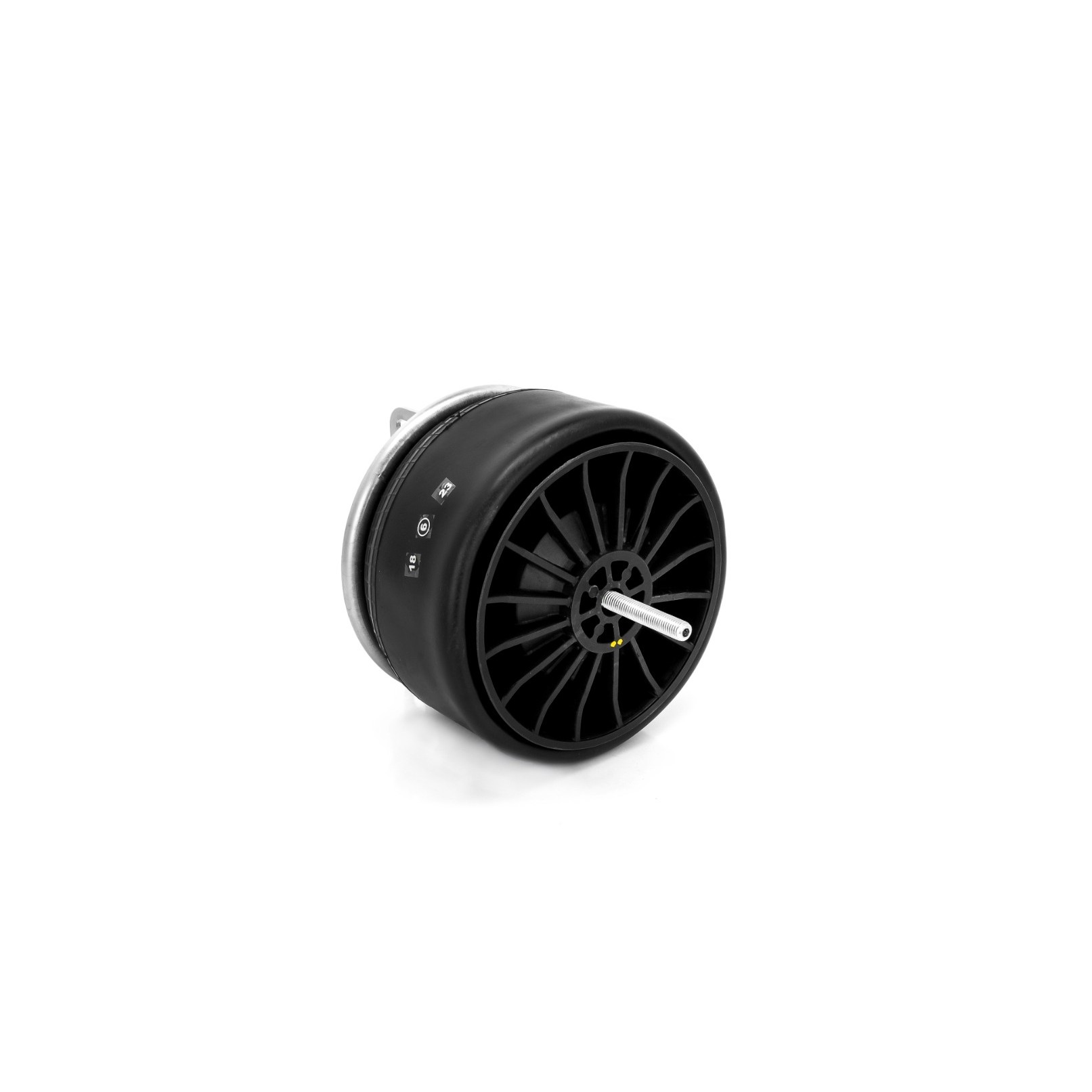

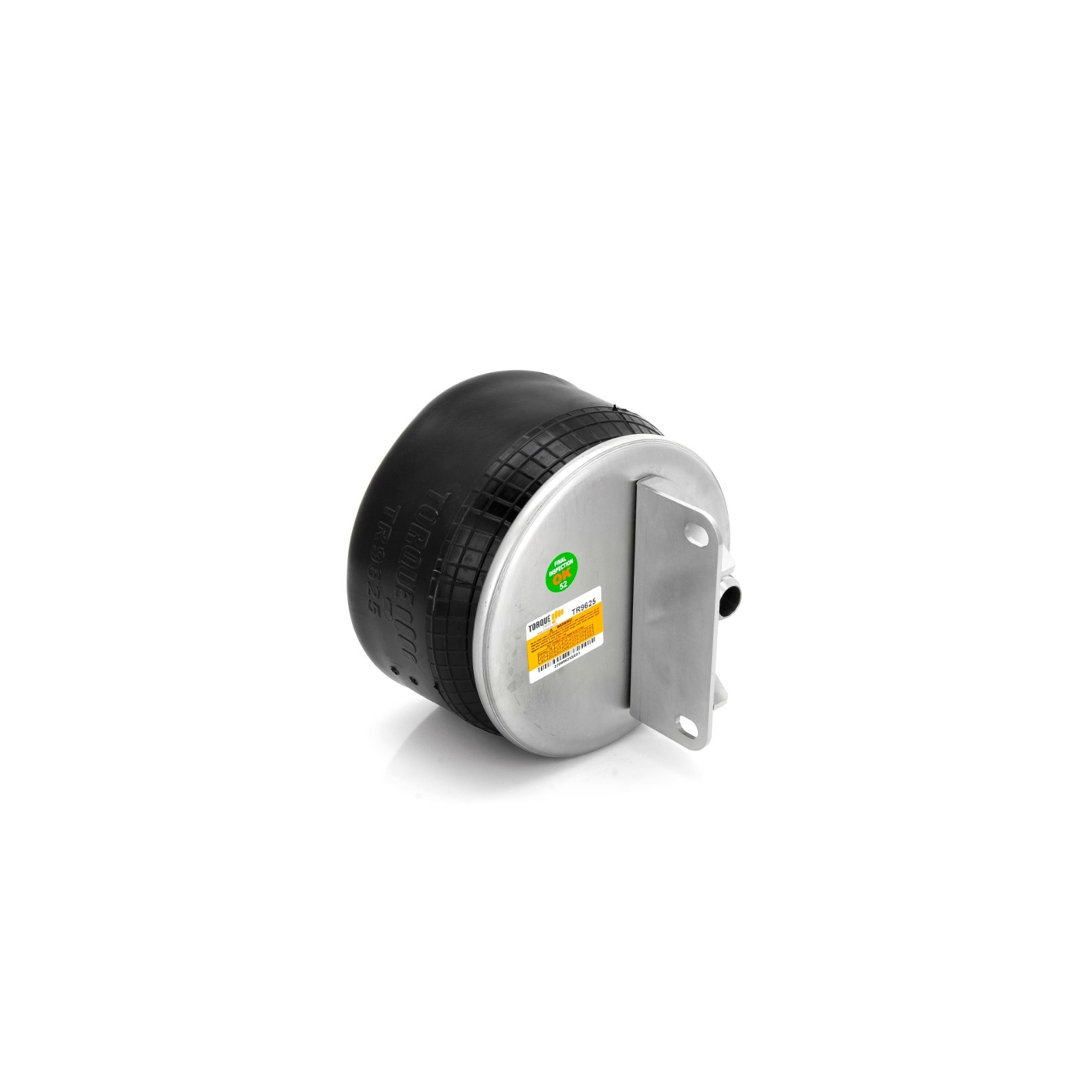

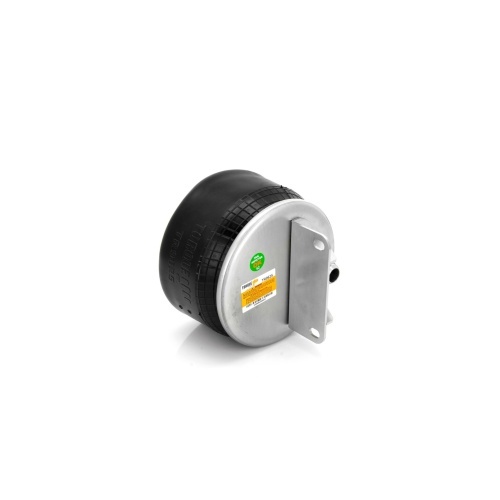

TR9625 | Air Spring for Kenworth Trucks
Description : Air Spring for Kenworth Replaces K-303-23, K-303-25, 1R11-222
Part Number : TR9625
Air Spring for Kenworth Trucks
| Brand | Reference Numbers |
|---|---|
| Contitech | 65389, 68360, 9 9‑10 P 538, 99‑10P538 |
| Firestone | 9625, W013589618, W01‑358‑9618, W013589625, W01‑358‑9625, W015449623, W01‑544‑9623, W015449625, W01‑544‑9625 |
| Goodyear | 1R11222, 1R11‑222 |
| Kenworth | K‑303‑23, K30325, K303‑25, K‑303‑25 |
| Triangle | 8538 |
| Sampa | SP559625‑KP, SP 559625‑KP, SP559625KP |
| Property | Value |
|---|---|

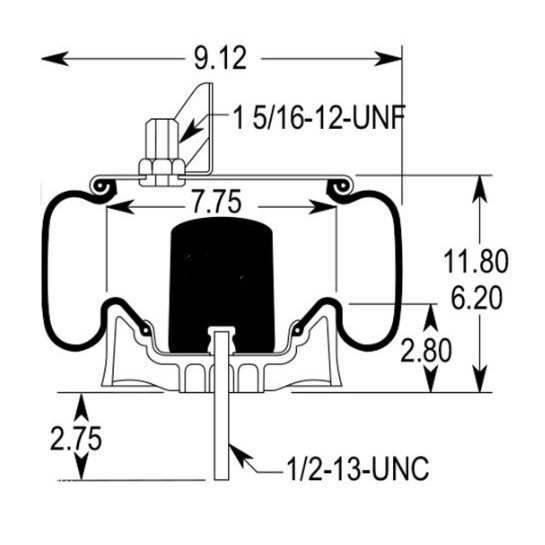

| Extended Height | 11.80" |
| Compressed Height | 6.00" |

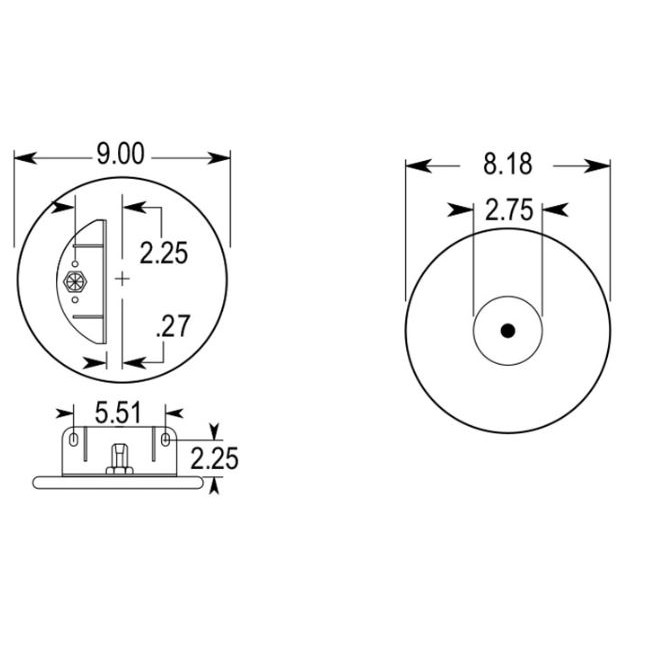

| Top Plate Width | 9.00" |
| Piston Width | 8.18" |
| Weight | 13.20 lbs |
