TR8944 | Trailer Air Spring
Description : Trailer Air Spring Replaces C-20217, S-20217, W01-358-8944, 64401
Part Number : TR8944
Air Spring for Hendrickson Trailer
| Brand | Reference Numbers |
|---|---|
| Contitech | 161167, 64401, 9 10‑17.5 P 436 |
| ContiTech | 9 10.1‑75 P 436 |
| Firestone | 8944, W013588944, W01‑358‑8944, W013589015, W01‑358‑9015 |
| Goodyear | 1R12271, 1R12‑271, 1R12366, 1R12‑366 |
| Hendrickson | C20217, C‑20217, S20217, S‑20217, S20217 (HT‑190U) |
| Loadguard | SC2756 |
| Triangle | 8436 |
| Sampa | SP558944‑KP, SP 558944‑KP, SP558944KP |

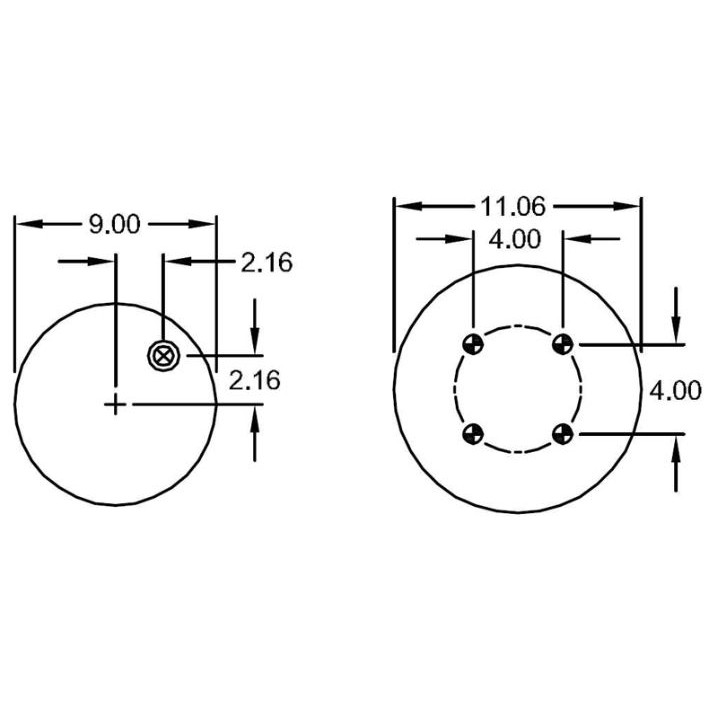

| Property | Value |
|---|---|
| Extended Height | 21.90" |
| Compressed Height | 7.40" |
| Top Plate Width | 9.00" |
| Piston Width | 11.06" |
| Weight | 15.4 lbs |
