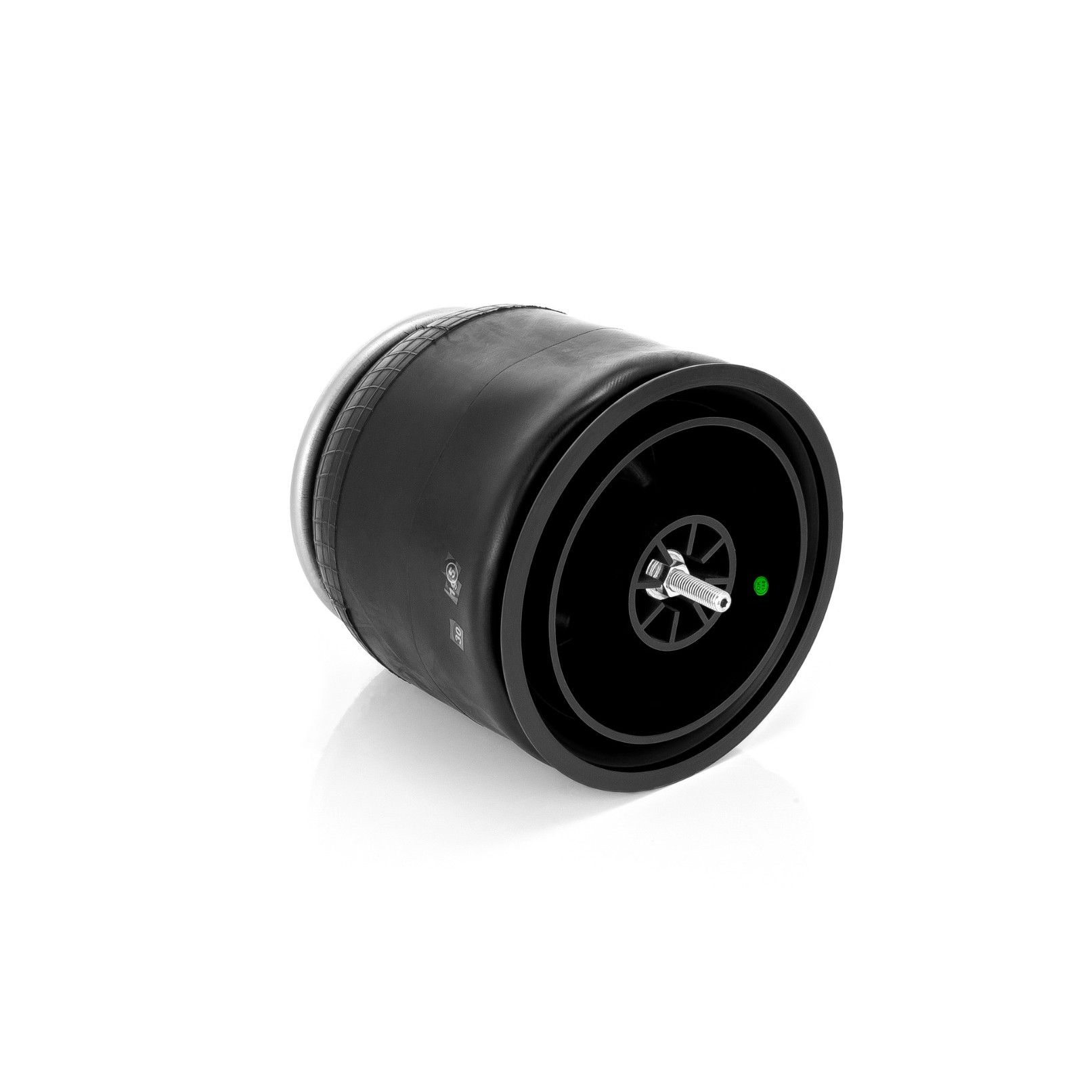

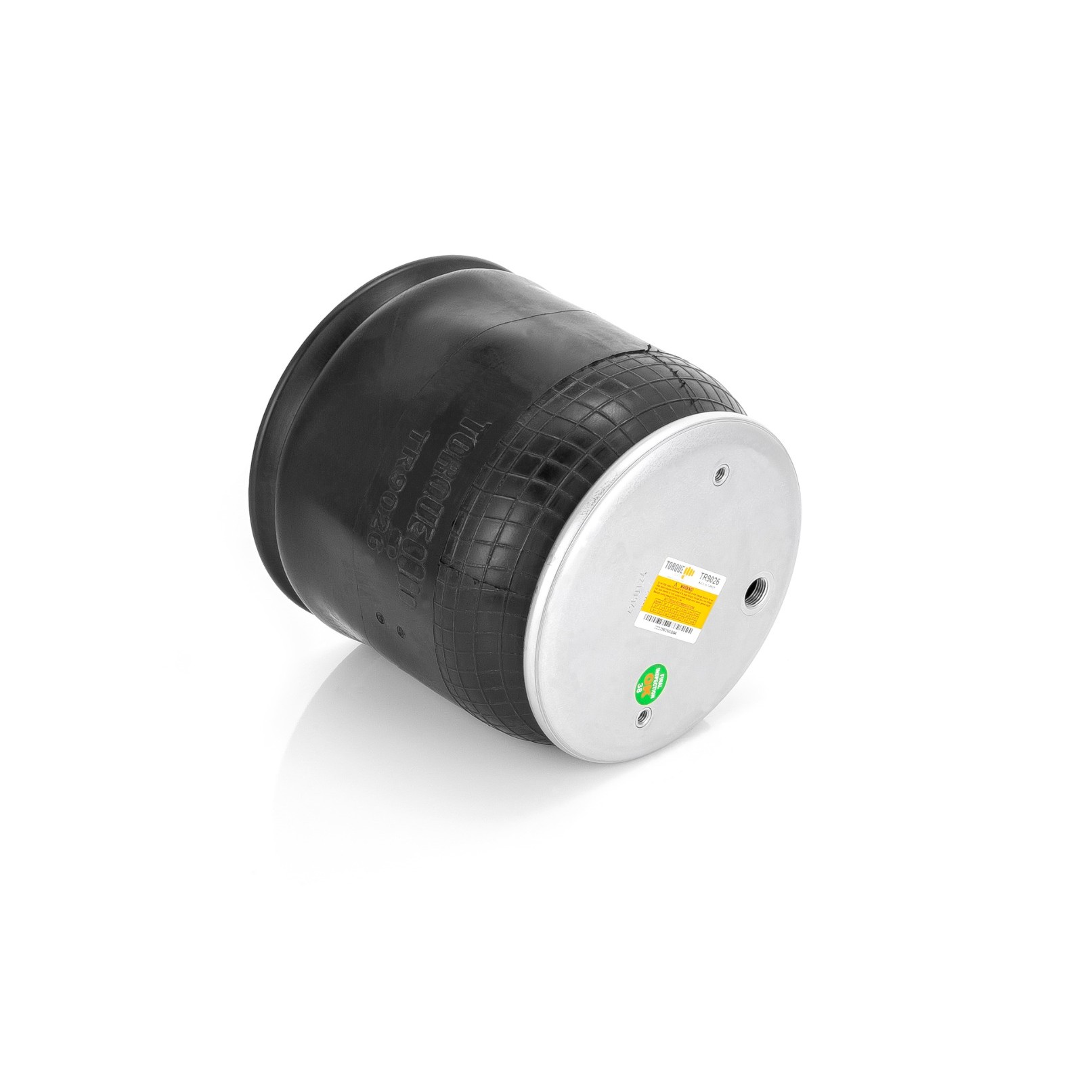

TR9026 | Air Spring for Peterbilt Trucks
Description : Air Spring for Peterbilt Replaces 03-06213, 03-07111, 1R12-567
Part Number : TR9026
Air Spring for Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Contitech | 64306, 9 10‑16 P 393 |
| Firestone | 9026, W013589026, W01‑358‑9026, W017038926, W01‑703‑8926, W017039026, W01‑703‑9026 |
| Goodyear | 1R12567, 1R12‑567, 1R12‑907 |
| Peterbilt | 0306213, 03‑06213, 0307111, 03‑07111, 03‑07111 (Low Air Leaf) |
| Sampa | SP559026‑KP, SP 559026‑KP, SP559026KP |

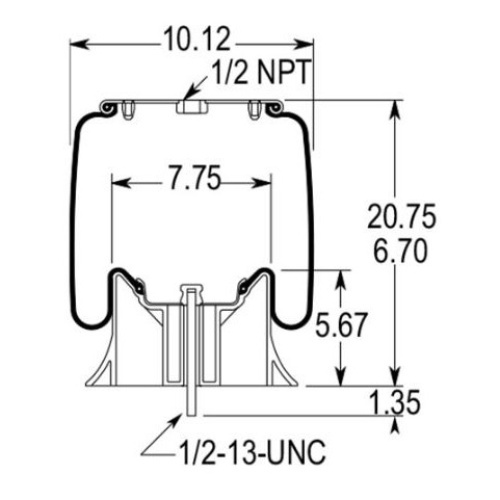

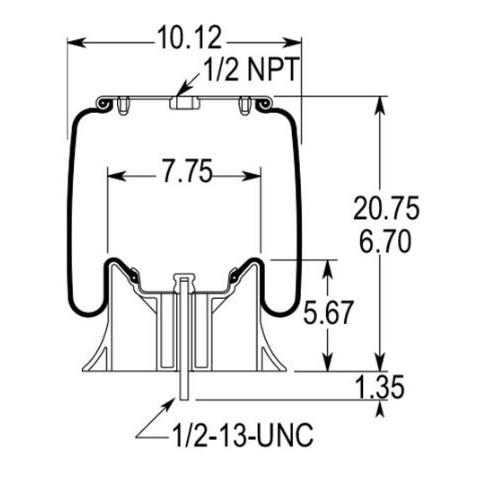

| Property | Value |
|---|---|
| Extended Height | 20.60" |
| Compressed Height | 6.70" |

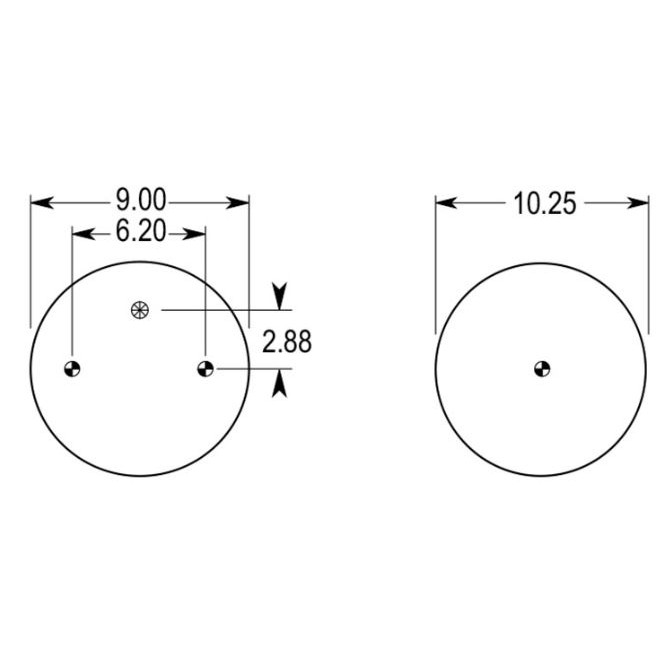

| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 11.7 lbs |
