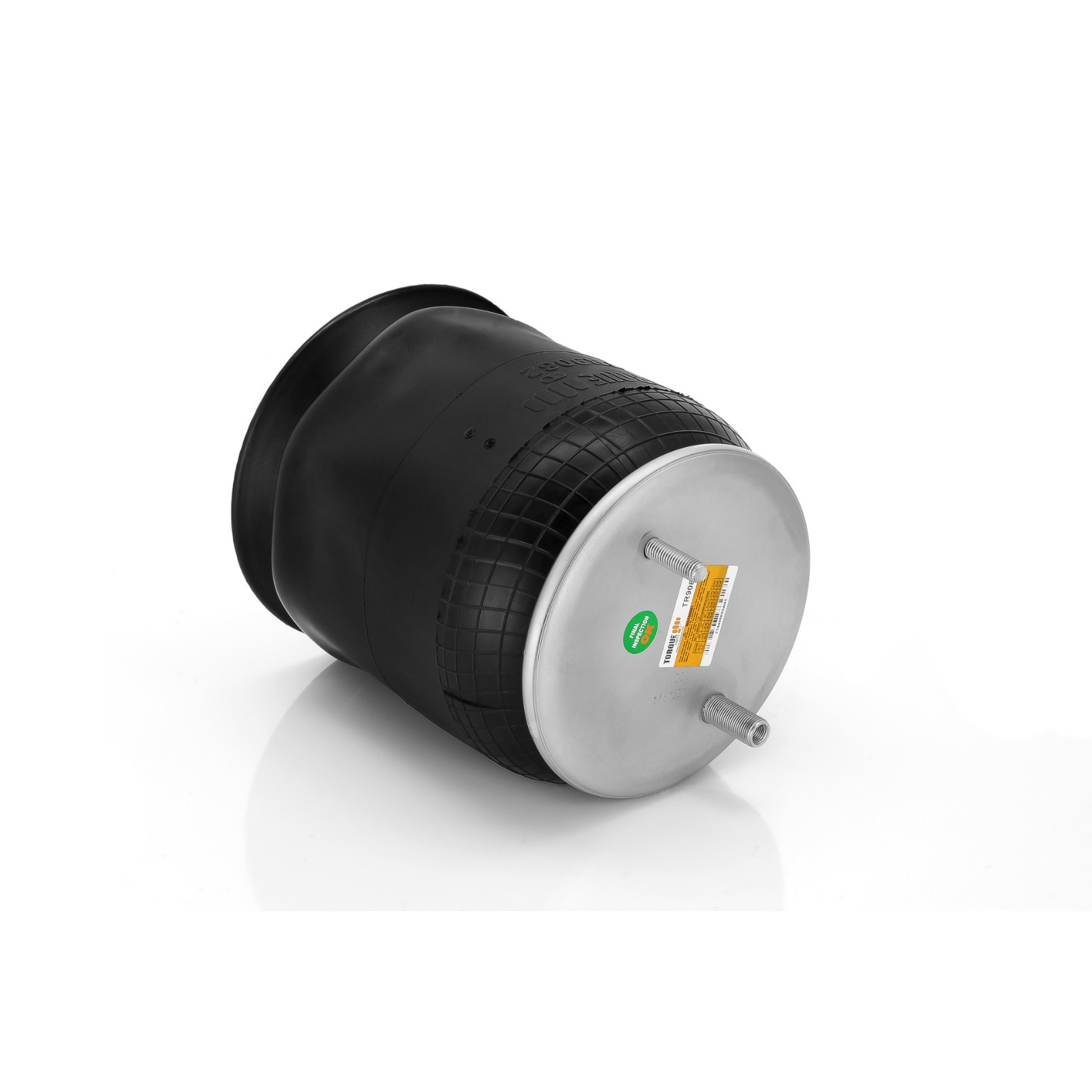

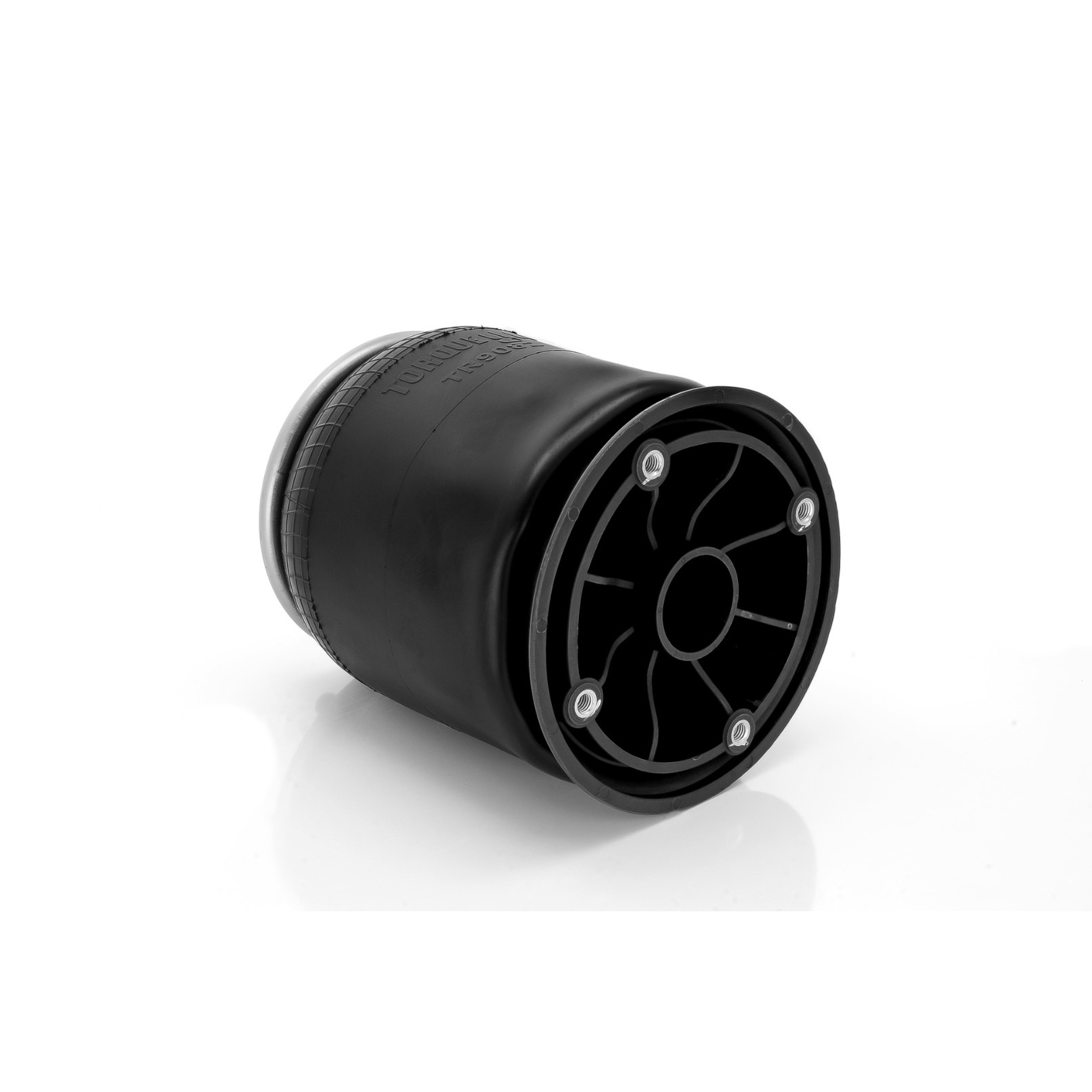

TR9082 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-11651, S-2066, W01-358-9082
Part Number : TR9082
Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Automann | AB1DK23K‑9082 |
| Contitech | 161015, 64269, 9 10‑16 P 310, 910‑16P310 |
| Firestone | 9082, W013589082, W01‑358‑9082 |
| Goodyear | 1R12092, 1R12‑092, 1R12‑093 |
| Granning | 2727 |
| Hendrickson | 365147, 36514‑7, B12514007, B‑12514‑007, B2066, S11651, S‑11651, S‑12514‑007, S12514007, S2066, S‑2066, S‑36514‑7, S365147, S4041, S‑4041 |
| Hendrickson Canada | B‑12514‑007 |
| Holland (Neway) | 905‑57‑033, 905‑57‑037, 905‑57‑054, 905‑57‑075, 905‑57‑006, 905‑57‑027 |
| Hutch | H963001 |
| Hutchens | H‑9630‑01 |
| IHC | 517559C9 |
| Loadguard | SC2035, SC2762 |
| Mack | 57QL310 |
| Neway | 90044200, 90044647, 90557006, 90557027, 90557033, 90557037, 90557054, 90557075, G2299082200 |
| Reyco | 1288201, 12882‑01 |
| Ridewell | 1003589082C |
| Triangle | 8310, AS‑8310 |
| Volvo/White | 350030005, 3918330 |
| Watson & Chalin | AS‑0011 |
| Sampa | SP559082‑KP, SP 559082‑KP, SP559082KP |
| Property | Value |
|---|---|

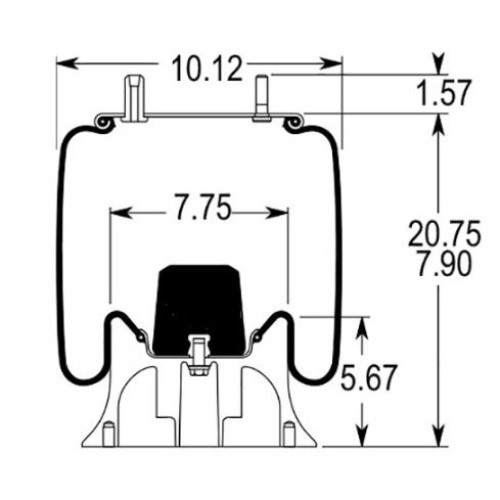

| Extended Height | 20.75" |
| Compressed Height | 7.90" |

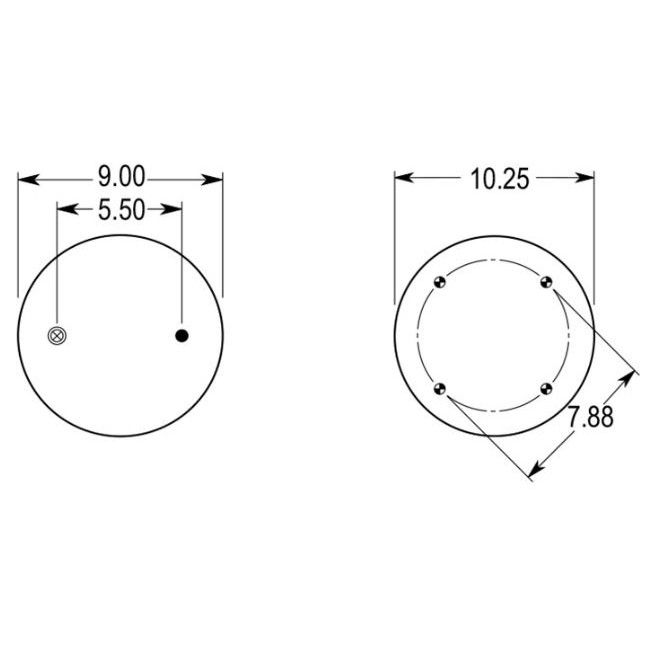

| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 15.00 lbs |
