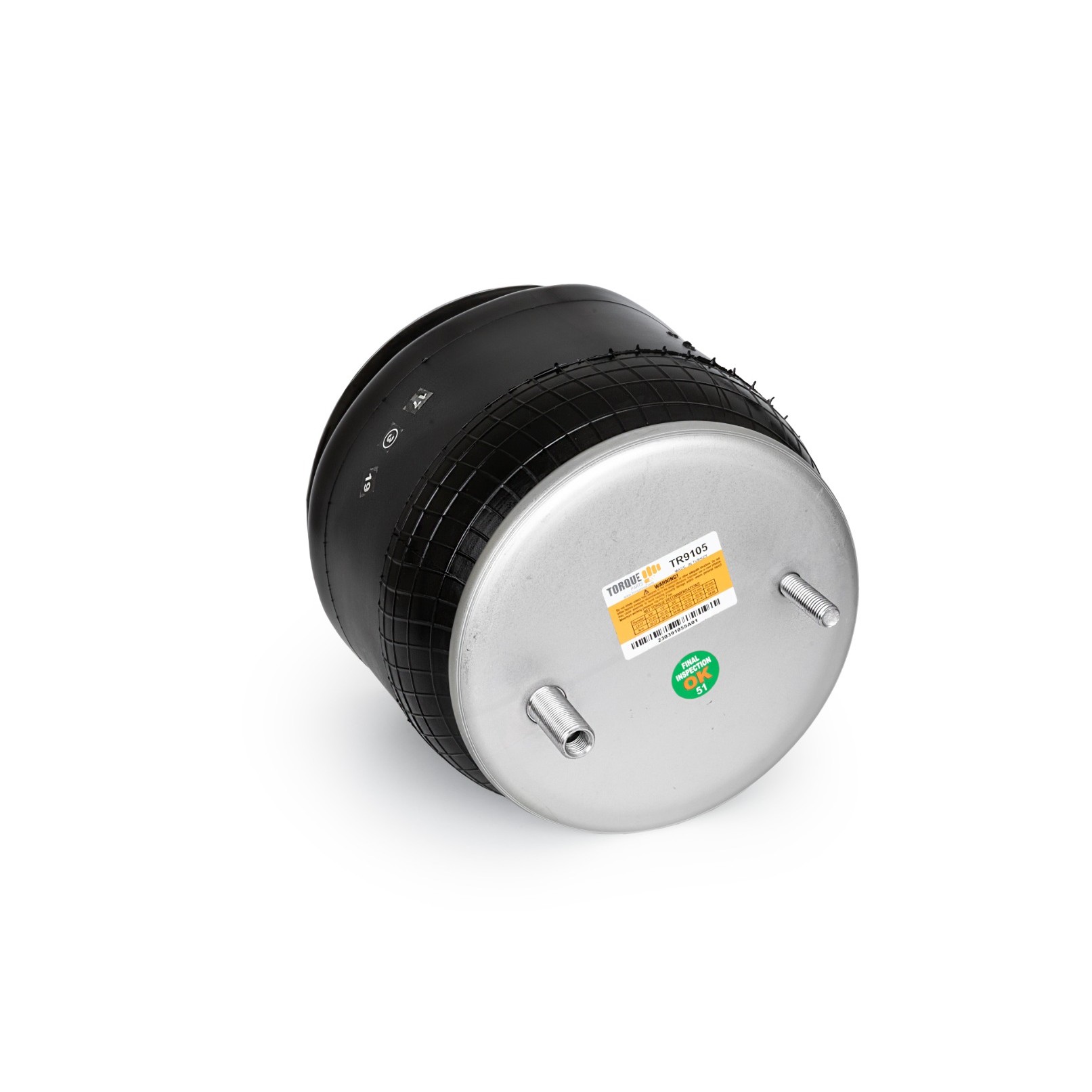

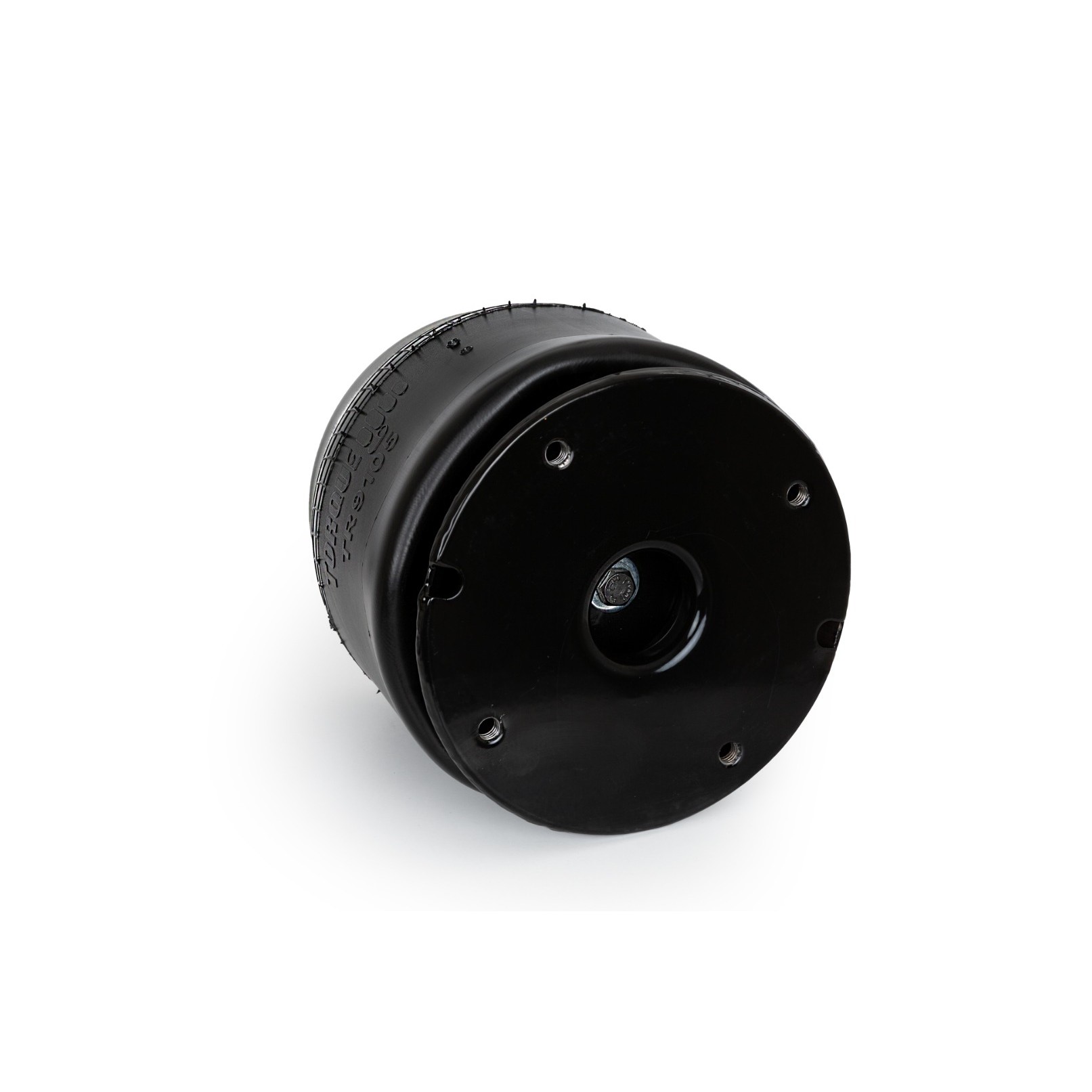

TR9105 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223
Part Number : TR9105
Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Bluebird | 90557038 |
| Contitech | 161223, 64445, 9 10‑12 P 319, 910‑12A319, 910‑16P333 |
| Firestone | W013589105, W01‑358‑9105 |
| Flxible Bus | 6336205, 6‑336‑205 |
| Goodyear | 1R12132, 1R12‑132, 1R12152, 1R12‑152 |
| Granning | 5065 |
| Hendrickson | B1245, B‑1245, B365143, S1245, S‑1245, S‑365143 |
| IHC | 554770C1 |
| Neway | 57009105 |
| Reyco | 1577501, 5065 |
| Ridewell | 1003589105C |
| Triangle | 8319, AS‑8319 |
| Volvo/White | 3918334 |
| Watson & Chalin | AS‑0015, AS0015 |
| Sampa | SP559105‑KP, SP 559105‑KP, SP559105KP |
| Property | Value |
|---|---|

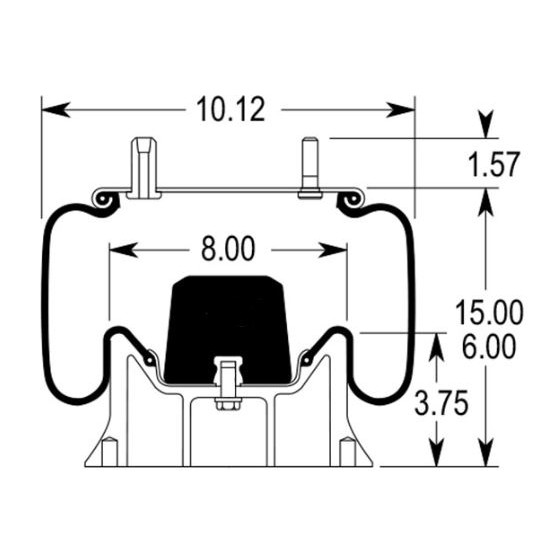

| Extended Height | 15.00" |
| Compressed Height | 6.00" |

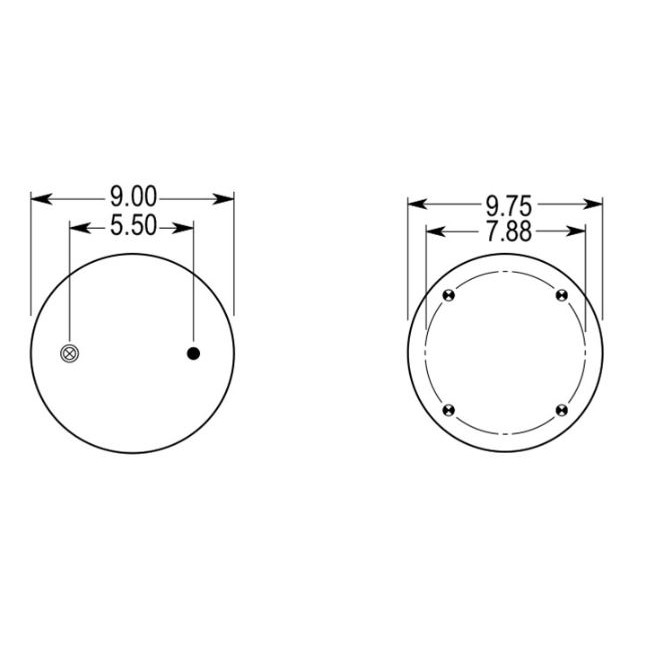

| Top Plate Width | 9.00" |
| Piston Width | 9.75" |
| Weight | 19.4 lbs |
