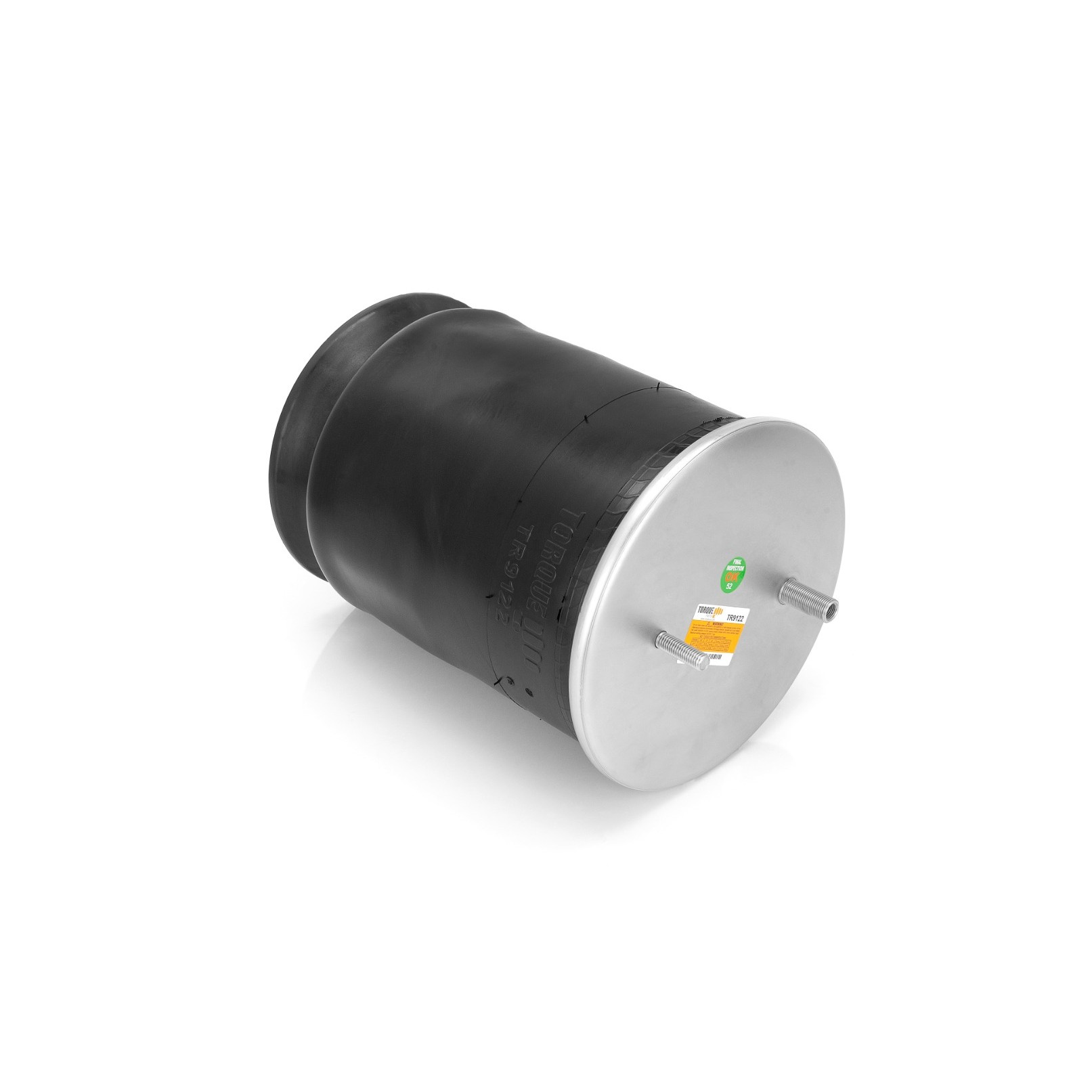

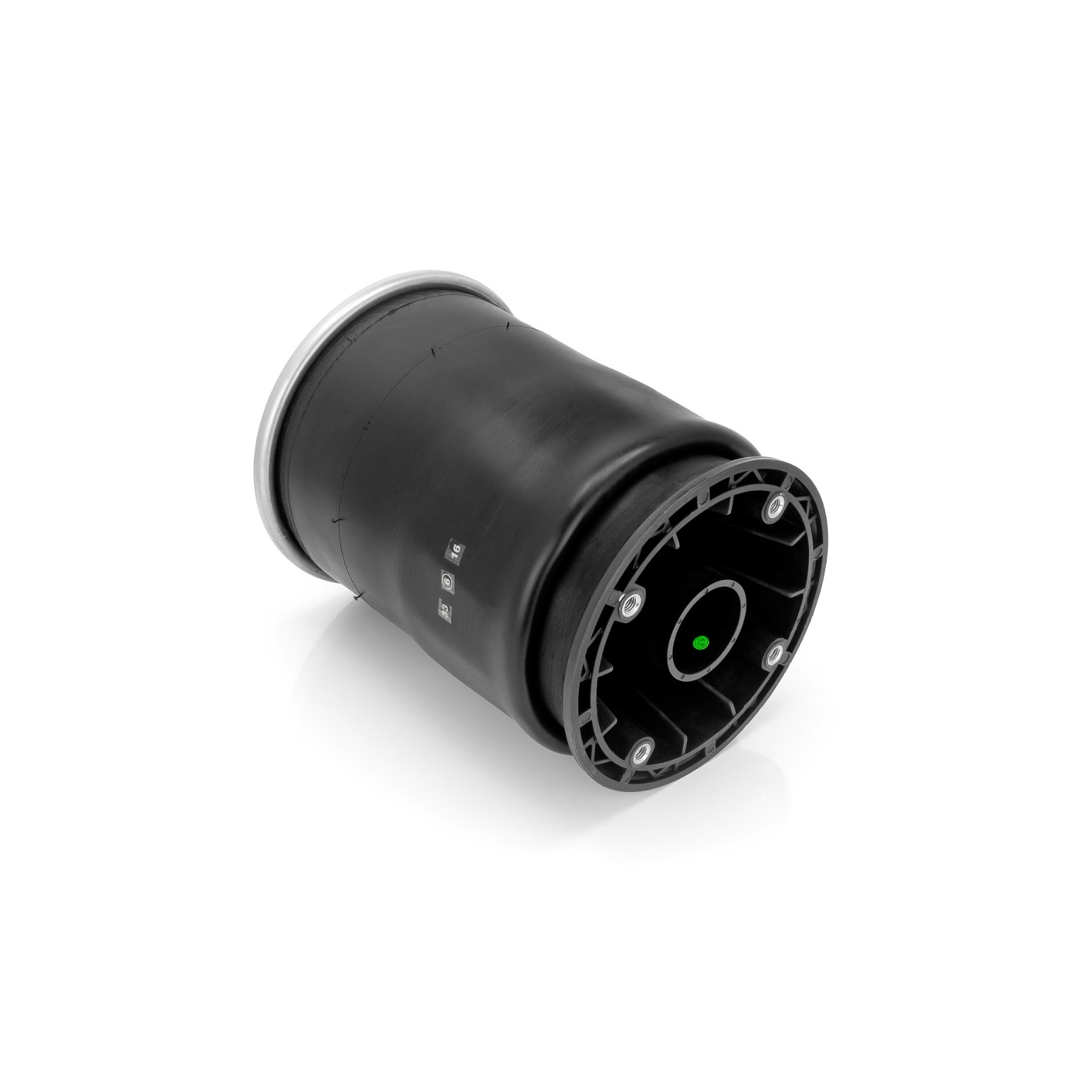

TR9122 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-3467, 365142, 1R13-038, S-3830
Part Number : TR9122
Air Spring for Hendrickson Trailer
| Brand | Reference Numbers |
|---|---|
| Contitech | 11 10.5‑21 A 313, 161019, 64273 |
| Eveley | RA19544 |
| Firestone | 8792, 9122, 9142, W01‑358‑8792, W013589122, W01‑358‑9122 |
| Goodyear | 1R13038, 1R13‑038, 1R14045, 1R14‑045, 1R13‑048, 1R14‑060 |
| Hendrickson | 365142, 365148, B3467, B‑3467, B3830, B‑3830, S‑12514‑008, S‑12514‑010, S3467, S‑3467, S3830, S‑3830 |
| Hendrickson Canada | B‑12514‑008, B‑12514‑010 |
| Holland (Neway) | 905‑57‑020, 905‑57‑071, 905‑57‑076, 905‑57‑077, 905‑57‑185 |
| IHC | 1681748C1, 168749C1, 554772C1 |
| Ingersoll | 65351301, 653513‑01 |
| Sampa | SP559122‑KP, SP 559122‑KP, SP559122KP |
| Property | Value |
|---|---|

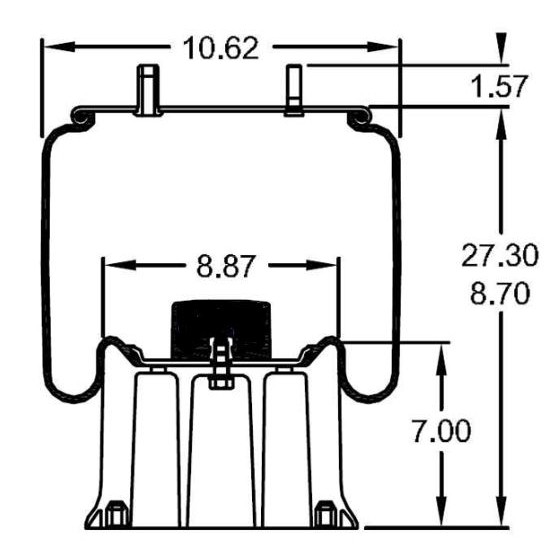

| Extended Height | 27.30" |
| Compressed Height | 8.70" |

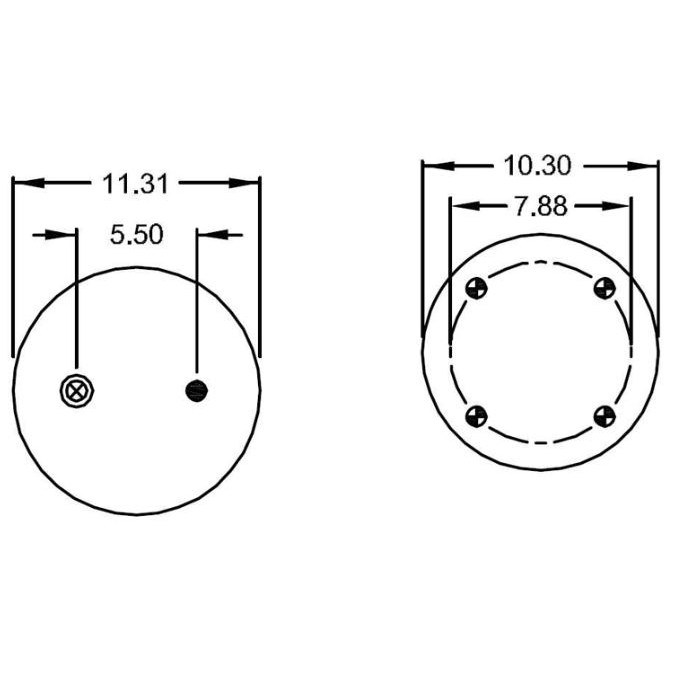

| Top Plate Width | 11.31" |
| Piston Width | 10.30" |
| Weight | 21.0 lbs |
