TR9213 | Air Spring for Navistar Trucks
Description : Air Spring for Navistar Replaces 1660581C-1, 501559C-1, 1R12-090
Part Number : TR9213
Air Spring for Navistar Trucks
| Brand | Reference Numbers |
|---|---|
| Contitech | 64308, 9 10‑16 P 441 |
| Firestone | 9213, W013589213, W01‑358‑9213 |
| Goodyear | 1R12090, 1R12‑090 |
| Hendrickson | S‑13033 |
| IHC | 1660581C1, 1686386C1, 501559C1, 501559C2 |
| Navistar | 1660581C‑1 / 501559C‑1 / 501559C‑2 |
| Neway | 57009213 |
| Triangle | 8407 / 8441 |
| Volvo | 3130495 |
| Sampa | SP559213‑KP, SP 559213‑KP, SP559213KP |
| Property | Value |
|---|---|
| Extended Height | 20.00" |
| Compressed Height | 6.00" |

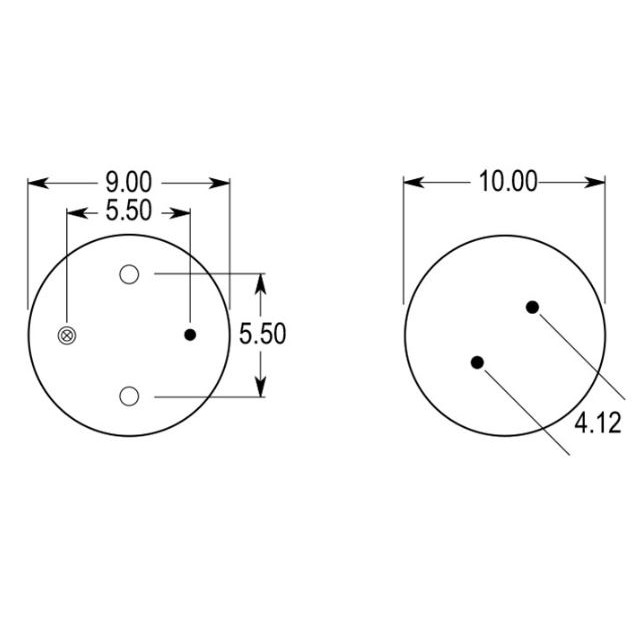

| Top Plate Width | 9.00" |
| Piston Width | 10.00" |
| Weight | 13.5 lbs |
