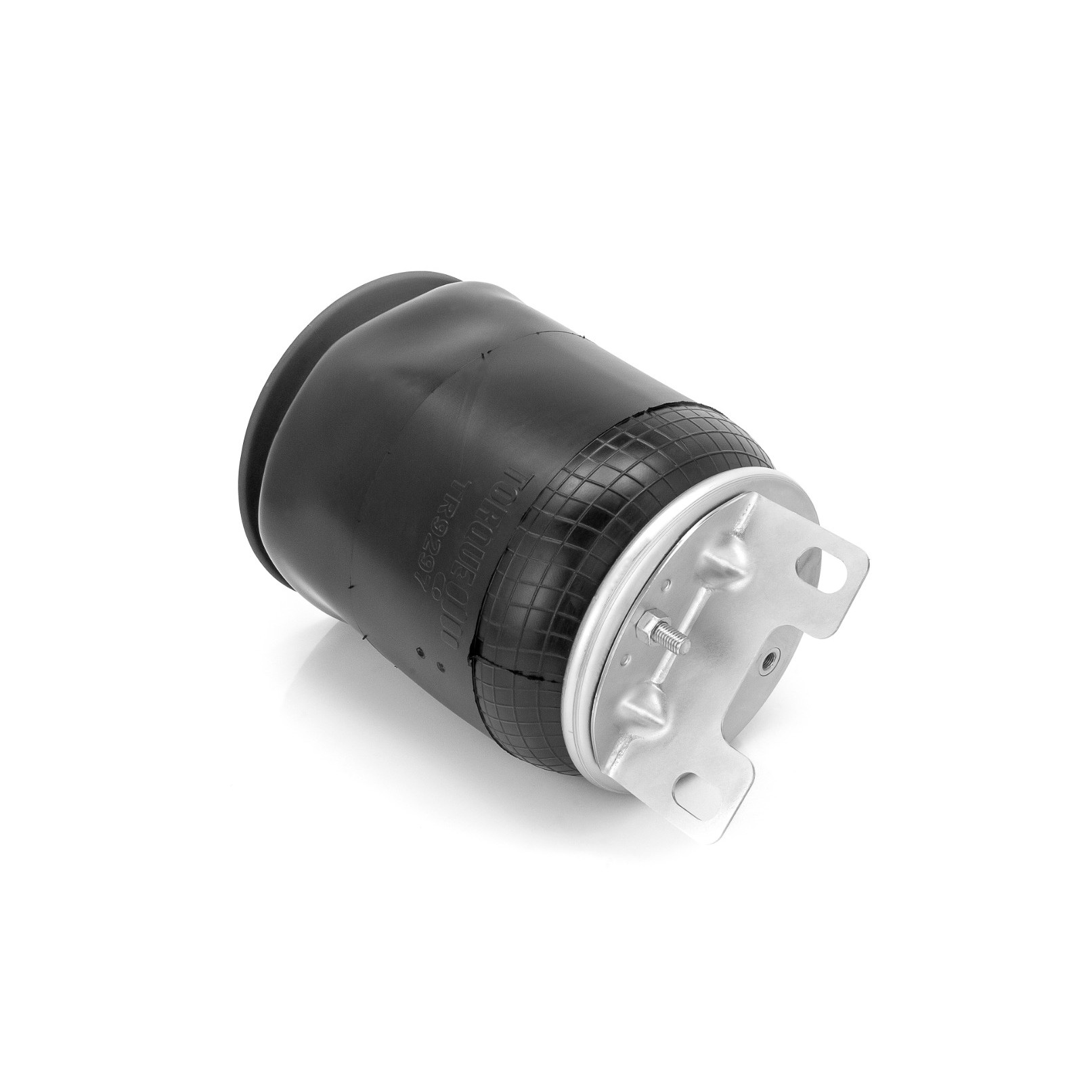

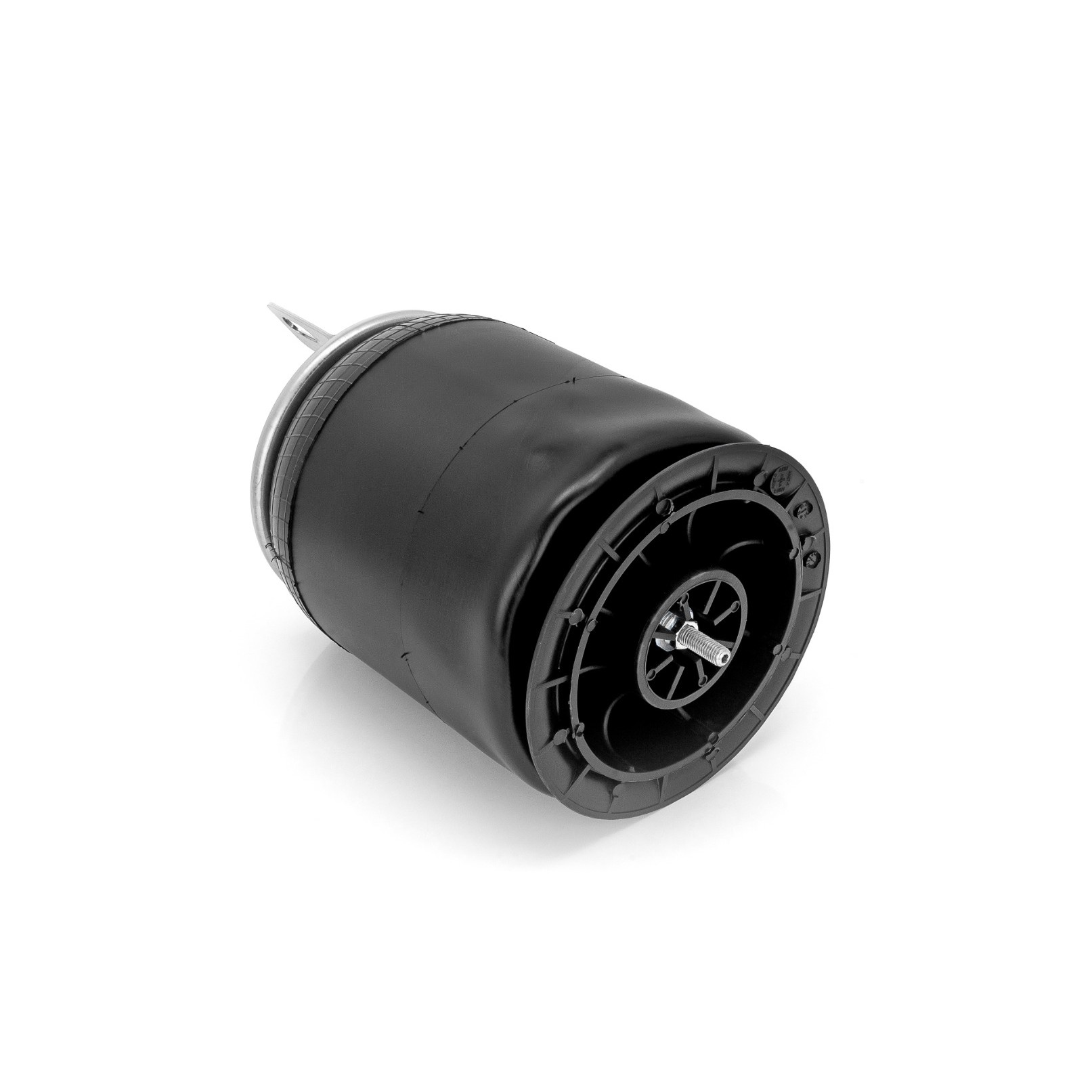

TR9297 | Trailer Air Spring
Description : Trailer Air Spring Replaces W01-358-9297, 50898-2, 1R12-402
Part Number : TR9297
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64410, 66978, 9 10‑18.5 P 520, 9 10‑18.5 P 935, 910‑18.5P935, 910‑18.5P520 (No Bracket), 910‑17.5P520 |
| Firestone | 9297, W013589297, W01‑358‑9297, W014559297, W01‑455‑9297 |
| Goodyear | 1R12402, 1R12‑402, 1S12029, 1S12‑029 |
| Hendrickson | 50898001, 50898‑001, 50898002, 50898‑002, 50898002L, 50898‑002L, 508982, 50898‑2, 64651‑2, 50898‑1 |
| Triangle | 8520 |
| Sampa | SP559297‑KP, SP 559297‑KP, SP559297KP |

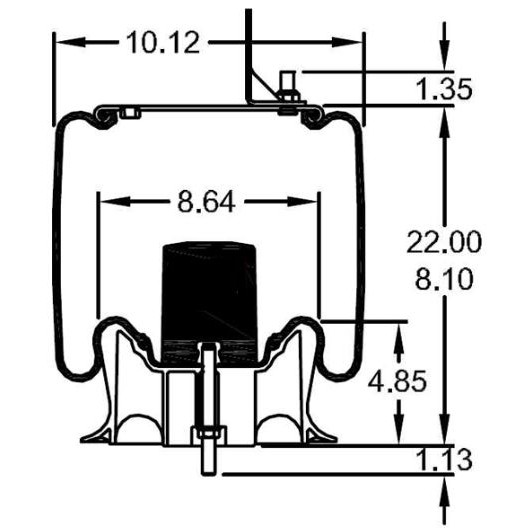

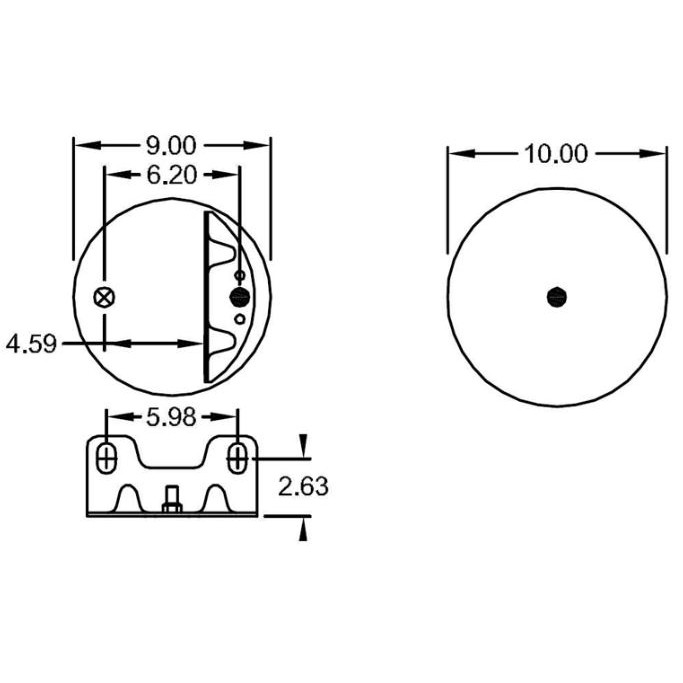

| Property | Value |
|---|---|
| Extended Height | 22.00" |
| Compressed Height | 8.10" |
| Top Plate Width | 9.00" |
| Piston Width | 10.00" |
| Weight | 16.1 lbs |
