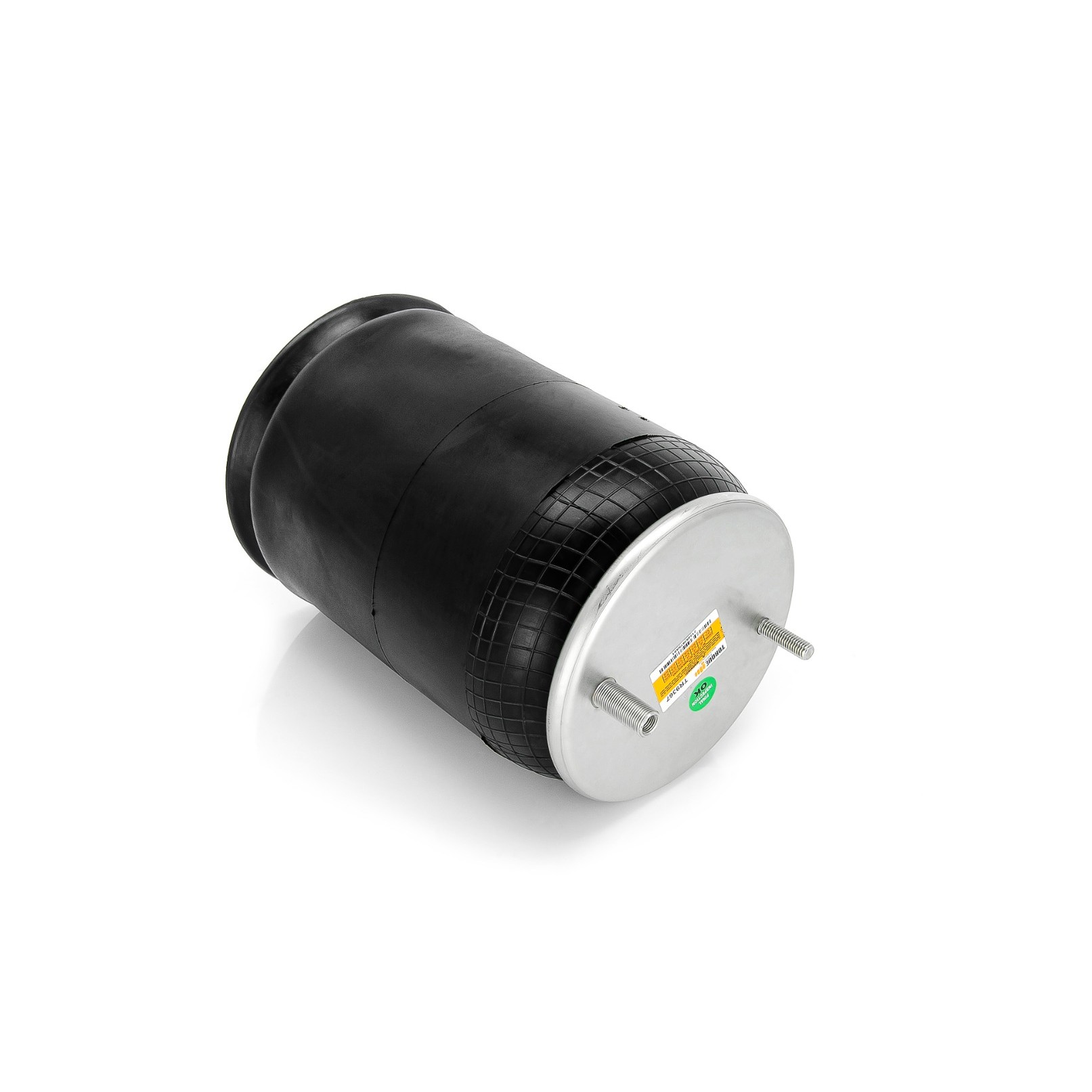

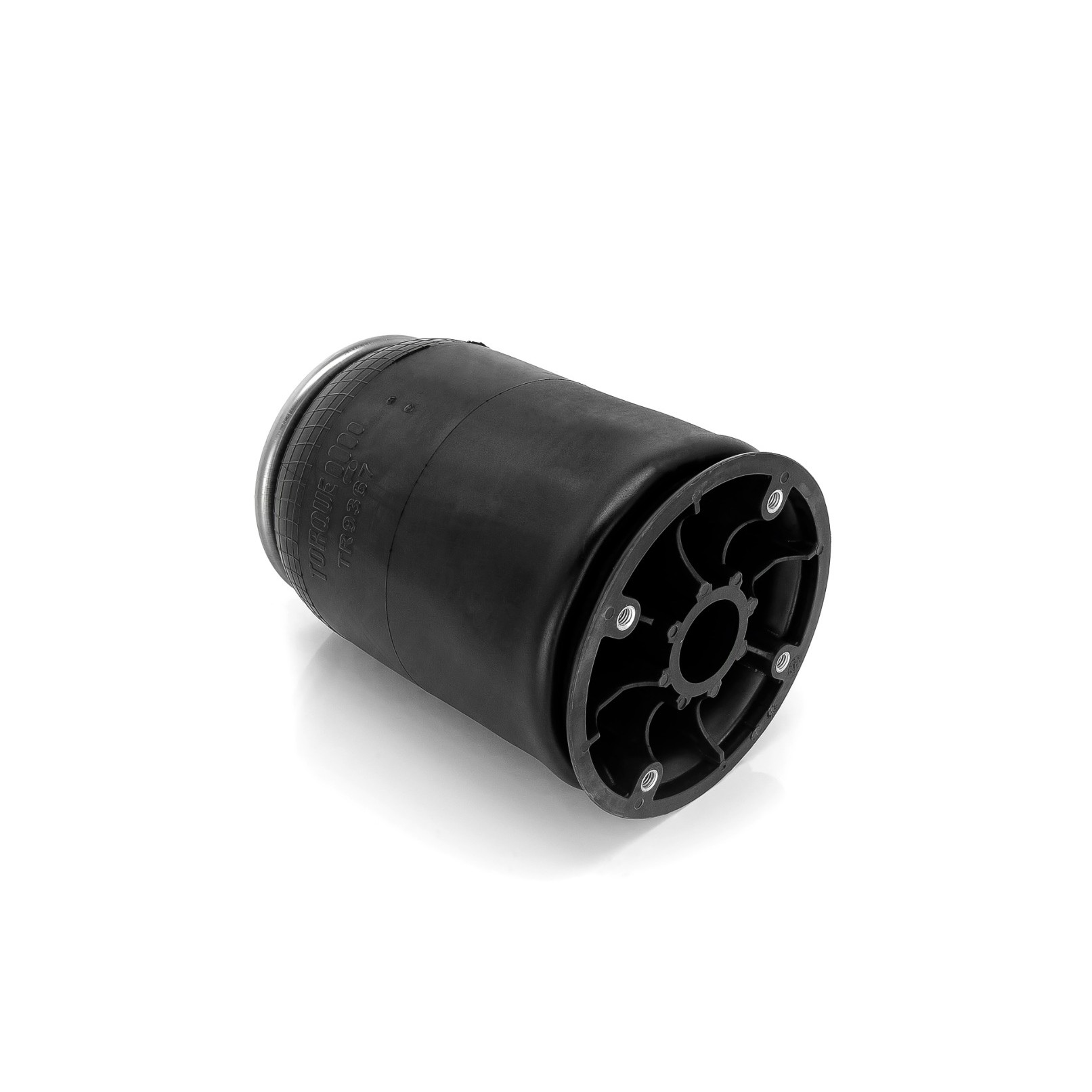

TR9367 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-14249, 1R12-256, 910-21P505
Part Number : TR9367
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | AB1DK23N‑9367A |
| Contitech | 64384, 910‑21P505 |
| Firestone | 9367, W013589367, W01‑358‑9367 |
| Goodyear | 1R12256, 1R12‑256, 1R12‑283 |
| Hendrickson | 003319, 3319, B14249, B‑14249, B4375, B‑4375, S14229, S‑14249 |
| Hendrickson Aux | R003319, R‑003319 |
| Load Guard | SC2120 |
| Triangle | 8505, AS‑8505 |
| Volvo/White | 3098606 |
| Watson and Chalin | AS‑0104, AS‑0137, AS0104, AS‑0104, AS0137, AS‑0137 |
| Sampa | SP559367‑KP, SP 559367‑KP, SP559367KP |

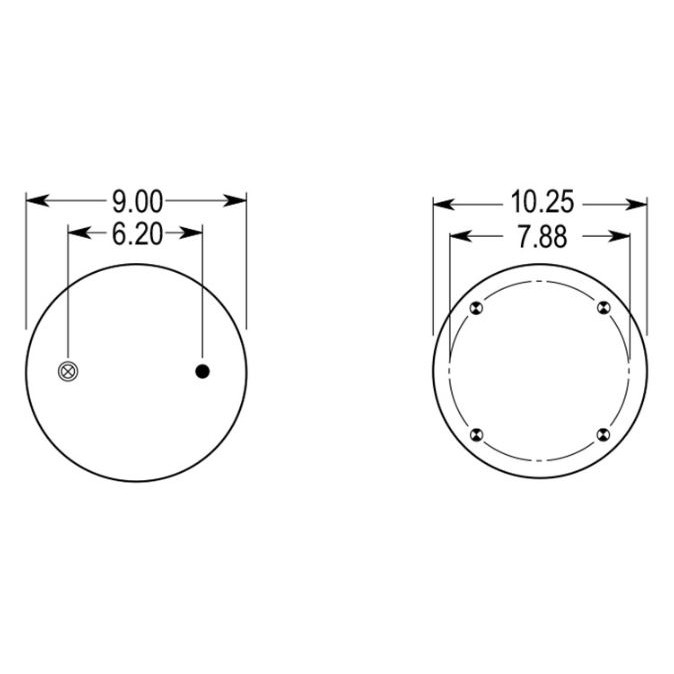

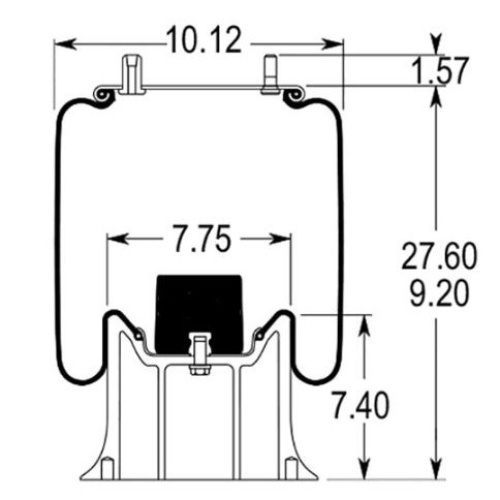

| Property | Value |
|---|---|
| Extended Height | 27.60" |
| Compressed Height | 6.20" |
| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 16.80 lbs |
