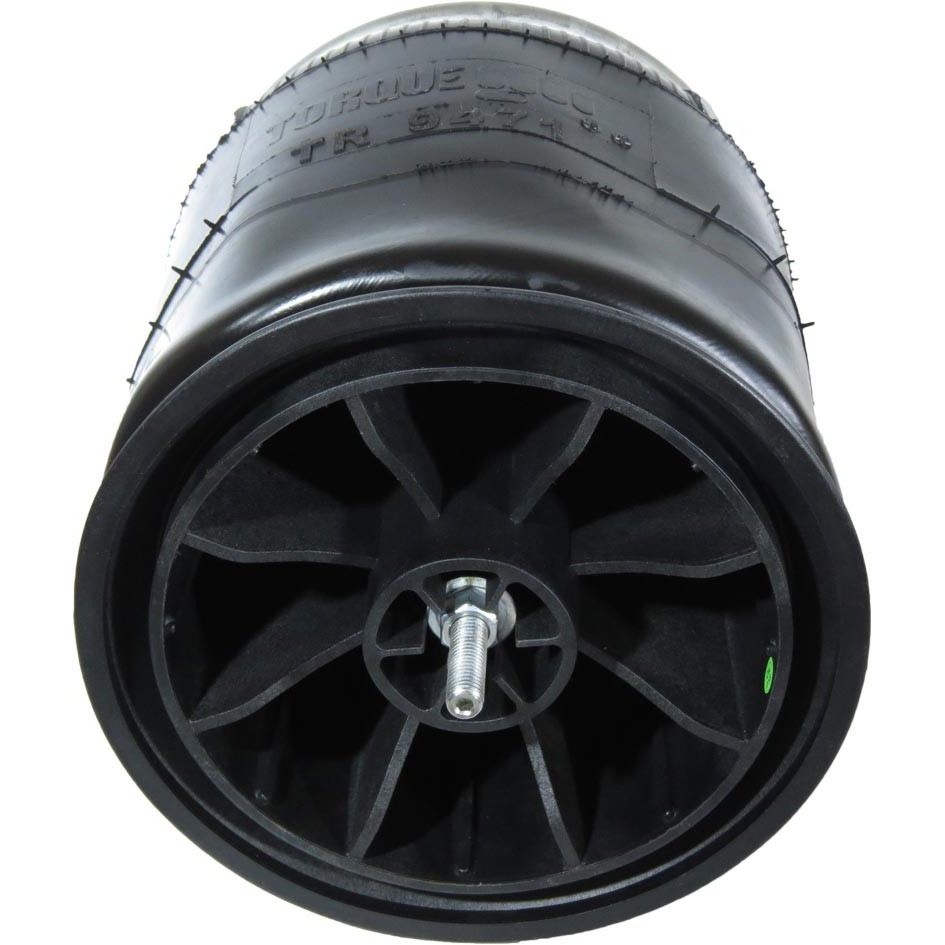

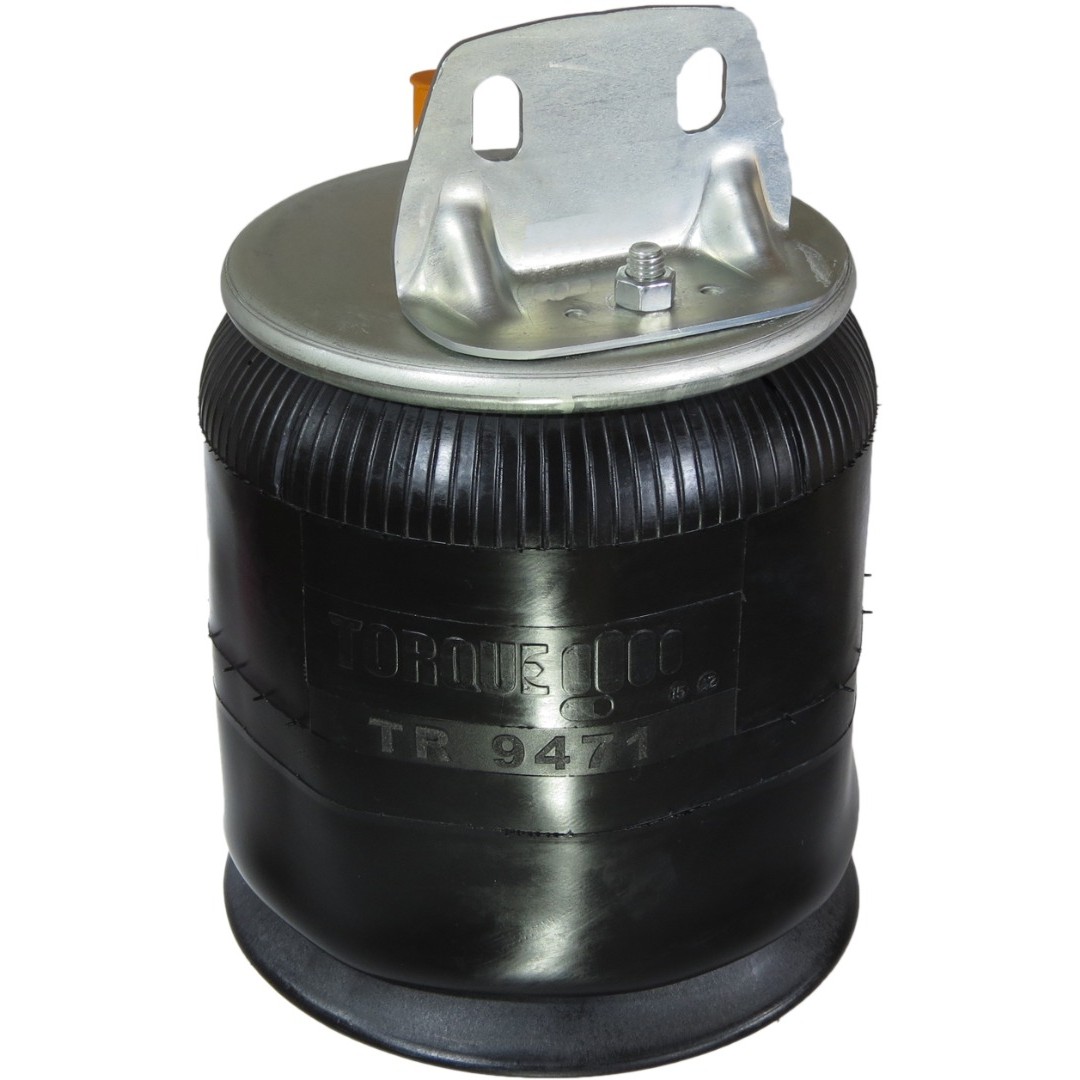

TR9471 | Trailer Air Spring
Description : Trailer Air Spring Replaces 1R12-372, W01-358-9471, 1R12-504
Part Number : TR9471
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64409, 69648, 9 10‑17.5 P 502 |
| Firestone | 9471, W013589471, W01‑358‑9471 |
| Goodyear | 1R12‑372, 1R12504, 1R12‑504, 1R12‑485 |
| Holland (Neway) | 905‑57‑146, 905‑57‑177, 905‑57‑182, 905‑57‑212, 905‑57‑214 |
| Mack | 57QL415M |
| Mc Neilus&Man | 1138990 |
| Neway | 90557146, 905‑57‑146, 90557177, 90557182, AS‑0170 |
| Oshkosh | 6HA945, 8HR994 |
| Phoenix | 12770 |
| Terex | 19480 |
| Triangle | 8445, AS‑8502 |
| Sampa | SP559471‑KP, SP 559471‑KP. SP559471KP |
| Property | Value |
|---|---|

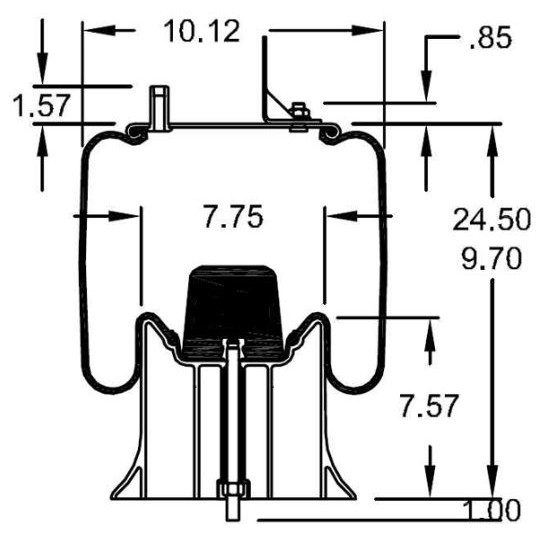

| Extended Height | 24.50" |
| Compressed Height | 9.70" |

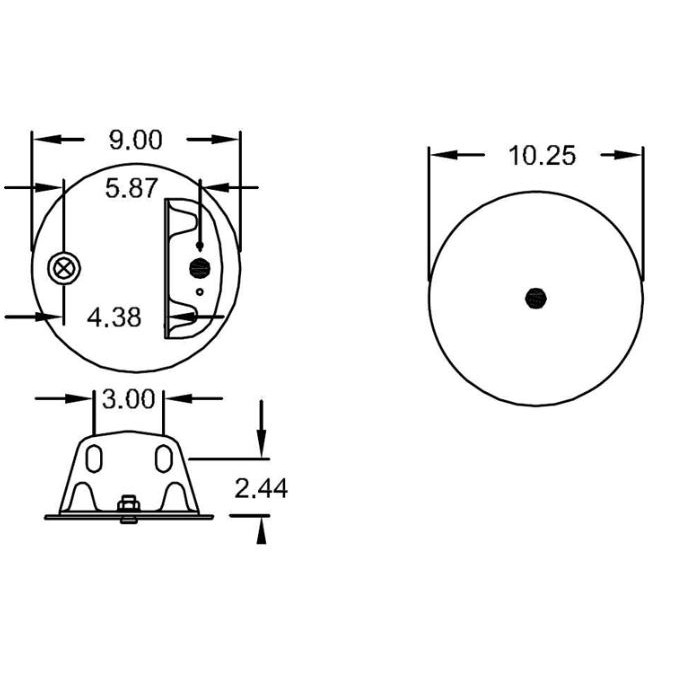

| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 17.80 lbs |
