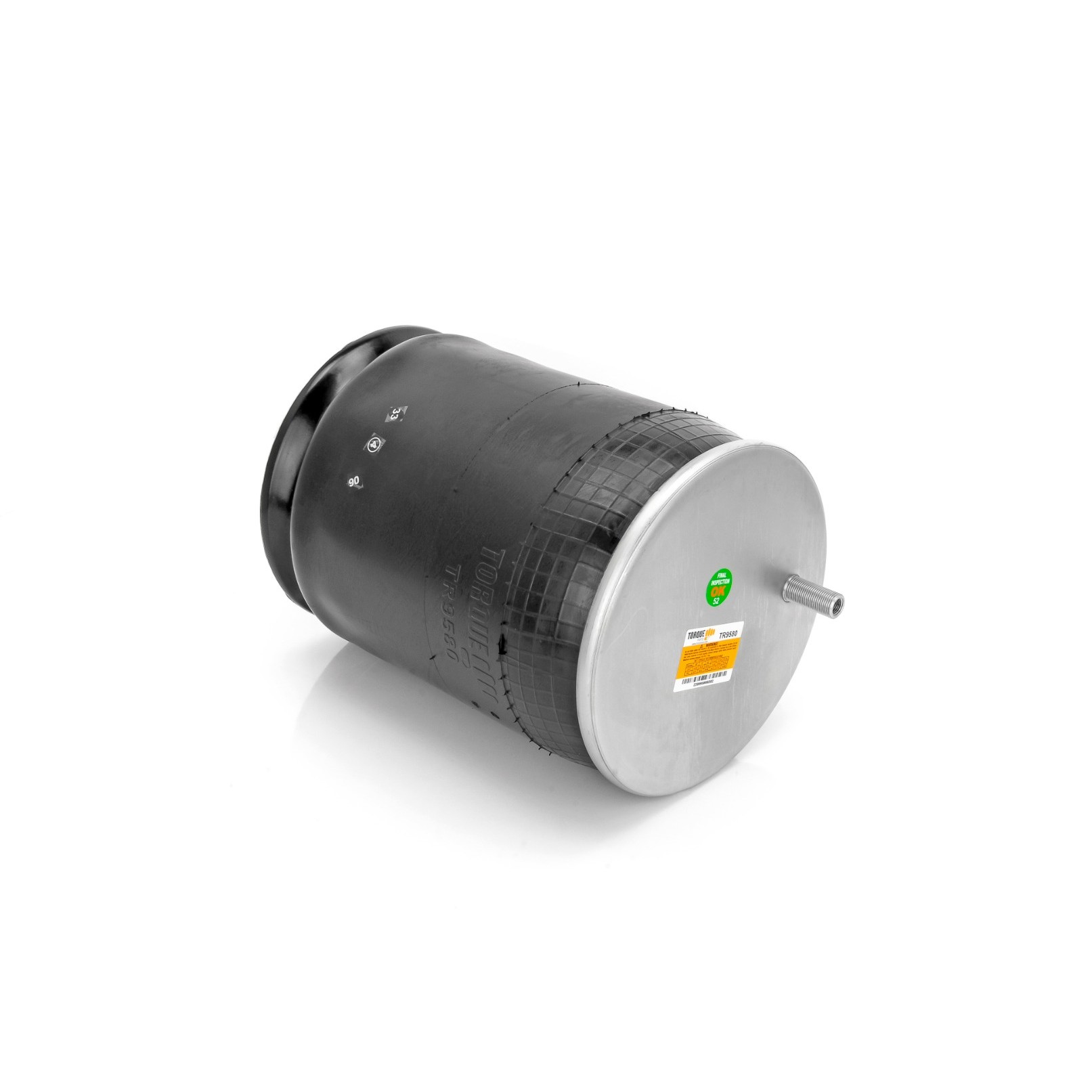

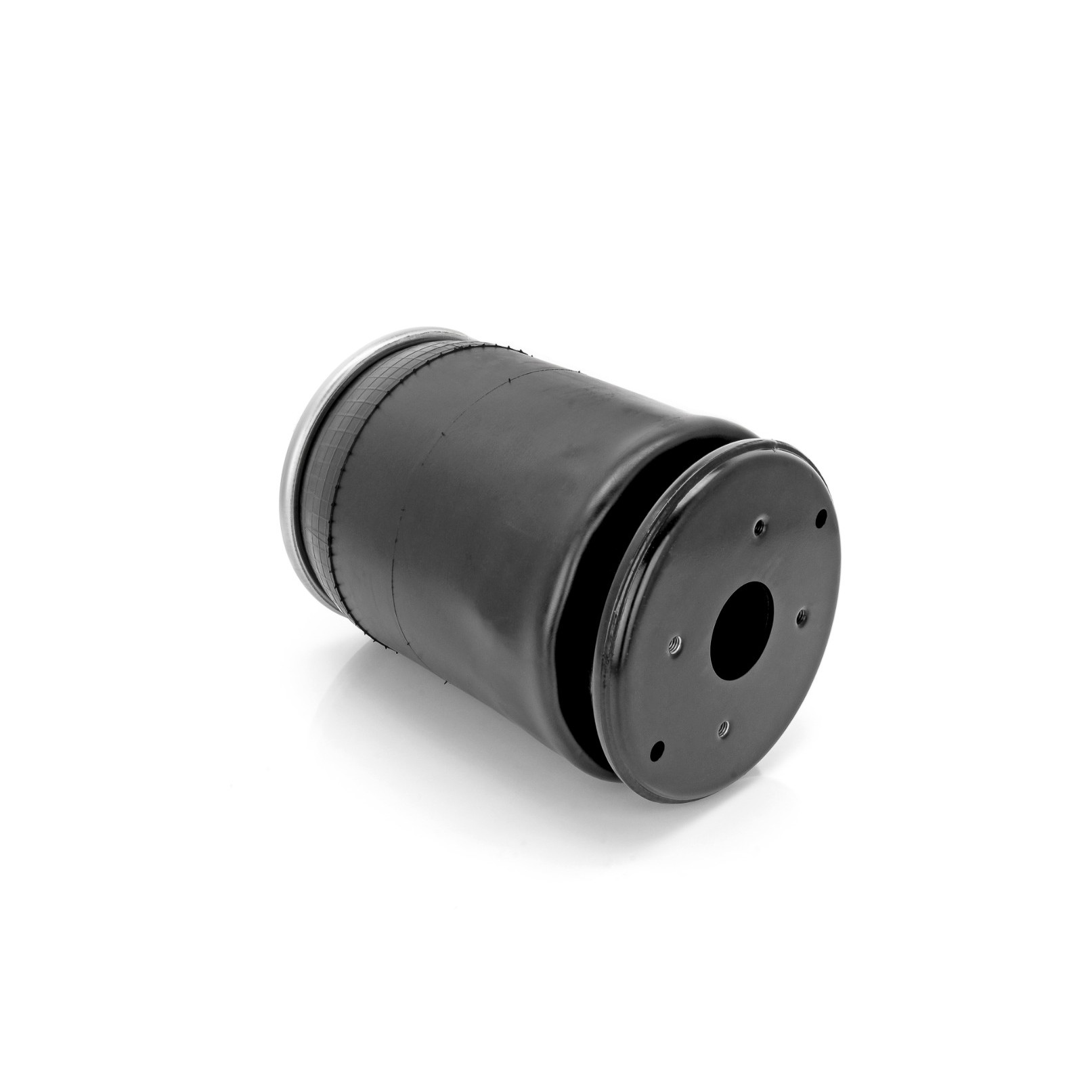

TR9580 | Trailer Air Spring
Description : Trailer Air Spring Replaces 1R13-081, W01-358-9580, S-20127
Part Number : TR9580
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER9580 |
| Contitech | 1010‑21P434, 64394 |
| Firestone | 8627, 9262, 9580, 9581, W013589262, W01‑358‑9262, W013589580, W01‑358‑9580, W013589581, W01‑358‑9581, W014558627, W01‑455‑8627 |
| Goodyear | 1R13081, 1R13‑081, 1R13118, 1R13‑118, 1R13144, 1R13‑144, 1R13‑149 |
| Hendrickson | S20127, S‑20127, S20414, S‑20414, C‑20127 |
| IHC | 1R13‑247 |
| Loadguard | SC2761 |
| Neway | G2299580300 |
| Triangle | 8434, AS‑8434 |
| Volvo/White | 3098621 |
| Sampa | SP 559580‑K, SP559580‑K, SP559580K, SP559580‑KA, SP 559580‑KA, SP559580‑KA, SP 559580‑KP, SP559580‑KP, SP559580KP |
| Property | Value |
|---|---|

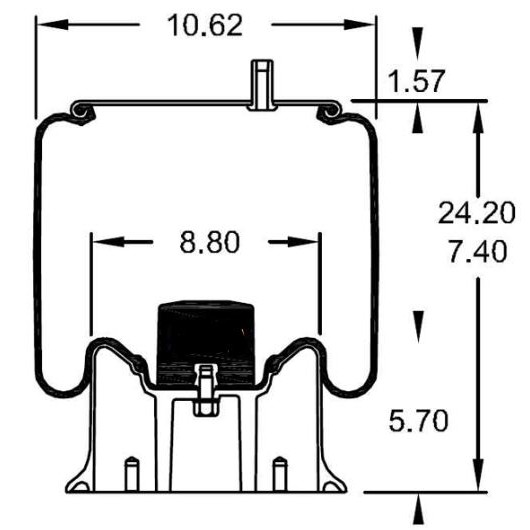

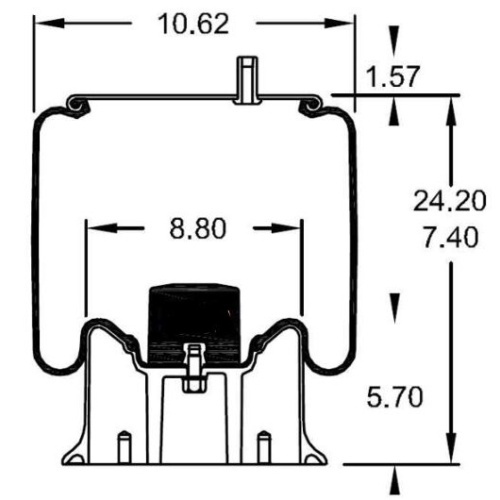

| Extended Height | 24.20" |
| Compressed Height | 7.40" |

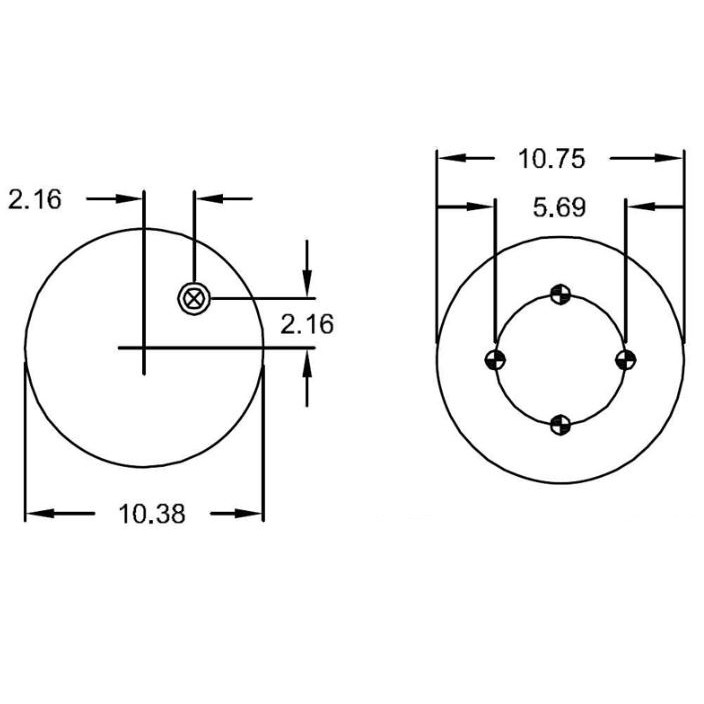

| Top Plate Width | 10.38" |
| Piston Width | 10.75" |
| Weight | 25.20 lbs |
