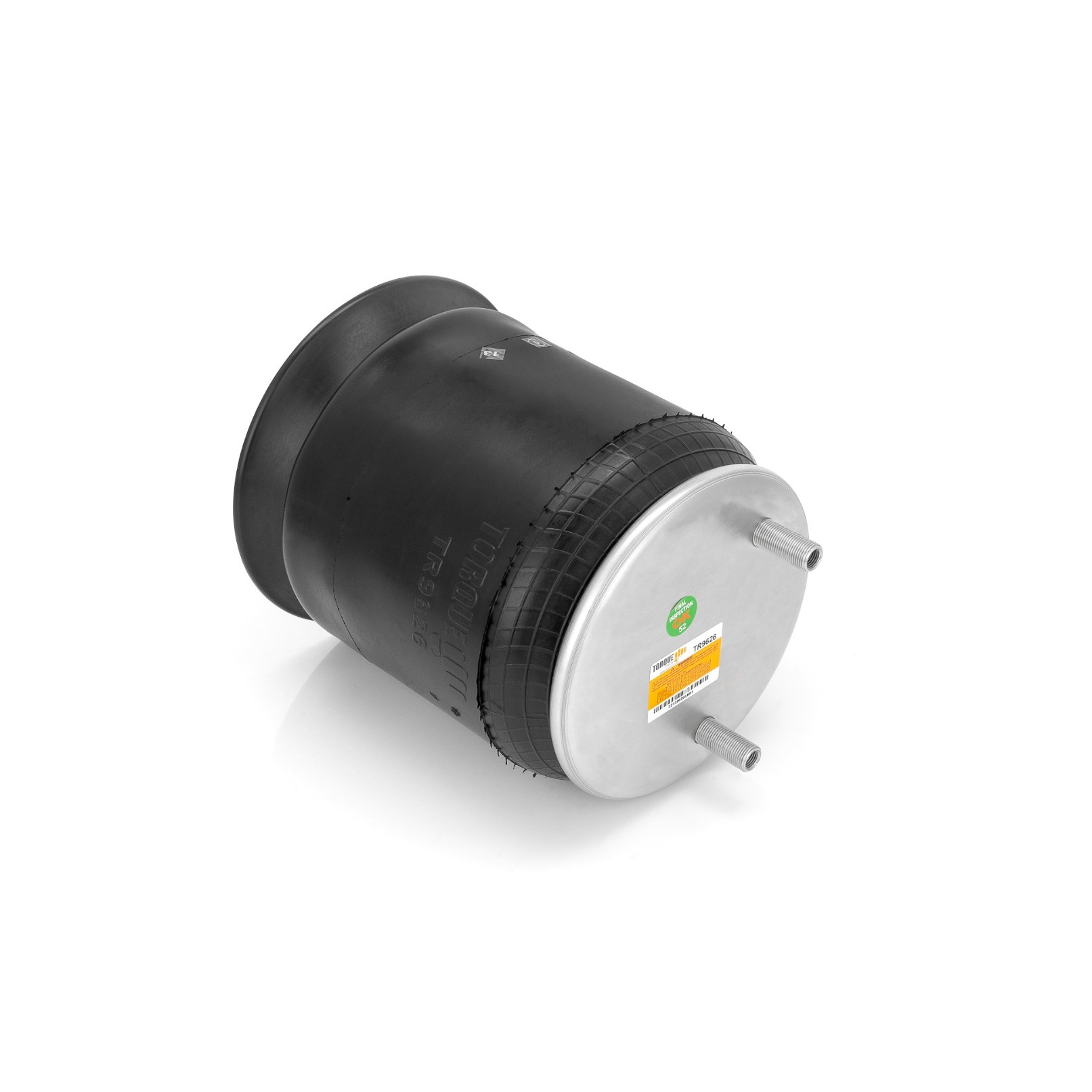

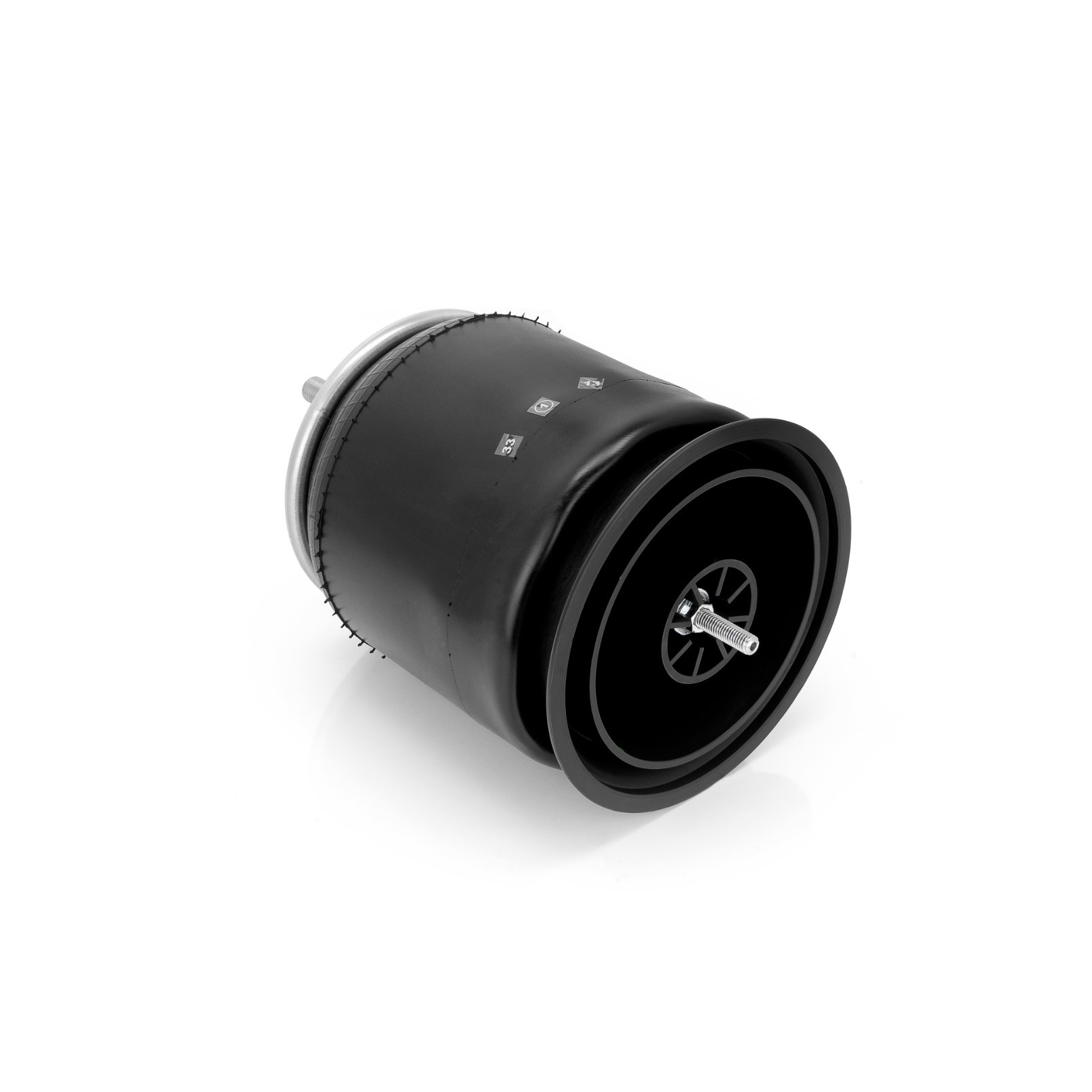

TR9626 | Hendrickson Trailer S23720 Reversible Sleeve Air Spring Plastic Piston
Description : Trailer Air Spring Replaces S-23720, 1R11-292, W01-358-9626
Part Number : TR9626
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Contitech | 64692, 99‑16P568 |
| Firestone | 9626, W013589626, W01‑358‑9626, W014559626, W01‑455‑9626 |
| Goodyear | 1R11292, 1R11‑292 |
| Hendrickson | S23720, S‑23720, C‑23720 |
| Triangle | 8568 |
| Sampa | SP559626‑KP, SP 559626‑KP, SP559626KP |
| Property | Value |
|---|---|

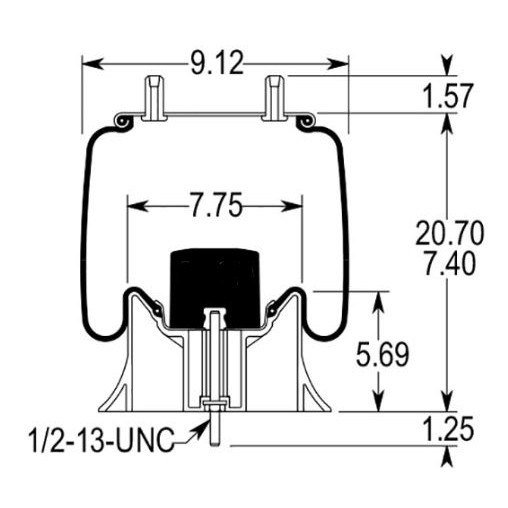

| Extended Height | 20.70" |
| Compressed Height | 7.40" |

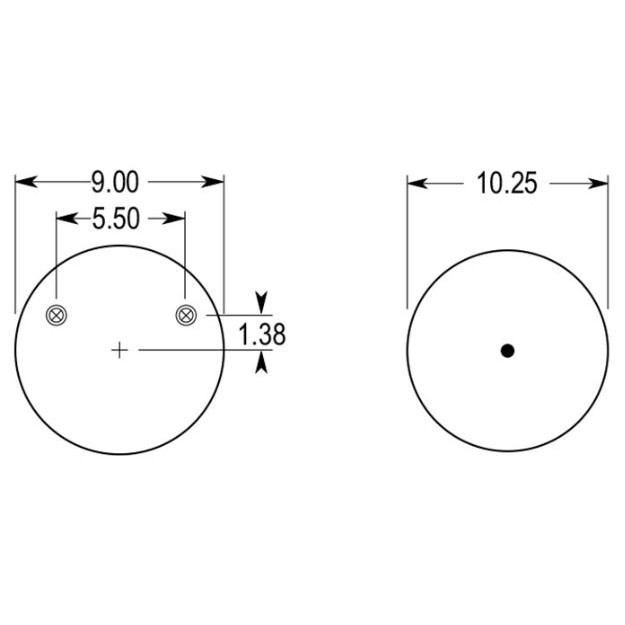

| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 14.50 lbs |
