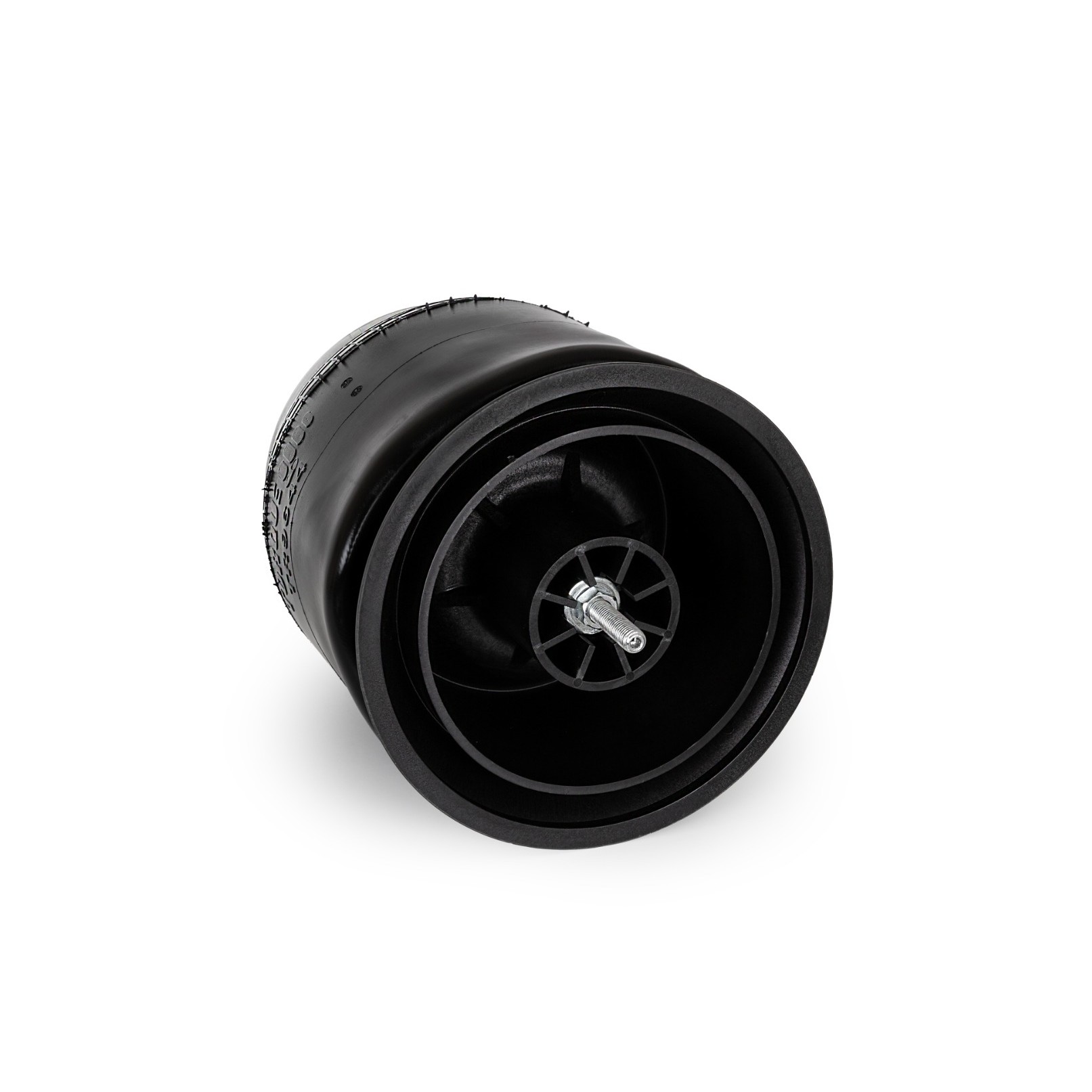

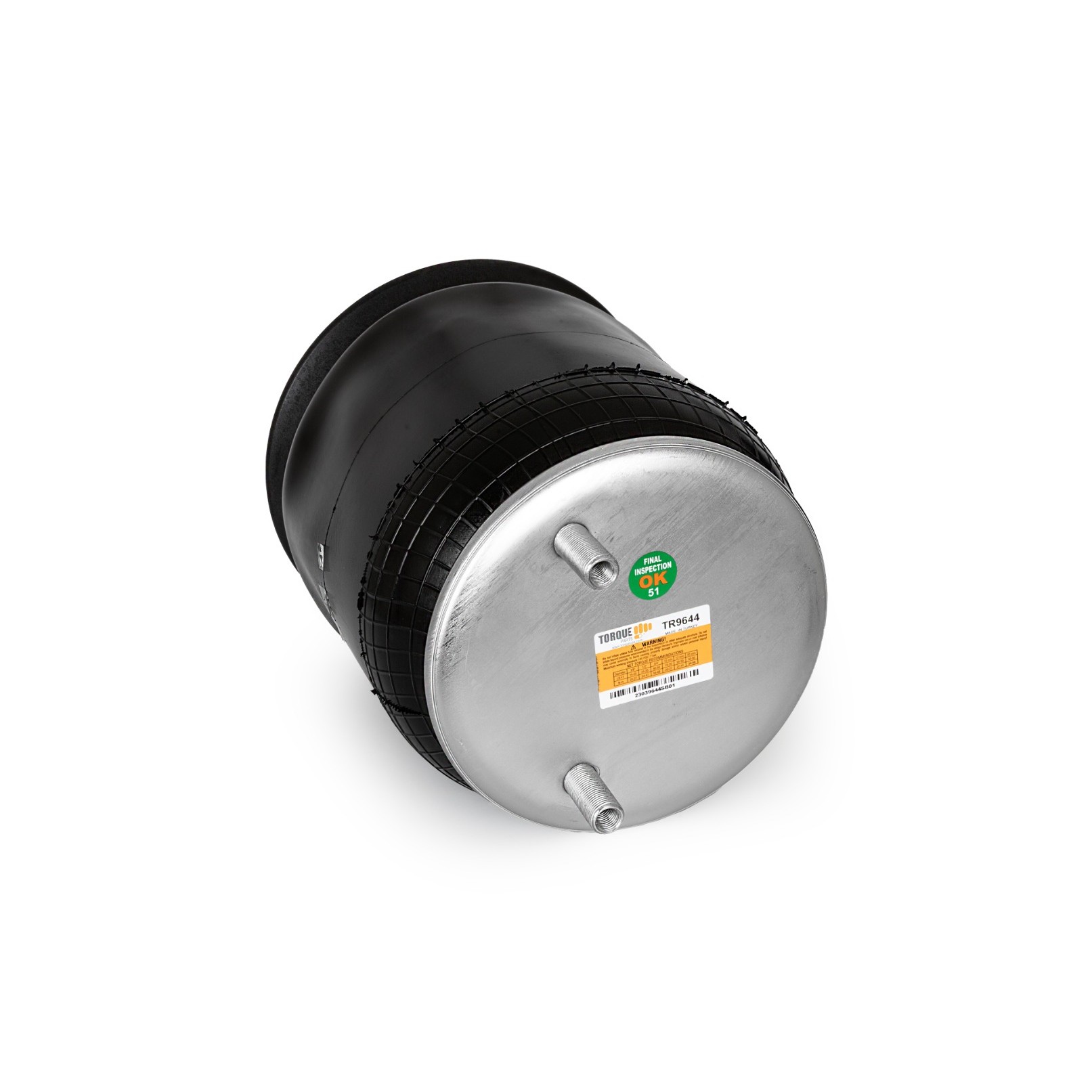

TR9644 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-23721, W01-358-9644, 64693
Part Number : TR9644
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Automann | AB1DK23J‑9644 |
| Contitech | 64693, 9 10BP‑16 P 569, 910BP‑16P569 |
| Firestone | 9644, W013589644, W01‑358‑9644 |
| Hendrickson | S23721, S‑23721, C‑23721 |
| Triangle | 8569, AS‑81153, AS‑8569 |
| Sampa | SP559644‑KP, SP 559644‑KP, SP559644KP |
| Property | Value |
|---|---|

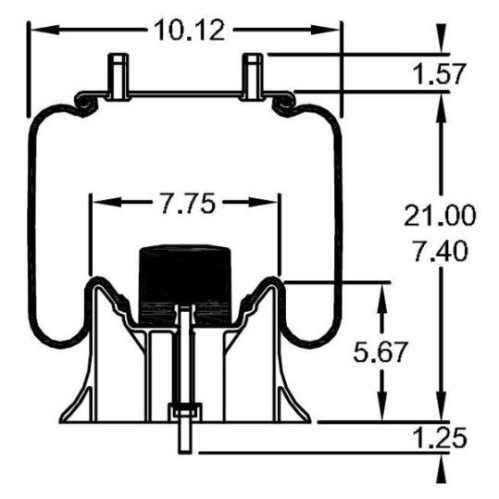

| Extended Height | 21.00" |
| Compressed Height | 7.40" |

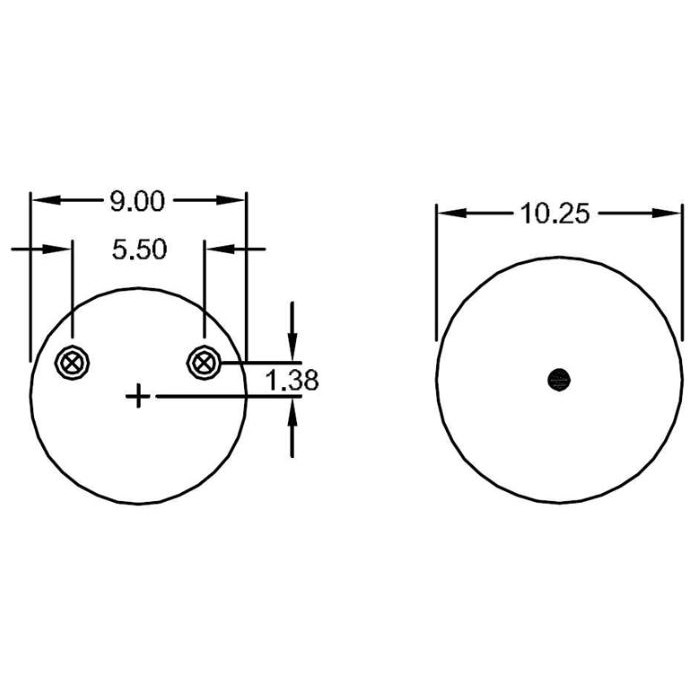

| Top Plate Width | 9.00" |
| Piston Width | 10.25" |
| Weight | 14.00 lbs |
