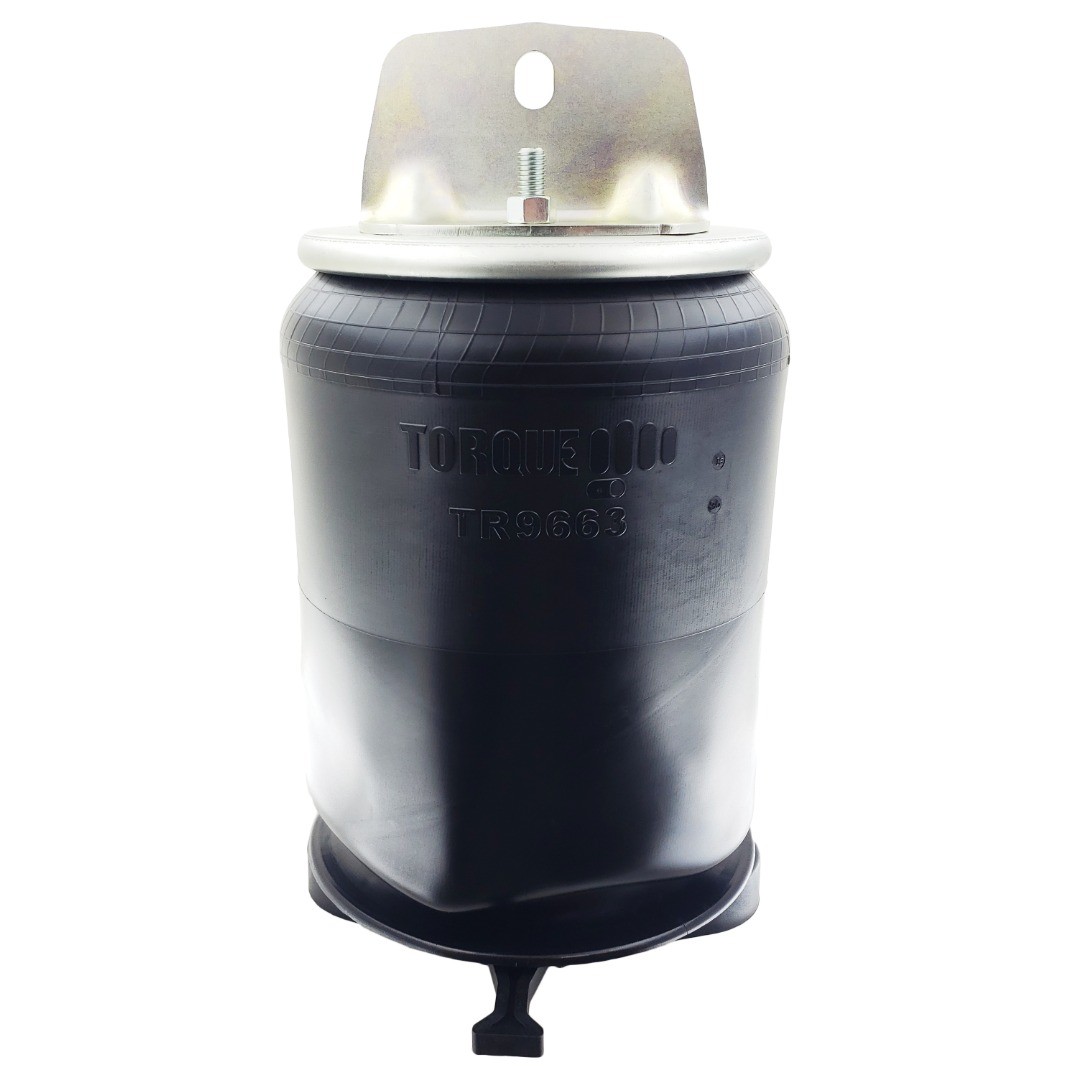

TR9663 | Trailer Air Spring
Description : Trailer Air Spring Replaces 1R12-1093, 60271-001, W01-358-9663
Part Number : TR9663
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Autocar | A3501107001, A3501107‑001 |
| Contitech | 67573, 67574, 9 10‑18.5 P 939, 910‑18.5P939 |
| Firestone | 9663, W013589663, W01‑358‑9663, W014559663, W01‑455‑9663 |
| Goodyear | 1R121093, 1R12‑1093 |
| Hendrickson | 60271001, 60271‑001, 60271002, 60271‑002, 60271002L, 60271‑002L, 602711, 602712, 60271‑2, 60271‑1 |
| IHC | 3626569C91 |
| Mack | 57QL57M, 57WL57M |
| Volvo | 20755320 |
| Triangle | AS‑8939 |
| Sampa | SP559663‑KP, SP 559663‑KP, SP559663KP |

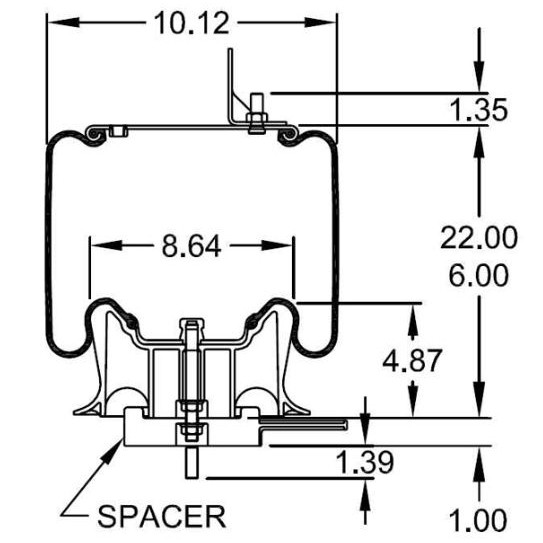

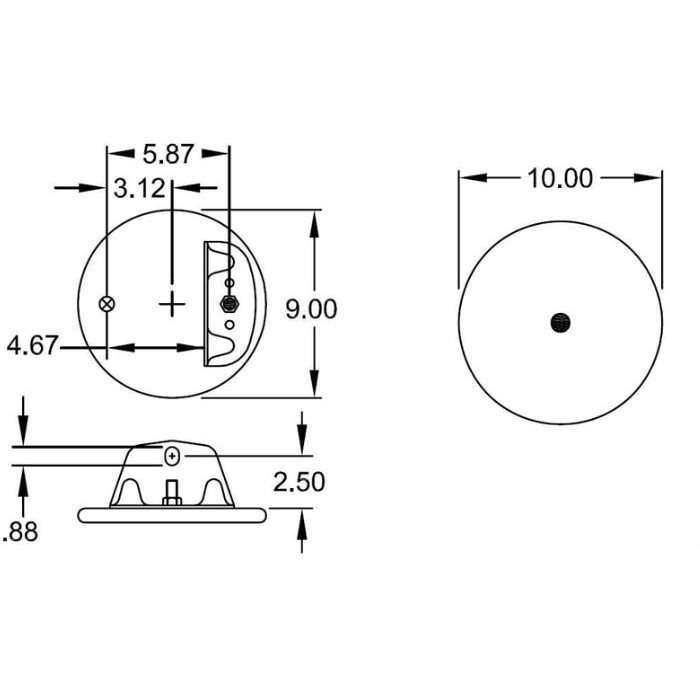

| Property | Value |
|---|---|
| Extended Height | 22.00" |
| Compressed Height | 6.00" |
| Top Plate Width | 9.00" |
| Piston Width | 10.00" |
| Weight | 18.50 lbs |
