TR9913 | Front Axle Air Spring for Volvo Replaces 20462934, 20897204, 9913
Description : Front Axle Air Spring for Volvo Replaces 20462934, 20897204, 9913
Part Number : TR9913

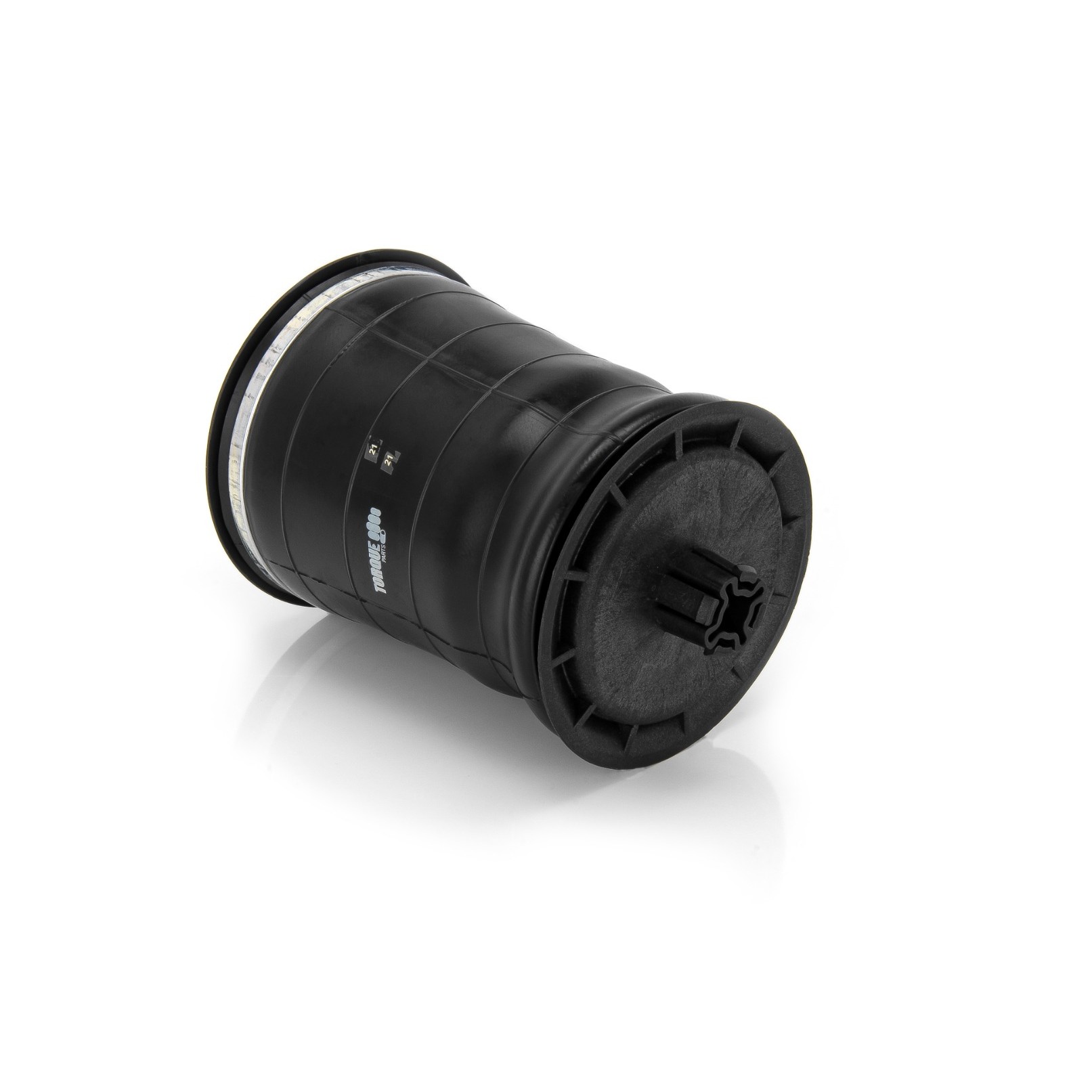

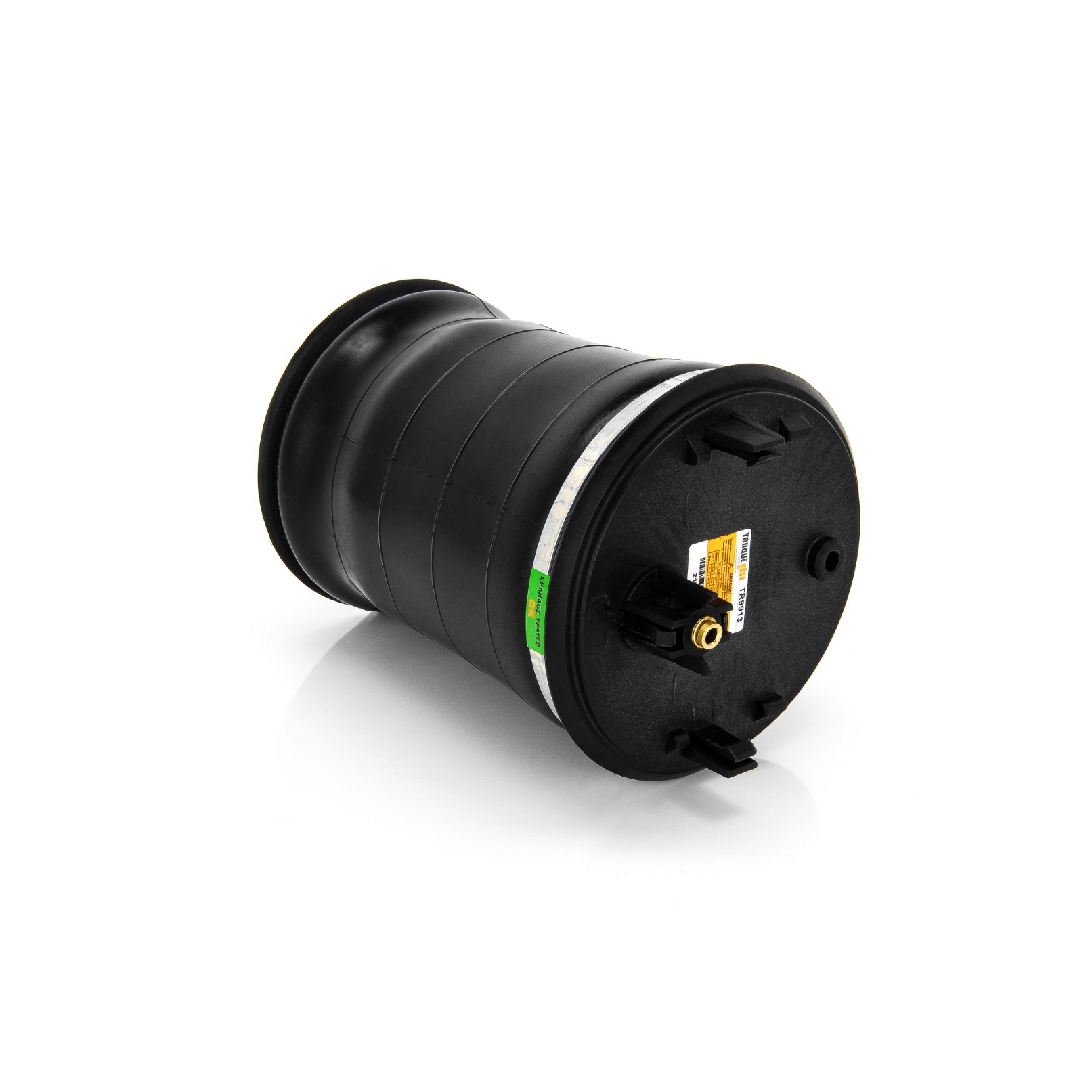

Front Axle Air Spring for Volvo Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | AB1DK10A‑9912 |
| Contitech | 6 6.5B‑11 P 236, 69915 |
| Euclid | E‑14010 |
| Firestone | 9912, W013589912, W01‑358‑9912, W263589912, W26‑358‑9912, W263589913, W26‑358‑9913, W264559912, W26‑455‑9912, W263589911, W264559928, W264559930 |
| Hendrickson | 60750‑2, 60750‑2E, 64075‑2, 66349‑2, 673042, 66349002, 607502, 607502E, H607502, 60750002, 66349002L, 59823‑2C, 69782‑002L |
| Hendrickson Truck | 60750002, 60750‑002, 60750002L, 60750‑002L, 64075002, 64075‑002, 66349002, 66349‑002, 66349002L, 66349‑002L |
| Mack | 57QL55M, 57QL520M |
| Meritor | FS9913 |
| Volvo | 20462934, 20897204 |
| Sampa | 500.921‑01, SP 559913‑KP, SP559913‑KP |

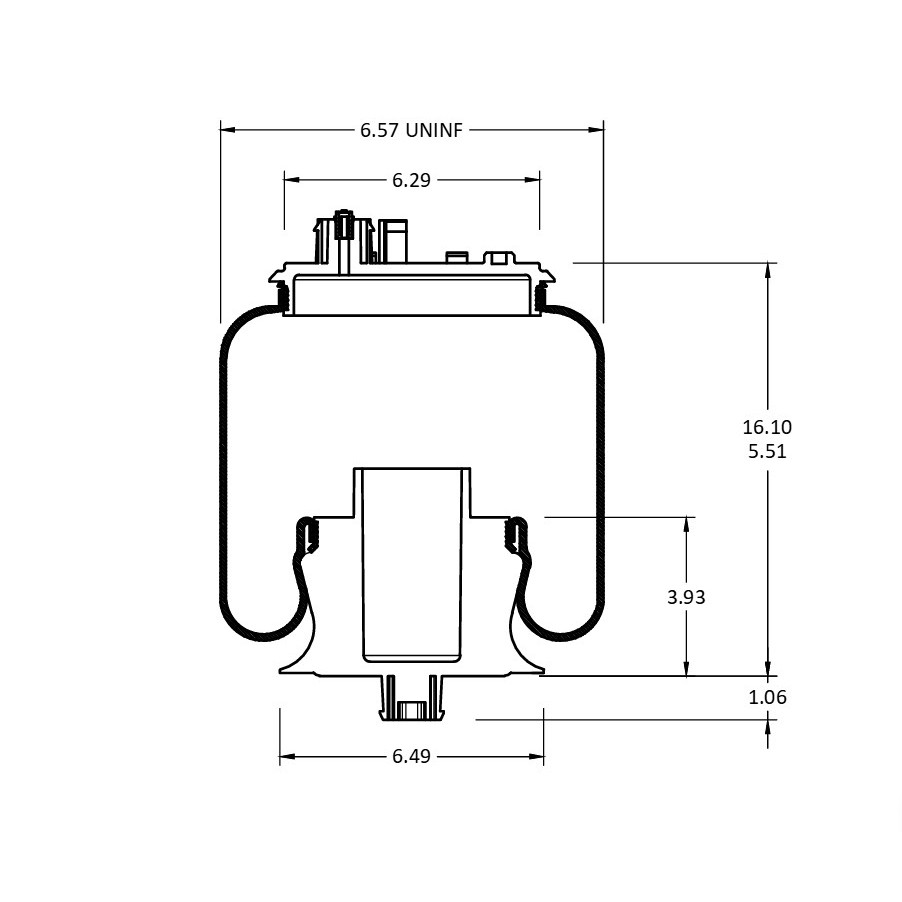

| Property | Value |
|---|---|
| Air Inlet | Push‑to‑connect |
| Design Height | 8.66" |
| Piston Diameter | 6.49" |
| Minimum Jounce Height | 5.51" |
| Extended Height | 16.10" |
| Compressed Height | 5.51" |
| Weight | 4.55 lbs |
