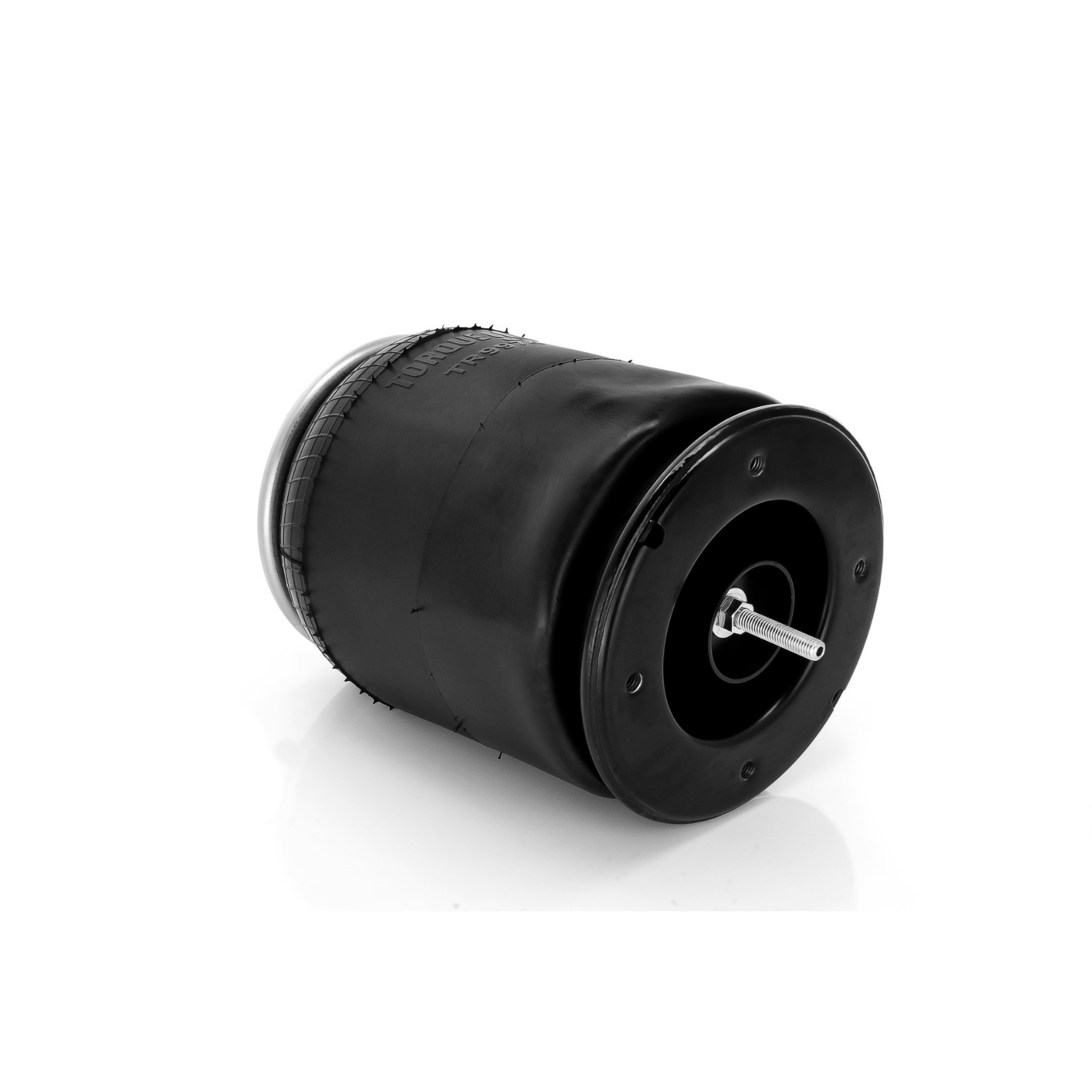

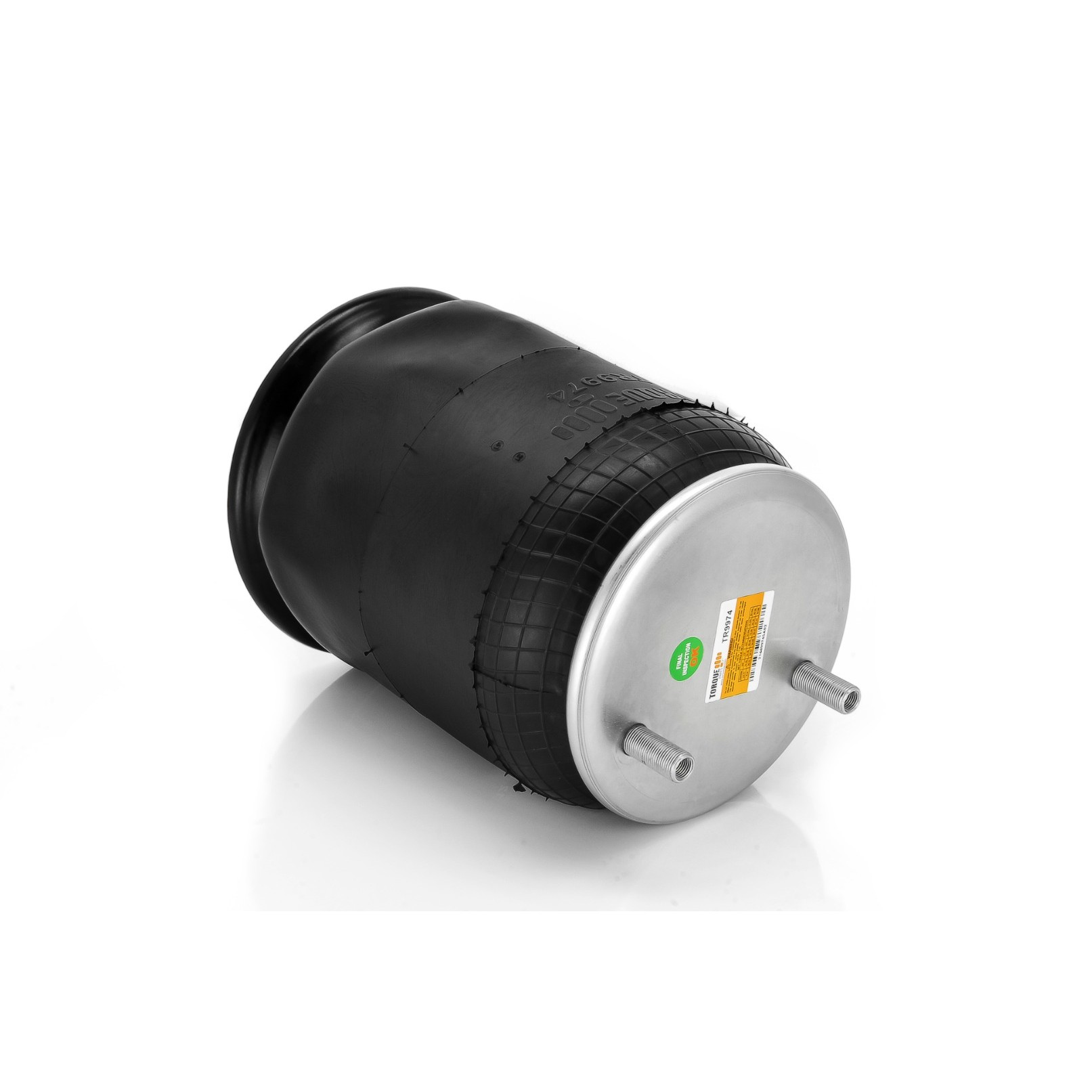

TR9974 | Trailer Air Spring
Description : Trailer Air Spring Replaces 1R12-1048, W01-358-9974, 67586, 9974
Part Number : TR9974
Trailer Air Spring
| Brand | Reference Numbers |
|---|---|
| Alliance | ABP N32 019974 |
| Automann | 566.ER9974, AB1DK23P‑9974, 566.CT67586, AB1DK23M‑A888 |
| Contitech | 67586, 9 10‑17.5 A 930, 910‑17 5A930 |
| Firestone | W01‑358‑9974 |
| Goodyear | 1R121048, 1R12‑1048 |
| Holland (Neway) | 90557332, 90557369 |
| Meritor | MAF9974, FS9974 |
| Misc | HDV9974, AS9974, AS‑8930, 67587, AS99740, ASPR9M1759974, 72899 |
| Neway | 90557332, 905‑57‑332, 90557369 |
| Triangle | 8930, AS‑8930, AS‑8888 |
| Sampa | SP559974‑KA, SP 559974‑KA, SP559974KA |

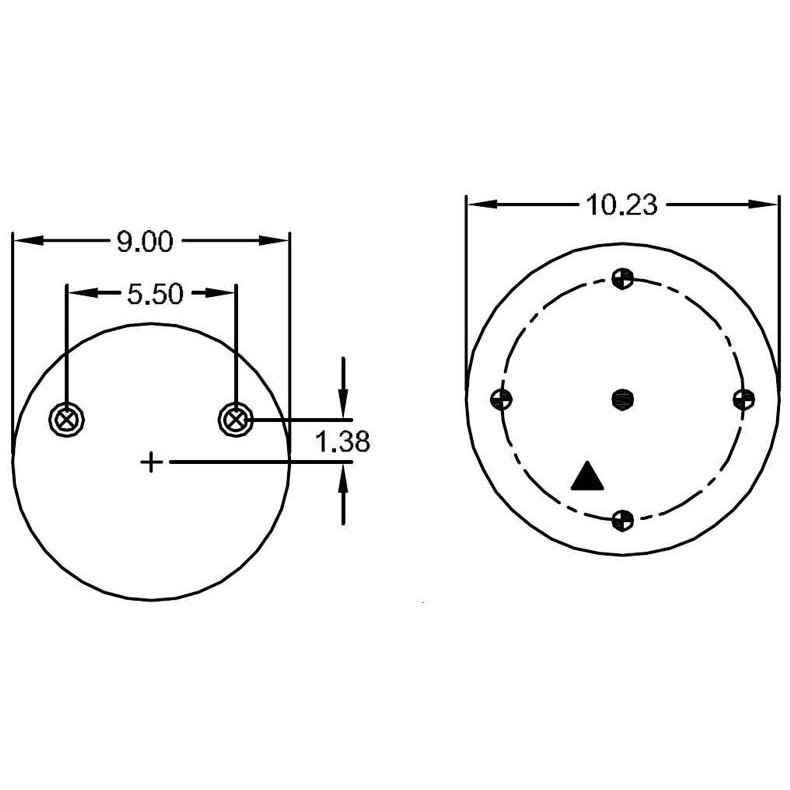

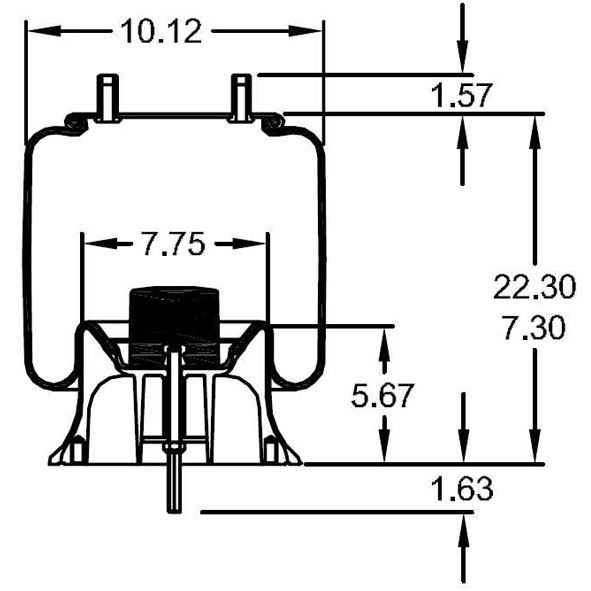

| Property | Value |
|---|---|
| Extended Height | 22.30" |
| Compressed Height | 7.30" |
| Top Plate Width | 9.00" |
| Piston Width | 10.23" |
| Weight | 22.00 lbs |
