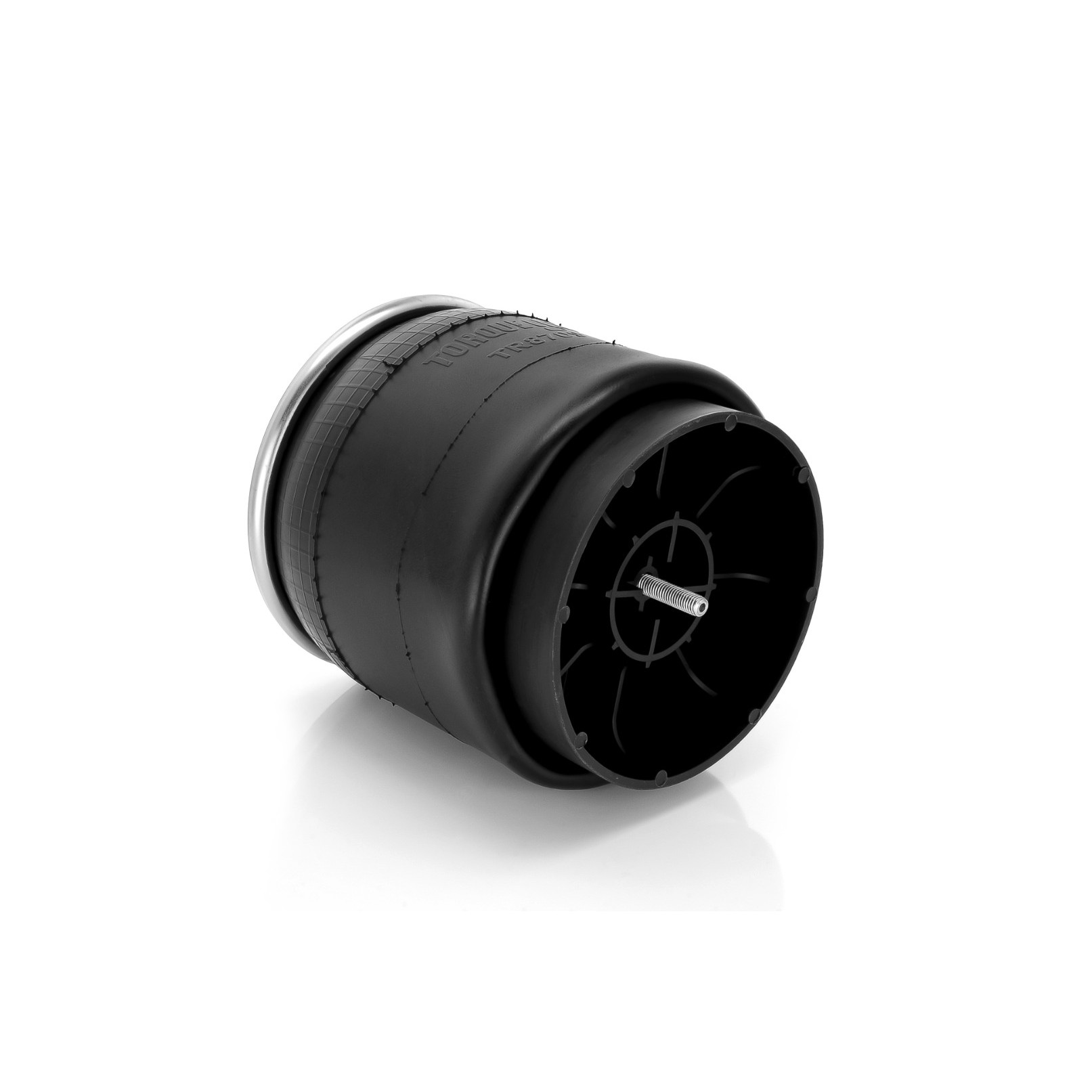

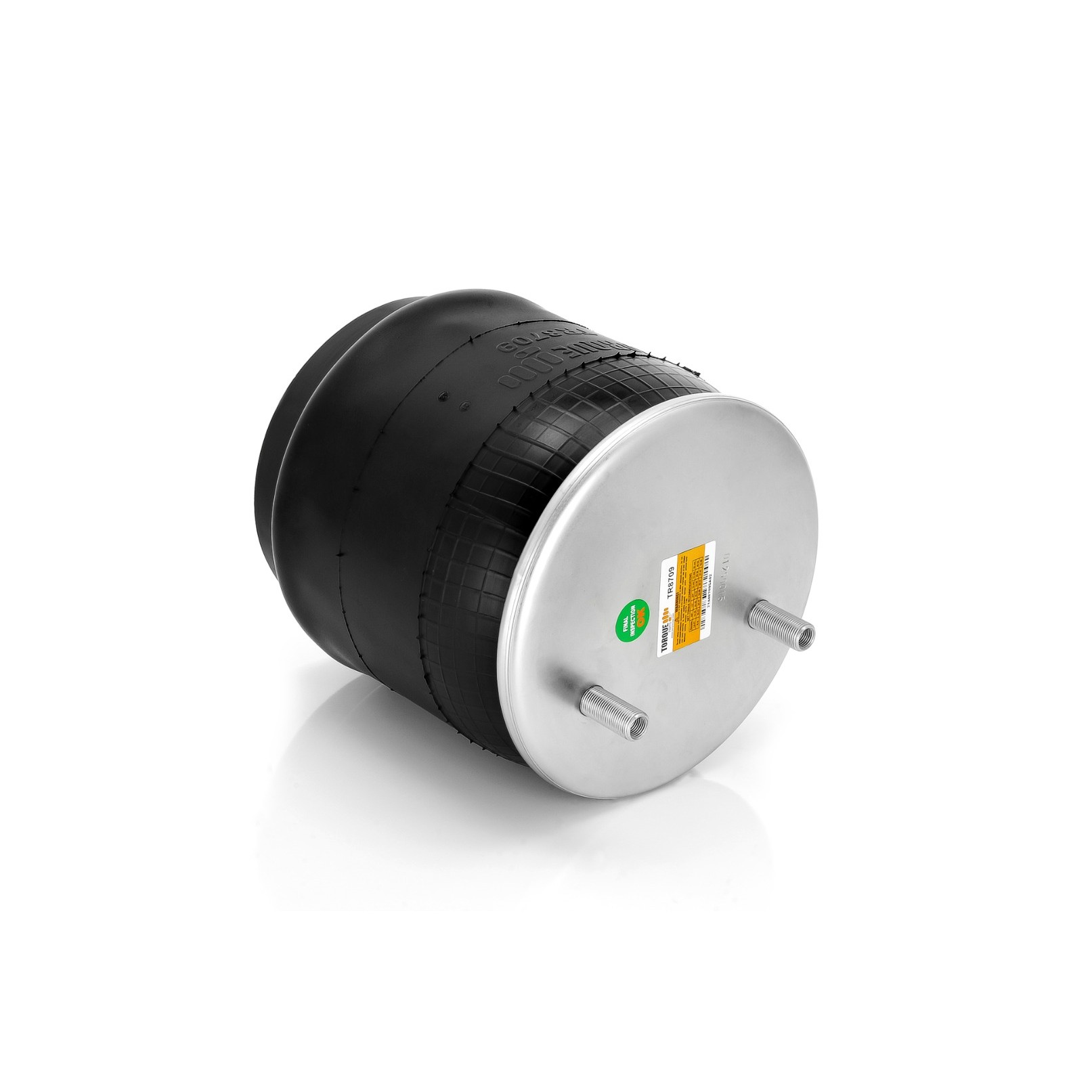

TR8709 | Trailer Air Spring
Description : Trailer Air Spring Replaces S-20900, S-21800, W01-358-8709
Part Number : TR8709
Trailer Air Spring for Hendrickson
| Brand | Reference Numbers |
|---|---|
| Alliance | ABP N32 018709 |
| Automann | AB1DK25B‑8751, 566.ER8709 |
| Contitech | 1010.5‑15P460, 64645, 1010155453, 10 10.5‑15 P 460 |
| Firestone | 8709, W013588709, W01‑358‑8709, W01‑358‑8751 |
| Goodyear | 1R13159, 1R13‑159, 1R13262, 1R13‑262, 1R13362, 1R13‑362 |
| Hendrickson | S‑20900, S‑21800, 520900, 521800 |
| Hendrickson Trailer | C21800, C‑21800, S20900, S‑20900, S21800, S‑21800 |
| IHC | 1R13‑249 |
| Neway | G2298709200 |
| Triangle | 8453, 8460, AS‑8453, AS‑8460 |
| Sampa | SP558709‑KP, SP558709KP, SP 558709‑KP |

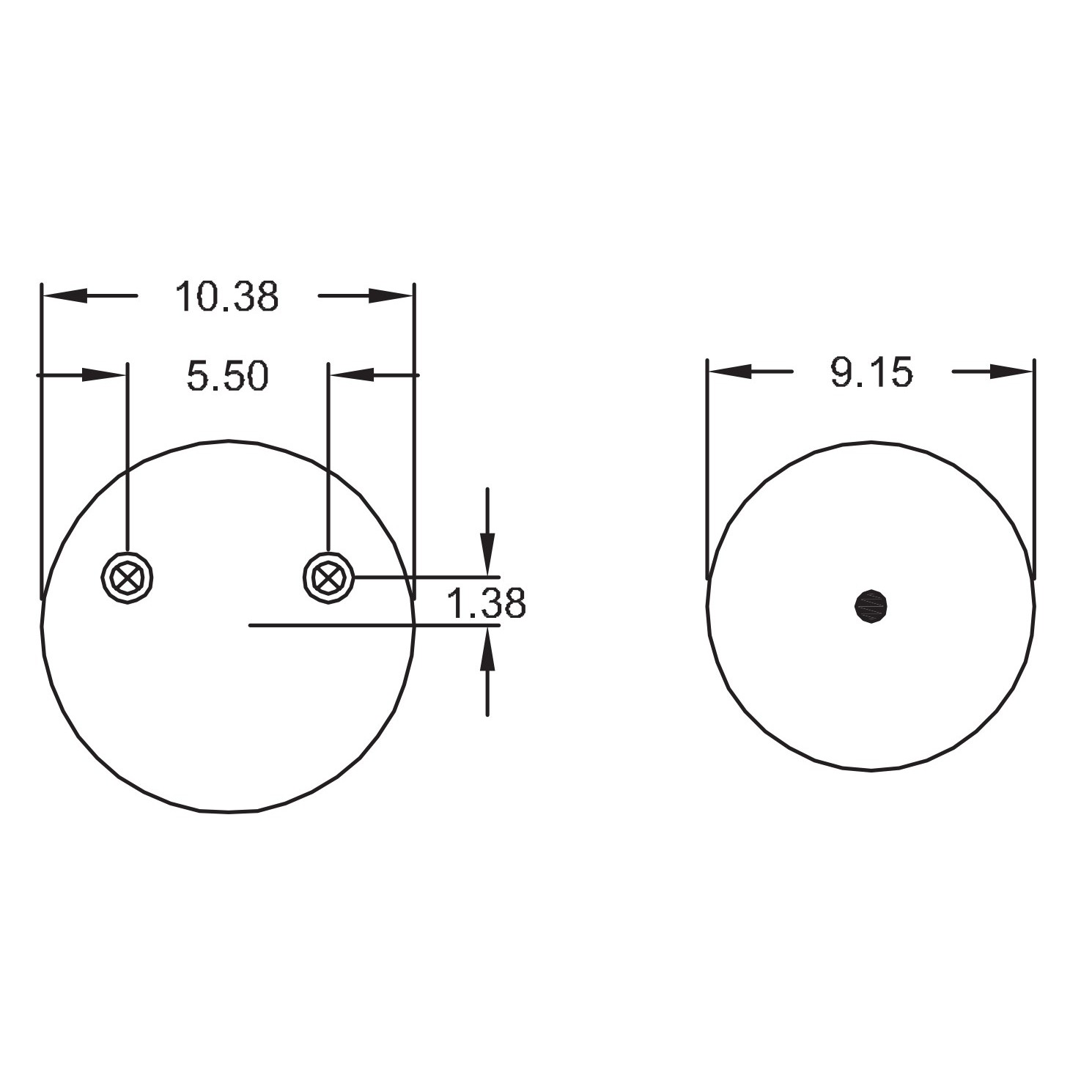

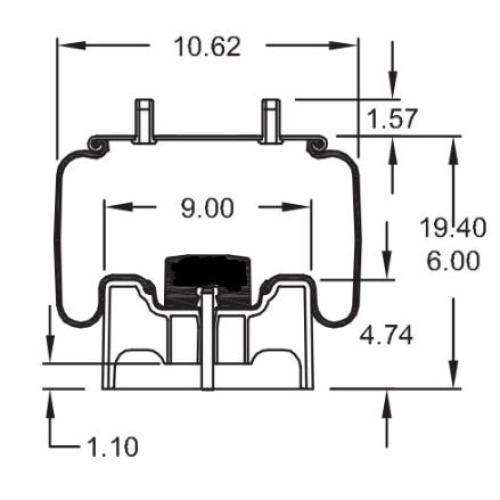

| Property | Value |
|---|---|
| Extended Height | 19.40" |
| Compressed Height | 6.00" |
| Top Plate Width | 10.38" |
| Piston Width | 9.15" |
| Weight | 14 lbs |
