TR9933 | B81-6023B Reversible Sleeve Air Spring-1
Description : Front Axle Air Spring for PACCAR Replaces B81-6023, ABSK125-9933
Part Number : TR9933
Front Axle Air Spring for PACCAR
| Brand | Reference Numbers |
|---|---|
| Automann | ABSK125‑9933 |
| Contitech | 78360 |
| Firestone | W26‑358‑9933, W263589933 |
| Kenworth | B81‑6023, B816023 |

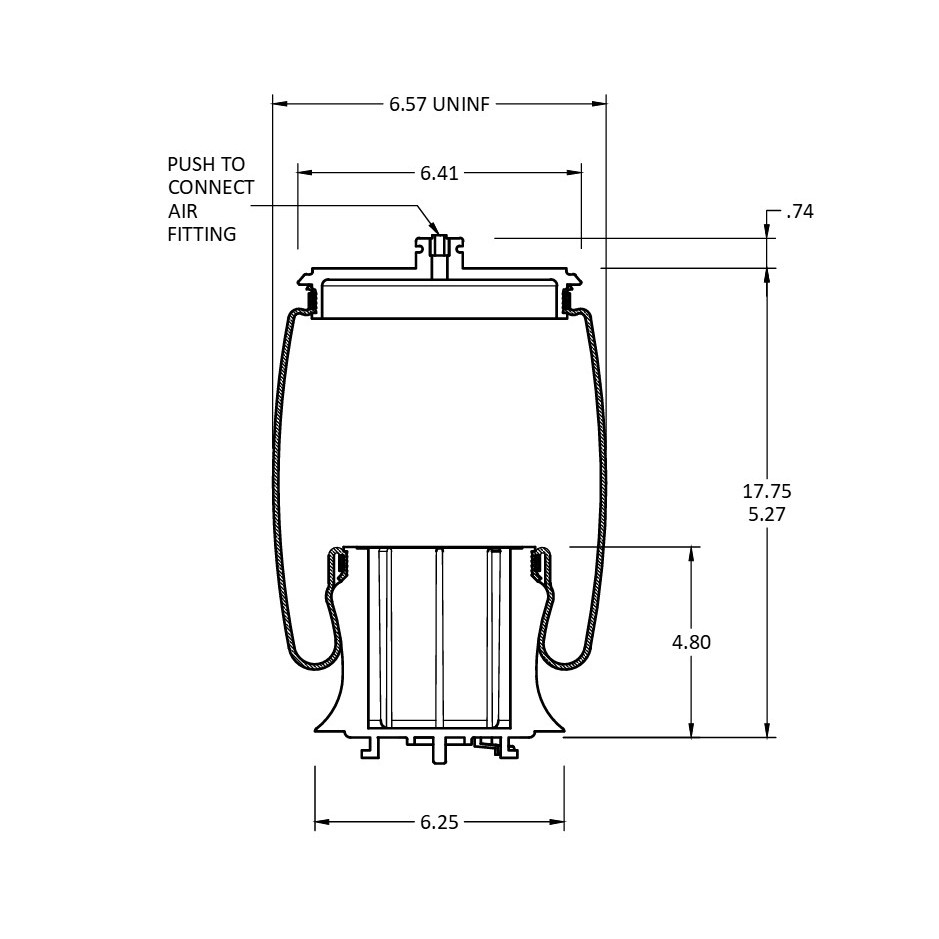

| Property | Value |
|---|---|
| Air Inlet | Push‑to‑connect air fitting |
| Design Height | 8.85" |
| Piston Diameter | 6.25" |
| Minimum Jounce Height | 5.27" |
| Extended Height | 17.75" |
| Compressed Height | 5.27" |
| Weight | 4.64 lbs |
