TR5171 | Cabin Air Spring for Volvo Trucks
Description : Cabin Air Spring for Volvo Replaces 1S5-171, 8074629, 20462622
Part Number : TR5171
Cabin Air Spring for Volvo Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑2622 |
| Sampa | 030.298‑01 |
| Contitech | 78421, SC31BG10, SC31‑BG10 |
| Goodyear | 1S5065, 1S5‑065, 1S5141, 1S5‑141, 1S5171, 1S5‑171, 579100065, 579‑100‑065, 57910014100000, 579‑100‑141‑00000, 57910017100035, 579‑1001‑710‑0035 |
| Volvo/White | 20462622, 21165207, 8074629 |

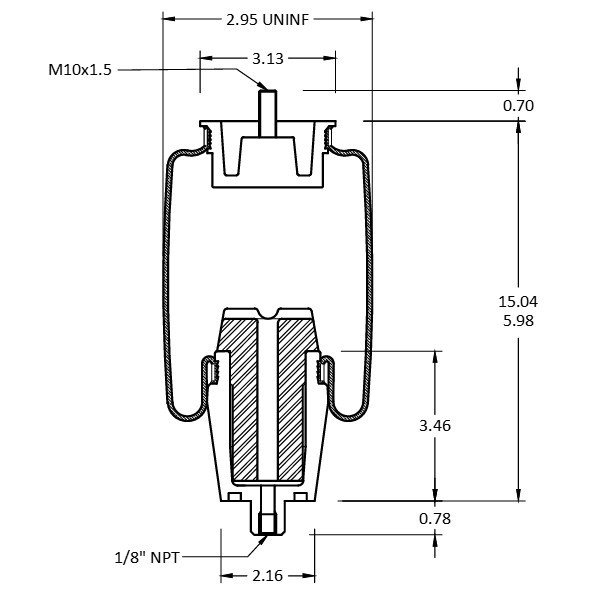

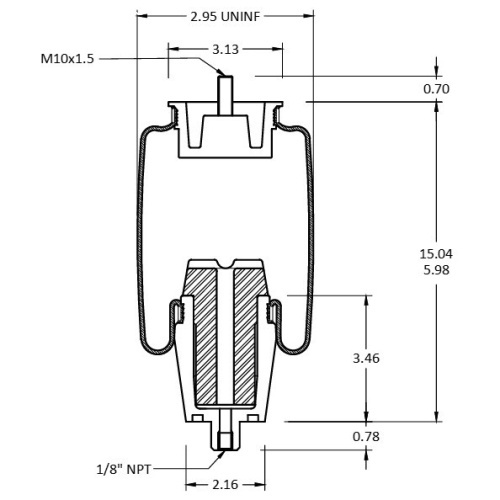

| Property | Value |
|---|---|
| Locating Pin Diameter | M10x1.5 |
| Locating Pin Height | 0.70" |
| Air Inlet | 1/8" NPT |
| Design Height | 9.05" |
| Piston Diameter | 2.16" |
| Extended Height | 15.04" |
| Compressed Height | 5.98" |
| Weight | 1.8 lbs |
