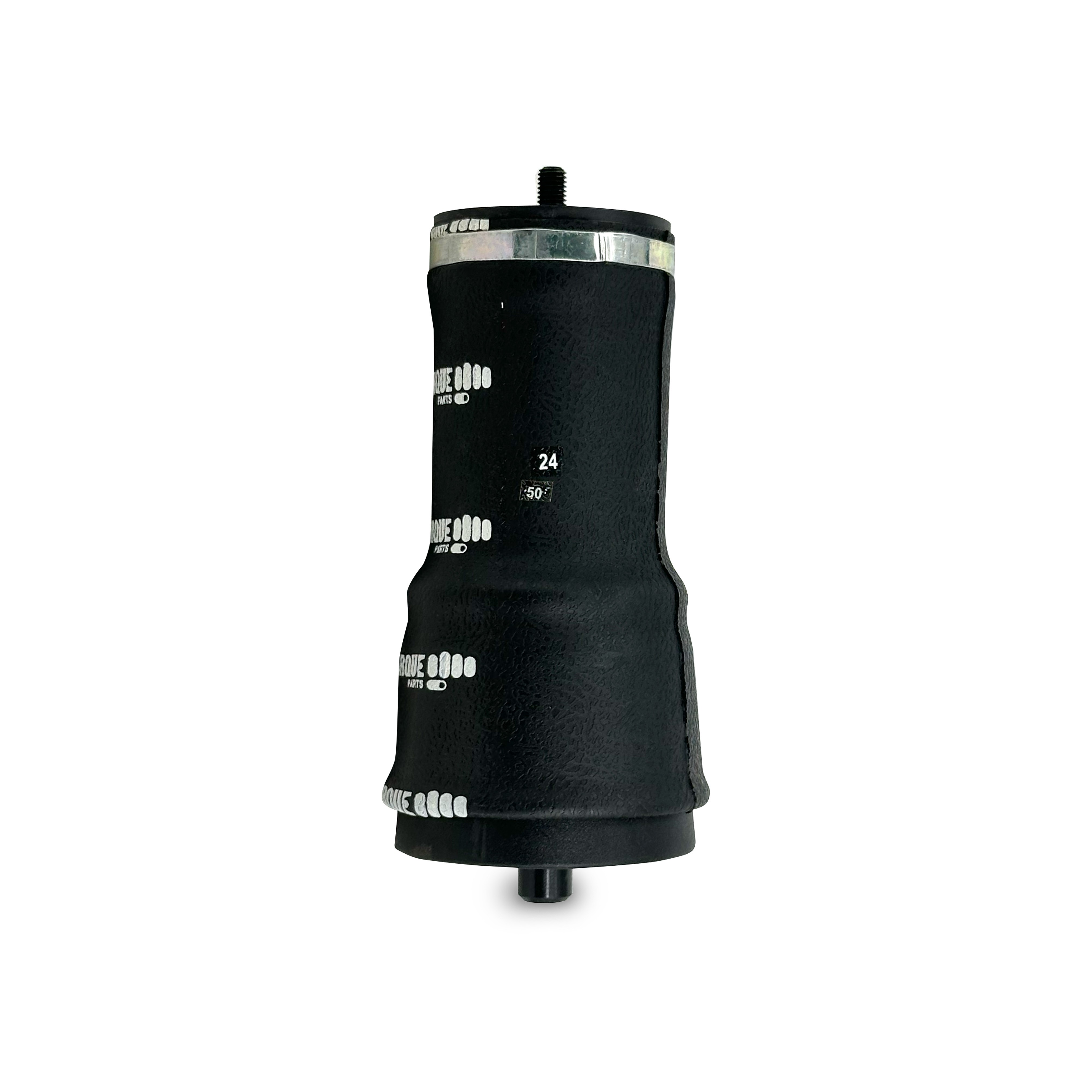

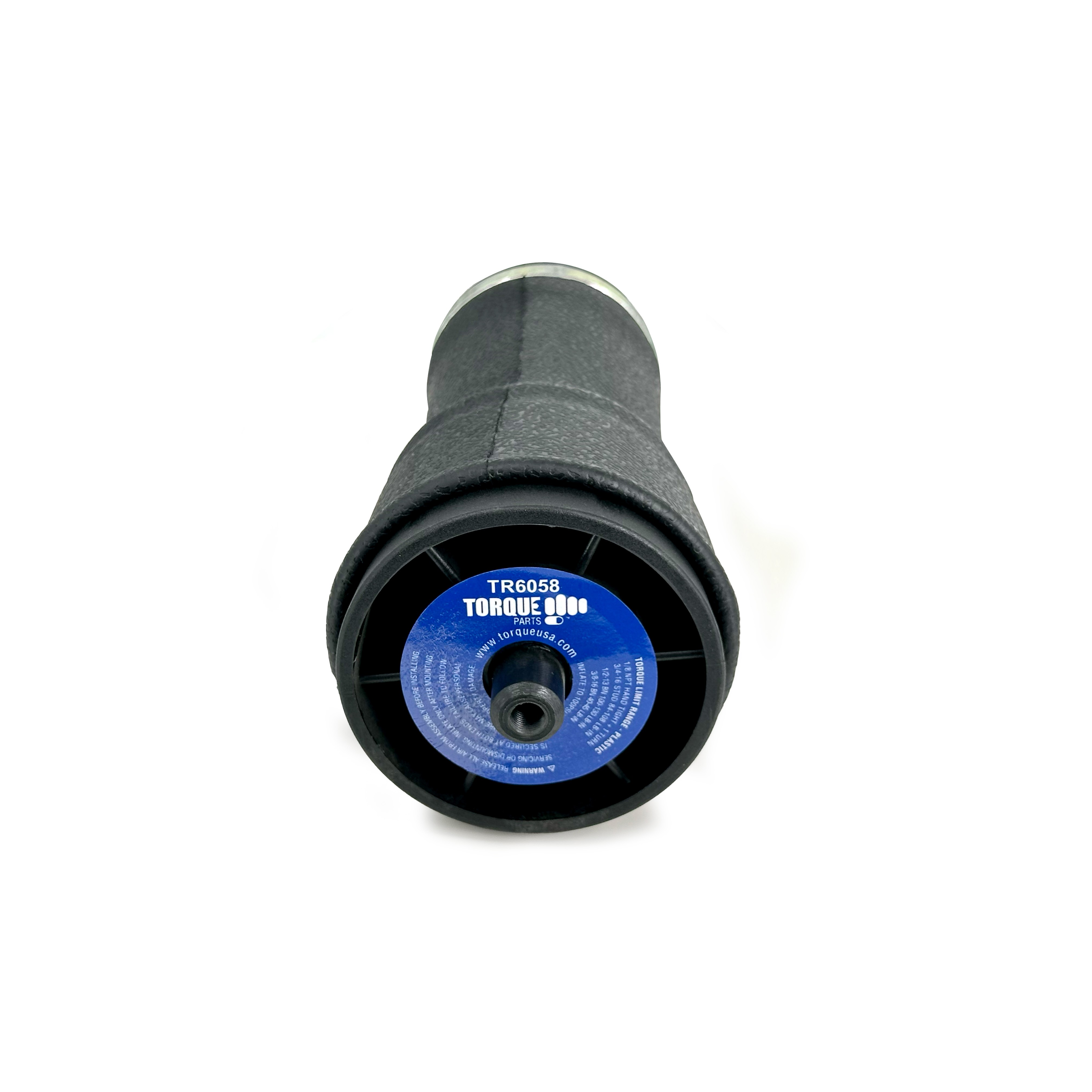

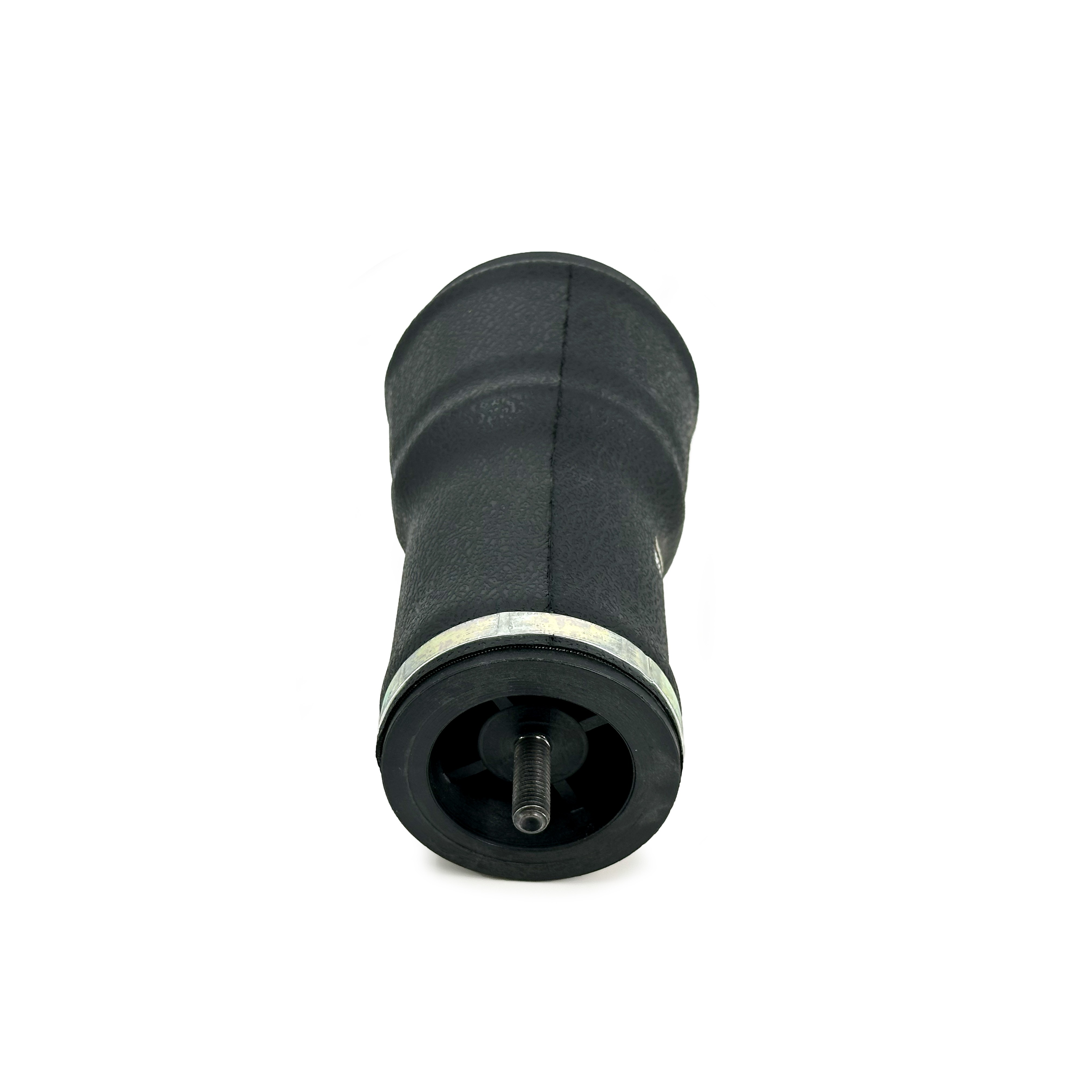

TR6058 | Cabin Air Spring for Volvo Trucks
Description : Cabin Air Spring for Volvo Replaces 1S6-058, 21165209, 20462624
Part Number : TR6058
Cabin Air Spring for Volvo Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑2624 |
| Sampa | 501.749‑01 |
| Goodyear | 1S6058, 1S6‑058, 57912005000000, 57912005800035 |
| Volvo/White | 20462624, 20463622, 21165209, 8078390 |

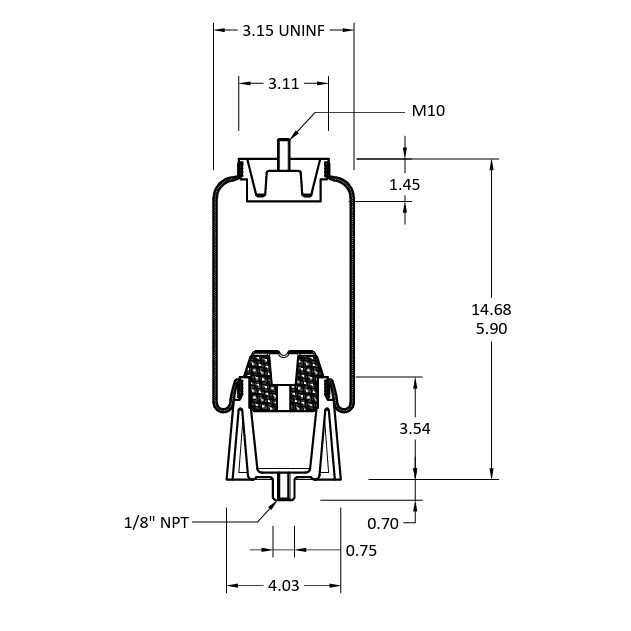

| Property | Value |
|---|---|
| Locating Pin Diameter | M10x1.5 |
| Locating Pin Height | 0.70" |
| Air Inlet | 1/8" NPT |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 4.03" |
| Extended Height | 14.68" |
| Compressed Height | 5.90" |
| Weight | 18.7 lbs |
