TR7007 | Cabin Air Spring for Mack Trucks
Description : Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Part Number : TR7007
Cabin Air Spring for Mack Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7007 |
| Sampa | 500.902‑01 |
| Firestone: | 7007, NBD9930, W02‑358‑7007 |
| Goodyear: | 1S4067, 1S4‑067, 1S6067, 1S6‑067 |
| Mack: | 25166846, 227QS34B, 227QS34A, 227QS34 |

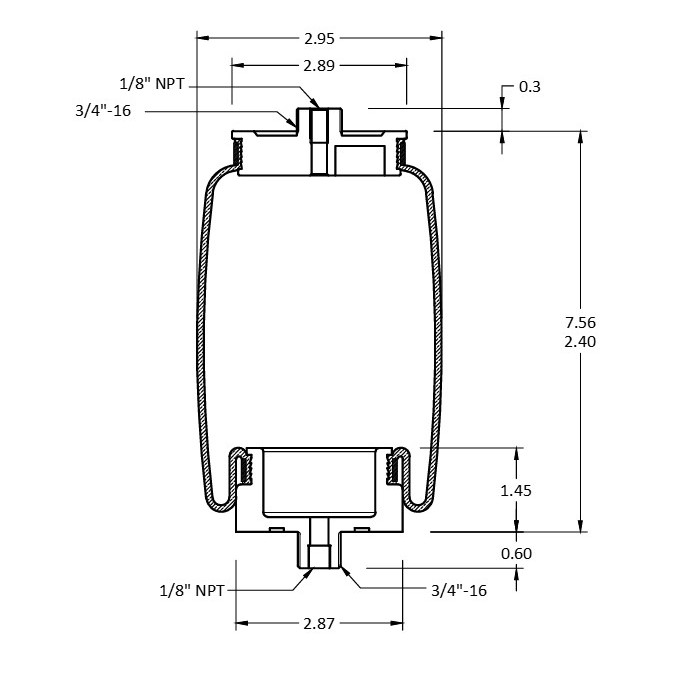

| Property | Value |
|---|---|
| Locating Pin Diameter: | 3/4"‑16 |
| Locating Pin Height: | 0.30" |
| Air Inlet: | 1/8" NPT |
| Design Height: | 8.5‑10.2" |
| Piston Diameter: | 2.87" |
| Extended Height: | 7.56" |
| Compressed Height: | 2.40" |
| Weight: | 1.8 lbs |
