TR7036 | Cabin Air Spring for Peterbilt Trucks
Description : Cabin Air Spring for Peterbilt Replaces W02-358-7036, T81-6002
Part Number : TR7036

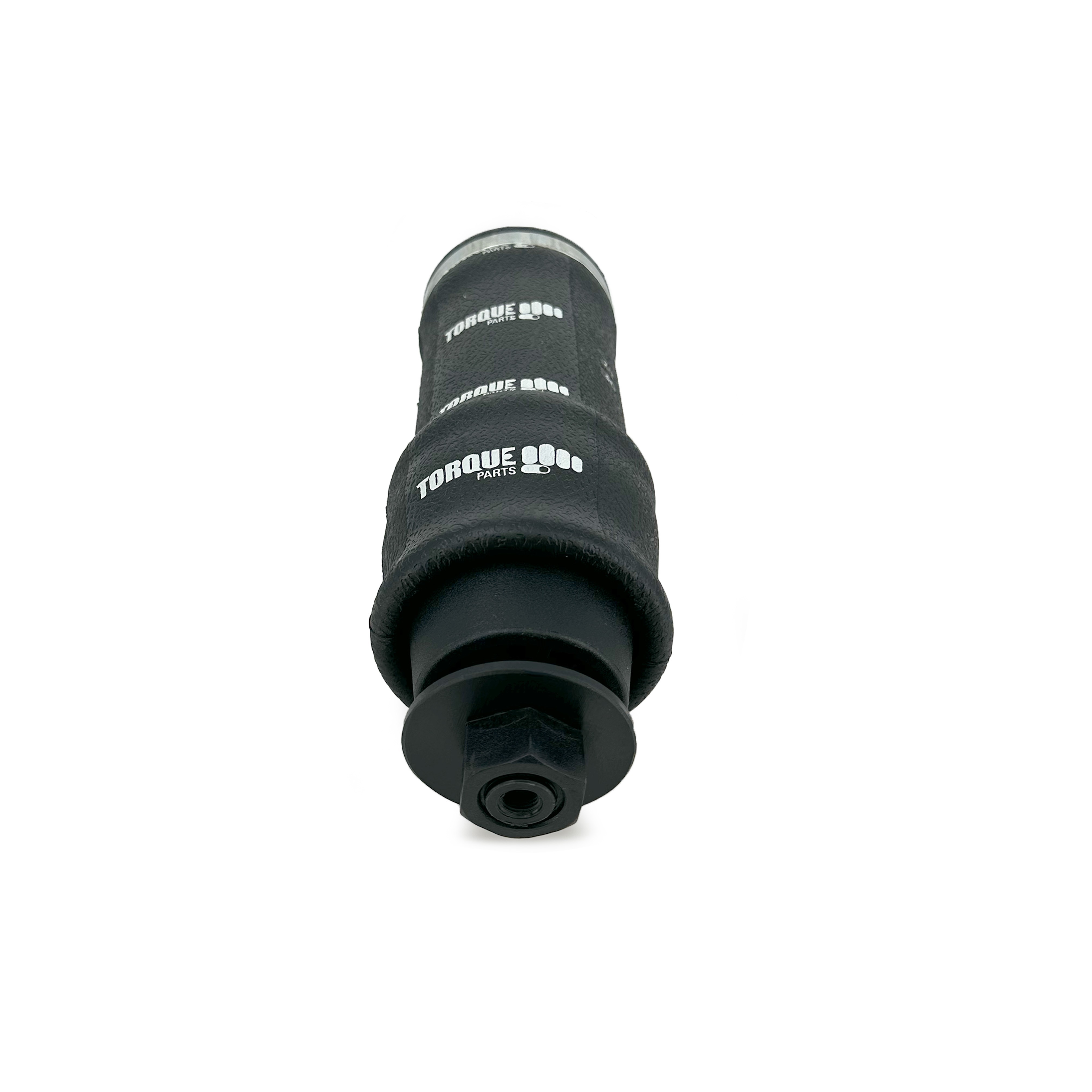

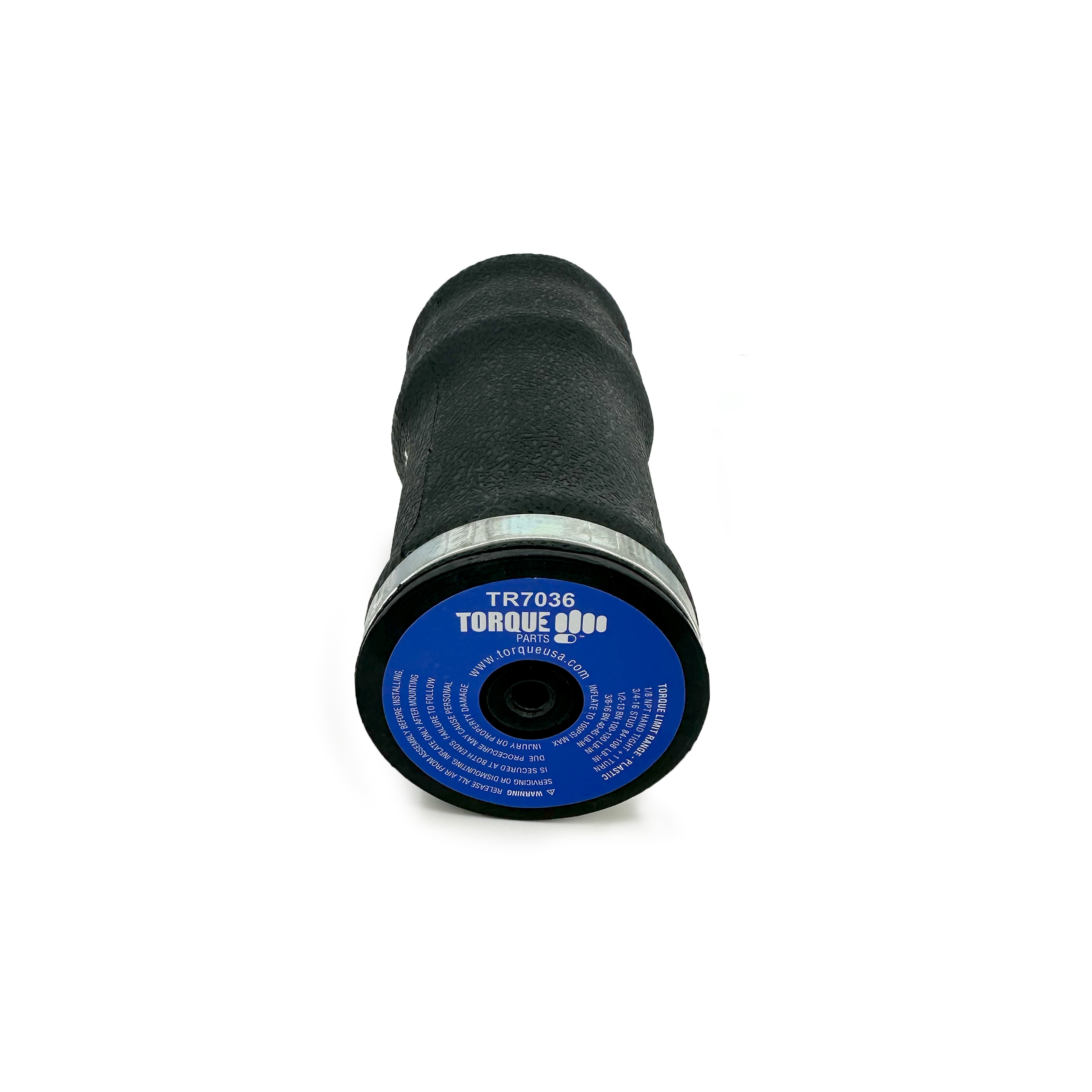

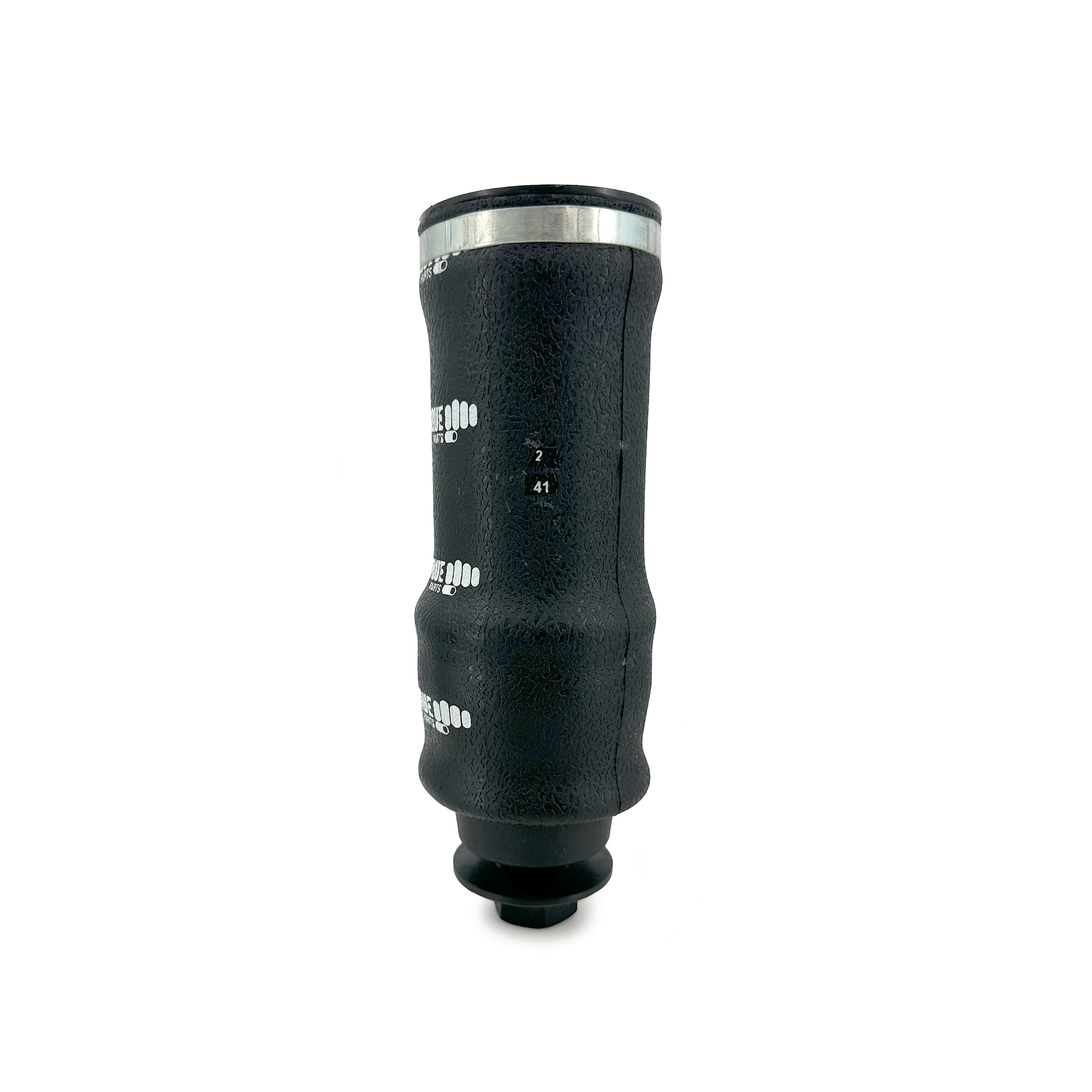

Cabin Air Spring for Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7036I |
| Sampa: | 500.903‑01 |
| Alliance | ABP N32 027036 |
| Contitech | 68162, SC29Y036, SC29‑Y036 |
| Firestone | 7036, 7066, W02‑703‑7162, W023587036, W027037036, W027037066, W027037091, W027037094, W027037162, W02‑358‑ 7036 |
| Goodyear | 1S5‑186, 1S5186 |
| Link | 1102A030 |
| Paccar | T81‑6002, T816002 |
| Peterbilt | 06527CA, 29‑02454, 29‑03200, 2902454, 2903200, W02‑703‑7066 |
| Triangle | AS‑5036, AS503 |

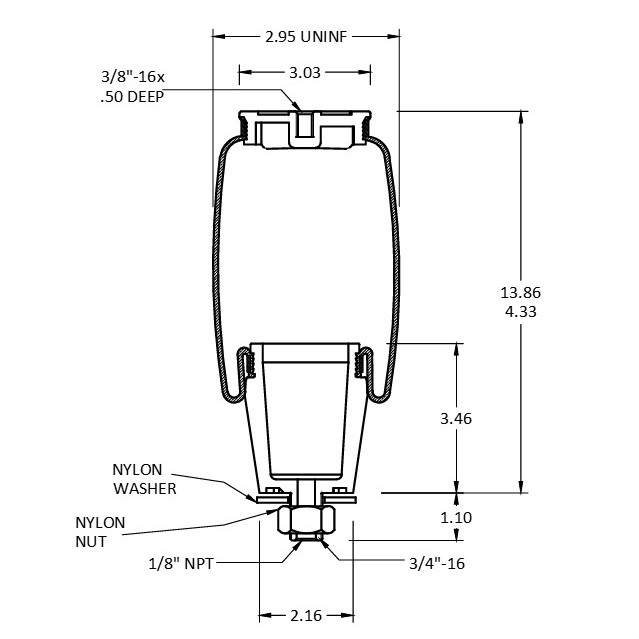

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.50" deep |
| Air Inlet | 1/8" NPT |
| Design Height | 8.66" |
| Piston Diameter | 2.16" |
| Extended Height | 13.86" |
| Compressed Height | 4.33" |
| Weight | 1.2 lbs |
