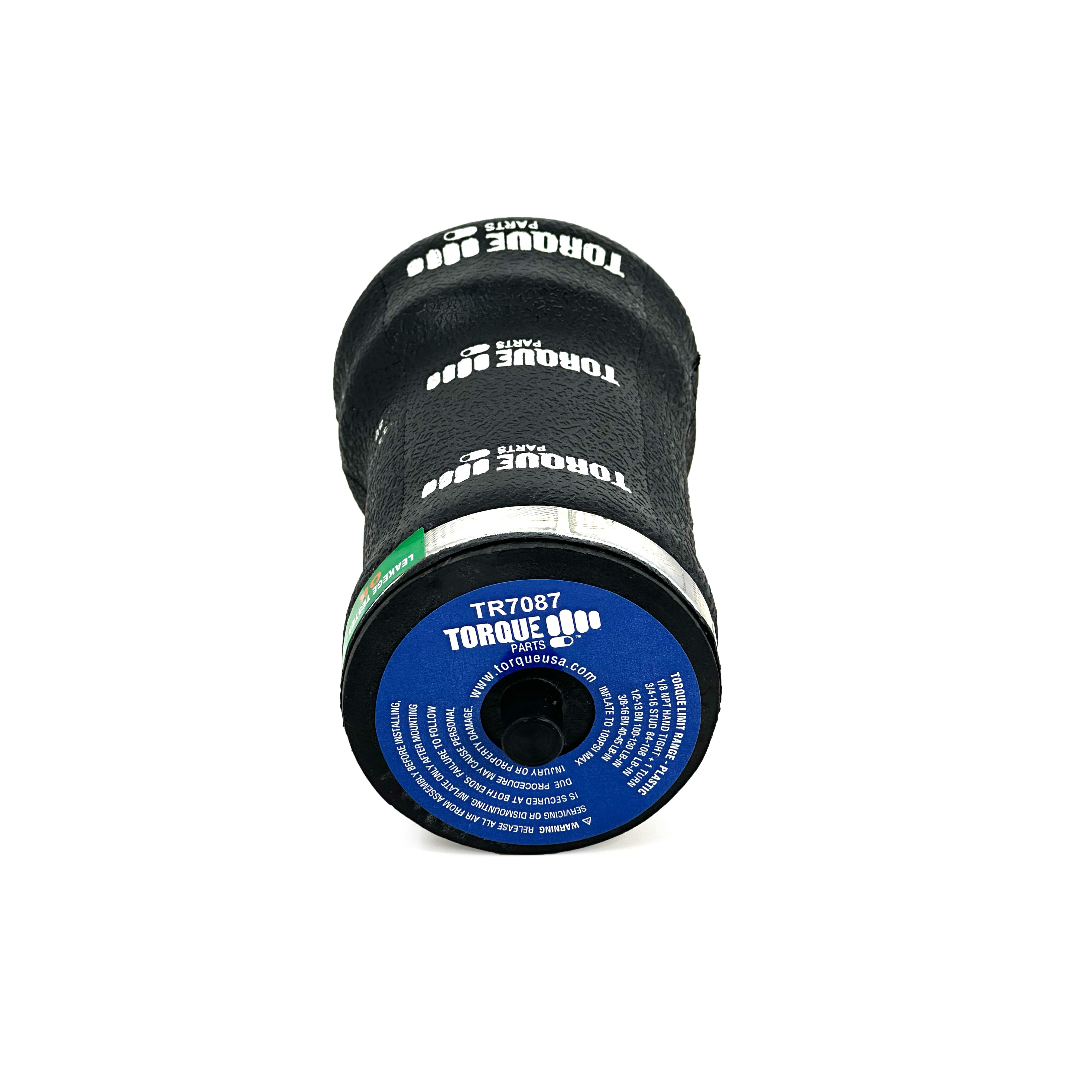

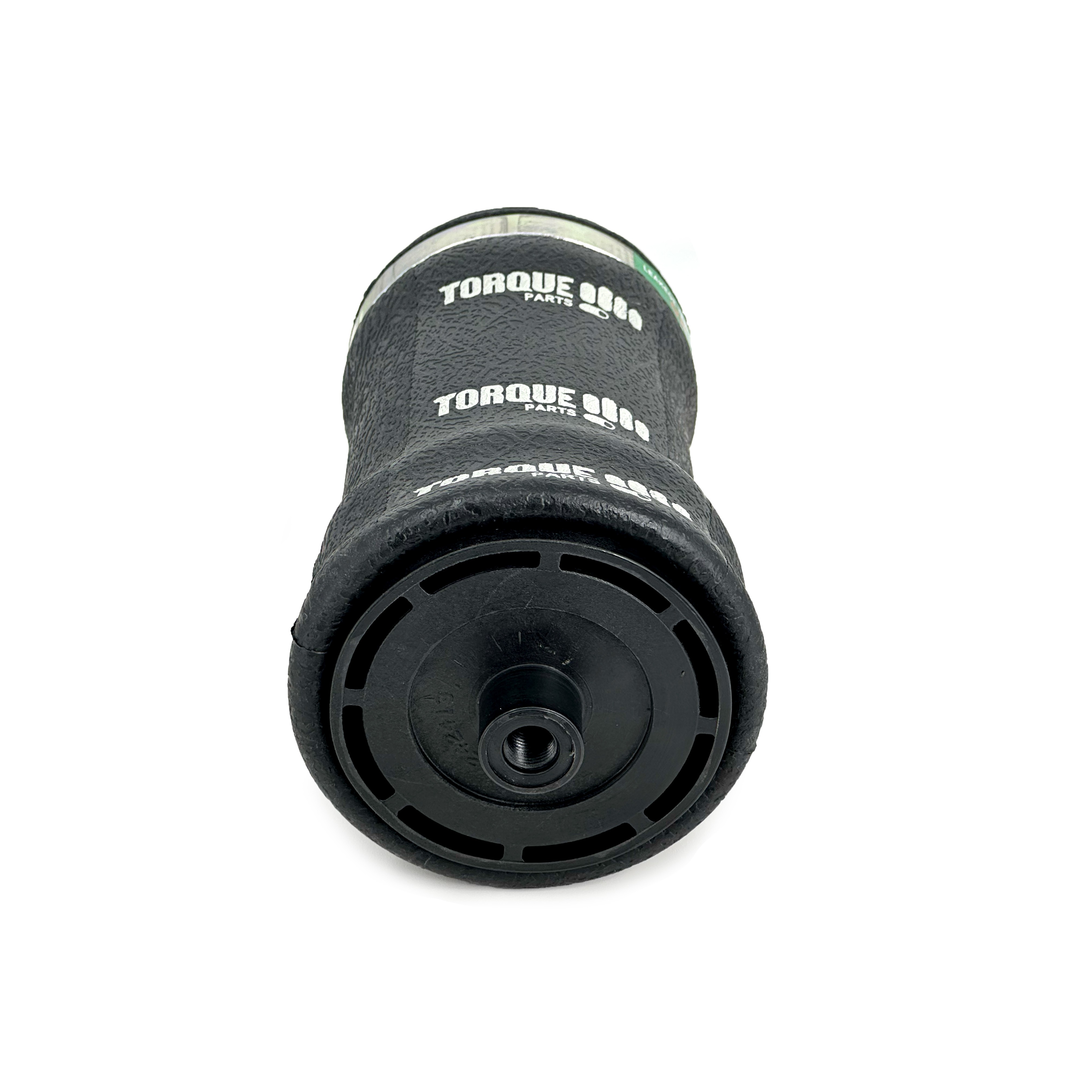

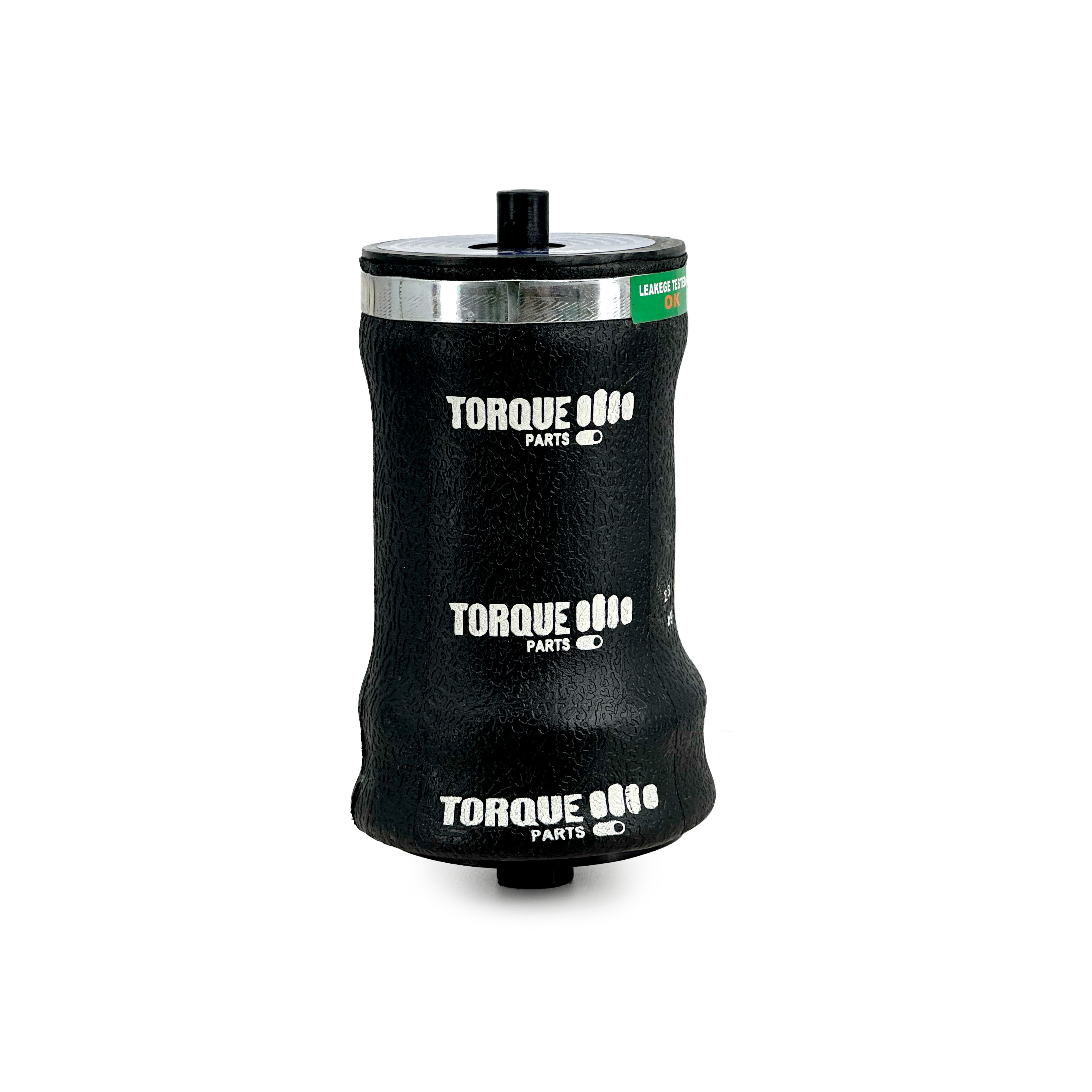

TR7087 | Cabin Air Spring for Freightliner Trucks
Description : Cabin Air Spring for Freightliner Replaces 1S5-040, W02-358-7087
Part Number : TR7087
Cabin Air Spring for Freightliner Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7087 |
| Sampa | 500.807‑01 |
| Contitech | 67636, SC29‑W087 |
| Firestone | 7087, W023587087, W02‑358‑7087 |
| Freightliner | GYR 1S5‑040, GYR1S5040 |
| Goodyear | 1S5040, 1S5‑040 |
| Oshkosh | 2218600 |

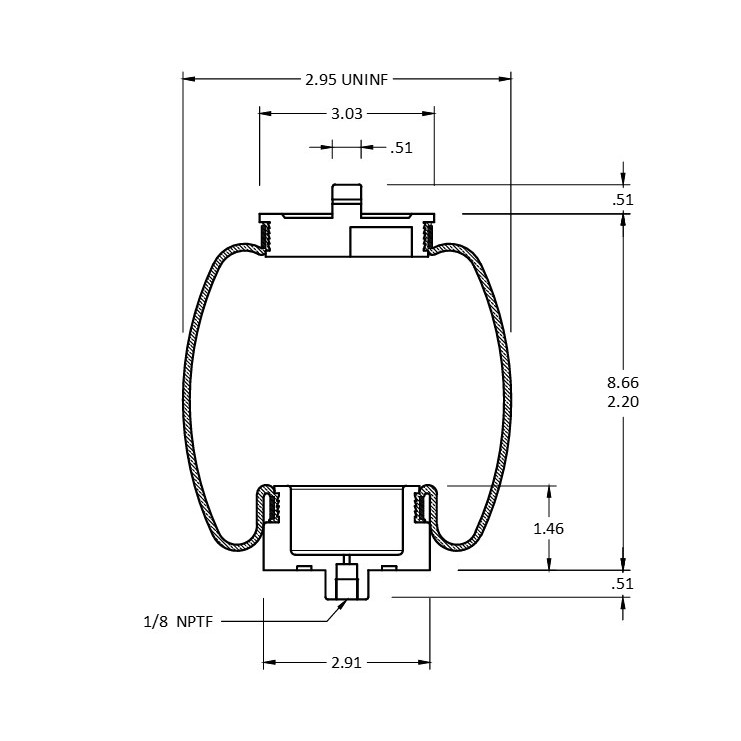

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.50" deep |
| Air Inlet | 1/8" NPTF |
| Design Height | 5.55" |
| Piston Diameter | 2.92" |
| Extended Height | 8.66" |
| Compressed Height | 2.20" |
| Weight | 0.79 lbs |
