TR7093 | Cabin Air Spring for Peterbilt Trucks
Description : Cabin Air Spring for Peterbilt Replaces W02-358-7093, 29-06016
Part Number : TR7093
Cabin Air Spring for Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7093 |
| Contitech | 75313, SC29B093, SC29‑B093, FS 530‑14 515 |
| Firestone | 7093, W023587093, W02‑358‑7093, W027037093, W02‑703‑7093, W027037112, W02‑703‑7112 |
| Goodyear | 1S5190, 1S5‑190 |
| Peterbilt | 1410108005, 2006016, 20‑06016, 2905900, 29‑05900, 2906016, 29‑06016 |
| Sampa | SP557093, SP 557093 |

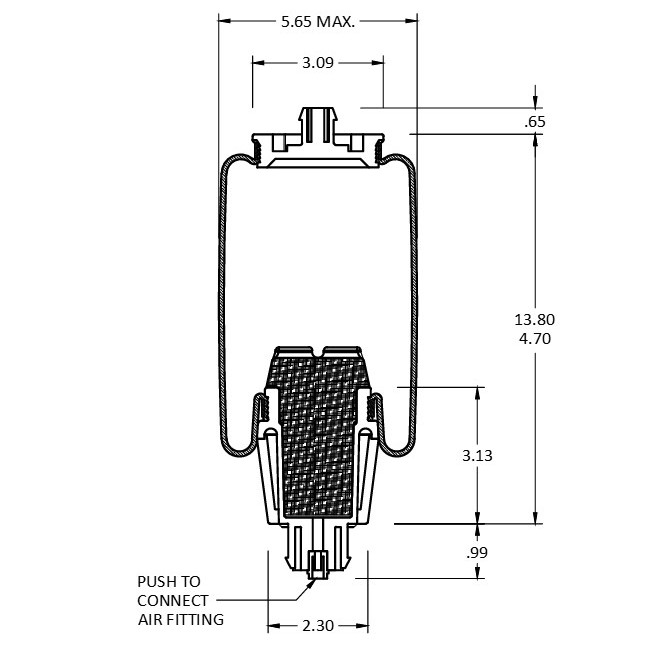

| Property | Value |
|---|---|
| Locating Pin Diameter | Push‑to‑connect |
| Locating Pin Height | 0.65" deep |
| Air Inlet | 1/8" NPTF |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.30" |
| Minimum Jounce Height | 6.05" |
| Extended Height | 13.8" |
| Compressed Height | 4.70" |
| Weight | 1.8 lbs |
